For many 3D printing enthusiasts, few things are as frustrating as a persistent hotend clog. It halts production, wastes material, and often requires a time-consuming intervention. While various factors contribute to clogs, the hotend's design plays a pivotal role. An all-metal hotend upgrade is frequently lauded as a game-changer for enhancing 3D printer reliability and mitigating these frustrating issues, particularly when working with higher temperature filaments. This guide will walk you through the process, offering insights into different solutions so you can make an informed decision for your setup.
Understanding the all-metal hotend advantage
Explore the
Snapmaker U1
Traditional hotends, often found in budget-friendly 3D printers, typically use a PTFE (Teflon) tube that extends down into the heat break, sometimes almost reaching the nozzle. While this works well for lower-temperature filaments like PLA, the PTFE can degrade and soften at temperatures exceeding 240°C, leading to inconsistent extrusion, increased friction, and ultimately, clogs. The softened PTFE can also release toxic fumes.
An all-metal hotend, as its name suggests, eliminates the PTFE liner in the heat break section. Instead, the filament path is entirely metal, usually a highly polished stainless steel or titanium alloy tube. This design allows for much higher printing temperatures (often up to 300°C or even 500°C with specific setups), making it ideal for engineering-grade filaments like ABS, PETG, Nylon, and polycarbonate. The primary benefits include:
- Enhanced clog prevention: Without PTFE to soften and deform, the risk of filament getting stuck due to friction or a constricted path is significantly reduced.
- Increased temperature capability: Print a wider array of materials that demand higher extrusion temperatures.
- Improved reliability: Fewer clogs mean more consistent prints and less downtime for maintenance.
- Better heat management: Designed with a very thin-walled heat break, all-metal hotends aim to create a sharp thermal transition zone, keeping the filament solid until it reaches the melt zone.

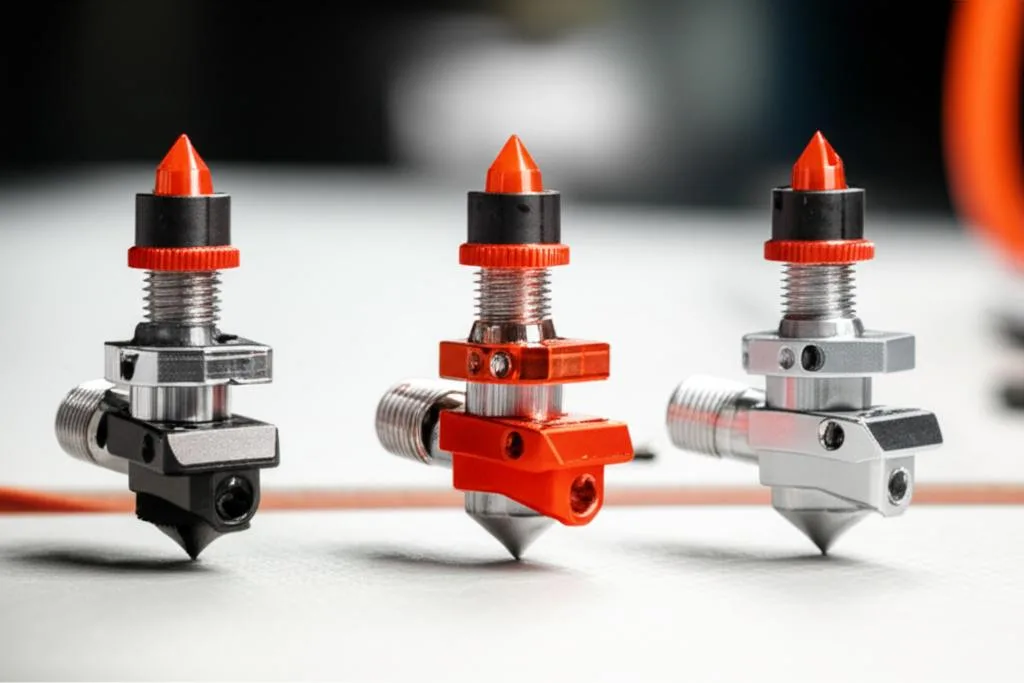

Comparing all-metal hotend solutions and their cost structures
When considering an all-metal hotend upgrade, the market offers a variety of solutions, each with its own design philosophy, features, and price point. Understanding these differences is crucial for selecting the right fit for your printer and printing needs.
E3D V6
The E3D V6 is arguably the most recognizable and widely adopted all-metal hotend in the 3D printing community. It's known for its open-source design, robust performance, and modularity. Genuine E3D V6 hotends are manufactured with precision and high-quality materials, ensuring consistent performance and longevity. They typically come in both Bowden and direct drive configurations.
- Features: Excellent thermal performance, wide range of compatible nozzles (V6 ecosystem), extensive community support and documentation, proven track record.
- Cost structure: Genuine E3D V6 hotends typically fall into a higher price bracket, reflecting their quality and brand reputation. However, numerous clones and compatible parts are available at significantly lower price points. While these can be tempting, their quality can vary wildly, potentially leading to inconsistent performance or premature failure.
- Installation considerations: Its standard form factor makes it compatible with many printer setups, though adapters or custom mounts might be required for some machines.
Phaetus Dragonfly (BMS/BMO)
Phaetus has emerged as a strong contender in the hotend market, with their Dragonfly series (BMS and BMO) gaining popularity. These hotends are often lauded for their compact design, high-flow capabilities, and ease of installation, making them an attractive option for users looking for modern performance in a smaller package.
- Features: Compact size (beneficial for lighter print heads), excellent thermal isolation, high-flow melt zone for faster printing, often designed for specific popular printers (e.g., Creality Ender series) making integration straightforward.
- Cost structure: Phaetus hotends generally sit in a mid-to-high price range, often competitive with or slightly below genuine E3D offerings, while still representing a premium product compared to generic clones. Their price reflects their innovative design and performance.
- Installation considerations: Often designed for drop-in compatibility with popular printers, simplifying the mounting process.
Other options and considerations
Beyond these two prominent examples, the market includes a plethora of other all-metal hotends, ranging from budget-friendly generic options to specialized high-performance units (e.g., Slice Engineering Mosquito, Bondtech CHT). Each offers different trade-offs in terms of price, thermal performance, and ease of integration. When evaluating these, consider:
- Printer compatibility: Does it physically fit your printer's carriage? Are adapters readily available?
- Desired performance: Do you need ultra-high flow for speed, or extreme temperature for exotic materials?
- Budget: Genuine components offer reliability but come at a cost. Clones can save money but introduce potential quality risks.
- Community support: A hotend with strong community backing can be invaluable for troubleshooting and finding resources.
Pre-installation checklist: Gathering your tools and preparing for the upgrade
Before you dive into the installation, ensure you have everything you need. A little preparation goes a long way in making the process smooth.
- Tools:
- Hex keys/Allen wrenches (various sizes)
- Small adjustable wrench or spanner
- Wire cutters/strippers
- Small screwdriver set
- Thermal paste (optional, for thermistor installation)
- Multimeter (for checking wiring, optional but recommended)
- New hotend components: Ensure you have all parts: heat block, heat sink, heat break, nozzle, heater cartridge, thermistor, and any mounting hardware.
- Thermal compound: For the heat break (if not pre-applied), and potentially for the thermistor.
- Zip ties or cable management: To neatly secure wires.
- Firmware knowledge: Be prepared to update your printer's firmware if necessary, especially for PID tuning or if your new thermistor type differs.
- Reference materials: Keep your printer's manual and the new hotend's installation guide handy.

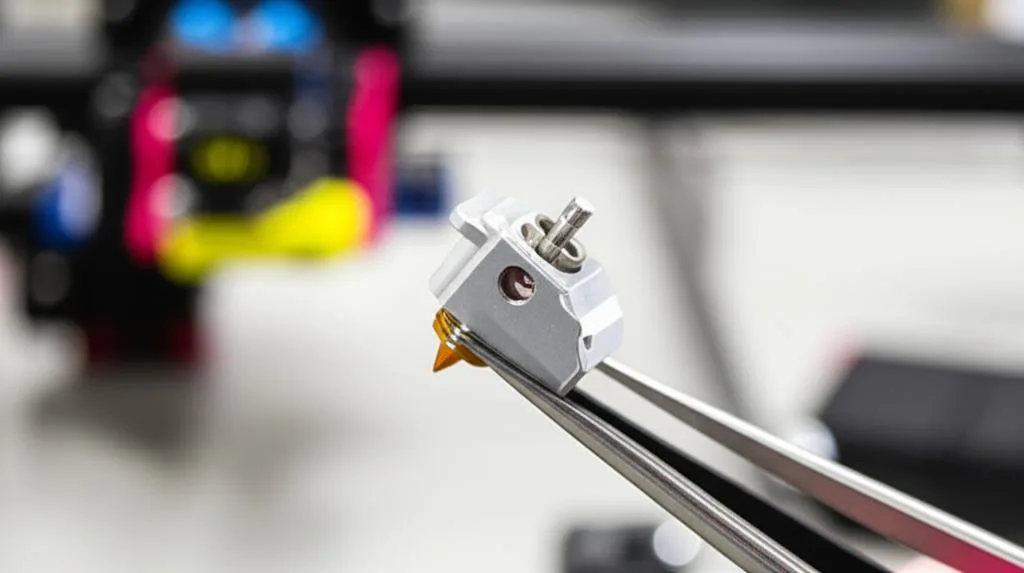

Step-by-step installation guide for an all-metal hotend
While specific steps may vary slightly depending on your printer model and the chosen hotend, the general procedure remains consistent. Always refer to your specific hotend's documentation for precise instructions.
Step 1: Power down and prepare your printer
Safety first! Disconnect your 3D printer from the power outlet. Allow the hotend to cool completely. If you were just printing, this might take a while. Once cool, remove any filament loaded in the hotend. It's often helpful to remove the fan shroud or any other accessories obstructing access to the hotend.
Step 2: Disconnect and remove the old hotend
Carefully disconnect the heater cartridge and thermistor wires from the mainboard or breakout board. Note their original positions, or take photos for reference. Then, unmount the entire hotend assembly from the printer's carriage. This usually involves unscrewing a few bolts.
Step 3: Assemble the new all-metal hotend (if not pre-assembled)
Many all-metal hotends come in modular pieces. This is a critical step for proper performance:
- Heat break installation: Screw the heat break into the heat sink. Ensure it's snug but don't overtighten yet.
- Nozzle installation (partial): Screw the nozzle into the heat block until it just touches the heat break, then back it off by about a quarter turn.
- Heat break to heat block: Screw the heat break into the heat block until it's finger tight against the nozzle. The goal is for the heat break and nozzle to meet inside the heat block, creating a sealed path for the filament.
- Heater cartridge: Insert the heater cartridge into its designated hole in the heat block and secure it with the grub screw.
- Thermistor: Insert the thermistor into its hole. Some hotends use a cartridge-style thermistor, others use a glass bead type secured with a screw or thermal paste. Be very careful not to overtighten and crush glass bead thermistors.
Step 4: Mount the new hotend to the carriage
Attach the assembled all-metal hotend to your printer's print head carriage using the provided hardware. Ensure it's securely fastened and aligned properly. If your new hotend has a different form factor, you might need to install a new mount or adapter first.
Step 5: Wire up the heater and thermistor
Connect the new heater cartridge and thermistor wires to the appropriate terminals on your printer's mainboard. Double-check your connections against your photos or the printer's wiring diagram. Ensure wires are routed safely, away from moving parts or hot components, and secured with zip ties.
Step 6: Perform a hot tightening of the nozzle
This is crucial for preventing leaks. Reconnect power to your printer (but keep your hands clear). Heat the hotend to your typical printing temperature (e.g., 240°C). Once it reaches temperature, use a wrench to gently tighten the nozzle the final quarter turn you left earlier. Do not overtighten, as this can strip threads or damage components. This ensures a tight seal between the nozzle and the heat break when the metal is expanded.
Step 7: Firmware adjustments and PID tuning
An all-metal hotend often has different thermal characteristics than a PTFE-lined one. PID (Proportional-Integral-Derivative) tuning is essential for stable temperature control. Consult your printer's firmware documentation (e.g., Marlin, Klipper) for instructions on how to perform a PID auto-tune. If you changed the thermistor type, you'll definitely need to update your firmware to reflect the new sensor type.
Step 8: Calibrate E-steps and perform a test print
The internal geometry of your new hotend might slightly affect extrusion. It's a good practice to recalibrate your E-steps (extruder steps per millimeter). Load your preferred filament and perform a small test print to check for proper extrusion, adhesion, and overall print quality.
Post-installation tips and maintenance for long-term reliability
An all-metal hotend, while more reliable, still benefits from proper care.
- Retraction settings: All-metal hotends often require different retraction settings than PTFE-lined ones. Start with lower retraction distances (e.g., 0.5-1.5mm for direct drive, 2-4mm for Bowden) and experiment to find the optimal balance between stringing and avoiding heat creep clogs.
- Cold pulls: Periodically perform a cold pull (also known as an atomic pull) to clean out any residual burnt filament or debris from the nozzle and heat break.
- Maintain cleanliness: Keep the exterior of the hotend and the print area clean.
- Monitor for wear: Regularly inspect your nozzle for wear, especially if printing abrasive filaments.
Upgrading to an all-metal hotend is a significant modification that can dramatically improve your 3D printing experience by boosting reliability and expanding material capabilities. By carefully considering the different options available, understanding their respective features and cost implications, and following a meticulous installation process, you'll be well on your way to enjoying more consistent and frustration-free 3D printing.
