The ultimate guide to clearing stubborn 3D printer hotend clogs without disassembly

A 3D printer hotend clog is arguably one of the most frustrating issues a maker can encounter. It brings your creative process to a grinding halt, resulting in failed prints, wasted filament, and a healthy dose of exasperation. While the immediate urge might be to dismantle your hotend entirely, often leading to more headaches and potential damage, the good news is that many stubborn clogs can be cleared effectively without resorting to full disassembly. This guide will walk you through a systematic approach, offering a suite of techniques to get your printer back up and running, all while keeping your hotend intact.

Understanding the nature of the clog is the first step toward a successful resolution. Not all clogs are created equal, and identifying the type can significantly influence which method you choose. By approaching the problem methodically and patiently, you'll not only clear the current blockage but also gain valuable insights into preventing future occurrences.

Understanding the enemy: types of hotend clogs

Explore the
Snapmaker U1

Meet the U1

Before you grab your tools, it's crucial to diagnose the type of clog you're facing. Different symptoms point to different culprits, and a targeted approach is always more effective than a shotgun one.

Partial clogs: the insidious flow restrictors

Partial clogs are characterized by reduced extrusion. You might notice thinner lines, inconsistent layer adhesion, stringing, or even a complete stop in extrusion after a short while, only for it to resume weakly later. These often occur due to minor debris, heat creep, or filament swelling. They can be particularly tricky because some filament still passes through, making it seem like a software or slicer issue rather than a physical blockage.

• Symptoms: Inconsistent extrusion, poor layer adhesion, stringing, under-extrusion, very thin filament coming out of the nozzle.
• Causes: Small foreign particles, heat creep, filament swelling, worn nozzle.

Full clogs: the complete roadblock

A full clog is unmistakable: absolutely no filament extrudes from the nozzle, regardless of how much you push. This is typically caused by a larger piece of debris, a severe heat creep issue, or filament that has solidified completely within the nozzle or heat break. These require more direct and often more forceful intervention.

• Symptoms: No filament coming out of the nozzle at all, even when pushing manually.
• Causes: Larger foreign object, severe heat creep, prolonged heat exposure causing filament degradation, extreme filament swelling.

Heat creep clogs: the silent killer

Heat creep occurs when heat from the hotend travels too far up the heat break, causing the filament to soften and expand prematurely above the melt zone. This leads to increased friction and eventually a jam, especially with PLA due to its low glass transition temperature. It's often exacerbated by poor hotend cooling, high ambient temperatures, or excessive retraction settings.

• Symptoms: Clogging after a certain amount of printing time, filament grinding at the extruder, difficulty loading/unloading filament, particularly with PLA.
• Causes: Inadequate hotend cooling, high retraction settings, high ambient temperatures, degraded thermal paste/gap filler.

Foreign particle clogs: the unexpected intruders

Sometimes, a tiny piece of dust, a speck of charred filament, or even a fragment from your filament spool can find its way into the hotend, leading to a blockage. These are often sudden and can manifest as either partial or full clogs, depending on the size of the particle.

• Symptoms: Sudden onset of under-extrusion or no extrusion, sometimes accompanied by a popping sound.
• Causes: Dust, debris from filament spool, charred filament from previous prints, worn extruder gears.

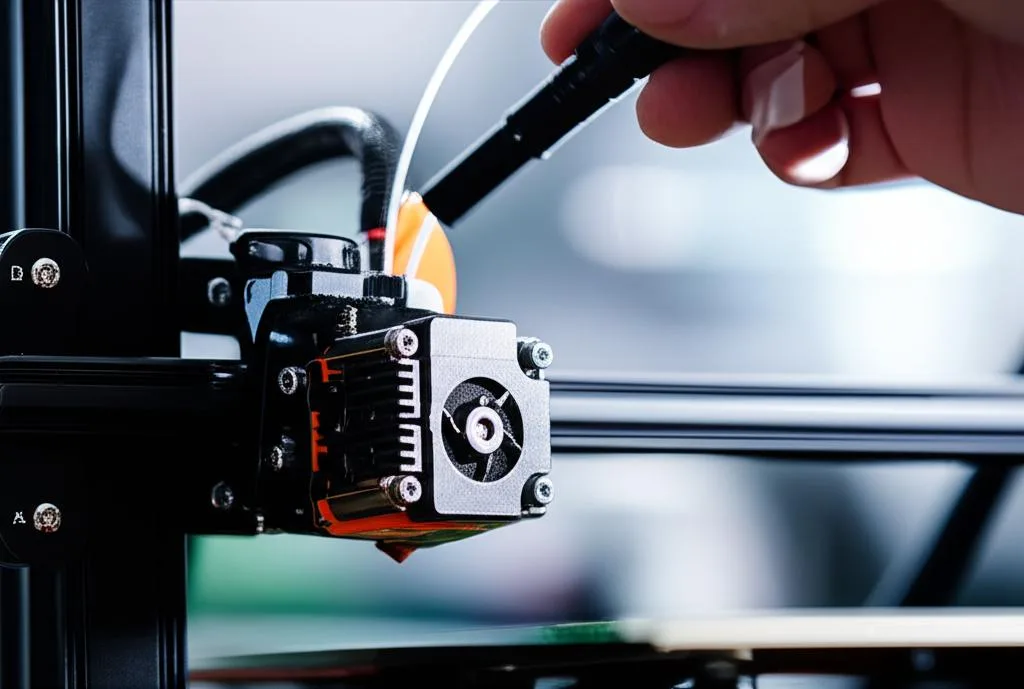

Preliminary checks: before you dive in

Before assuming a hotend clog, rule out other common issues. A misdiagnosis can lead to unnecessary effort and potential damage.

1. Is it really a clog?
   • Filament run-out: Check if your spool is empty or tangled.
   • Extruder issues: Inspect the extruder gears. Are they spinning? Is the idler arm providing enough tension? Is the filament stripped or ground down by the gears?
   • Software/slicer problems: Ensure your slicer settings (e.g., extrusion multiplier, flow rate, temperature) are correct for the filament and print.
   • Bowden tube issues (for Bowden setups): Check if the Bowden tube is properly seated, kinked, or damaged. A gap between the Bowden tube and the nozzle can cause filament to accumulate.
2. Verify temperature settings: Ensure your hotend is reaching and maintaining the correct temperature for the filament you're using. A faulty thermistor can lead to incorrect temperature readings and subsequent issues.
3. Clean the extruder gears: Filament dust can accumulate on the extruder gears, reducing their grip and leading to under-extrusion that mimics a clog. Use a small brush or compressed air to clean them.

Essential tools for non-disassembly clog clearing

Having the right tools at hand will make the process smoother and safer. These are generally inexpensive and readily available.

• Nozzle cleaning needles/acupuncture needles: Typically 0.2mm to 0.4mm in diameter, these are crucial for poking into the nozzle.
• Pliers/flush cutters: For cutting filament cleanly and handling hot filament.
• Brass brush: For cleaning the exterior of the nozzle and heat block.
• Safety gloves: To protect your hands from hot components.
• Heat-resistant mat or surface: To place hot tools or filament.
• Wrench (optional, for partial nozzle loosening): A small wrench that fits your nozzle size.
• Cleaning filament: A specialized filament designed to help clear clogs.

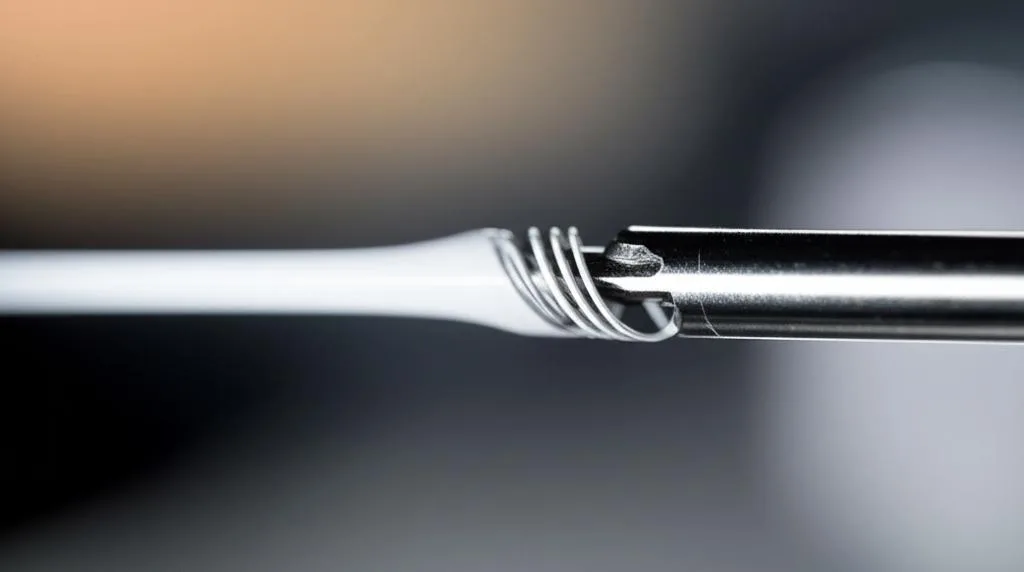

Method 1: the cold pull (atomic pull) method

The cold pull is a highly effective and gentle method for clearing partial clogs, removing charred debris, or cleaning your hotend after using abrasive filaments. It works by heating the hotend, pushing new filament through, then cooling it to a specific temperature where the filament is soft enough to adhere to debris but solid enough to be pulled out as a single plug.

When to use the cold pull:

• Partial clogs and inconsistent extrusion.
• As a preventative maintenance step.
• After printing with abrasive materials (e.g., carbon fiber, glow-in-the-dark) to clear residual particles.
• To remove filament residues when changing filament types (e.g., from PETG to PLA).

Step-by-step cold pull procedure:

1. Heat the hotend: Set your hotend temperature to the normal printing temperature of the filament currently loaded, plus an additional 10-20°C. For example, if printing PLA at 200°C, heat to 210-220°C. This ensures the filament is fully molten and can flow freely.
2. Push filament through: Once the hotend reaches temperature, manually push a fresh length of filament through the extruder. Apply firm, steady pressure until you see clean, consistent filament extruding from the nozzle. This helps to push out any loose debris and ensures the hotend is filled with fresh, molten material.
3. Lower the temperature: Crucially, lower the hotend temperature to the 'cold pull' temperature. This temperature is where the filament is still pliable but has sufficient viscosity to grab onto any debris. The ideal temperature varies by filament type:
   • PLA: 90-110°C
   • ABS: 140-160°C
   • PETG: 120-140°C
   • Nylon: 160-180°C
4. Wait for stabilization: Allow the hotend to reach and stabilize at the lowered temperature. This usually takes a minute or two. Patience here is key; pulling too early will result in a clean break, while pulling too late will be difficult or impossible.
5. Pull the filament: With a firm, steady, and continuous motion, pull the filament upwards out of the hotend. Avoid yanking or sudden jerks, as this can cause the filament to break. The goal is to extract a 'plug' that has the shape of the nozzle and heat break, ideally with a small impression of the nozzle tip.
6. Inspect the plug: Examine the extracted filament plug. A successful cold pull will have a distinct shape of the nozzle tip and potentially show charred bits, discolored filament, or other debris embedded in it.
7. Repeat if necessary: If the first pull doesn't show a clean plug or still has debris, repeat the process from step 1 until the extracted filament is clean and uniformly shaped. You may need to perform several cold pulls to achieve a perfectly clean hotend.

Troubleshooting cold pull:

• Filament breaks: If the filament repeatedly breaks during the pull, your temperature might be too low, or you're pulling too hard/fast. Try increasing the cold pull temperature by 5-10°C or pulling more gently.
• Filament won't come out: The temperature might be too high, or the clog is too severe. Try lowering the temperature slightly or try another method.

Pros and cons of the cold pull:

• Pros: Highly effective for removing embedded debris and charred filament. Relatively safe and low risk of damaging components. Excellent for routine maintenance.
• Cons: Can be time-consuming, especially for stubborn clogs. Requires precise temperature control. Might not work for completely solidified or large foreign object clogs.

Method 2: the push-through / poke-through method

This method involves using a thin, rigid object, typically a nozzle cleaning needle, to physically dislodge or break up the obstruction from the nozzle tip. It's a more direct approach suitable for solid obstructions.

When to use the push-through method:

• Stubborn clogs where a foreign particle is suspected.
• When the cold pull method hasn't fully cleared the blockage.
• For partial or full clogs located very close to the nozzle opening.

Step-by-step push-through procedure:

1. Heat the hotend: Heat your hotend to the maximum safe temperature for the filament you were using, or even 10-20°C higher (e.g., 230-240°C for PLA, 260-270°C for PETG/ABS). This helps to soften any surrounding filament and makes the obstruction easier to dislodge.
2. Insert the needle: Carefully insert a nozzle cleaning needle (typically 0.2mm to 0.4mm, matching or slightly smaller than your nozzle diameter) into the nozzle opening from below.
3. Gently push and twist: With gentle but firm pressure, push the needle upwards into the nozzle. You might feel resistance. Gently twist and move the needle up and down to try and break up or dislodge the clog. Be careful not to apply excessive force, which could damage the nozzle or heat break.
4. Attempt extrusion: While the hotend is still hot, try to manually push filament through the extruder. Observe if any filament starts to extrude. If not, repeat the poking process.
5. Perform a cold pull (optional but recommended): Once you've managed to get some flow, it's highly recommended to perform a cold pull (Method 1) to extract any remaining debris that the needle might have loosened.

Troubleshooting push-through:

• Nozzle damage: Avoid using excessive force or inserting the needle too far up the heat break, which could scratch the inner walls. Only use needles that are smaller than your nozzle diameter.
• Needle breaks: If the needle gets stuck or breaks inside, it can create a worse clog. Use good quality, flexible needles.

Pros and cons of the push-through method:

• Pros: Direct and effective for solid obstructions. Can clear clogs that are resistant to cold pulls.
• Cons: Risk of damaging the nozzle or hotend if not done carefully. Requires a steady hand and appropriate tools.

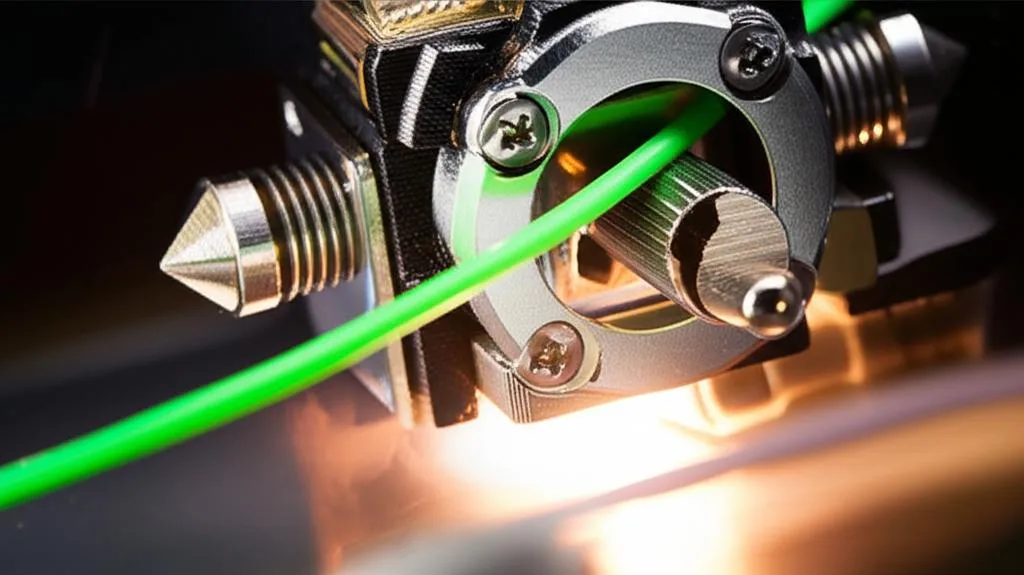

Method 3: the hot push with fresh filament

This method leverages the pressure of new, molten filament to push out the blockage. It's a straightforward approach that often works for less severe clogs or when the cold pull has partially loosened the obstruction.

When to use the hot push method:

• Less severe clogs or partial blockages.
• When a cold pull has not fully cleared the hotend.
• As an initial attempt before resorting to more invasive methods.

Step-by-step hot push procedure:

1. Heat the hotend: Set the hotend temperature to the normal printing temperature of the filament you were using, plus an additional 10-20°C.
2. Prepare new filament: Cut the end of a fresh piece of filament at a sharp angle. This creates a point that can help penetrate the clog.
3. Load and push: Insert the pointed end of the new filament into the extruder and push it through the hotend manually with firm, consistent pressure. You might feel resistance initially. Maintain the pressure, and if the clog is not too severe, the molten filament will eventually push through the blockage.
4. Observe extrusion: Watch for consistent, clean filament extruding from the nozzle. Continue pushing until the flow is clear and smooth.
5. Clean up: Once clear, retract the filament slightly and then extrude a small amount to ensure no stringing or oozing.

Pros and cons of the hot push method:

• Pros: Simple, quick, and often effective for minor clogs. Uses readily available materials (fresh filament).
• Cons: Can potentially compact the clog further if it's very stubborn and the pressure is too high. May not work for hard, solidified clogs or large foreign particles.

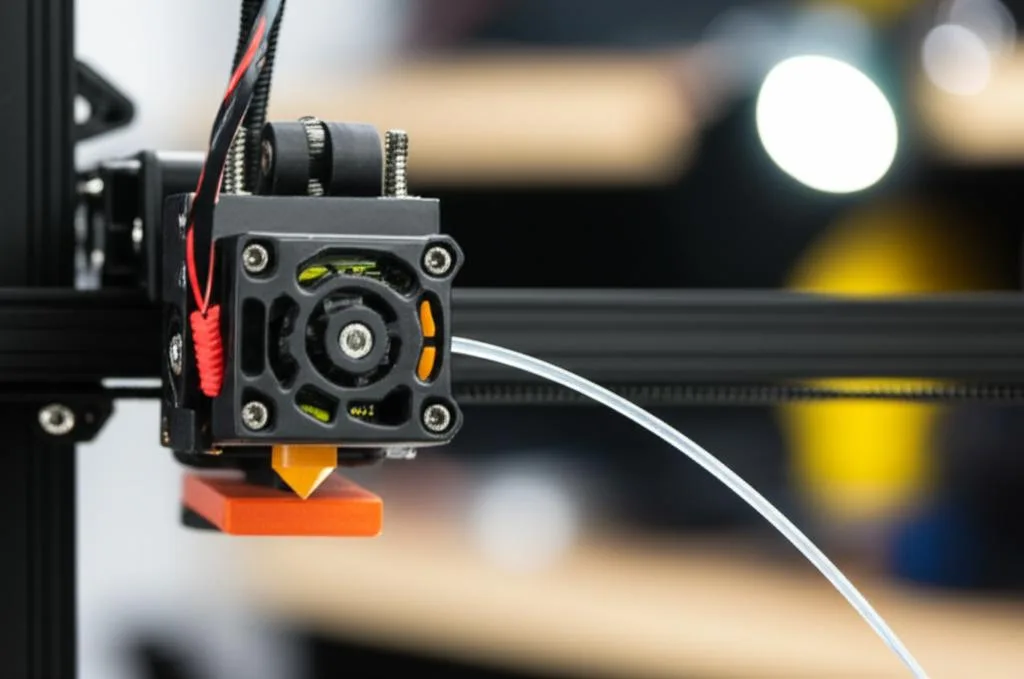

Method 4: using cleaning filament

Cleaning filament is a specialized material designed to help clear and prevent clogs. It typically has a higher melting point and unique properties that allow it to grab onto or dissolve residues within the hotend. Some are nylon-based, while others contain specific chemical agents.

When to use cleaning filament:

• Preventative maintenance, especially after printing abrasive or high-temperature filaments.
• For stubborn clogs that are difficult to remove with other methods.
• When switching between different types of filament (e.g., from ABS to PLA).

Step-by-step cleaning filament procedure:

1. Load cleaning filament: Heat your hotend to the recommended temperature for the specific cleaning filament you are using (check the manufacturer's instructions, as this varies).
2. Extrude a significant amount: Once at temperature, extrude a significant length of the cleaning filament (e.g., 20-50mm or more) to ensure it fills the hotend and has time to work on any residues.
3. Perform a cold pull (highly recommended): Many cleaning filaments are designed to be excellent for cold pulls. After extruding, lower the temperature to the recommended cold pull temperature for the cleaning filament (again, refer to manufacturer guidelines). Once stabilized, perform a cold pull as described in Method 1. The cleaning filament's properties often result in a very clean and effective plug.
4. Repeat if necessary: If the initial pull shows significant debris, repeat the process until the extracted cleaning filament is clean.
5. Load your regular filament: Once satisfied, load your regular printing filament and extrude a small amount to purge any remaining cleaning filament.

Pros and cons of cleaning filament:

• Pros: Very effective for removing stubborn residues and preventing clogs. Can be used for preventative maintenance. Some types are excellent for cold pulls.
• Cons: Requires purchasing a specific type of filament. May not work for very large or solid foreign object clogs.

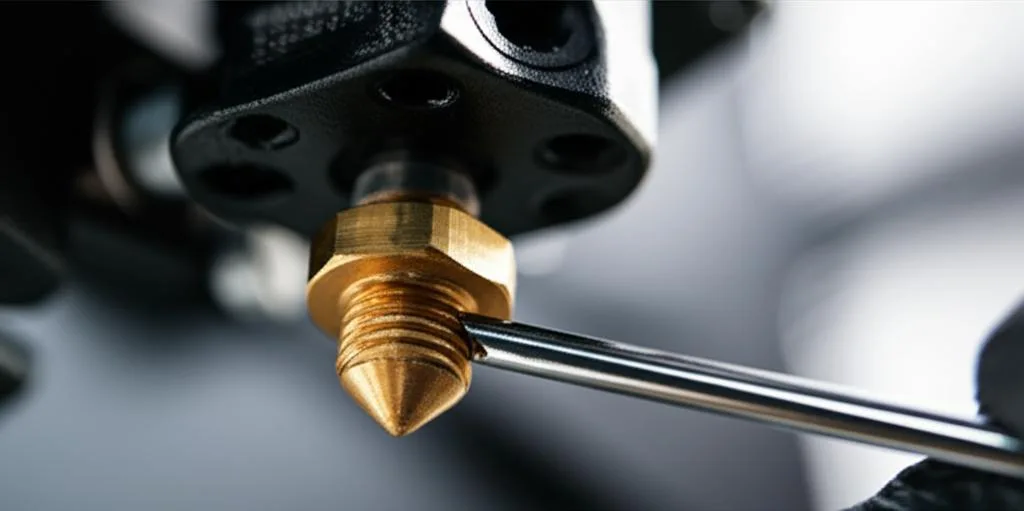

Method 5: the partial nozzle removal and reinsertion (minimal disassembly)

This method is a last resort before full hotend disassembly. It involves carefully loosening the nozzle slightly, pushing filament through to create a small gap, and then retightening. This can help dislodge clogs that are stuck right at the interface between the nozzle and the heat break.

WARNING: This method carries a higher risk of creating a leaky hotend if not performed correctly. Always tighten the nozzle while the hotend is hot to ensure a proper seal.

When to use partial nozzle removal:

• When all other non-disassembly methods have failed.
• When you suspect the clog is specifically at the nozzle-heat break junction.

Step-by-step partial nozzle removal procedure:

1. Heat the hotend: Heat your hotend to the maximum safe temperature for the filament you were using (e.g., 230-240°C for PLA, 260-270°C for PETG/ABS). This is critical to ensure the filament is molten and the hotend components can expand and contract safely.
2. Carefully loosen the nozzle: Using the appropriate wrench, carefully loosen the nozzle by only a quarter to a half turn. Do NOT remove it completely. The goal is to create a tiny gap.
3. Push filament forcefully: Immediately after loosening, manually push filament through the extruder with firm, sustained pressure. The molten filament should flow into the newly created gap, potentially pushing out the clog. You might see some filament ooze from the loosened threads – this is expected but keep it to a minimum.
4. Immediately retighten the nozzle: While the hotend is still at temperature, quickly but carefully tighten the nozzle back into place. Ensure it's snug but do not overtighten, as this can strip threads or damage the nozzle. The goal is to create a secure, leak-free seal.
5. Extrude to check: Once the nozzle is tight, extrude a small amount of filament to check for consistent flow and ensure there are no leaks around the nozzle threads.

Troubleshooting partial nozzle removal:

• Leaks: If you observe filament leaking from the nozzle threads after retightening, the nozzle was not tightened sufficiently or was not tightened while hot. Reheat the hotend and carefully tighten it again. A persistent leak may indicate damage to the threads or a poor seal, potentially requiring full disassembly.
• Nozzle damage: Overtightening can damage the nozzle or heat block threads. Use a torque wrench if you have one, or tighten firmly but without excessive force.

Pros and cons of partial nozzle removal:

• Pros: Can clear very stubborn clogs located precisely at the nozzle interface.
• Cons: Higher risk of creating a leaky hotend or damaging threads if not done correctly. Requires careful handling of hot components.

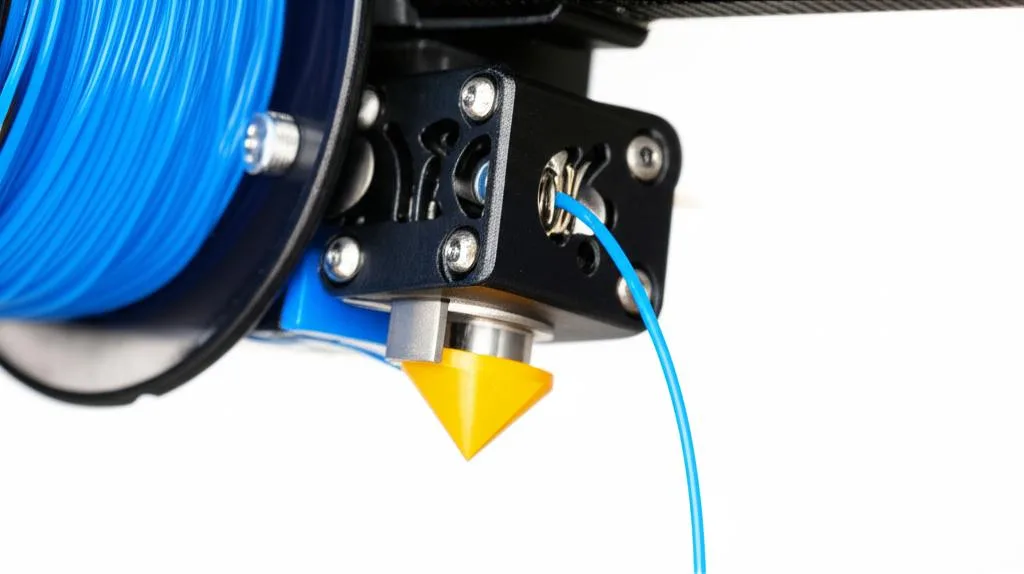

Post-clog clearance protocol

Once you believe the clog is cleared, it's important to confirm your success and take a few preventative steps.

1. Inspect nozzle for damage: Visually check the nozzle tip for any deformation, scratches, or widening of the opening, especially after using a cleaning needle. If damaged, consider replacing it.
2. Run a test print: Print a simple calibration cube, a single-wall vase, or an extrusion test. Observe the print quality carefully for consistent extrusion, good layer adhesion, and absence of stringing or gaps.
3. Check for consistent flow: Manually extrude a length of filament and observe its consistency. It should flow smoothly and evenly without bubbling, spurting, or breaking.

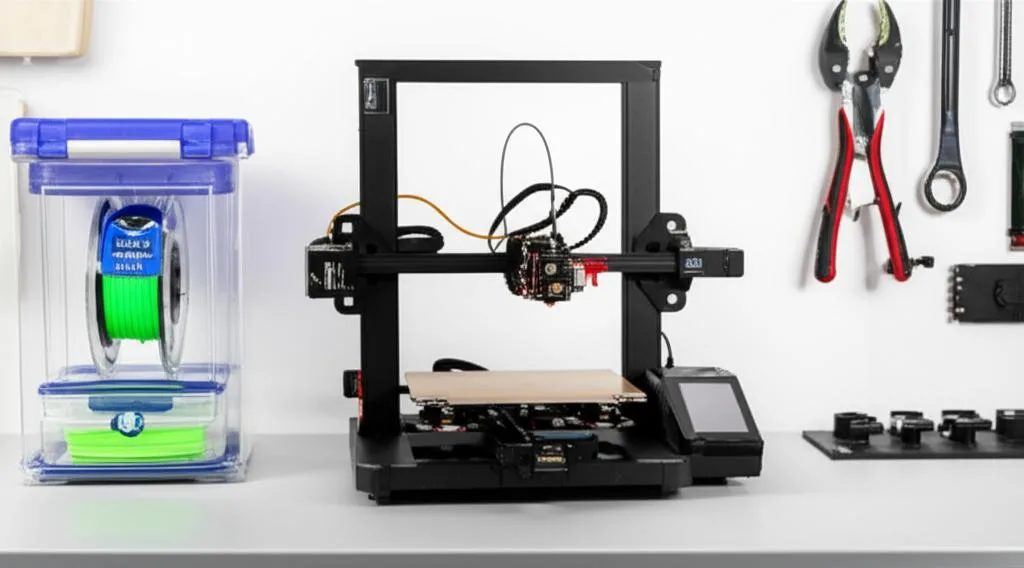

Preventative measures: avoiding future clogs

The best way to deal with clogs is to prevent them from happening in the first place. Adopting good maintenance habits and understanding the causes of clogs can save you a lot of future headaches.

• Filament quality and storage: Use high-quality, reputable filament. Store filament in a dry, airtight container with desiccant to prevent moisture absorption, which can lead to bubbling and clogs.
• Optimal temperature settings: Always print at the recommended temperature for your specific filament and printer setup. Too low a temperature can cause under-extrusion, while too high can lead to heat creep and filament degradation.
• Retraction settings: Excessive retraction distance or speed can pull molten filament too high into the heat break, causing it to cool and solidify prematurely (heat creep). Experiment with minimal effective retraction settings.
• Hotend cooling: Ensure your hotend cooling fan is working efficiently and is free of dust. Proper cooling of the heat sink is crucial to prevent heat creep.
• Regular maintenance: Perform cold pulls periodically, especially after printing with abrasive filaments or when switching filament types. Clean the exterior of your nozzle with a brass brush to remove any burnt-on plastic.
• Cleanliness: Keep your printing area and filament path free of dust and debris. Dust can accumulate on filament and be dragged into the hotend.
• Nozzle wear: Nozzles wear out over time, especially with abrasive filaments. A worn nozzle can lead to inconsistent extrusion and more frequent clogs. Replace your nozzle periodically.
• Proper filament loading/unloading: When loading or unloading filament, do so at the correct temperature and avoid grinding the filament with the extruder gears. Always ensure the filament end is cut cleanly.
• Heat break integrity: Ensure your heat break is installed correctly and that there's no gap between it and the nozzle or the Bowden tube (for Bowden setups). A gap can create a void where molten plastic can accumulate and solidify.

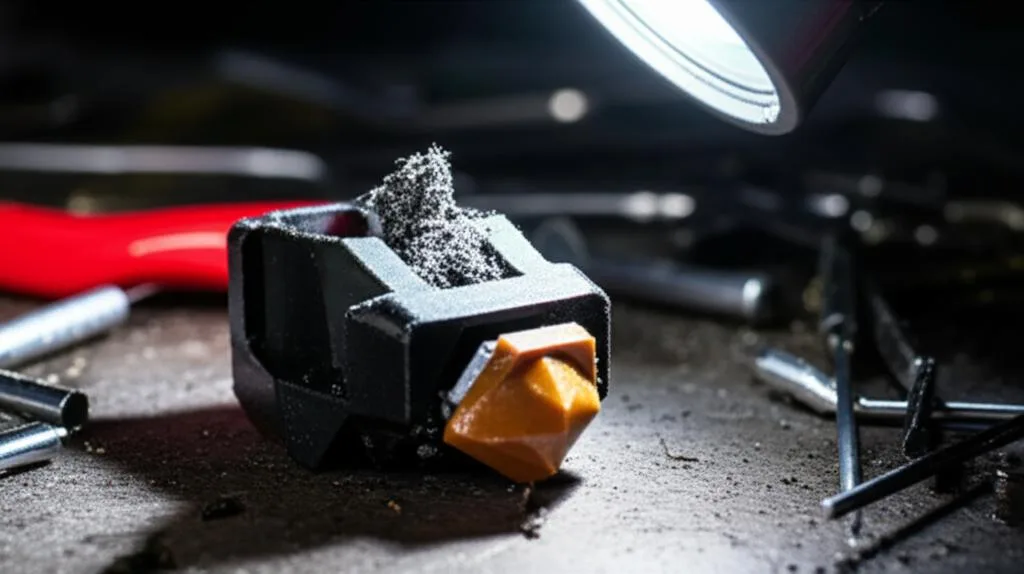

When all else fails: recognizing when disassembly is necessary

While this guide focuses on non-disassembly methods, there will be times when a clog is simply too stubborn or severe to be cleared without taking the hotend apart. It's important to recognize when to call it quits on the non-invasive methods to avoid further damage.

Consider full disassembly if:

• None of the above methods yield any improvement after multiple attempts.
• You suspect serious damage, such as a bent heat break, severely stripped nozzle threads, or a completely fused block of plastic deep within the hotend.
• There's a persistent leak from the hotend that cannot be resolved by re-tightening the nozzle.
• You've identified a foreign object that cannot be dislodged by poking or pulling.

When disassembly becomes necessary, refer to your printer's manual or reputable online guides for your specific hotend model. It often involves removing the nozzle, heat break, and potentially the heater block to thoroughly clean or replace components.

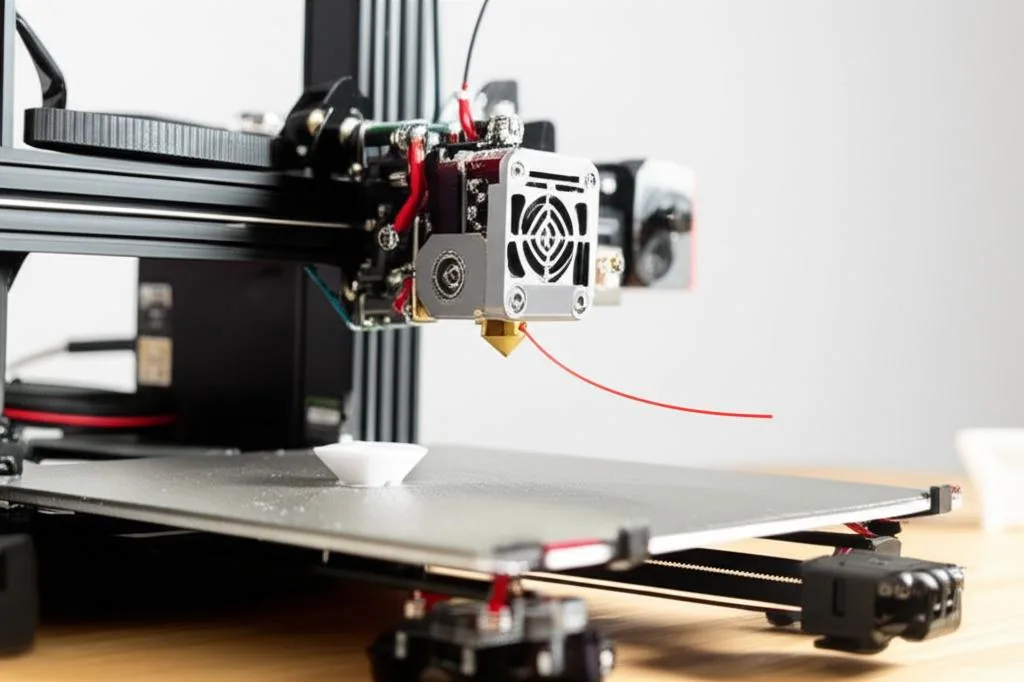

Conclusion

Clearing a 3D printer hotend clog can be a daunting task, but with patience, the right techniques, and a systematic approach, most can be resolved without the need for extensive disassembly. By understanding the different types of clogs and mastering methods like the cold pull, hot push, and targeted poking, you'll be well-equipped to tackle these common printing frustrations.

Remember, prevention is always better than cure. Adopting good maintenance practices, using quality filament, and optimizing your print settings will significantly reduce the likelihood of encountering clogs in the first place. Keep calm, troubleshoot methodically, and you'll have your 3D printer extruding smoothly once again.
