A 3D printer is a marvel of modern engineering, but like any precision tool, it thrives on routine maintenance. One of the most crucial, yet often overlooked, tasks is a simple nozzle flush. This quick clean procedure can dramatically improve print quality, prevent frustrating clogs, and extend the lifespan of your 3D printer nozzle. Think of it as a vital health check for your extruder, ensuring a clear path for consistent extrusion.
Why a nozzle flush is essential for consistent extrusion
Explore the
Snapmaker U1
Over time, even with the best filaments, tiny amounts of material residue can accumulate inside your 3D printer nozzle. This filament residue, often burnt or degraded, can lead to a host of problems: inconsistent extrusion, under-extrusion, stringing, blobbing, and eventually, a complete blockage. These issues not only ruin prints but also waste valuable time and filament. A regular nozzle flush acts as a preventative measure, clearing out these unwanted deposits before they become major headaches. It's a cornerstone of effective 3D printer maintenance.
Understanding the cost implications of nozzle maintenance approaches
When it comes to maintaining your 3D printer nozzle, there are several approaches, each with its own set of features and associated costs, both direct and indirect. Understanding these can help you make an informed decision about your routine maintenance strategy.
- Proactive Cold Pull (using standard filament): This method involves using a common filament like PLA, PETG, or ABS to perform a cold pull. The direct material cost is minimal, as you're likely using filament you already own. The primary investment is your time, typically 5-10 minutes per flush. Its feature set includes effective removal of soft clogs and residue, making it an excellent preventative measure for consistent extrusion. This approach minimizes the indirect costs associated with failed prints and wasted material.
- Proactive Cold Pull (using dedicated cleaning filament): Specialized cleaning filaments are designed to adhere particularly well to internal nozzle residue, often working across a broader temperature range. The direct cost here is the purchase of this specific filament, which is higher than using standard material. However, its feature is potentially superior cleaning efficacy, which might save time and reduce frustration in the long run, especially if you frequently switch between different filament types or print with abrasive materials.
- Reactive Mechanical Cleaning (needles, drill bits): This approach typically comes into play when a clog is already severe. Tools like cleaning needles or micro drill bits can physically dislodge stubborn blockages. The cost involves the initial purchase of these tools. While effective for hard clogs, a key feature to note is the risk of internal nozzle damage if not used carefully, potentially leading to premature nozzle replacement. This method is often a reaction to a problem rather than a preventative measure.
- Neglecting Maintenance (leading to frequent nozzle replacement): This is arguably the most expensive "solution" in the long run. While it requires no direct time investment in preventative maintenance, the indirect costs are substantial. These include the cost of numerous failed prints, wasted filament, printer downtime, and the recurring expense of purchasing and replacing clogged nozzles. The feature here is a lack of proactive effort, but at the significant expense of reliability and overall operational cost.
By weighing these options, a user can determine which strategy best aligns with their printing habits and budget, understanding that a small investment in routine maintenance often prevents much larger expenditures down the line.

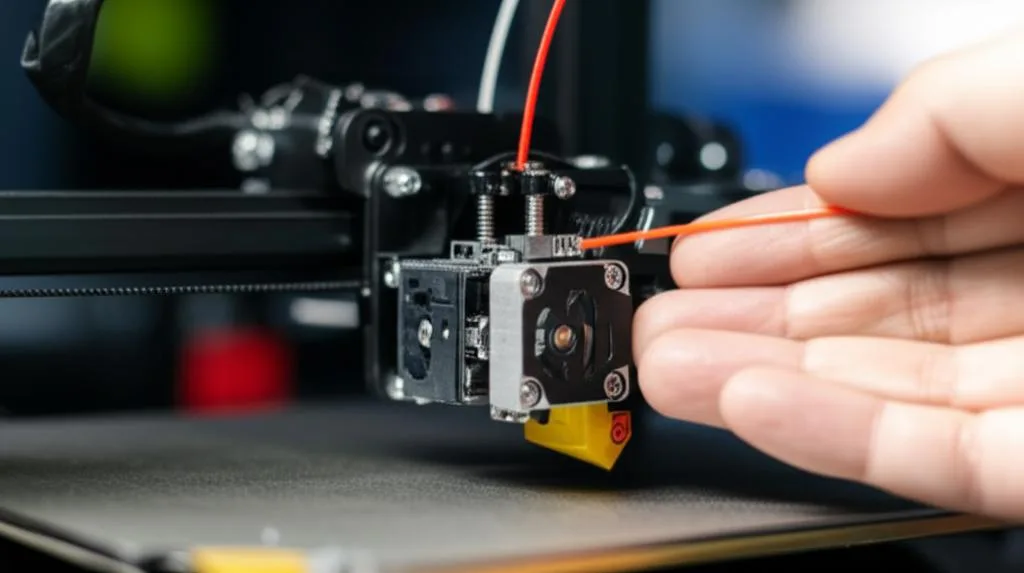

Performing the 5-minute nozzle flush: a step-by-step guide
This routine maintenance technique, often referred to as a "cold pull," is incredibly effective at removing filament residue and ensuring your 3D printer nozzle is clear. Here's how to do it.
What you'll need:
- Your 3D printer
- A spool of cleaning filament, or a robust, high-temperature filament like Nylon, PETG, or ABS (PLA can work, but higher temp materials are often more effective for grabbing residue).
- Pliers or cutters
- Heat-resistant gloves (optional, but recommended for safety)
The quick clean steps:
- Heat the nozzle to printing temperature: Start by heating your 3D printer nozzle to the typical printing temperature of the filament currently loaded or the last filament used. For example, if you were printing PLA at 200℃, heat it to 200℃. Let it stabilize for a minute or two.
- Manually extrude a small amount of filament: Push a few millimeters of filament through the nozzle to ensure it's flowing freely and to warm up the entire hotend assembly.
- Reduce temperature for the "cold" pull: This is the crucial step. Reduce the nozzle temperature significantly. The ideal temperature for a cold pull is just below the melting point of the filament you're using. For PLA, this might be around 90-110℃. For PETG, 120-140℃. For ABS, 140-160℃. The goal is for the filament to solidify enough to grab residue but remain soft enough to be pulled out.
- Wait for temperature to drop: Allow the nozzle temperature to reach your target cold pull temperature. This might take a minute or two.
- Perform the pull: Once the target temperature is reached, gently but firmly pull the filament straight up and out of the hotend. You should feel some resistance. If it pulls out too easily, the temperature might be too high. If it's stuck, the temperature might be too low, or you might have a severe clog.
- Inspect the pulled filament: Examine the tip of the pulled filament. It should have a clean impression of the nozzle's internal shape, and ideally, you'll see a small plug of black or discolored filament residue attached. This is the gunk you've successfully removed!
- Repeat if necessary: If the tip still looks dirty, or if you're experiencing persistent issues, repeat the process a few times with fresh sections of filament until the pulled tip comes out clean.
- Load new filament and resume printing: Once satisfied, load your desired printing filament, heat to its normal printing temperature, and you're ready to go.
Benefits of routine nozzle flushing for 3D printer maintenance
Explore the
Snapmaker U1
Integrating this quick clean into your routine maintenance schedule offers significant advantages:
- Enhanced print quality: A clean nozzle ensures uniform filament flow, leading to smoother layers, better adhesion, and more accurate prints. This directly translates to more consistent extrusion.
- Reduced clogs and downtime: By proactively removing filament residue, you drastically reduce the chances of severe clogs that can halt your printing projects and require more intensive intervention.
- Extended nozzle lifespan: Fewer clogs mean less stress on your nozzle, potentially extending its usable life and saving you money on replacements.
- Greater filament versatility: Regularly flushing your nozzle can help prevent cross-contamination when switching between different filament types or colors, ensuring purer prints.
“A stitch in time saves nine” holds particularly true for 3D printer maintenance. A few minutes invested in a nozzle flush can save hours of troubleshooting and failed prints.
The 5-minute nozzle flush is a simple yet powerful routine maintenance procedure that every 3D printer owner should master. By making this quick clean a regular part of your printing workflow, you'll ensure consistent extrusion, minimize frustrating issues, and keep your printer running smoothly for years to come. It’s a small effort with a massive payoff in print quality and machine longevity.
