In an age where planned obsolescence often feels like a built-in feature of our household appliances, a broken plastic clip can feel like a death knell for an otherwise perfectly functional device. Whether it's a trusty vacuum cleaner, a beloved kitchen gadget, or a child's favourite toy, a small, seemingly insignificant component can render an entire item useless. This is where the magic of 3D printing truly shines, offering a powerful, accessible, and often surprisingly simple solution to breathe new life into your broken belongings. Instead of heading to the landfill or shelling out for a costly replacement, you can become the architect of your own repair, starting with a common culprit: the elusive vacuum cleaner clip.
Why 3D printing is a smart choice for household repairs
Explore the
Snapmaker U1
When faced with a broken appliance, most people consider two main avenues: purchasing a replacement part or, more commonly, buying an entirely new unit. However, 3D printing introduces a compelling third option, one that offers unique advantages in terms of cost, customisation, and environmental impact. It's not just about fixing; it's about empowerment and sustainability.
Cost considerations
The financial outlay for a 3D printer represents an initial investment, ranging from a few hundred to over a thousand dollars depending on features and quality. However, once that investment is made, the ongoing cost per printed part, particularly for small components like a vacuum clip, is remarkably low – often just pennies worth of filament. Compare this to the cost of sourcing an original equipment manufacturer (OEM) replacement part, which can sometimes be disproportionately expensive, difficult to find, or even discontinued. The alternative of buying a brand-new appliance, while offering convenience, comes with a significantly higher price tag and contributes to consumer waste. 3D printing shifts the cost structure from recurrent, high-value purchases to a one-time capital outlay with minimal marginal costs per repair, offering long-term savings for a DIY enthusiast.
Customisation and availability
One of the most powerful features of 3D printing is its unparalleled ability to create custom, bespoke parts. OEM parts are often mass-produced and may not be readily available, especially for older models. With 3D printing, if you can design it, you can print it. This means you're not beholden to manufacturer supply chains or product lifecycles. You can even improve upon the original design, perhaps by making a clip stronger or more durable by adjusting its geometry or selecting a more robust filament. This level of control ensures that a broken part doesn't automatically mean the end of your appliance's useful life.
Sustainability and skill development
Embracing 3D print repair is also a nod to environmental responsibility. By fixing items instead of discarding them, you reduce waste destined for landfills and lessen your carbon footprint associated with manufacturing and transporting new goods. Beyond the tangible benefits, engaging in 3D design and printing cultivates valuable skills in problem-solving, digital design, and practical engineering – skills that are increasingly relevant in our technology-driven world.

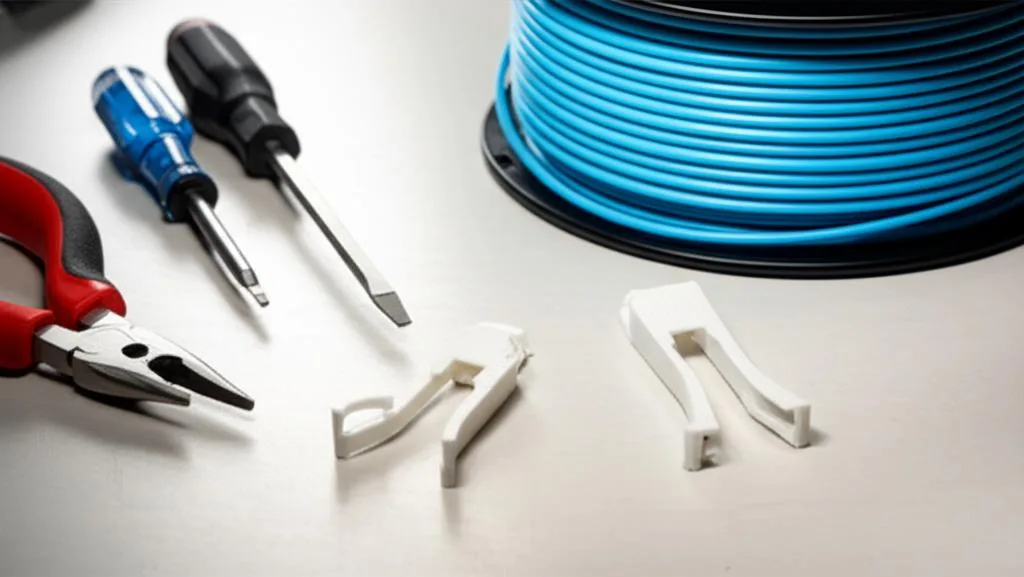

Tools and materials you'll need
Before you dive into the design and printing process, gathering the right tools and materials is crucial for a smooth and successful repair.
Essential hardware
- 3D Printer: An FDM (Fused Deposition Modeling) printer is ideal for this type of repair due to its affordability and ease of use.
- Digital Calipers or Ruler: Precision is key for accurate measurements of the broken part.
- Computer: For CAD software and slicer software.
- Basic Hand Tools: Small screwdrivers, pliers, and perhaps a hobby knife for disassembling the vacuum and post-processing the print.
Software essentials
- CAD (Computer-Aided Design) Software: Programs like Tinkercad (beginner-friendly, web-based), Fusion 360 (more advanced, professional features), or OpenSCAD (code-based) allow you to design your part from scratch or modify existing models.
- Slicer Software: This software (e.g., PrusaSlicer, Cura) translates your 3D model into instructions (G-code) that your printer understands.
Filament choices
The choice of filament significantly impacts the strength, flexibility, and durability of your custom clip. Consider the original part's properties and the stresses it undergoes.
- PLA (Polylactic Acid): Easy to print, biodegradable, and widely available. Good for parts that don't experience high stress or heat. It's a great starting point for beginners.
- PETG (Polyethylene Terephthalate Glycol): More durable, flexible, and heat-resistant than PLA. It's an excellent choice for functional parts like clips that need to withstand some force and movement.
- ABS (Acrylonitrile Butadiene Styrene): Strong and tough, often used for original plastic components. However, it can be more challenging to print due to warping and requires good ventilation.
- TPU (Thermoplastic Polyurethane): A flexible filament, ideal if your original clip had some elasticity. Can be tricky to print, but offers excellent durability and impact resistance.
Step-by-step guide to 3D printing your custom vacuum clip
Explore the
Snapmaker U1
Now, let's get down to brass tacks and walk through the process of bringing your replacement clip to life.
Step 1: Assess the damage and gather information
Begin by thoroughly examining the broken clip and its surrounding components. Understand how it functions – does it snap into place, slide, pivot? Note any stress points or areas where the original design might have failed. Take clear photos from multiple angles, which can be helpful references during the design phase. If possible, keep all broken pieces; they serve as invaluable templates.
Step 2: Measure and design the replacement part
This is arguably the most critical step. Using your digital calipers, meticulously measure every dimension of the broken clip and the area it fits into. Pay close attention to thicknesses, hole diameters, and any interlocking features. Accuracy here will save you headaches later. Once you have your measurements, open your chosen CAD software and begin designing. Start with the basic shape, then add details like chamfers, fillets, and snapping mechanisms. Think about how the part will interact with the rest of the vacuum cleaner.
Step 3: Refine your design for 3D printing
Designing for functionality is one thing; designing for 3D printability is another. Consider:
- Tolerances: Add a small clearance (e.g., 0.2-0.4mm) to mating surfaces to ensure parts fit together without excessive force.
- Overhangs: Minimise steep overhangs (angles greater than 45 degrees) or plan for support structures.
- Wall Thickness: Ensure walls are thick enough to be strong but not so thick as to waste material or increase print time unnecessarily. Typically, 1.2mm (three 0.4mm nozzle passes) is a good minimum for functional parts.
- Stress Points: Reinforce areas that will experience high stress, perhaps by adding more material or a slight curve.
Step 4: Slice and prepare for printing
Once your design is complete, export it as an STL file and import it into your slicer software. Here, you'll configure the print settings:
- Layer Height: A finer layer height (e.g., 0.16mm-0.2mm) will result in a smoother finish and potentially stronger part, but increases print time.
- Infill: For a functional part like a clip, an infill percentage of 20-40% is usually sufficient for strength without adding excessive print time or material. A rectilinear or gyroid infill pattern is generally good.
- Walls/Perimeters: Increase the number of walls (e.g., 3-5) for greater strength.
- Supports: If your design has overhangs that cannot be printed without support, enable support structures.
- Build Plate Adhesion: Use a brim or raft if your part has a small footprint or is prone to warping.
Step 5: Print the part
Load your chosen filament, ensure your print bed is level and clean, and start the print. Monitor the first few layers closely to ensure good bed adhesion. While the printer does its work, resist the urge to tinker too much. Let it do its thing!
Step 6: Post-processing and installation
Once the print is complete and has cooled, carefully remove it from the build plate. If you used support structures, carefully remove them using pliers or a hobby knife. Sand any rough edges if necessary. Test the fit of your new custom clip. It might take a couple of iterations to get the fit just right – this is a normal part of the process! Once satisfied, install your newly printed clip and enjoy your revived vacuum cleaner.

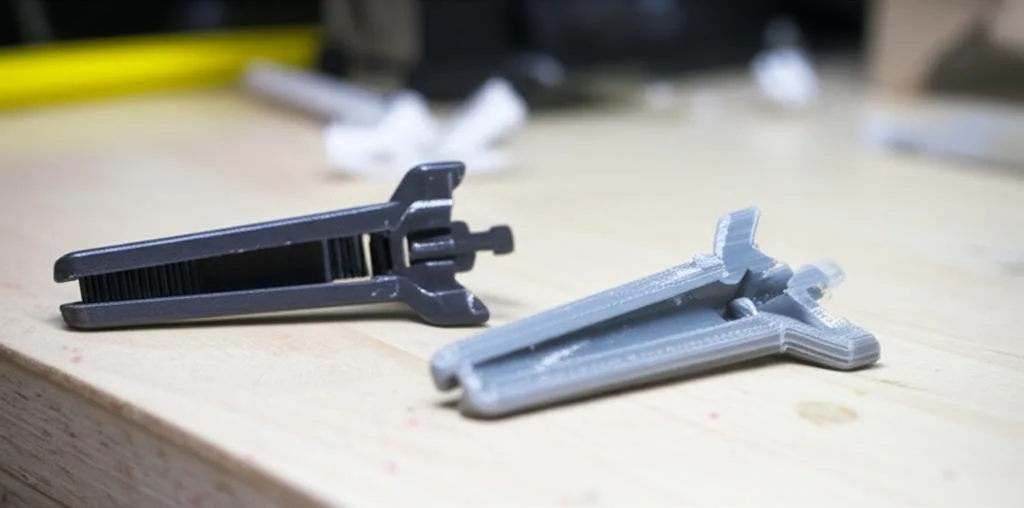

Troubleshooting common issues
Even with careful planning, you might encounter a few bumps in the road. Don't be disheartened; troubleshooting is part of the learning curve.
- Part doesn't fit: This is usually a measurement or tolerance issue. Go back to your CAD design, adjust dimensions slightly (e.g., increase clearance for holes, reduce outer dimensions), and print again.
- Part breaks easily: Re-evaluate your filament choice (perhaps switch to PETG or ABS), increase infill percentage, or add more walls/perimeters in your slicer. You might also need to reinforce stress points in your CAD design.
- Print quality issues (warping, layer shifts): These are often printer calibration or slicer setting issues. Check bed leveling, temperature settings, cooling, and print speed. Online resources and printer communities are invaluable for diagnosing these problems.
Beyond the vacuum clip: The wider world of 3D print repair
Fixing your vacuum cleaner clip is just the tip of the iceberg. The skills and principles you've learned are directly transferable to countless other household items. Think about those missing battery covers for remote controls, broken drawer pulls, appliance knobs, or even custom organisers for your tools. Each successful 3D print repair not only saves you money but also reduces waste and fosters a deeper connection with your belongings. It transforms you from a passive consumer into an active problem-solver, ready to tackle the next challenge with ingenuity and a little bit of plastic.
