Preventing TPU jams: a comparative guide to solutions for flexible filament printing

Flexible thermoplastic polyurethanes (TPU) have revolutionized the 3D printing landscape, opening doors to creating functional parts with unique elastic properties, from phone cases and drone components to custom gaskets and wearable items. However, the very flexibility that makes TPU so desirable also makes it notoriously challenging to print. Ask any seasoned 3D printing enthusiast, and they'll likely recount tales of tangled spools, extruder grinding, and frustrating nozzle clogs – the dreaded TPU jam. This guide aims to demystify the process, offering an objective comparison of various solutions and strategies to mitigate these issues. We’ll delve into the features and cost implications of different approaches, empowering you to make informed decisions tailored to your specific setup and budget, ensuring a smoother, more reliable printing experience with these elastic materials.

Understanding the unique challenges of printing TPU

Explore the
Snapmaker U1

Meet the U1

Before diving into solutions, it’s crucial to understand why TPU presents such a formidable challenge compared to rigid filaments like PLA or PETG. Its inherent flexibility, coupled with other material characteristics, creates a perfect storm for potential jamming:

• Filament Path Friction and Buckling: Unlike rigid filaments that push through the extruder and hotend with minimal deformation, TPU can bend, compress, and even tie itself in knots if it encounters any resistance or unsupported gaps in the filament path. This is the primary culprit behind many flexible filament clogs.
• Hygroscopy: TPU is highly hygroscopic, meaning it readily absorbs moisture from the air. Moist filament can lead to steam bubbles forming in the hotend, causing inconsistent extrusion, increased back pressure, and ultimately, blockages. It also significantly degrades print quality, leading to stringing, blobs, and a noticeable reduction in part strength.
• Low Compression Strength: When the extruder gears attempt to push the soft TPU filament, it can compress rather than move forward, leading to grinding of the filament and a loss of traction. This often results in a flattened, chewed-up section of filament that can no longer be fed.
• Adhesion and Stringing: While not directly a jamming issue, TPU's tendency to string and adhere aggressively to the nozzle can sometimes lead to material build-up that eventually obstructs the flow.

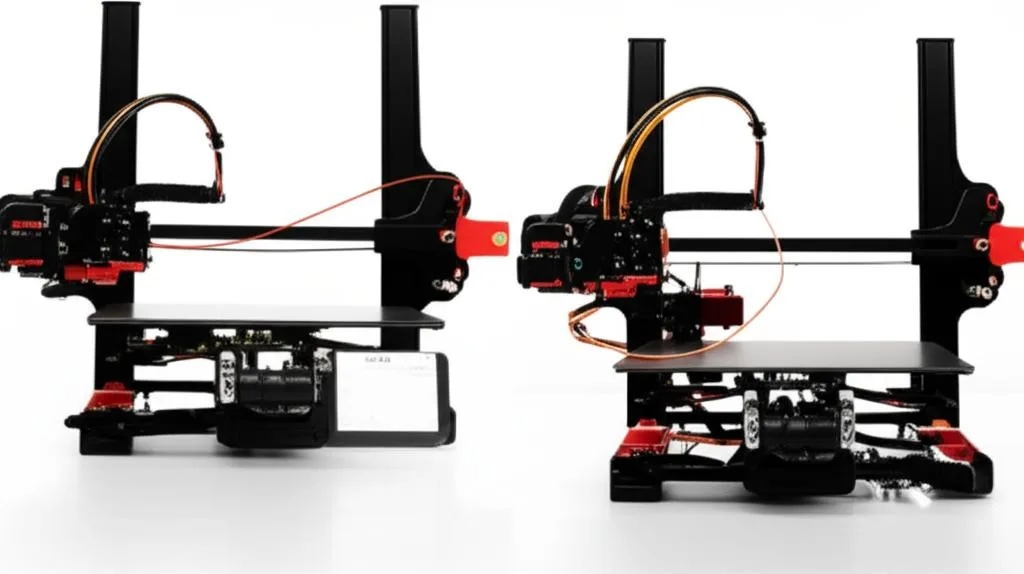

Extruder solutions: direct drive versus Bowden setups

The type of extruder system on your 3D printer is perhaps the most critical factor influencing your success with TPU. We'll objectively compare the two main configurations:

Direct drive extruders

Direct drive extruders position the extruder motor and gears directly above the hotend, minimizing the distance the filament travels between the drive gears and the melt zone. This configuration is widely regarded as the gold standard for printing flexible filaments due to its inherent advantages.

• Key Features: The most significant feature is the extremely short and constrained filament path. This design dramatically reduces the opportunity for the flexible filament to buckle or twist. It offers superior control over filament movement, allowing for more precise extrusion and retraction.
• Mechanism of Jam Prevention: By keeping the filament path short and fully supported, direct drive systems virtually eliminate the unsupported gaps where TPU is prone to kinking. The direct proximity of the drive gears to the hotend also means less pressure is lost due to friction over a long tube, leading to more consistent extrusion.
• Cost Implications: For printers initially equipped with a Bowden system, upgrading to a direct drive can involve a moderate to significant investment. This typically includes purchasing a new direct drive extruder assembly (which can range from $50 to $200+ depending on the model and features, e.g., geared vs. non-geared, specific brands like Bondtech or Hemera), and potentially a lighter stepper motor to compensate for increased print head weight. If you're buying a new printer, models with direct drive systems often command a slightly higher price point than their Bowden counterparts.
• Performance Trade-offs: While excellent for flexible filament clogs, direct drive setups add weight to the print head. This increased mass can lead to more inertia, potentially causing 'ghosting' or 'ringing' artifacts on prints, especially at higher speeds. Mitigating this often requires careful tuning of acceleration and jerk settings, and sometimes sacrificing some print speed.

Optimizing Bowden setups for TPU

Bowden extruders separate the extruder motor from the hotend, with a PTFE tube guiding the filament over a longer distance. While generally less ideal for TPU, significant improvements can be made to minimize extruder issues with TPU, often at a lower cost than a full direct drive conversion.

• Key Features: The primary feature of a Bowden system is its lighter print head, allowing for faster print speeds and reduced ringing. However, this advantage comes at the cost of a long, unsupported filament path, making it inherently more challenging for flexibles.
• Mechanism of Jam Prevention: The goal here is to minimize any gaps and friction within the long Bowden path, thereby preventing the filament from buckling or binding.
• Cost Implications and Solutions:
• High-Quality PTFE Tubing (e.g., Capricorn XS): This is a highly recommended and relatively low-cost upgrade (typically $10-$20 for a meter). Feature: Capricorn tubing has a tighter internal diameter (ID) and lower friction coefficient compared to standard PTFE. This tighter ID provides better support for the flexible filament, reducing its ability to buckle, while the lower friction helps it slide more easily.
• Reducing Gaps in the Extruder: This involves ensuring the PTFE tube is seated perfectly flush against the extruder gears and the hotend's heat break. Any tiny gap can become a pinch point where TPU can escape and jam. Feature: Prevents filament from kinking outside the intended path. Cost: Free (careful assembly) to low (replacement couplers, custom shims, or specialized Bowden connectors like PC4-M10).
• Upgraded Extruder Gears (e.g., Dual-Drive Systems): While not strictly a Bowden-specific upgrade, integrating dual-drive gears into a Bowden extruder (e.g., a BMG clone, costing $20-$40) can significantly improve grip on the filament. Feature: Two gears actively push the filament, providing more consistent force and reducing the likelihood of grinding the soft TPU. This is particularly beneficial for printing elastic materials.
• Shortening the Bowden Tube: If feasible for your printer's design, a shorter Bowden tube means a shorter unsupported path. Feature: Reduces the distance over which buckling can occur. Cost: Free (if you cut your existing tube) or low (if you need to replace it).
• Dedicated TPU Bowden Extruders: Some manufacturers offer specific Bowden extruders designed with tighter tolerances and shorter internal paths optimized for flexibles, though these are less common than direct drive options.
• Performance Trade-offs: Even with extensive optimization, Bowden setups will generally require slower print speeds for TPU compared to direct drive systems to maintain reliability. Retraction settings become far more critical and sensitive to tuning. While the initial hardware cost is lower, the time spent on tuning and potential failed prints can add up.

Hotend considerations for TPU jamming prevention

Explore the
Snapmaker U1

Meet the U1

The hotend, where the filament melts, plays a crucial role in preventing jams. An inconsistent melt, heat creep, or improper heat break design can quickly lead to flexible filament clogs.

All-metal hotends versus PTFE-lined hotends

The primary distinction in hotend design relevant to TPU is the type of heat break:

• PTFE-Lined Hotends (e.g., Creality's stock hotends, E3D V6 clones): Feature: In these designs, a PTFE tube extends all the way down into the heat break, often to the nozzle. The PTFE provides a very low-friction path for the filament, which can be beneficial for some materials. Cost: These are typically the standard, lower-cost hotends found on many budget printers.
• Challenges with TPU: While the PTFE's slipperiness is good, it has a significant drawback for TPU. PTFE degrades at temperatures above ~240°C. Many TPUs print at or above this temperature. Degraded PTFE can become sticky, uneven, and even release toxic fumes. More critically, over time and with thermal cycling, the PTFE tube can deform or shrink, creating tiny gaps between the tube and the heat break walls. These microscopic gaps are prime locations for soft TPU to expand into, causing an immediate and severe blockage.
• All-Metal Hotends (e.g., E3D V6, Phaetus Dragon, Slice Engineering Mosquito): Feature: In an all-metal hotend, the PTFE tube stops short of the heat break, which is entirely made of metal (typically stainless steel or titanium, sometimes with a copper or bi-metal heat break). This design allows for much higher printing temperatures without PTFE degradation. The internal surface of the heat break is highly polished to minimize friction. Cost: These are generally premium upgrades, ranging from $40 for basic all-metal heat breaks to $100-$200+ for high-performance hotend assemblies.
• Advantages for TPU: An all-metal hotend offers a consistent, uninterrupted, and high-temperature-tolerant melt zone. The absence of a degrading PTFE tube means no gaps can form to trap TPU. The highly polished internal surfaces, especially in quality heat breaks, ensure a smooth transition for the filament. This significantly reduces the risk of flexible filament clogs caused by internal hotend issues.

Heat creep prevention

Heat creep occurs when heat from the hotend's heater block travels upwards into the cold end of the hotend, prematurely softening the filament before it reaches the melt zone. This leads to increased friction, filament swelling, and inevitable jamming, especially with TPU.

• Effective Cooling Fan: Feature: A robust and properly directed cooling fan for the hotend heatsink is paramount. Its job is to dissipate heat from the heatsink, keeping the cold end of the hotend truly cold. Cost: Upgrading a stock fan (often noisy and inefficient) to a higher-quality axial or blower fan (e.g., Noctua, Sunon, or specific 40x10/40x20mm fans) can cost $5-$20.
• Fan Duct Design: Feature: The fan duct should direct airflow precisely over the heatsink fins, not onto the heater block or nozzle. An inefficient duct can render even a powerful fan ineffective. Cost: Free (if you print an optimized duct) or low (if you buy one).
• Thermal Paste/Grease: Feature: Applying thermal paste between the heat break and the heatsink can improve heat transfer to the heatsink, allowing the fan to dissipate heat more effectively. Cost: Very low ($5-$10 for a tube).

Filament management and environmental control

The condition of your TPU filament itself is a major factor in preventing jams. TPU's hygroscopic nature demands careful management.

Moisture control solutions

Moisture is the silent killer of TPU prints, leading to increased friction in the filament path and steam bubbles in the hotend, both direct causes of jamming.

• Filament Dryers: Feature: These are dedicated, active heating units designed to dry filament spools. They typically have temperature and timer controls, allowing for precise drying. Some can even feed filament directly to the printer while drying. Cost: Moderate, ranging from $40 to $100+ (e.g., Sunlu FilaDryer, Eibos Easydry). Comparison: A targeted, effective solution for actively removing moisture.

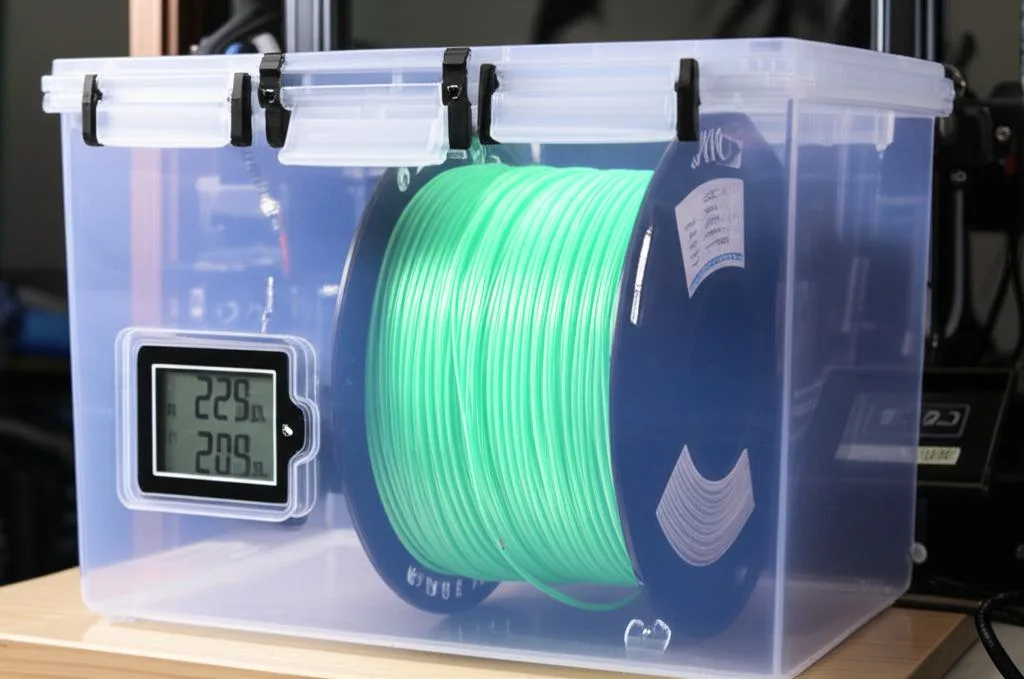

• Dry Boxes with Desiccant: Feature: These are airtight containers (often plastic storage bins) where filament spools are stored with desiccant packs (silica gel). They passively absorb moisture from the air surrounding the filament. Cost: Low to moderate. A large container might cost $10-$30, and reusable silica gel packets are typically $10-$20 for a bulk supply. Comparison: A good preventative storage solution, but less effective for actively drying already wet filament.
• Vacuum Storage Bags: Feature: Airtight bags that remove air, preventing moisture ingress. Cost: Very low ($10-$20 for a pack). Comparison: Excellent for long-term storage of dry filament, but not for drying wet filament.
• Food Dehydrators/Oven Drying: Feature: Household appliances can be repurposed. Food dehydrators offer low, consistent heat. Ovens can also be used with extreme caution. Cost: Free (if you already own one) to moderate (if buying a dehydrator, $30-$80). Comparison: Can be effective for drying, but requires careful temperature control to avoid damaging the filament (especially in an oven, where temperatures can fluctuate wildly).

Spool management

Even perfectly dry filament can jam if it can't unspool smoothly.

• Filament Guides and Holders: Feature: Ensure the filament feeds directly and smoothly into the extruder without unnecessary bends or snags. Cost: Very low (often 3D printable) or low ($5-$15 for roller-bearing spool holders).
• Preventing Tangled Spools: Feature: Always secure the end of the filament when not printing. A tangled spool is a guaranteed jam. Cost: Free (good practice).

Print settings optimization for TPU

Explore the
Snapmaker U1

Meet the U1

Even with optimal hardware, incorrect slicer settings can lead to extruder issues with TPU. Fine-tuning these parameters is often a free but critical step in TPU jamming prevention.

Temperature settings

• Extruder Temperature: Feature: Start with the manufacturer's recommended temperature range and perform a temperature tower test. Too low, and the filament won't melt consistently, leading to under-extrusion and clogs. Too high, and it can become overly runny, causing oozing, stringing, and potentially contributing to heat creep. Cost: Free (tuning in slicer).
• Bed Temperature: Feature: Proper bed adhesion is crucial for successful first layers, preventing initial print failures that can cascade into later jams. TPU generally prefers a heated bed (e.g., 40-60°C). Cost: Free (tuning in slicer).

Retraction settings

Retraction pulls the filament back slightly into the nozzle to relieve pressure and prevent oozing during non-printing moves. This is a delicate balance for TPU.

• Retraction Distance: Feature: Too much distance, especially in a Bowden setup, can pull molten TPU into the colder heat break zone, where it cools and clogs. Too little, and you'll get stringing. For direct drive, distances are typically very short (0.5-1.5mm). For Bowden, they are longer but still need to be conservative (2-4mm is often a good starting point, but less is often more with TPU). Cost: Free (tuning in slicer).
• Retraction Speed: Feature: Too slow, and oozing occurs. Too fast, and the sudden movement can deform the soft filament, leading to grinding or kinking. A moderate speed is usually best. Cost: Free (tuning in slicer).

Print speed

• Overall Print Speed: Feature: Slower speeds are almost always better for TPU. They allow the extruder to push the soft filament more gently, reduce back pressure in the hotend, and give the layers more time to bond. Comparison: While faster speeds offer quicker print times (a feature in itself), they dramatically increase the risk of jamming with flexible filaments. A typical range for TPU might be 20-40mm/s. Cost: Free (tuning in slicer).
• Travel Speed: Feature: Set travel speeds reasonably high to minimize oozing and stringing between parts. Cost: Free (tuning in slicer).

First layer settings

• First Layer Speed: Feature: Print the first layer even slower than subsequent layers (e.g., 10-20mm/s) to ensure excellent bed adhesion. Cost: Free (tuning in slicer).
• First Layer Height and Width: Feature: A slightly thicker and wider first layer can improve adhesion. Ensure proper 'squish' by calibrating your Z-offset. Cost: Free (tuning in slicer).

Fan speed

• Part Cooling Fan: Feature: For TPU, part cooling is often used sparingly, or even turned off for the first few layers. Too much cooling can cause delamination between layers, poor bed adhesion, and even increased nozzle pressure due to rapid cooling. Some TPUs benefit from minimal cooling to prevent stringing, while others prefer none. Cost: Free (tuning in slicer).

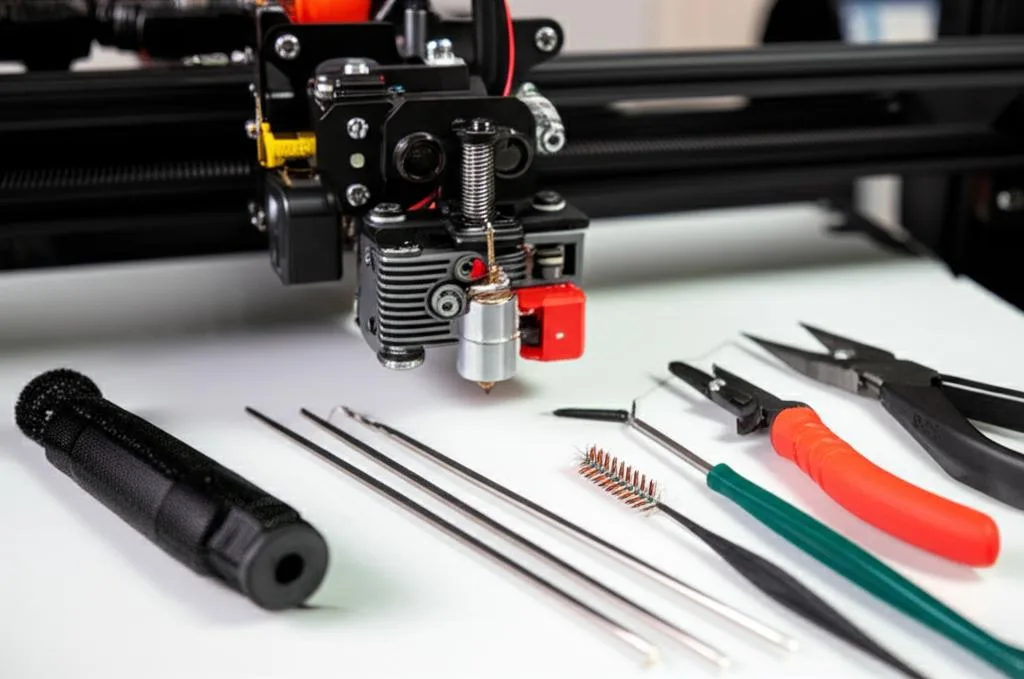

Maintenance and best practices

Even with the best hardware and settings, regular maintenance and good habits are indispensable for long-term TPU jamming prevention.

• Regular Cleaning of Nozzle and Hotend: Feature: Carbonized filament residue can build up inside the nozzle and hotend, creating obstructions. Perform 'cold pulls' or use cleaning filaments periodically. Cost: Very low (cleaning needles, brass brush, cleaning filament).
• Inspecting the Filament Path: Feature: Regularly check your Bowden tube (if applicable) for wear, kinks, or discoloration. Ensure all connectors are tight and free of play. For direct drive, inspect the extruder gears for excessive wear or filament debris. Cost: Free (visual inspection) to low (replacement Bowden tube or connectors, $5-$15).
• Proper Filament Loading and Unloading: Feature: Always heat the hotend to printing temperature before loading or unloading TPU. Never force the filament. Cut the tip of the filament at an angle to make loading easier. Cost: Free (good practice).
• Checking for Worn Parts: Feature: Extruder gears can wear down over time, especially with abrasive filaments or if they are constantly grinding soft TPU. A worn heat break can also contribute to issues. Regularly inspect and replace worn components. Cost: Moderate (replacement gears, heat break, ~$10-$50 depending on part).
• Bed Adhesion Maintenance: Feature: Keep your print bed clean. Use appropriate adhesives (e.g., glue stick, hairspray, PEI sheet) as needed. A reliable first layer prevents print failures that can lead to filament accumulation and jams. Cost: Low (cleaning supplies, adhesives).

Conclusion

Printing with flexible TPU filaments doesn't have to be a constant battle against jams and clogs. While the material presents unique challenges, a combination of thoughtful hardware choices, diligent environmental control, and precise slicer settings can transform your experience from frustrating to fantastic. We've objectively compared various solutions, from the upfront investment in a direct drive extruder to the more nuanced optimizations of a Bowden setup, and from active filament drying systems to the critical fine-tuning of print speeds and retractions.

Ultimately, there isn't a single "magic bullet" solution, but rather a holistic approach. Each solution offers distinct features and comes with its own cost implications, both in terms of financial outlay and potential performance trade-offs. By understanding these comparisons, you are better equipped to identify the specific pain points in your current setup and implement targeted improvements. Whether you opt for a significant hardware overhaul or a series of smaller, strategic adjustments, the key to successful TPU jamming prevention lies in minimizing friction, eliminating unsupported filament paths, managing moisture, and dialing in your print parameters with precision. Armed with this knowledge, you are well on your way to reliably creating incredible, flexible 3D prints.
