In the dynamic world of 3D printing, achieving optimal results often hinges on mastering the intricacies of support structures. While traditional linear or grid supports have long served as the workhorses for preventing droop and ensuring print integrity, the advent of tree supports has introduced a compelling alternative, promising significant advancements in both efficiency and print quality. This guide delves into the nuances of tree supports, exploring their functionality, benefits, and the critical slicer settings that empower users to harness their full potential for FDM optimization.
Understanding tree supports
Explore the
Snapmaker U1
At their core, tree supports mimic the organic branching structure of a tree. Instead of creating a dense, uniform lattice beneath overhangs, they generate a series of interconnected, tapering branches that originate from the print bed and converge at specific contact points on the model. This design philosophy dramatically reduces the amount of material required and minimizes contact with the printed part, setting them apart from their more conventional counterparts.
The compelling advantages of embracing tree supports
- Significant material efficiency: One of the most celebrated benefits of tree supports is their ability to drastically cut down on filament consumption. By replacing solid blocks of support material with an open, branching structure, users can often see a substantial reduction in plastic usage, leading to cost savings and less waste.
- Remarkable print time reduction: Less material to print inherently translates to shorter print times. The sparser nature of tree supports means the print head spends less time extruding support material, thereby accelerating the overall printing process. This is a critical factor for anyone looking to achieve faster production cycles.
- Effortless support removal: The minimal contact points and the natural breaking points inherent in their design make support removal a far less arduous task. Unlike traditional supports that can fuse stubbornly to the print, tree supports often peel away with ease, leaving behind a cleaner surface finish and significantly reducing post-processing effort.
- Improved surface finish: With fewer and smaller contact points, the areas of the model that were supported tend to exhibit a much smoother and more aesthetically pleasing finish. This often negates the need for extensive sanding or filing, preserving intricate details.

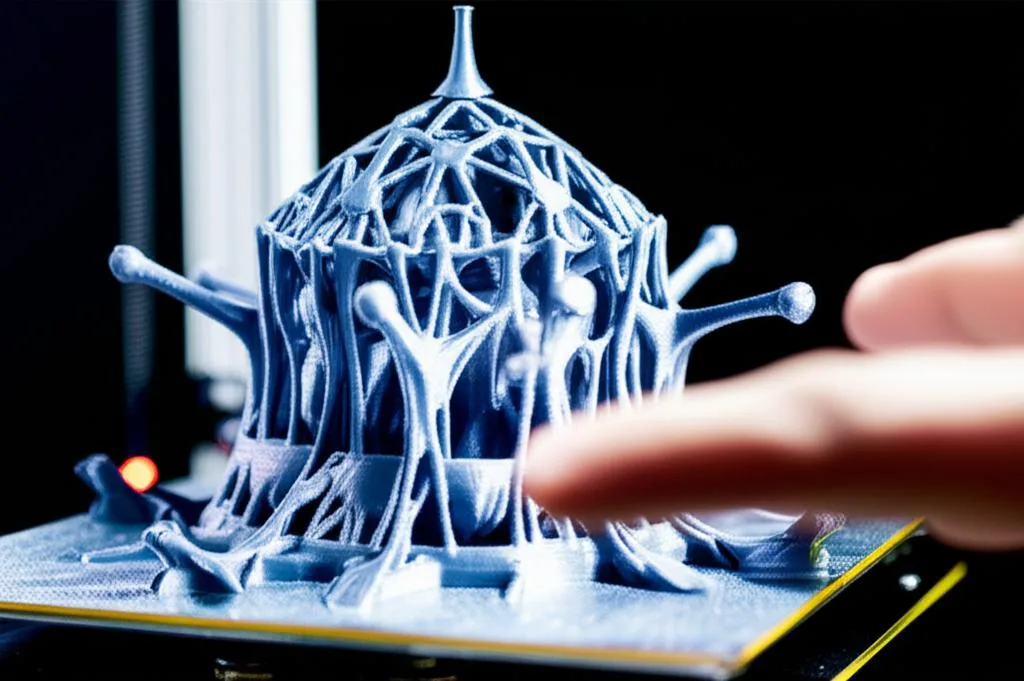

While the advantages are clear, it's important to approach tree supports with a balanced perspective. They are not a universal panacea, and certain scenarios may still favour traditional support methods.
- Stability for complex overhangs: For extremely heavy or complex overhangs, especially those with large flat areas that require robust support across their entire surface, traditional supports might offer greater stability. Tree supports, by design, concentrate support at specific points, which might not be sufficient for all geometries.
- Slicer compatibility and settings complexity: While major slicers like Cura and PrusaSlicer have excellent implementations, mastering the myriad of slicer settings for tree supports can have a learning curve. Achieving the perfect balance between support strength and ease of removal often requires experimentation.
- Bridging performance: Models requiring extensive bridging between support points might still perform better with the uniform foundation provided by traditional supports. The gaps between tree branches can sometimes lead to sagging on long bridges.
Optimizing your tree support settings for peak performance
Unlocking the full potential of tree supports lies in fine-tuning your slicer settings. Here are some key parameters to consider:
- Contact Z distance: This setting dictates the vertical gap between the top of the support and the bottom of the supported part. A larger gap makes removal easier but can lead to more sagging; a smaller gap offers better support but can be harder to remove. Finding the sweet spot is crucial.
- Branch diameter and angle: These parameters control the thickness and taper of the support branches. Thicker branches offer more stability but use more material. Adjusting the angle can influence how the supports are generated and how easily they break away.
- Support density: While tree supports are inherently sparse, you can still adjust their density. Higher density means more branches and contact points, offering greater support but potentially negating some of the material and print time reduction benefits.
- Support overhang angle: This critical setting determines at what angle an overhang will trigger the generation of support. A lower angle means more aggressive support generation, while a higher angle means supports are only generated for steeper overhangs.
- Placement strategies: Many slicers offer options for automatic placement or manual painting of support areas. For intricate models, manual placement can provide precise control, ensuring support only where absolutely necessary.

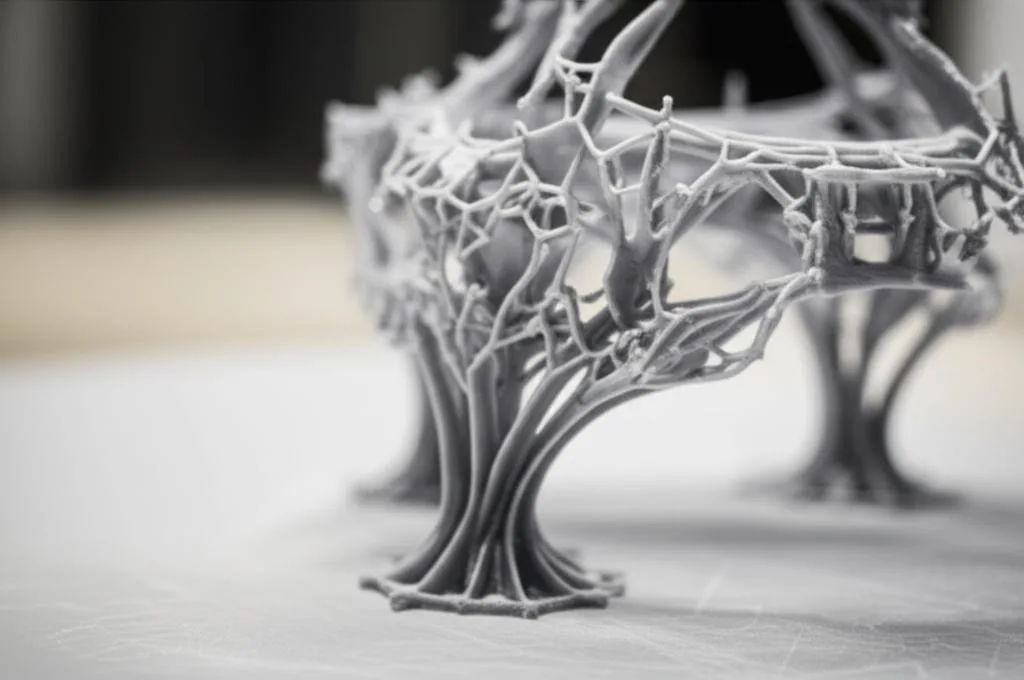

When to choose tree supports: a strategic approach
Deciding between tree supports and traditional supports often boils down to the specific geometry of your model and your priorities. Tree supports generally excel for:
- Models with organic shapes and complex curves.
- Prints where surface finish on supported areas is paramount.
- Situations where print time reduction and material savings are key objectives.
- Parts with delicate features that could be damaged by aggressive traditional support removal.
Conversely, traditional supports might be more suitable for:
- Models with large, flat overhangs requiring uniform support.
- Parts where structural integrity of the supported area is more critical than surface finish.
- When dealing with materials that are particularly prone to warping or layer separation under stress.
Conclusion: embracing the future of FDM optimization
Tree supports represent a significant leap forward in FDM optimization, offering a potent combination of material efficiency, reduced print times, and vastly improved support removal experiences. While they require a bit of experimentation with slicer settings to truly master, the benefits are well worth the effort. By understanding their mechanics and carefully calibrating your parameters, you can unlock a new level of efficiency and quality in your 3D printing endeavours. Don't shy away from integrating these innovative structures into your workflow; the future of streamlined 3D printing is branching out.
