Achieving a truly smooth, professional finish on 3D printed parts can often feel like the elusive final frontier for many enthusiasts and professionals alike. While FDM technology has revolutionized prototyping and manufacturing, the visible layer lines inherent to the process can detract from a model's aesthetic appeal and tactile quality. This is where acetone vapor smoothing steps in, offering a transformative post-processing technique particularly effective for prints made from ABS (Acrylonitrile Butadiene Styrene) and ASA (Acrylonitrile Styrene Acrylate) filaments. By carefully exposing these materials to acetone vapor, the outer surface of the print softens and flows, effectively melting away layer lines and creating a glossy, injection-molded look.
This guide delves into the intricacies of mastering acetone vapor smoothing, exploring the science behind it, the critical factors for success, and a detailed, objective comparison of the various solutions available to achieve that coveted smooth 3D prints finish. We'll examine the cost structures and features of different approaches, empowering you to make an informed decision tailored to your specific needs and budget, all while striving for unparalleled vapor smoothing consistency.
Understanding the science of acetone vapor smoothing
Explore the
Snapmaker U1
At its core, acetone vapor smoothing leverages the solvent properties of acetone. Both ABS and ASA are thermoplastic polymers that are soluble in acetone. When a 3D printed part made from these materials is exposed to acetone vapor, the vapor molecules interact with the polymer chains on the surface of the print. This interaction causes the polymer to swell and temporarily become a liquid-like gel. As the surface material softens, it flows into the microscopic valleys created by the layer lines, effectively filling them in and creating a much smoother, more uniform surface.
Once the part is removed from the vapor environment, the acetone evaporates, allowing the polymer to re-solidify. The result is a part with significantly reduced layer lines, a smoother texture, and often a more vibrant, consistent color. This process is not just about aesthetics; a smoother surface can also improve the part's mechanical properties by reducing stress concentrations at layer interfaces and making it easier to clean.

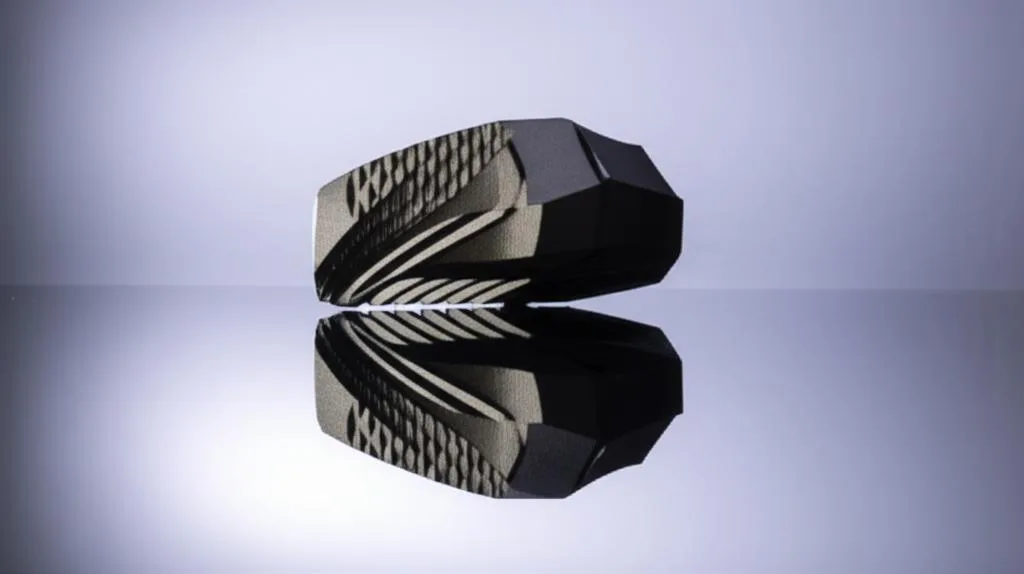

Why ABS and ASA are ideal for this technique
While acetone is a powerful solvent, not all 3D printing filaments react in the same way. ABS and ASA are particularly well-suited for acetone vapor smoothing due to their chemical composition and solubility characteristics. Other common filaments like PLA (Polylactic Acid) or PETG (Polyethylene Terephthalate Glycol-modified) are generally not soluble in acetone, or only minimally, making this technique ineffective for them. The robust nature of ABS and ASA, coupled with their excellent response to acetone, makes them prime candidates for achieving a truly professional finish through this method.
Comparing solutions for acetone vapor smoothing: cost and features
When considering how to implement acetone vapor smoothing, there are several distinct approaches, each with its own set of features, cost implications, and operational considerations. Understanding these differences is crucial for anyone looking to integrate this advanced post-processing technique into their workflow.
DIY vapor smoothing chambers
For many hobbyists and small-scale operations, a do-it-yourself (DIY) vapor smoothing chamber is often the entry point into this technique. These setups typically involve a sealed container, such as a glass jar, a metal tin, or a plastic enclosure, where acetone can be introduced to create a vapor-rich environment.
- Features: DIY solutions offer maximum flexibility and control over the smoothing process. Users can experiment with different chamber sizes, acetone application methods (e.g., wicking, heated bath), and exposure times. They also provide a hands-on learning experience regarding the nuances of the technique. However, safety features are often rudimentary or non-existent, relying heavily on user vigilance. Consistency can be challenging to achieve without precise environmental controls.
- Cost Structure: The initial investment for a DIY setup is typically very low. Costs primarily include the container itself (often repurposed), a small amount of acetone, and potentially some basic tools or materials for a heated bed (e.g., an old hot plate, a power resistor). Recurring costs are limited to the purchase of acetone.
- Pros: Extremely budget-friendly, highly customizable, immediate accessibility.
- Cons: Significant safety risks if not handled with extreme care (acetone is flammable and its fumes are harmful), difficulty in achieving consistent results, lack of automation, potential for part damage if over-exposed.
Commercial vapor smoothing stations
As the demand for high-quality ABS post-processing and ASA finishing grows, several manufacturers have developed dedicated commercial vapor smoothing stations. These machines are designed to provide a more controlled, safe, and consistent smoothing experience.
- Features: Commercial units often boast advanced features such as precise temperature and humidity control, automated process cycles, integrated safety mechanisms (e.g., fume extraction, inert gas purging), and pre-programmed profiles for different materials and desired finishes. They are engineered for repeatability, which is critical for production environments. Some systems use alternative solvents or proprietary processes, though acetone remains a common agent.
- Cost Structure: The initial investment for a commercial vapor smoothing station is substantially higher than a DIY setup, ranging from several hundred to thousands of dollars, depending on the features and capacity. Recurring costs include specialized consumables (e.g., specific solvents, filters), maintenance, and energy consumption.
- Pros: Enhanced safety features, superior consistency and repeatability, reduced manual intervention, often faster processing times, ideal for professional settings and larger print volumes.
- Cons: High upfront cost, potentially limited flexibility compared to DIY, reliance on manufacturer-specific consumables or service, larger footprint.
Professional finishing services
For individuals or businesses with occasional needs for perfectly smoothed parts, or those who prefer to outsource specialized tasks, professional finishing services offer a compelling alternative. These services typically employ commercial-grade equipment and expert technicians.
- Features: By utilizing a professional service, you gain access to high-end equipment and experienced operators without any upfront investment in machinery or the need for specialized training. They can often achieve highly consistent and flawless results, especially for complex geometries or large batches.
- Cost Structure: Costs are typically structured on a per-part basis, which can vary significantly depending on part size, complexity, material, and desired finish. There may also be additional costs for shipping and handling. While the per-part cost might seem higher than doing it yourself, it eliminates capital expenditure, operational costs, and the need for dedicated workspace.
- Pros: No upfront investment, access to expert results, ideal for small batches or prototyping, saves time and resources, no safety concerns for the end-user.
- Cons: Higher cost per part for high-volume production, lead times for processing and shipping, less direct control over the process.

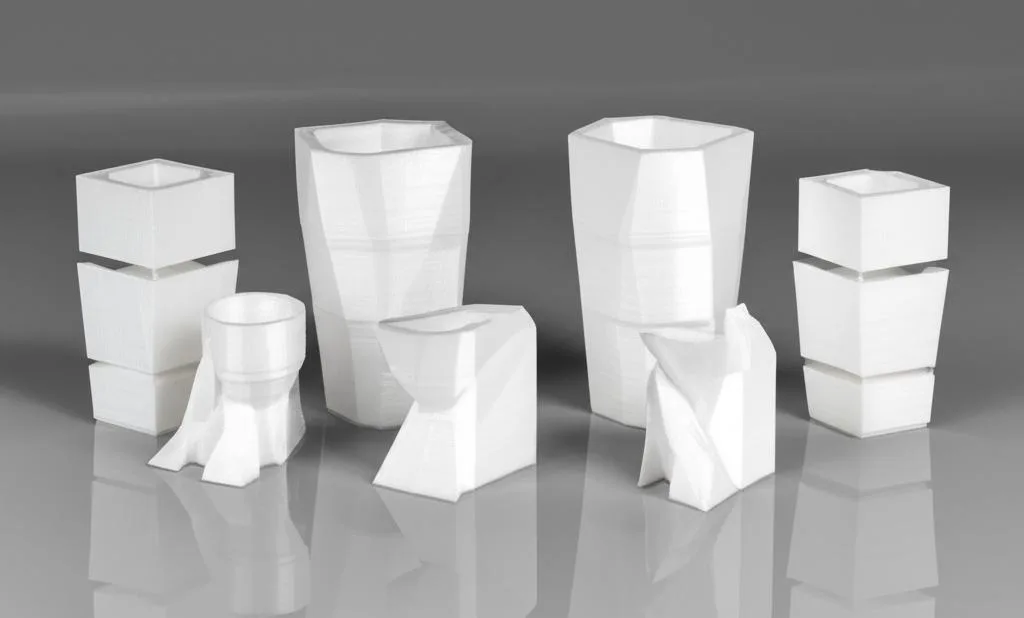

Key considerations for achieving vapor smoothing consistency
Regardless of the method chosen, several factors are paramount for achieving consistent and flawless finishes with acetone vapor smoothing. Mastering these elements is the difference between a perfectly smooth part and a ruined one.
1. Safety first and foremost
Acetone is highly flammable and its vapors can be harmful if inhaled. Always work in a well-ventilated area, away from open flames or ignition sources. Wear appropriate personal protective equipment (PPE), including chemical-resistant gloves and safety glasses. Store acetone in a tightly sealed container in a cool, dry place.
2. Chamber design and sealing
A truly sealed chamber is critical. Any leaks will allow vapor to escape, leading to inconsistent smoothing and potentially unsafe conditions. The chamber should be made of a material that is not affected by acetone, such as glass, certain metals, or specific plastics (e.g., PETG, not ABS or ASA itself). The internal volume should be appropriate for the size of the parts being smoothed.
3. Acetone quantity and evaporation method
The amount of acetone used directly impacts the vapor saturation within the chamber. Too little, and the process will be slow and uneven; too much, and condensation can form, potentially damaging the part. Common evaporation methods include:
- Wicking: Placing acetone-soaked paper towels or cotton balls around the inside walls of the chamber. This provides a large surface area for evaporation.
- Heated bath: Placing a small dish of acetone on a heated plate inside the chamber. Gentle heat significantly increases the evaporation rate, speeding up the process but also increasing the risk of over-smoothing.
4. Temperature control
Temperature plays a crucial role. A slightly elevated ambient temperature within the chamber (e.g., 40-60°C or 104-140°F) can accelerate the evaporation of acetone and improve smoothing efficiency. However, excessive heat can cause rapid, uncontrolled smoothing, leading to surface bubbling or warping. Commercial units excel here, offering precise temperature regulation.
5. Exposure time
This is perhaps the most critical variable. Too short an exposure time, and layer lines will remain; too long, and the part can become overly soft, lose fine details, or even melt into an unusable blob. The ideal time depends on the part's size, geometry, wall thickness, initial print quality, chamber temperature, and acetone concentration. It often requires experimentation and careful observation. Start with short intervals (e.g., 5-10 minutes) and check progress frequently.
6. Part orientation and support
How the part is suspended or placed within the chamber affects the vapor's access to all surfaces. Suspending parts with thin wires (e.g., paper clips) from the top of the chamber is ideal, as it minimizes contact points and allows for even exposure. If the part must sit on a surface, consider using a non-soluble, non-reactive material like aluminum foil or a small, elevated platform to prevent sticking and allow vapor circulation underneath.
7. Post-smoothing curing
Once removed from the chamber, the part will still be soft and have residual acetone on its surface. It needs a period of "curing" or drying in a well-ventilated area for the remaining acetone to fully evaporate and the polymer to re-harden. This can take several hours to a full day, depending on the part's size and the extent of smoothing. Handling the part too soon can leave fingerprints or deform the surface.
Troubleshooting common issues
- Uneven smoothing: Often due to inconsistent vapor distribution, poor sealing, or improper part orientation. Ensure the chamber is sealed, acetone is evenly distributed, and the part is suspended centrally.
- Loss of fine details: Typically a result of over-exposure. Reduce exposure time and monitor more closely.
- Surface bubbling or warping: Caused by too much acetone, too high a temperature, or excessive exposure. Reduce acetone quantity, lower temperature, and shorten exposure.
- Part sticking to the base: Use a non-reactive, elevated platform or suspend the part.
- White residue: Can occur if the acetone is impure or if the part is removed too quickly from the vapor and dries unevenly. Ensure high-purity acetone and allow proper curing.

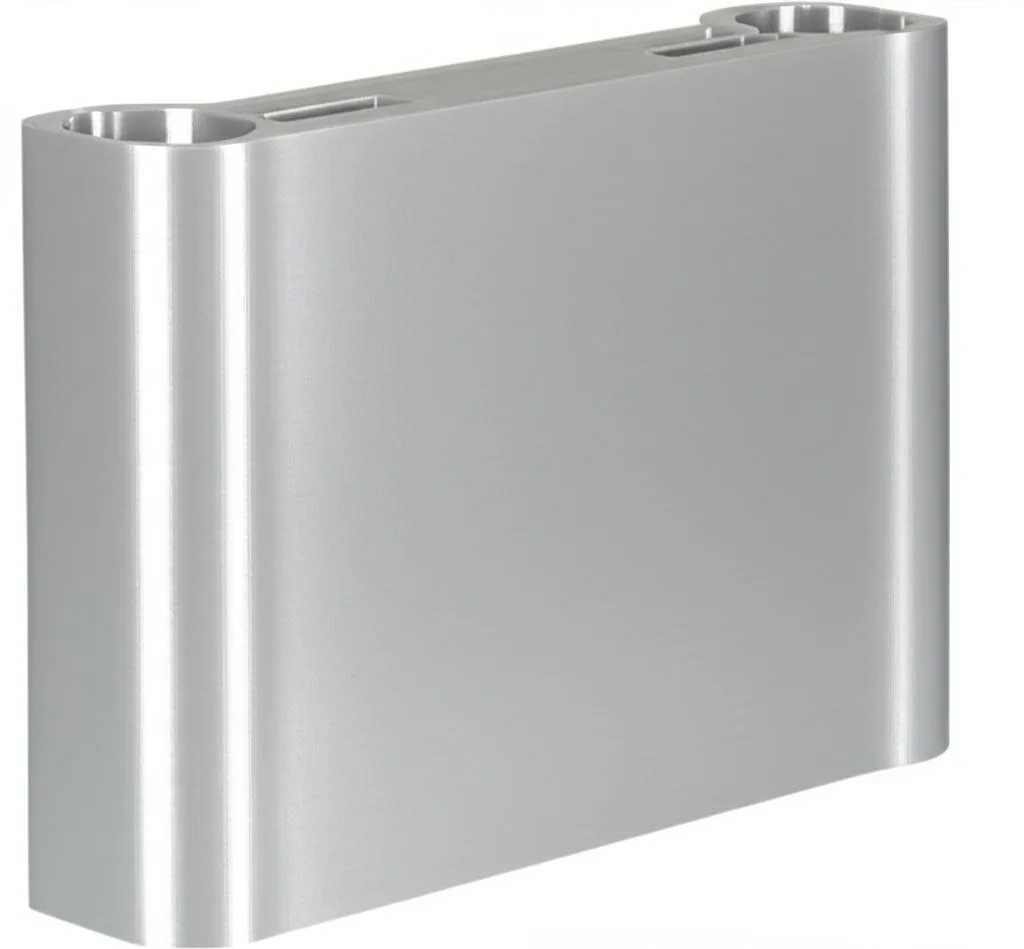

The benefits of a professional finish
Beyond the aesthetic appeal, achieving a professional finish through acetone vapor smoothing offers several tangible benefits for ABS and ASA prints:
- Enhanced aesthetics: Eliminates layer lines, creating a smooth, glossy, and uniform appearance that rivals injection-molded parts.
- Improved tactile feel: Parts feel much smoother and more pleasant to touch, enhancing user experience for functional prototypes or end-use products.
- Increased strength: By fusing the outer layers, the process can reduce micro-cracks and stress concentrations, potentially leading to a slight improvement in the part's overall strength and durability.
- Easier cleaning: A smooth surface is less prone to trapping dirt and grime, making the parts easier to clean and maintain.
- Better adhesion for coatings: Smoothed surfaces often provide a superior base for painting, electroplating, or other post-processing coatings.

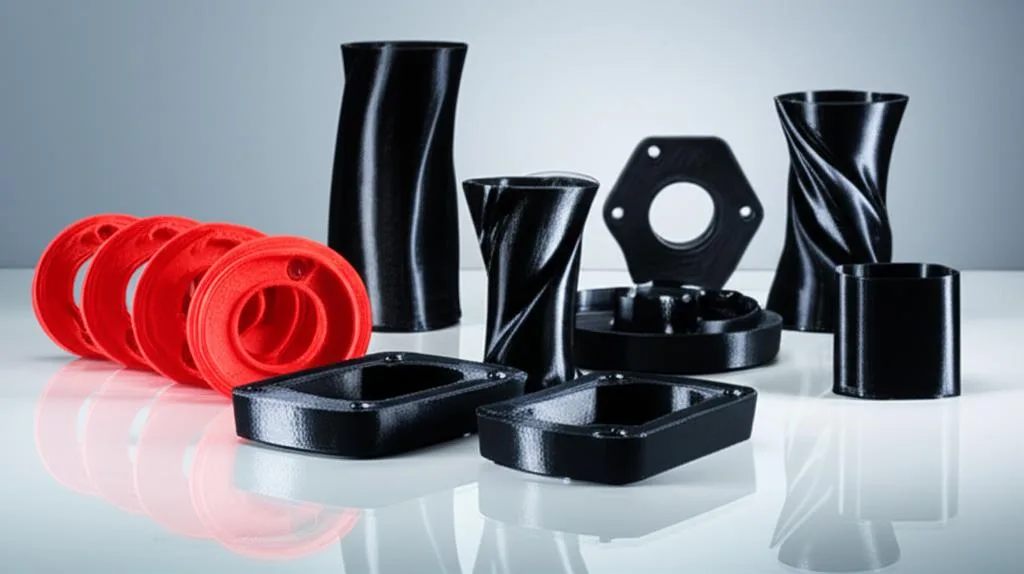

Conclusion
Mastering acetone vapor smoothing is a valuable skill for anyone working with ABS and ASA 3D prints, transforming ordinary parts into extraordinary, smooth 3D prints with a truly professional finish. Whether you opt for the hands-on control and cost-effectiveness of a DIY setup, the safety and vapor smoothing consistency of a commercial station, or the convenience of a professional service, the principles of careful control, safety, and iterative refinement remain constant. By understanding the underlying science, meticulously managing your process, and objectively evaluating the available solutions based on their features and cost structures, you can confidently achieve consistent, flawless results that elevate the quality of your 3D printed creations.
