Achieving a flawless 3D print goes beyond the initial design and printing process; it often hinges on effective 3D print support removal. Support structures are indispensable for prints with overhangs, bridges, or intricate geometries, preventing gravity from causing deformations during printing. However, their very purpose creates a subsequent challenge: removing them without damaging the final part. The choice of support removal method significantly impacts the print's quality, the time invested in post-processing techniques, and ultimately, the overall cost of production. This article delves into various support removal strategies, offering a comparative look at their features, operational considerations, and cost implications, empowering you to make informed decisions for consistently clean prints.
Manual support removal: Precision and accessibility
Explore the
Snapmaker U1
Manual support removal is arguably the most common and accessible method, particularly for hobbyists and small-scale operations. It involves physically detaching the support structures from the printed object using a range of hand tools. This approach offers a high degree of control, making it suitable for delicate parts or areas requiring meticulous attention.
Key features and techniques
- Tools: Common tools include flush cutters, pliers, spatulas, deburring tools, craft knives, and sandpaper. For more stubborn supports, heat guns or even small rotary tools can be employed.
- Process: Supports are typically snapped, twisted, or cut away from the print. Fine details often require careful scraping or sanding to achieve a smooth surface finish.
- Material compatibility: Works with virtually all FDM materials, including PLA, ABS, PETG, and Nylon.
Operational considerations and cost implications
The primary advantage of manual removal lies in its low barrier to entry. The initial investment in tools is minimal, often comprising items readily available or inexpensive to acquire. However, this method can be labor-intensive and time-consuming, especially for complex prints or high volumes. The risk of damaging the part is also higher, requiring a steady hand and patience. While direct costs are low, the hidden cost of labor and potential material waste from damaged prints should be factored into the overall production budget. For unique, intricate, or low-volume prints where precision is paramount, manual removal remains a go-to choice.

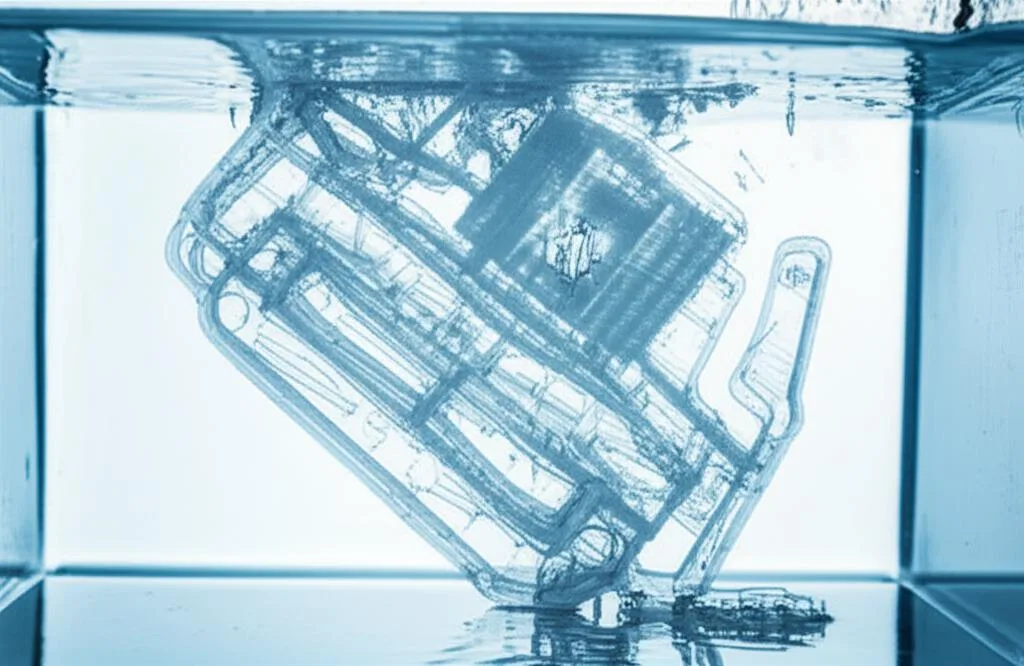

Water-soluble supports: Dissolving the problem away
Water-soluble support materials, such as PVA (Polyvinyl Alcohol) or BVOH (Butenediol Vinyl Alcohol Copolymer), represent a significant leap in convenience and print quality for complex geometries. These materials are designed to dissolve when submerged in water, leaving behind a pristine main print without manual intervention.
Key features and techniques
- Materials: PVA is widely used, particularly for PLA, but can be hygroscopic. BVOH offers better printability and dissolves faster, making it compatible with a broader range of materials including ABS and Nylon.
- Process: Requires a dual-extrusion 3D printer to print the main model with one filament and the supports with the soluble material. After printing, the part is submerged in warm water (or a dedicated dissolving solution) until the supports completely disappear.
- Benefits: Eliminates the risk of damaging the print during removal, allows for highly intricate internal support structures, and results in exceptionally clean surfaces.
Operational considerations and cost implications
While offering superior results, water-soluble supports come with a higher operational cost. Firstly, a dual-extrusion printer is a prerequisite, representing a notable initial investment if not already owned. Secondly, soluble filaments are generally more expensive than standard printing materials. The dissolving process itself can take several hours, adding to the overall production time, though it requires minimal active labor. Some users opt for heated dissolving stations to accelerate the process, incurring additional equipment costs. The environmental disposal of the water-filament solution also needs consideration. For parts demanding intricate details, internal cavities, or a completely hands-off support removal process, the investment in water-soluble solutions often pays dividends in terms of print quality and reduced post-processing effort.
Chemical support removal: Specialized solutions for specific materials
Explore the
Snapmaker U1
For certain 3D printing technologies and materials, chemical support removal offers an effective means of achieving clean finishes. This method is particularly prevalent in resin (SLA/DLP) printing and for some FDM materials that utilize specific chemical-soluble supports.
Key features and techniques
- Resin printing: Post-processing resin prints typically involves washing them in a solvent like Isopropyl Alcohol (IPA) to remove uncured resin, often alongside support removal. Some resin printers offer dedicated washing and curing stations.
- FDM specific supports: Materials like HIPS (High Impact Polystyrene) can be used as support for ABS prints and dissolved using Limonene. Similarly, certain proprietary support materials exist that are soluble in specialized chemical baths.
- Benefits: Can achieve very smooth surfaces and remove supports from complex geometries without physical stress to the part.
Operational considerations and cost implications
Chemical support removal introduces several important considerations. Safety is paramount: many solvents require proper ventilation, personal protective equipment (PPE), and careful handling due to flammability or toxicity. The cost of solvents and their safe disposal can add up, particularly for larger-scale operations. For resin printing, dedicated wash and cure stations represent a moderate to significant upfront investment, offering automation and consistency. For FDM, using materials like HIPS requires a dual-extrusion setup and the cost of the specific solvent. While effective, the ongoing costs of consumables, safety measures, and potential specialized equipment mean this method generally involves a higher overall investment compared to manual techniques. It is best suited for materials and applications where its specific advantages in surface finish and complexity outweigh these additional considerations.
Automated and specialized support removal systems: Industrial efficiency
At the higher end of the spectrum, specialized and automated support removal systems cater to industrial applications, high-volume production, or specific material requirements. These systems are designed to streamline the post-processing workflow, offering speed, consistency, and reduced labor.
Key features and techniques
- Abrasive blasting: Systems using fine media (e.g., glass beads, plastic pellets) to gently blast away supports and smooth surfaces.
- Automated washing stations: Advanced versions of chemical or water-soluble dissolving baths, often with agitation, heating, and filtration systems for efficiency and consistency.
- Cryogenic deflashing: For certain materials, freezing parts to make supports brittle, then tumbling them to break off supports.
- Robotic removal: Emerging solutions utilizing robotic arms with tools for precise and automated support removal, especially for large or repetitive tasks.
Operational considerations and cost implications
These specialized systems represent a significant capital expenditure, making them suitable primarily for businesses with substantial production volumes or very specific quality requirements. While the initial investment is high, they offer considerable long-term benefits in terms of labor cost reduction, increased throughput, and consistent quality. Ongoing costs include consumables (blasting media, solvents), maintenance, and energy consumption. The choice of such a system is typically driven by the need for industrial-scale efficiency and the ability to consistently produce clean prints with minimal human intervention. For companies looking to scale their 3D printing operations and integrate post-processing into an automated workflow, these solutions provide a powerful, albeit costly, avenue.
Conclusion: Choosing the right post-processing path
The landscape of 3D print support removal is diverse, with each method presenting a unique balance of features, operational demands, and cost structures. From the immediate accessibility and low initial investment of manual techniques to the hands-off convenience of water-soluble supports, the specialized efficacy of chemical baths, and the industrial efficiency of automated systems, there's a solution for nearly every scenario. The optimal choice is not universally "better" or "cheaper" but rather hinges on a careful evaluation of several factors: the complexity and material of your 3D prints, your desired surface finish, production volume, available budget for equipment and consumables, and your commitment to labor time. By objectively comparing these post-processing techniques against your specific needs, you can make an informed decision that leads to consistently high-quality, clean prints and a more efficient overall 3D printing workflow.
