In the intricate world of 3D printing, precision is paramount. Every component, from the hot end to the build plate, plays a crucial role in the final output, but few are as fundamental yet often overlooked as the 3D printer belts. These unassuming strips of reinforced rubber are the unsung heroes responsible for translating the stepper motors' rotational power into precise linear motion along the X, Y, and sometimes Z axes. When perfectly tensioned, they ensure your printer head glides with pinpoint accuracy, laying down layer after flawless layer. However, when these critical components begin to loosen, the ripple effect on your print quality can be devastating, leading to a host of unsightly print defects and wasted material. Identifying the warning signs early is not just good practice; it's essential preventative maintenance that can save you time, filament, and frustration.
The critical role of 3D printer belts in print quality
Explore the
Snapmaker U1
At the heart of most FDM (Fused Deposition Modeling) 3D printers lies a Cartesian or CoreXY motion system, both heavily reliant on timing belts. These belts, typically made from fiberglass-reinforced neoprene or polyurethane, engage with toothed pulleys on the stepper motors and idlers to control the movement of the print head (and often the print bed). The precision with which these belts operate directly dictates the accuracy of every single movement your printer makes.
Imagine trying to draw a perfect circle with a wobbly ruler; the result would be far from ideal. Similarly, if your 3D printer belts lack proper tension, the print head's position can momentarily lag or overshoot, introducing minute errors that accumulate over thousands of layers. This seemingly minor issue can manifest as significant deviations in the final print, compromising dimensional accuracy, surface finish, and overall structural integrity. Maintaining optimal belt tension is therefore a cornerstone of achieving high-fidelity 3D prints.

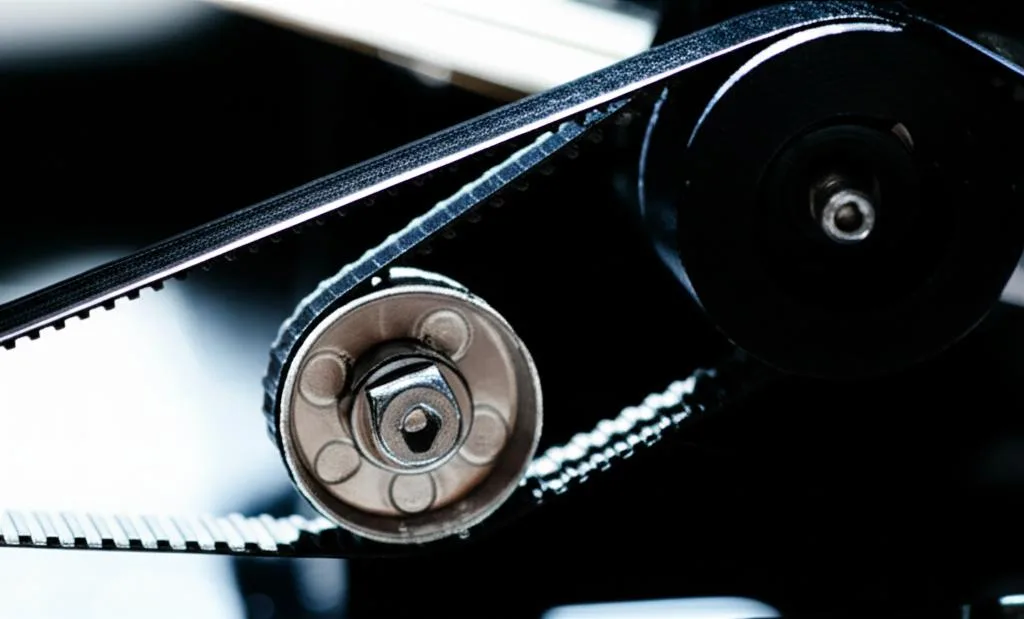

Understanding the root causes of loose 3D printer belts
Belts don't just loosen overnight without reason. Several factors can contribute to their degradation and loss of tension over time, making them a key focus for preventative maintenance.
Normal wear and tear
Like any mechanical component subjected to constant movement and friction, 3D printer belts are susceptible to wear and tear. Over hundreds or thousands of print hours, the material can stretch, the teeth can degrade, and the internal reinforcement can weaken. This is a natural process, but its rate can be influenced by print speed, acceleration settings, and the quality of the belts themselves.
Environmental factors
Temperature and humidity can play a subtle yet significant role. Extreme temperature fluctuations can cause the belt material to expand and contract, potentially leading to stretching or micro-cracks over time. High humidity might also affect certain belt materials, though modern belts are generally quite resilient.
Incorrect initial tensioning
Often, issues stem from the initial setup. If belts were not properly tensioned during assembly or after a replacement, they might appear adequate at first but quickly lose tension once the printer starts operating under load. Over-tensioning can also be detrimental, leading to premature wear on belts, motors, and bearings.
Component degradation
It’s not always just the belt. Worn pulleys, loose motor mounts, or failing bearings on idlers can mimic the symptoms of a loose belt or exacerbate existing slack. Regularly inspecting these associated components is crucial for a comprehensive preventative maintenance check.
The 5 warning signs of loose 3D printer belts
Explore the
Snapmaker U1
Spotting these issues early can be the difference between a minor adjustment and a completely ruined print. Here are the top five indicators that your 3D printer belts might be losing their grip.
1. Ghosting and ringing (vibrations and echoes)
One of the most common and visually distinct signs of loose 3D printer belts is the appearance of “ghosting” or “ringing” on your prints. This phenomenon manifests as faint, repeating patterns or shadows of features (like corners or holes) that appear slightly offset from the actual feature on the print surface. Imagine a ripple effect emanating from a sharp edge.
How it looks: Subtle, repeating lines or faint duplicates of sharp features on the print’s smooth surfaces, often more pronounced after rapid directional changes.
Why it happens: When the print head rapidly changes direction (e.g., at a corner), a loose belt allows for a brief moment of uncontrolled oscillation or vibration. This brief wobble is then imprinted onto the subsequent layers as the print head settles, creating the ghosting effect. The slack in the belt acts like a small spring, absorbing and then releasing kinetic energy inefficiently.
What to check: Inspect the belts on the axes where ghosting is most prominent (typically X and Y). Gently push and pull on the print head or bed along these axes to feel for excessive play or springiness. Ensure belt tension is uniform.
2. Layer shifting (misaligned layers)
Layer shifting is arguably one of the most frustrating print defects, characterized by entire sections of a print being suddenly misaligned horizontally. While it can be caused by various issues, loose 3D printer belts are a prime suspect, especially if the shift is consistent across multiple prints or occurs after rapid movements.
How it looks: A distinct step or offset in the print, where all subsequent layers are shifted by a fixed amount relative to the layers below. This can happen once or multiple times throughout a print.
Why it happens: A loose belt can momentarily slip on the motor pulley or idler, causing the print head or bed to lose its precise position. If the belt slips even by one tooth, the printer's internal coordinates become desynchronized with the actual physical position of the print head, leading to an immediate and noticeable layer shift. This is particularly common during high-speed movements or when the nozzle encounters resistance.
What to check: Visually inspect belts for any signs of wear on the teeth or excessive slack. Manually move the print head/bed along the affected axis and observe if the belt visibly slips on the pulley. Check that the motor pulley grub screws are tight on the motor shaft.
3. Poor surface finish and inconsistent extrusion
While often attributed to extrusion issues, a poor surface finish characterized by inconsistent lines, rough textures, or even subtle banding can frequently be traced back to loose 3D printer belts. The connection lies in the instability of the print head's movement.
How it looks: Uneven layer lines, visible variations in wall thickness, patchy or rough areas on otherwise smooth surfaces, or a general lack of crispness in details.
Why it happens: When belts are loose, the print head's movement isn't perfectly smooth or consistent. It might slightly hesitate, accelerate unevenly, or wobble minutely. This irregular motion directly affects the deposition of filament. If the nozzle's speed or path deviates even slightly, the amount of plastic extruded per unit of travel can become inconsistent, leading to under-extrusion in some spots and over-extrusion in others, manifesting as a poor surface finish. It can also cause the nozzle-to-print distance to fluctuate, further degrading quality.
What to check: Observe the print head's movement closely during a print, especially on long, straight walls. Does it appear smooth and fluid, or do you notice any micro-stutters or wobbles? Perform a simple calibration cube print and examine its walls for consistency.
4. Audible clunks, squeaks, or vibrations
Sometimes, your printer will literally tell you something is wrong. Unusual noises during operation are often clear warning signs that mechanical components, including belts, are not functioning optimally.
How it looks/sounds: Distinct clicking, clunking, squeaking, or grinding noises, particularly during rapid movements or direction changes. Increased overall vibration of the printer frame.
Why it happens: A loose belt might be slapping against the printer frame or other components, causing a clunking sound. If it's slipping on a pulley, you might hear a distinct click or grind as the teeth jump. Squeaking could indicate friction from a belt rubbing where it shouldn't or an issue with a bearing on an idler pulley exacerbated by incorrect belt tension. Excessive vibrations suggest instability in the motion system, often stemming from inadequate belt tension failing to dampen movements effectively.
What to check: Power off the printer and manually move each axis. Listen carefully for any unusual sounds. Try to pinpoint the origin of the noise. Check all pulleys and idlers for smooth rotation and ensure belts are aligned and not rubbing against anything. Feel for vibrations in the frame during a test print.
5. Visual inspection: sagging or fraying belts
While the previous signs are print-based or auditory, a direct visual inspection can often confirm suspicions about your 3D printer belts. This is the most straightforward and often earliest preventative maintenance check you can perform.
How it looks: Visible slack or sag in the belt when the print head/bed is at rest. Uneven tension across the belt's length. Fraying edges, cracking, or missing teeth on the belt itself. Shiny spots on the belt or pulleys indicating friction.
Why it happens: Belts naturally stretch over time, leading to visible sag. Fraying or missing teeth are signs of significant wear and tear, indicating the belt is failing and losing its ability to grip the pulleys effectively. Shiny spots suggest misalignment or rubbing, which will quickly degrade the belt material.
What to check: With the printer off, carefully examine the entire length of your X and Y axis belts. Gently press on them – there should be some resistance, but not excessive rigidity. They should feel firm and taught, with a consistent tension across their span. Look for any physical damage, discoloration, or areas where the belt appears thinner or stretched. Compare the tension of both X and Y belts if possible.

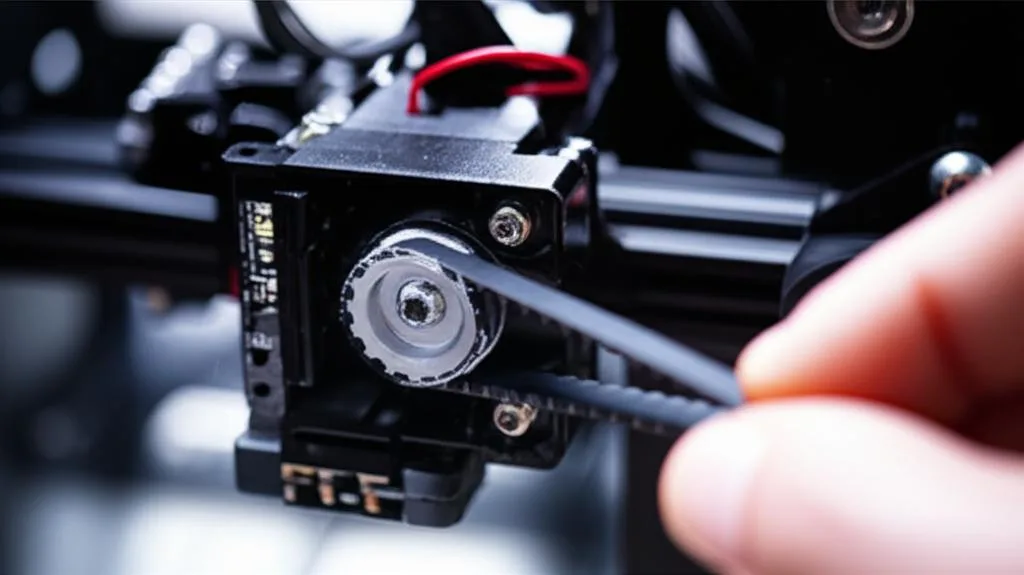

Preventative maintenance for optimal belt performance
Proactive care is key to extending the life of your 3D printer belts and ensuring consistent print quality. Incorporate these steps into your regular maintenance routine:
- Regular tension checks: At least once a month, or after every 50-100 print hours, check the tension of your belts. Many resources offer methods for checking tension, from simple pluck tests (listening for a specific pitch) to using smartphone apps that measure frequency. Adjust tension as needed, aiming for firm but not overly tight.
- Clean belts and pulleys: Dust, filament debris, and even tiny plastic shavings can accumulate on belts and in pulley teeth, leading to poor grip and accelerated wear. Use a soft brush or a lint-free cloth to gently clean these components.
- Inspect for wear and tear: During cleaning, take the opportunity to visually inspect the entire length of the belts for any signs of damage: cracks, fraying, missing teeth, or excessive stretching. Also, check the motor pulleys and idlers for wear or damage.
- Proper installation techniques: If you ever replace your belts, ensure they are installed correctly, routed properly, and tensioned uniformly. Consult your printer's manual or reputable online guides for specific instructions.
- Keep the printer environment stable: While not always possible, minimizing extreme temperature fluctuations and excessive dust can help prolong the life of all printer components, including belts.
What to do when you spot a warning sign
When one or more of these warning signs appear, don't panic, but do act promptly. The first step is to pause or stop your current print to prevent further damage or wasted material. Then, carefully inspect the suspected axis or belts. Begin by checking the obvious: are the belts visibly loose? Are the motor pulley grub screws tight on the motor shaft? Are there any obstructions?
If you confirm loose belts, the next step is adjustment. Most 3D printers have tensioning mechanisms (screws, adjustable idlers, or spring-loaded systems) that allow you to increase belt tension. Refer to your printer's manual for the correct procedure. Aim for a tension that allows for minimal deflection when gently pressed, without being so tight that it strains the motors or bearings. If belts are visibly damaged, frayed, or have missing teeth, adjustment won't suffice; they will need to be replaced.
In conclusion, 3D printer belts, though often out of sight, are integral to achieving high-quality prints. By actively looking for the five warning signs – ghosting, layer shifting, poor surface finish, unusual noises, and visible damage – and incorporating regular preventative maintenance into your routine, you can preemptively address issues before they escalate. A keen eye and a proactive approach to your printer's health will ensure your prints remain crisp, accurate, and consistently impressive, making your 3D printing journey smoother and more rewarding.
