Achieving truly durable 3D prints often requires moving beyond the familiar realms of PLA and ABS. While these materials are excellent for a vast array of applications, their mechanical limitations become apparent when projects demand high strength, impact resistance, or resilience in challenging environments. For those looking to elevate their 3D printing capabilities to produce functional, robust parts, delving into the world of engineering plastics and advanced composites is a crucial next step. This guide aims to demystify the process of choosing a high strength filament, providing an objective comparison of various options to help you make an informed decision for your specific needs.
Understanding what 'strength' means in 3D printing
Explore the
Snapmaker U1
Before diving into specific materials, it's essential to define what we mean by 'strength' in the context of 3D printing. It's not a monolithic property but rather a combination of several characteristics:
- Tensile Strength: The material's ability to resist breaking when stretched or pulled. High tensile strength is vital for parts subjected to tension.
- Flexural Strength: How well a material resists deformation under bending stress. This is critical for components that need to withstand loads without permanent bending.
- Impact Strength: The material's capacity to absorb energy and resist fracturing when subjected to sudden force or shock. Parts needing to survive drops or collisions require high impact strength.
- Hardness: Resistance to indentation, scratching, or abrasion.
- Temperature Resistance: The ability to maintain mechanical properties at elevated temperatures. Heat deflection temperature (HDT) is a key metric here.
- Chemical Resistance: The material's ability to withstand degradation when exposed to various chemicals.
The ideal high strength filament for your project will depend entirely on which of these properties are most critical for the application at hand. A part requiring high tensile strength might differ from one needing extreme impact resistance or heat deflection.

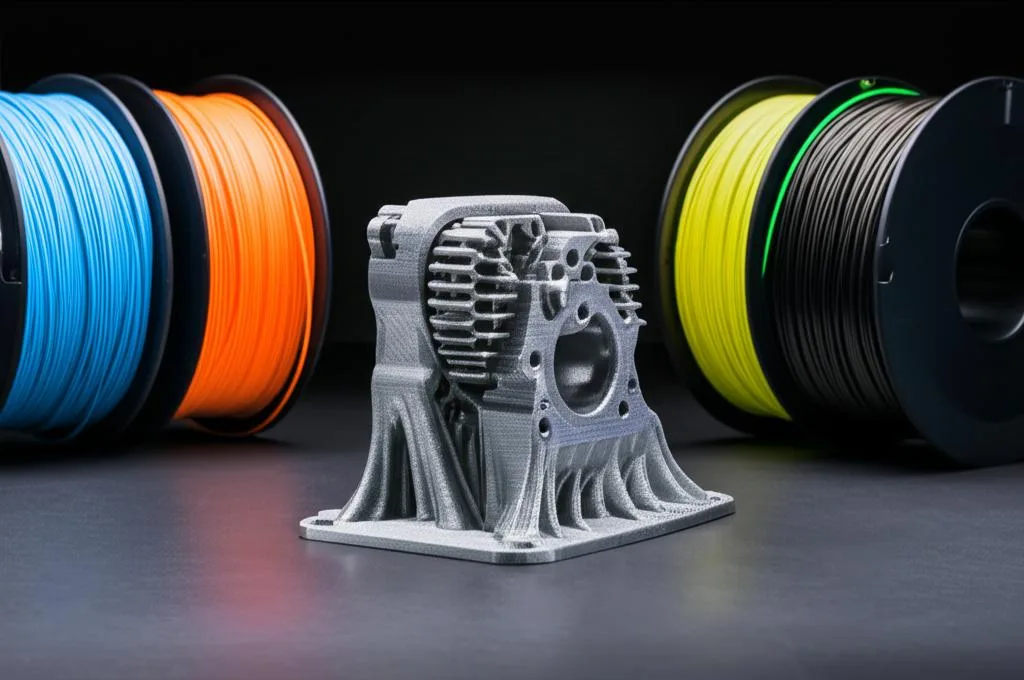

Key factors influencing durable 3D prints
While the choice of filament is paramount, it's just one piece of the puzzle. Several other factors significantly impact the overall strength and durability of your 3D prints:
- Printer Settings: Print speed, layer height, infill density and pattern, and extrusion temperature all play a critical role. Higher infill, specific infill patterns (e.g., rectilinear), and optimal temperatures can dramatically improve part strength.
- Part Design: Good design practices, such as avoiding sharp corners, incorporating fillets, optimizing wall thickness, and orienting the part for printing to align with load paths, are fundamental to maximizing strength.
- Post-Processing: Techniques like annealing (heat treatment), vapor smoothing, or applying coatings can enhance mechanical properties and surface finish.
- Printer Hardware: Features like an enclosed print chamber (essential for many engineering filaments), a heated bed, and a robust hotend capable of higher temperatures are often prerequisites for successfully printing advanced materials.
Exploring high strength filaments: beyond the basics
Let's delve into some of the most popular and effective high strength filament options available today, comparing their features, typical applications, and considerations regarding cost and printability.
Nylon (Polyamide - PA) filament
Nylon is a powerhouse in the world of engineering plastics, renowned for its excellent balance of strength, flexibility, and abrasion resistance. It's a go-to choice for parts that need to withstand significant stress and wear.
- Key Features: High tensile and impact strength, good flexibility (especially unreinforced), excellent abrasion resistance, good chemical resistance to many solvents and oils.
- Typical Applications: Gears, hinges, living hinges, functional prototypes, tools, automotive parts, snap-fit components.
- Printability Considerations: Nylon is highly hygroscopic, meaning it readily absorbs moisture from the air. This can lead to print quality issues like bubbling, poor layer adhesion, and weaker parts. Proper drying before printing and storage in a dry box are essential. It also requires higher print temperatures (typically 240-270°C nozzle, 60-80°C bed) and an enclosure to prevent warping and ensure good layer adhesion.
- Cost Structure: Generally more expensive than PLA or ABS, but offers a significant performance upgrade. The total cost can also include investments in drying solutions.
Polycarbonate (PC) filament
Polycarbonate is another top contender for high strength applications, particularly where transparency, rigidity, and high-temperature resistance are required. It's the material often used for bulletproof glass and safety goggles.
- Key Features: Exceptionally high impact strength, very rigid, good tensile strength, excellent heat deflection temperature, often transparent or translucent.
- Typical Applications: Functional prototypes, protective casings, drone parts, light diffusers, high-temperature jigs and fixtures, components requiring optical clarity.
- Printability Considerations: PC can be challenging to print successfully. It requires very high nozzle temperatures (260-300°C) and a high bed temperature (100-120°C), along with an enclosure to manage warping. It's also somewhat hygroscopic, though less so than Nylon, and benefits from drying. Good bed adhesion is crucial.
- Cost Structure: Often among the more expensive non-composite engineering filaments. The need for a high-temperature printer setup can also add to the overall investment.
PETG filament
While not strictly an 'engineering plastic' in the same vein as Nylon or PC, PETG (Polyethylene Terephthalate Glycol) offers a significant step up from PLA and ABS in terms of strength, flexibility, and chemical resistance, often at a more accessible price point and easier printability.
- Key Features: Good balance of strength and flexibility, excellent layer adhesion, good impact resistance, chemical resistance, low warp, and often food-safe variants available.
- Typical Applications: Functional prototypes, mechanical parts, enclosures, outdoor parts (due to good UV resistance), bottles, containers.
- Printability Considerations: Prints hotter than PLA (230-250°C nozzle, 70-90°C bed) but generally easier than ABS, Nylon, or PC. It can be prone to stringing, requiring careful retraction settings. Less prone to warping than ABS.
- Cost Structure: Typically a mid-range filament, more expensive than PLA but often less than Nylon or PC, offering excellent value for its performance.
ASA (Acrylonitrile Styrene Acrylate) filament
ASA is often considered the 'outdoor ABS' due to its similar mechanical properties but vastly superior UV resistance and weatherability. If you need strong, durable parts for outdoor use, ASA is an excellent choice.
- Key Features: High impact strength, good tensile strength, excellent UV and weather resistance, good chemical resistance, similar mechanical properties to ABS.
- Typical Applications: Outdoor enclosures, automotive exterior parts, garden tools, marine applications, functional prototypes exposed to sunlight.
- Printability Considerations: Similar to ABS, ASA requires higher print temperatures (240-260°C nozzle, 90-110°C bed) and benefits greatly from an enclosure to prevent warping and cracking. It emits fewer strong odors than ABS during printing.
- Cost Structure: Generally comparable to or slightly more expensive than ABS, but offers a significant advantage in outdoor durability.
Carbon fiber and glass fiber reinforced filaments
For ultimate strength, rigidity, and often lighter weight, fiber-reinforced composites are the answer. These filaments typically use a base polymer (like Nylon, PETG, PC, or ABS) infused with chopped carbon fibers or glass fibers.
- Key Features: Dramatically increased stiffness and tensile strength, reduced weight, improved dimensional stability, often better temperature resistance. Carbon fiber reinforced filaments offer exceptional strength-to-weight ratio.
- Typical Applications: High-performance drone frames, structural components, tooling, fixtures, lightweight parts, automotive and aerospace prototypes.
- Printability Considerations: The fibers make these filaments abrasive. A hardened steel nozzle or ruby nozzle is essential to prevent rapid wear of brass nozzles. They often require higher print temperatures and an enclosure, depending on the base polymer. Fibers can also make the filament more brittle, requiring careful handling.
- Cost Structure: Significantly more expensive than their unreinforced counterparts. The additional cost of a hardened nozzle should also be factored in.
High-performance engineering polymers (PEEK, ULTEM)
While often beyond the reach of hobbyist or even prosumer 3D printers, it's worth noting extreme high-performance engineering polymers like PEEK (Polyether Ether Ketone) and ULTEM (Polyetherimide). These materials offer unparalleled strength, stiffness, chemical resistance, and temperature resistance, suitable for aerospace, medical, and extreme industrial applications.
Printability & Cost: These require highly specialized, very expensive 3D printers with extremely high-temperature hotends and heated chambers (often 200°C+). The filaments themselves are also significantly more expensive than any other options discussed, reflecting their niche, high-demand applications.

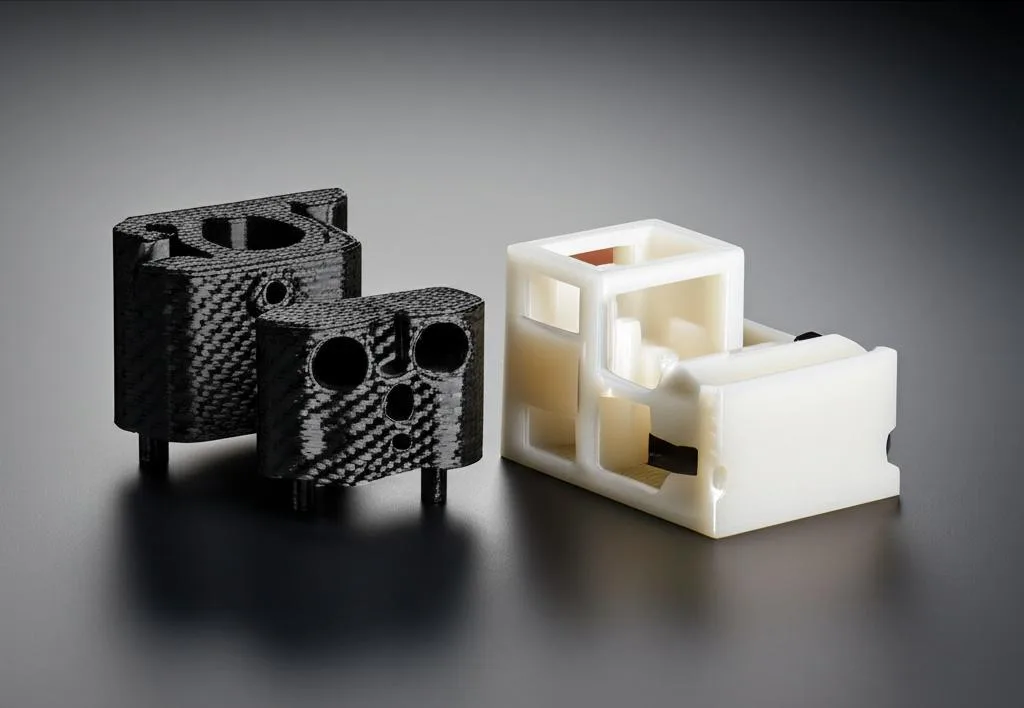

Comparative analysis of high strength filaments
To aid in your material selection, here's a comparative overview, focusing on the features and typical cost implications. Remember, prices fluctuate, and 'cost' isn't just the spool price but also the investment in suitable printing hardware and potential post-processing.
Mechanical Properties & Durability:
- Impact Strength: PC > Nylon > ASA ≈ PETG > PLA/ABS
- Tensile Strength: Fiber-reinforced > PC > Nylon > ASA ≈ PETG > ABS > PLA
- Flexural Strength/Stiffness: Fiber-reinforced > PC > ASA > Nylon > PETG > ABS > PLA
- Temperature Resistance (HDT): PEEK/ULTEM > PC > ASA > Nylon > ABS > PETG > PLA
- Abrasion Resistance: Nylon > Fiber-reinforced > PC > ASA > PETG > ABS > PLA
- UV Resistance: ASA > PETG > PC > Nylon > ABS > PLA
Printability & Hardware Requirements:
- Ease of Printing (General): PETG > ASA ≈ Nylon > PC > Fiber-reinforced > PEEK/ULTEM
- Heated Bed Required: All listed high-strength filaments benefit from or require a heated bed.
- Enclosure Recommended/Required: PC, Nylon, ASA, Fiber-reinforced (especially for warp-prone base polymers) greatly benefit from or require an enclosure. PEEK/ULTEM require actively heated chambers.
- Special Nozzle: Fiber-reinforced filaments require hardened steel or ruby nozzles.
- Moisture Sensitivity: Nylon > PC > PETG > ASA (all benefit from drying).
Cost Structure (Relative, per kg spool):
- Entry-Level: PLA, ABS (lowest)
- Mid-Range: PETG, ASA (moderate)
- Higher-End Engineering: Nylon, PC (significantly higher)
- Premium Composites: Carbon fiber/Glass fiber reinforced (substantially higher)
- Extreme Performance: PEEK, ULTEM (orders of magnitude higher)
It's important to consider that the 'cost' also encompasses the printer's capabilities. Investing in a more expensive filament might necessitate upgrading your printer with a high-temp hotend, an enclosure, or a hardened nozzle, adding to the overall project expenditure.
Choosing the right high strength filament for your project
Making the optimal choice involves a careful assessment of your project's specific demands:
- Define the Application: What will the part be used for? What stresses will it endure (tension, compression, impact, bending)? Will it be exposed to heat, chemicals, or UV light?
- Identify Critical Properties: Based on the application, prioritize which 'strength' characteristics are most important (e.g., impact resistance for a drone part, heat resistance for an engine component, flexibility for a living hinge).
- Assess Printer Capabilities: Does your 3D printer have a heated bed, an enclosure, and a hotend capable of reaching the necessary temperatures? Do you have a hardened nozzle for abrasive filaments?
- Consider Post-Processing: Are you willing or able to perform post-processing steps like annealing or drying?
- Evaluate Budget: While cost shouldn't be the sole driver, it's a practical consideration. Balance the performance requirements against the filament cost and any necessary hardware upgrades.
For example, if you need a strong, somewhat flexible part for a jig that won't see extreme temperatures or UV, Nylon might be an excellent fit. If you need a rigid, high-impact part for an outdoor enclosure, ASA or PC could be better, with ASA offering superior UV resistance. For extreme stiffness and lightweight structural components, carbon fiber reinforced filaments are a strong contender, provided your printer is equipped for them.

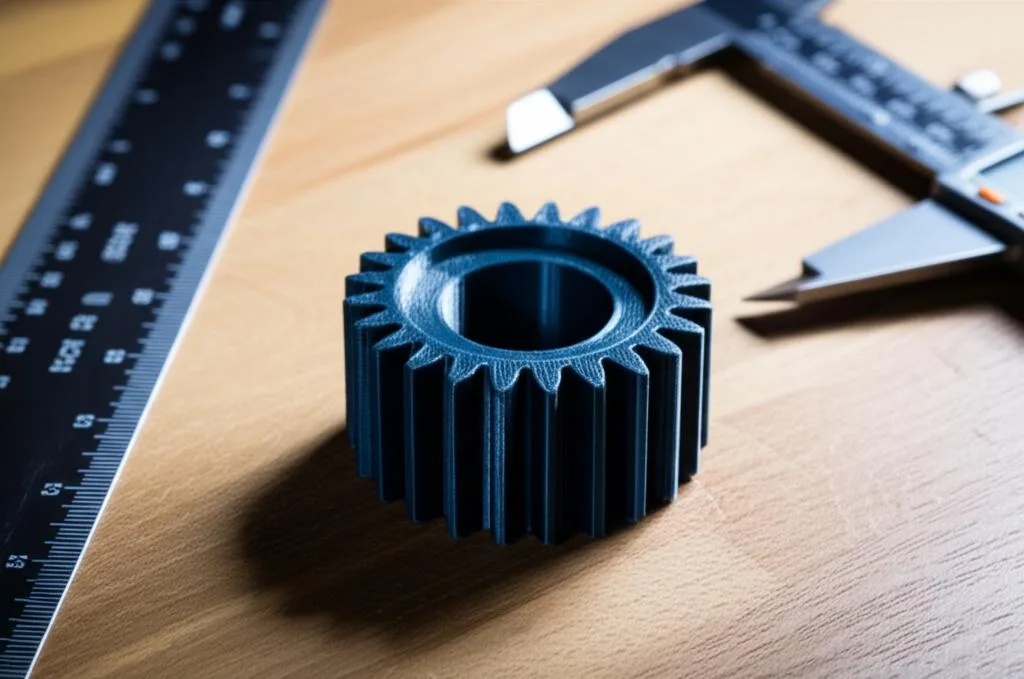

Tips for successful high-strength 3D prints
Regardless of the high strength filament you choose, these general tips can help maximize your print's durability:
- Dry Your Filament: Many engineering filaments are hygroscopic. Always store them in a dry environment and dry them before printing for optimal results.
- Use an Enclosure: An enclosed build chamber helps maintain a stable temperature, preventing warping and improving layer adhesion, especially for materials like ABS, ASA, Nylon, and PC.
- Optimize Print Settings: Experiment with higher infill percentages (e.g., 50-100%), specific infill patterns (like rectilinear or gyroid), increased perimeters/walls, and slightly higher extrusion temperatures within the filament's recommended range.
- Ensure Good Bed Adhesion: A clean, properly prepared print surface is crucial. Use appropriate adhesives (PVA glue, hairspray, PEI sheet) and ensure correct bed temperature.
- Calibrate Your Printer: Regular calibration of E-steps, flow rate, and bed leveling is vital for consistent, strong prints.
- Consider Nozzle Type: Upgrade to a hardened steel or ruby nozzle for abrasive filaments like carbon fiber or glass fiber composites.

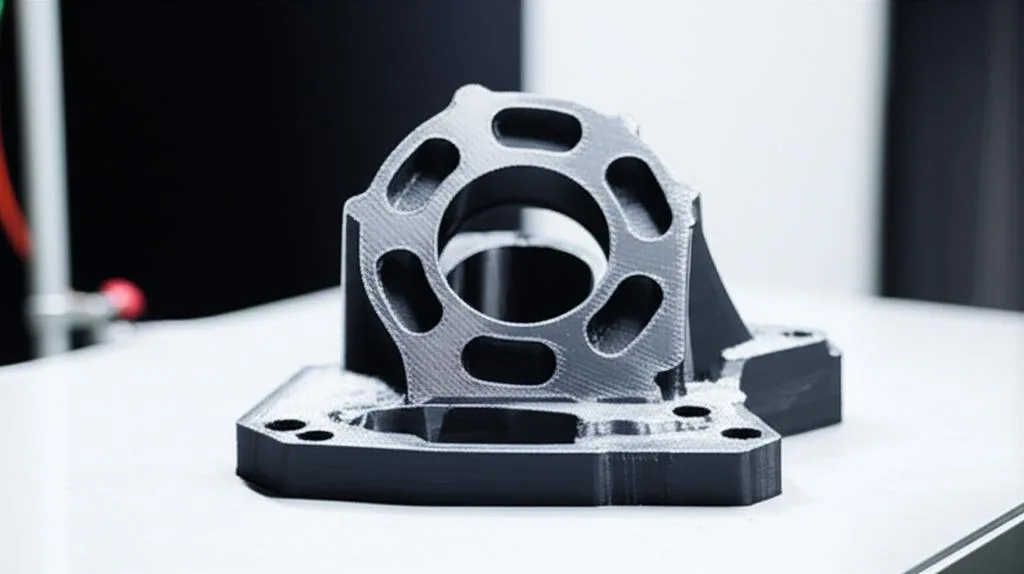

Conclusion
Venturing beyond PLA and ABS opens up a world of possibilities for creating truly high strength and durable 3D prints. The landscape of engineering plastics offers a rich selection, each with its unique blend of mechanical properties, printability challenges, and cost structures. By understanding the specific demands of your application, objectively comparing the features of materials like Nylon, PC, PETG, ASA, and fiber-reinforced composites, and ensuring your printer setup is up to the task, you can confidently select the high strength filament that best meets your project's requirements. The journey to more robust 3D prints is one of informed material selection and meticulous printing practices, empowering you to bring even the most demanding designs to life.
