Upgrading a 3D printer with linear rails is a popular modification aimed at enhancing precision, increasing speed, and improving overall print quality. While many stock 3D printers rely on V-slot wheels or smooth rods for their motion systems, these components can eventually exhibit wear, leading to inconsistencies, backlash, and reduced accuracy. Linear rails offer a more robust, low-friction, and precise alternative, but understanding the various options, their associated costs, and features is crucial before undertaking a conversion.
Why consider linear rail conversion for your 3D printer?
Explore the
Snapmaker U1
The core motivation behind a linear rail upgrade is typically to overcome the limitations of standard motion systems. V-slot wheels, for instance, are prone to wear, requiring frequent adjustment to maintain proper tension and prevent wobbling. Smooth rods, while generally more precise, can suffer from binding if not perfectly aligned and often have bushings that wear out over time. Linear rails, on the other hand, provide several compelling advantages:
- Enhanced Precision Printing: Their inherent rigidity and tight tolerances minimize play and deflection, leading to more accurate and consistent layer deposition. This translates to sharper details and fewer artifacts like ghosting or ringing.
- Increased Speed Potential: With reduced friction and improved stability, linear rails allow for higher acceleration and printing speeds without sacrificing quality. This is a significant benefit for users looking to complete prints faster.
- Improved Longevity and Durability: Designed for industrial applications, linear rails are built to withstand heavy loads and continuous operation, offering a longer lifespan and less maintenance compared to traditional components.
- Greater Accuracy Mod: The consistent motion and reduced vibration contribute to a more accurate print bed leveling and overall dimensional accuracy of printed parts.

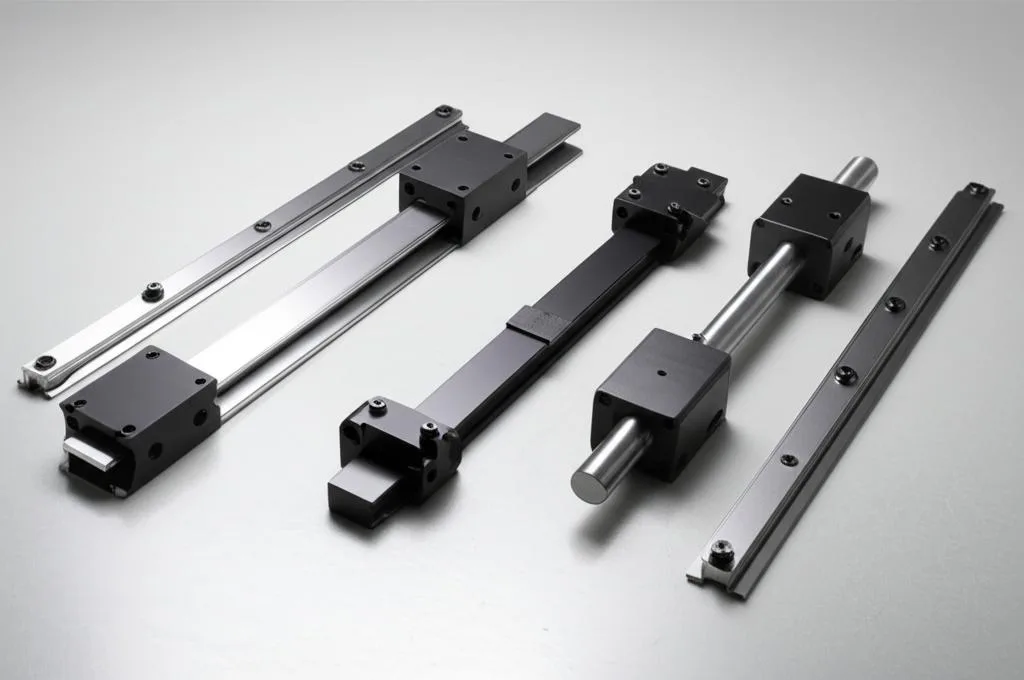

Understanding different types of linear rails
When delving into the world of linear rails for 3D printers, you'll primarily encounter two main types, distinguished by their profile and the ball-bearing carriage that rides along them:
- MGN Series (Miniature Guide Rails): These are by far the most common choice for 3D printer upgrades due to their compact size and relative affordability. They typically feature small steel balls circulating within the carriage, offering smooth motion. MGN rails come in various widths (e.g., MGN9, MGN12, MGN15), with larger numbers indicating wider rails and thus greater load capacity and rigidity.
- HGR Series (Heavy-Duty Guide Rails): Less common for typical desktop 3D printers due to their larger size and higher cost, HGR rails are designed for heavier loads and more demanding industrial applications. They offer superior rigidity and load-bearing capabilities, which might be overkill for most consumer-grade printers but could be considered for very large-format or specialized machines.
Within each series, you'll also find different accuracy classes (e.g., C, H, P for normal, high, precision), with higher classes offering tighter tolerances and smoother motion, albeit at a higher price point.
Factors influencing the cost of linear rail conversions
The financial outlay for a linear rail conversion can vary significantly based on several key factors:
Brand and quality
Just like any other precision component, linear rails come from a spectrum of manufacturers. Premium brands like Hiwin, PMI, or THK are renowned for their exceptional quality, precision, and longevity. However, their products come with a higher price tag. On the other end, numerous generic or "no-name" brands offer more budget-friendly options. While these can provide a significant upgrade over stock components, their quality control, manufacturing tolerances, and lifespan might not match their premium counterparts. The choice often boils down to balancing budget constraints with desired performance and reliability.
Number of axes and rail lengths
The total cost is directly proportional to how many axes you plan to convert (X, Y, Z) and the required length of each rail. A full X, Y, Z conversion for a larger printer will naturally be more expensive than just upgrading the X-axis on a smaller machine. Each axis typically requires one or two rails, depending on the printer's design and the desired rigidity.
Carriages and mounting hardware
Each rail requires at least one, and often two, carriages (also known as blocks or sliders) to move along it. The cost of these carriages can sometimes rival that of the rails themselves, especially for higher-quality units. Furthermore, you'll need specific mounting plates or adapters to attach the linear rails and carriages to your printer's existing frame. These can be purchased pre-made from various vendors, or designed and 3D printed if you have the capability, which can reduce costs but requires more effort.
Additional components and tools
Other costs might include new fasteners, shims for alignment, and potentially specialized tools for installation. While some tools might already be in your kit, others, like precision gauges for alignment, might be a worthwhile investment for optimal results.

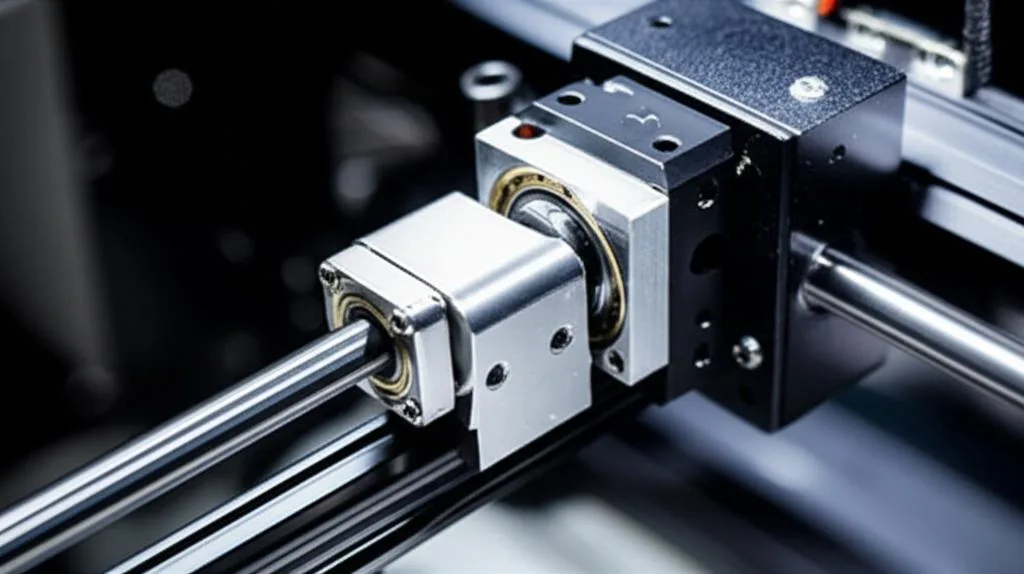

Features and performance considerations
Beyond cost, several technical features and performance implications should guide your decision-making process:
- Load Capacity and Rigidity: Wider rails (e.g., MGN12 vs. MGN9) and larger carriages inherently offer greater load capacity and rigidity. This is crucial for heavier print heads (e.g., direct drive extruders) or larger print beds, where deflection could otherwise compromise print quality.
- Smoothness and Friction: High-quality linear rails are designed for incredibly smooth, low-friction movement. This reduces the load on stepper motors, potentially allowing for quieter operation and less wear. Cheaper rails might exhibit more "stiction" or inconsistent movement, which can manifest as subtle imperfections in prints.
- Maintenance Requirements: Most linear rails require periodic lubrication to maintain optimal performance and prevent corrosion. The frequency and type of lubricant can vary. Some premium carriages are "self-lubricating" or designed for extended maintenance intervals.
- Installation Complexity: While not a feature of the rail itself, the ease or difficulty of installation is a practical consideration. Some conversions are relatively straightforward, involving direct bolt-on replacements, while others might require drilling, tapping, or significant frame modifications. Precision alignment during installation is paramount for achieving the advertised benefits.
Making an informed decision
Explore the
Snapmaker U1
Ultimately, the decision to upgrade to linear rails and which specific components to choose rests on a careful evaluation of your individual needs, budget, and technical aptitude. There's no single "best" option, as what works for one user's setup and printing goals might not be ideal for another. Consider the following:
- Your current printer's limitations: Are you consistently seeing ghosting, ringing, or dimensional inaccuracies that linear rails could resolve?
- Your budget: Are you looking for a cost-effective improvement or willing to invest in top-tier components for maximum performance?
- Your technical comfort level: Are you prepared for a potentially involved installation process that demands precision and patience?
- Your printing goals: Do you prioritize raw speed, absolute precision for intricate models, or simply greater reliability and less maintenance?
By objectively comparing the cost structures, brand reputations, technical specifications, and the potential impact on your 3D printer's performance, you can make an informed choice that aligns with your expectations and helps unlock a new level of printing capability.
