Venturing into the realm of `carbon fiber printing` with Fused Deposition Modeling (FDM) opens up a world of possibilities for creating high-strength, lightweight parts. However, the unique properties of carbon fiber composites, particularly their abrasive nature, demand a reassessment of standard FDM printer configurations. Achieving truly flawless prints with these advanced materials often necessitates a series of strategic `FDM upgrades` to specific hardware components. This guide delves into the core hardware considerations, objectively comparing various solutions and their implications for cost, performance, and long-term printing success, empowering users to make informed decisions tailored to their specific needs and goals.
The abrasive challenge: nozzles for carbon fiber printing
Explore the
Snapmaker U1
One of the primary challenges in `carbon fiber printing` stems from the inherent abrasiveness of the chopped carbon fibers embedded within the filament. These fibers act like tiny chisels, rapidly eroding standard brass nozzles and leading to inconsistent extrusion, clogged nozzles, and ultimately, failed prints. Addressing this wear is paramount for anyone serious about working with composite filaments.
Hardened steel nozzles: a common entry point
Hardened steel nozzles represent a significant step up from standard brass. Their increased hardness provides considerably better resistance to the abrasive wear caused by `abrasive filaments`. They are generally more affordable than other specialized options, making them a popular choice for those new to `carbon fiber printing` or seeking a cost-effective upgrade. However, hardened steel typically exhibits lower thermal conductivity compared to brass, which can necessitate slightly higher printing temperatures or a reduction in print speed to ensure consistent melt flow. This trade-off between durability and thermal performance is a key consideration.
Tool steel nozzles: balancing durability and performance
Tool steel nozzles often offer a superior balance between hardness and thermal conductivity compared to generic hardened steel. These nozzles are engineered for demanding applications, providing enhanced wear resistance without as significant a compromise on heat transfer. The cost for tool steel options typically sits above standard hardened steel but below more exotic materials. For users seeking a robust and reliable solution that performs well across a range of `abrasive filaments`, tool steel can present a compelling option, often requiring less adjustment to print settings than simpler hardened steel variants.
Ruby-tipped nozzles: precision and longevity
Ruby-tipped nozzles feature a small, extremely hard synthetic ruby insert at the tip, where the majority of the abrasive wear occurs. The ruby's exceptional hardness offers virtually unparalleled wear resistance, making these nozzles incredibly durable even with the most `abrasive filaments`. This durability ensures consistent nozzle diameter over extended periods, contributing to high-quality, repeatable prints. The main drawbacks are their significantly higher cost and, in some designs, a potential for slightly reduced thermal transfer directly at the tip compared to all-metal alternatives. For applications demanding the utmost precision and longevity, where nozzle wear cannot be tolerated, ruby-tipped options are a strong contender.
Carbide nozzles: extreme durability for industrial use
Nozzles made from solid carbide, such as tungsten carbide, represent the pinnacle of wear resistance. These materials combine extreme hardness with good thermal properties, making them ideal for continuous, high-volume `carbon fiber printing` in industrial or professional settings. Their upfront cost is often the highest among all nozzle types, reflecting their superior material properties and manufacturing complexity. However, for users facing high operational costs due to frequent nozzle replacement or for those requiring maximum uptime and print consistency with `abrasive filaments`, the long-term value proposition of carbide nozzles can be substantial.
When evaluating nozzle upgrades, the decision hinges on print volume, budget, and the specific performance requirements. Each material offers a distinct balance of cost, durability, and thermal characteristics, impacting print quality and operational efficiency differently.

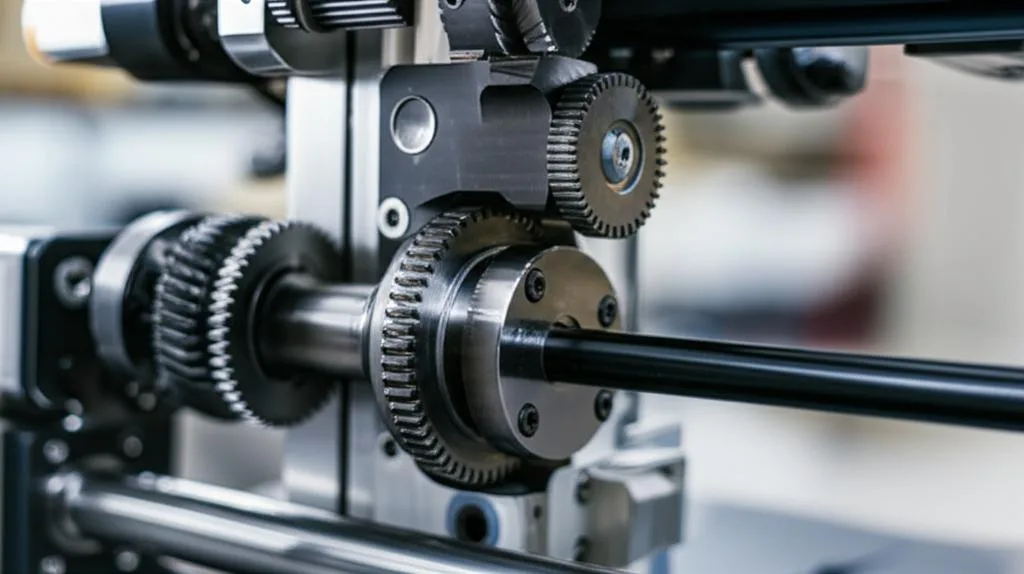

Filament control: extruders for composite materials
Effective filament management is critical for consistent `carbon fiber printing`. The precise delivery and retraction of composite filaments, which can sometimes be more brittle or less flexible than standard PLA or PETG, benefit significantly from an optimized extrusion system. The choice of extruder can influence print quality, reliability, and the range of materials a printer can effectively handle.
Direct drive versus Bowden systems: a fundamental choice
The fundamental difference lies in the placement of the extruder motor. In a Bowden system, the motor is typically mounted on the printer's frame, pushing filament through a long PTFE tube to the hotend. This reduces the weight on the print head, allowing for faster accelerations and print speeds. However, the long filament path introduces compliance and friction, making precise retraction and control over `abrasive filaments` more challenging. The filament can also wear the PTFE tube over time, leading to inconsistent extrusion.
In contrast, a direct drive extruder mounts the motor directly on the print head, minimizing the distance the filament travels from the drive gears to the hotend. This short, constrained path offers superior control over filament movement, leading to more precise retractions, reduced stringing, and better handling of brittle or flexible materials. For `carbon fiber printing`, the enhanced control can mitigate issues like under-extrusion and improve overall print consistency. The trade-off is the increased mass on the print head, which can potentially limit maximum print speeds and introduce more ghosting or ringing if the printer's frame is not rigid enough.
Geared extruders: enhancing torque and precision
Many modern direct drive and even some Bowden extruders incorporate a gearing mechanism between the motor and the filament drive gears. Geared extruders multiply the torque from the stepper motor, allowing for stronger and more consistent filament gripping. This increased power can be particularly beneficial when printing with `abrasive filaments` that may have inconsistent diameters or require higher extrusion forces. The gearing also enables finer control over filament advancement, as a smaller rotation of the motor translates to a more precise movement of the filament. This can lead to improved print quality, especially for intricate details and complex geometries. While geared extruders often come at a higher cost than simpler direct drive mechanisms, their benefits in terms of reliability and print quality, particularly for demanding materials, can be substantial. When considering `FDM upgrades`, a robust geared direct drive extruder is often highlighted for its ability to provide consistent and reliable filament delivery.
Dual-gear extruders: consistent gripping
A further refinement in extruder design is the dual-gear system, where two drive gears actively grip the filament from opposing sides. This setup provides a more secure and consistent grip on the filament compared to single-gear systems, which typically rely on a smooth idler wheel on one side. The enhanced grip minimizes the chances of filament slipping, grinding, or deforming, which can be particularly problematic with brittle `carbon fiber printing` filaments. Dual-gear extruders contribute to more reliable and consistent extrusion, reducing the likelihood of print failures and improving the overall quality of the printed part. Their cost is generally higher than basic single-gear extruders, but the investment often translates to fewer print issues and more consistent results, especially when working with challenging `abrasive filaments`.
The choice of extruder system involves weighing the benefits of filament control and print quality against potential impacts on print speed and overall printer dynamics. Each option presents a different balance of cost, complexity, and performance for `carbon fiber printing`.
Thermal management: heated beds and enclosures
Explore the
Snapmaker U1
High-performance `carbon fiber printing` filaments, especially those based on engineering plastics like nylon, polycarbonate, or PEEK, often exhibit higher glass transition temperatures and significant thermal expansion/contraction characteristics. This makes proper thermal management of the print environment crucial to prevent warping, improve layer adhesion, and ensure successful prints. `FDM upgrades` in this area are vital for consistent results.
Heated beds: foundational for adhesion
A robust `heated bed` is non-negotiable for most `carbon fiber printing` applications. The primary function of a `heated bed` is to maintain the base of the print at an elevated temperature, reducing the temperature differential between the printed layers and the ambient air. This minimizes internal stresses that lead to warping and delamination. For carbon fiber composites, which often have higher shrinkage rates than standard plastics, a powerful and evenly heating bed is essential. Different types of `heated bed` systems exist, ranging from basic PCB heaters to more advanced silicone heaters or AC-powered solutions. AC-powered beds, while requiring careful electrical installation, often provide faster heating and more uniform temperature distribution across larger print surfaces, which can be advantageous for bigger `carbon fiber printing` projects. The cost varies significantly based on size, power, and control mechanisms. An adequately powered `heated bed` is a cornerstone for successful adhesion and warp prevention.
Print surfaces: optimizing first-layer adhesion
Beyond the `heated bed` itself, the print surface material plays a critical role in first-layer adhesion and ease of print removal. For `carbon fiber printing`, common surfaces include:
- PEI (Polyetherimide) sheets: Available in smooth or textured varieties, PEI offers excellent adhesion for a wide range of engineering filaments when heated. Its durability and ease of maintenance make it a popular choice. Textured PEI can also impart a desirable finish to the bottom of the print.
- Garolite (G10/FR4): This glass-reinforced epoxy laminate is particularly effective for nylon-based `carbon fiber printing` filaments, offering strong adhesion without the need for additional adhesives. It's durable but may require more effort for print removal compared to flexible PEI sheets.
- Specialized adhesives: For some difficult-to-adhere materials, applying a thin layer of specialized adhesive (e.g., glue stick, ABS slurry, Magigoo) directly to a glass or bare metal bed might be necessary. This adds a consumable cost and an extra step to the printing process but can be highly effective for specific filament types.
The choice of print surface often depends on the specific carbon fiber composite being used, with different materials showing optimal adhesion to different surfaces. Costs vary from inexpensive glass plates requiring adhesives to more durable and convenient flexible PEI systems.
Enclosures: environmental stability and safety
An enclosure for your FDM printer is a significant `FDM upgrade` for `carbon fiber printing` with high-performance materials. An enclosure serves several critical functions:
- Temperature stability: It creates a passively or actively heated chamber around the print, further reducing temperature differentials and minimizing warping, especially for taller prints. This consistent ambient temperature is crucial for materials with high shrinkage rates.
- Draft protection: It shields the print from external drafts, which can cause uneven cooling and layer separation.
- Fume containment: Many high-performance filaments, including some composites, can release ultrafine particles (UFPs) and volatile organic compounds (VOCs) during printing. An enclosure, especially when paired with a filtration system, helps contain these emissions, contributing to a safer working environment.
Enclosures can range from simple DIY solutions (e.g., IKEA Lack enclosures) to commercially available, purpose-built units. DIY options are cost-effective but may offer less precise temperature control or filtration. Commercial enclosures often integrate heating elements, filtration systems, and robust construction, but come at a significantly higher price point. The decision to invest in an enclosure often depends on the type of materials printed, the frequency of printing, and the user's commitment to print quality and safety.
Proper thermal management, encompassing a `heated bed`, appropriate print surface, and potentially an enclosure, forms a crucial foundation for successful and reliable `carbon fiber printing` with advanced composite filaments. Each component addresses specific challenges related to material properties and contributes to overall print quality and consistency.

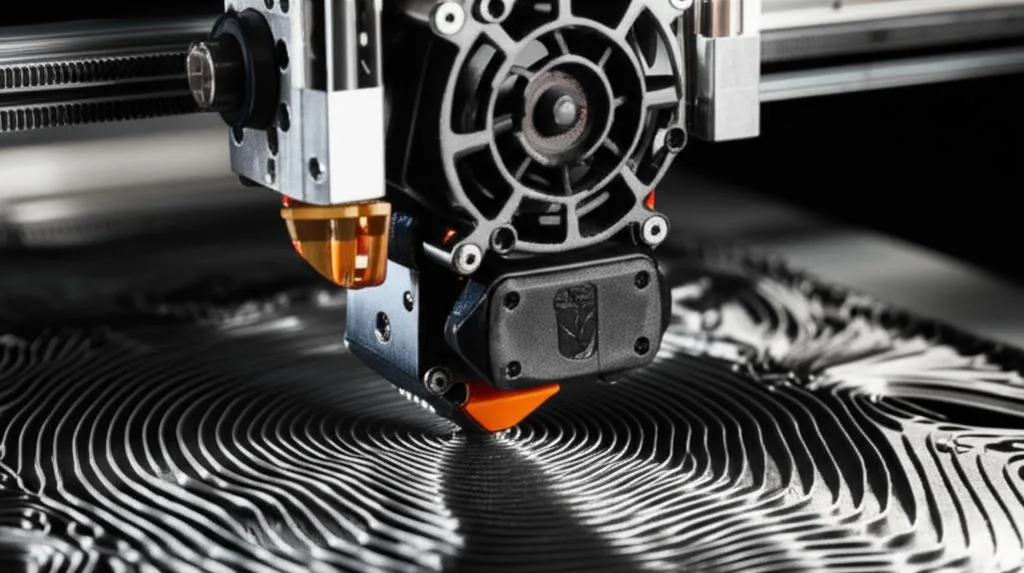

Beyond the basics: additional considerations for carbon fiber printing
While nozzles, extruders, and thermal management are arguably the most critical `FDM upgrades` for `carbon fiber printing`, several other factors contribute significantly to print success and longevity. These considerations, while sometimes overlooked, can make a substantial difference in the overall experience and the quality of the final product.
Filament storage: combating moisture
Many of the polymer matrices used in `carbon fiber printing` filaments (e.g., nylon, PETG, ABS, PC) are hygroscopic, meaning they readily absorb moisture from the air. Moist filament can lead to a host of printing issues, including bubbling, stringing, poor layer adhesion, and reduced mechanical properties in the final part. Therefore, proper filament storage is not merely a convenience but a necessity. Solutions range from simple airtight containers with desiccant packets to dedicated heated dry boxes that actively dry and store filament during printing. The cost varies from minimal for DIY solutions to several hundred dollars for advanced heated dry boxes. The investment in effective filament storage can prevent wasted material and countless hours troubleshooting print failures, making it a highly cost-effective `FDM upgrade` in the long run.
Firmware and software optimization: fine-tuning for performance
Hardware upgrades lay the foundation, but software optimization ensures that these components work in harmony. Fine-tuning firmware settings and slicer profiles is crucial for `carbon fiber printing`. This includes:
- PID tuning: Ensuring precise temperature control for the hotend and `heated bed` is paramount. PID (Proportional-Integral-Derivative) tuning optimizes the heating elements to maintain stable temperatures, preventing fluctuations that can degrade print quality.
- Flow rate calibration: Accurately calibrating the flow rate (extrusion multiplier) ensures that the correct amount of filament is extruded. This is particularly important for `abrasive filaments` which might have slightly different flow characteristics than standard plastics, or for hardened nozzles with potentially different internal geometries.
- Retraction settings: Optimized retraction distance and speed are vital for minimizing stringing and oozing, especially with direct drive extruders.
- Print speed and acceleration: Adjusting these parameters to account for the increased mass of a direct drive extruder or the thermal properties of a `hardened nozzle` can prevent ghosting, ringing, and maintain consistent layer adhesion.
While these are not direct hardware costs, the time invested in learning and implementing these optimizations is an essential part of the `FDM upgrades` process, unlocking the full potential of your enhanced hardware.
Printer frame rigidity and motion components: stability under stress
When upgrading to heavier direct drive extruders or printing at higher speeds with `carbon fiber printing` filaments, the overall rigidity of the printer frame becomes more critical. A flimsy frame can introduce vibrations and inaccuracies, negating the benefits of other upgrades. Similarly, worn or low-quality motion components (e.g., linear rails, bearings, belts) can lead to play and inconsistencies. While not always the first consideration, evaluating and potentially reinforcing these aspects can contribute to more reliable and higher-quality prints. This could involve adding bracing, upgrading to linear rails from V-slot wheels, or replacing worn belts. The cost and complexity of these `FDM upgrades` vary widely, from simple bolt-tightening to significant structural modifications.
Maintenance and wear: long-term considerations
Working with `abrasive filaments` means that wear and tear on components will be accelerated. Regular maintenance becomes even more critical. This includes:
- Nozzle inspection and cleaning: Even `hardened nozzle` options can accumulate clogs or debris. Regular inspection and cleaning are essential.
- Extruder gear cleaning: Carbon fiber dust can accumulate in extruder gears, reducing grip and causing inconsistent extrusion.
- Lubrication: Keeping motion components well-lubricated reduces friction and wear.
- Replacement parts: Having spare parts, especially for consumable items like nozzles, can minimize downtime.
Considering the long-term maintenance requirements and the associated costs of replacement parts is an integral part of planning for `carbon fiber printing` success. Opting for more durable `FDM upgrades` upfront can often reduce maintenance frequency and long-term operational costs.
Embarking on `carbon fiber printing` with FDM technology is a rewarding endeavor, yielding parts with impressive strength-to-weight ratios. The journey, however, often requires a thoughtful approach to hardware upgrades. By objectively comparing the features, cost structures, and performance implications of various nozzles, extruders, heated beds, and other critical components, users can assemble a printing system perfectly suited to their specific needs without making arbitrary choices. The decision-making process should be driven by a clear understanding of the material's demands and the desired print quality, allowing for an informed investment that truly unlocks the potential of high-performance composite filaments.
