Converting a Cartesian 3D printer to a CoreXY motion system is a significant undertaking that many enthusiasts consider for a variety of reasons, primarily enhanced speed and precision. While the allure of a faster, more accurate printer is strong, the path to achieving this upgrade involves navigating a complex landscape of component choices, cost considerations, and technical challenges. This article aims to provide an objective comparison of the cost structures and features associated with different approaches to a CoreXY conversion, enabling you to make an informed decision tailored to your specific needs and resources.
Understanding the CoreXY motion system
Explore the
Snapmaker U1
Before diving into the conversion specifics, it's crucial to grasp the fundamental differences between Cartesian and CoreXY motion systems. In a typical Cartesian printer, the X-axis motor moves the print head along X, and the Y-axis motor moves the entire X-axis assembly (and print head) along Y. The Z-axis usually moves the print bed up and down. This setup means that the Y-axis motor must move a substantial amount of mass, which can limit acceleration and speed, often leading to artifacts like 'ghosting' or 'ringing' in prints.
CoreXY, on the other hand, employs a clever belt routing system where two motors (M1 and M2) work in tandem to control both X and Y movements. Both motors are typically stationary on the frame, significantly reducing the moving mass of the print head and X-axis gantry. This reduction in inertia allows for much higher acceleration and deceleration rates, translating directly into faster print speeds without sacrificing print quality. The stationary motors also contribute to a more balanced and often quieter operation, as vibrations are less likely to propagate through the moving gantry.

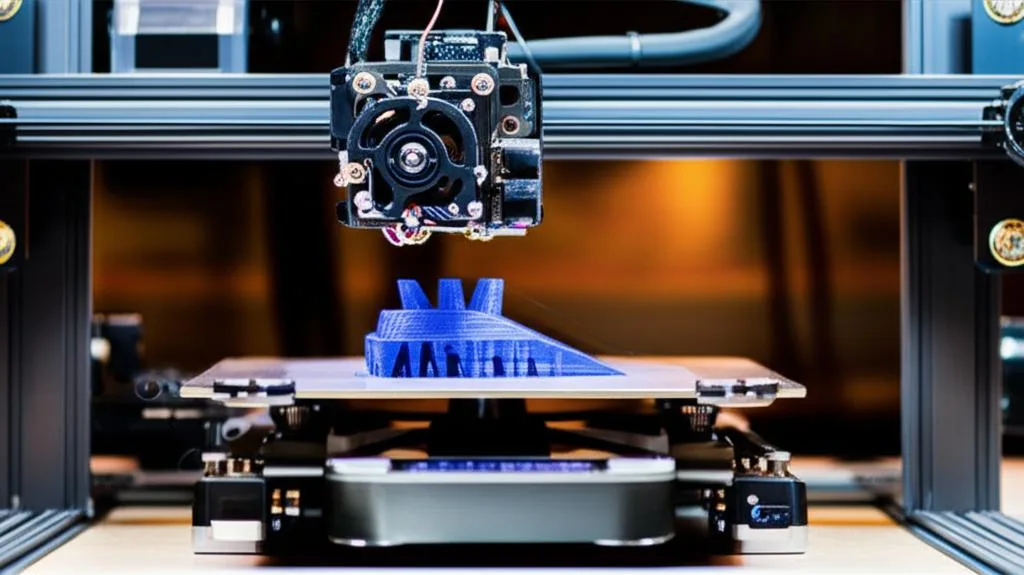

Why consider a CoreXY conversion?
The primary drivers behind a CoreXY conversion are typically related to performance and print quality:
- Increased Speed: With lighter moving mass and more efficient motion, CoreXY printers can achieve much higher travel and print speeds.
- Improved Precision and Accuracy: Reduced inertia and a more rigid gantry system can lead to better dimensional accuracy and finer detail, especially when paired with high-quality linear motion components.
- Reduced Ghosting/Ringing: The artifacts caused by vibrations and sudden changes in direction are significantly mitigated due to lower moving mass.
- Quieter Operation: Stationary motors often result in less noise and vibration transfer to the print surface.
- Larger Build Volumes: The efficient use of space with stationary motors can sometimes allow for larger build volumes within a similar frame footprint compared to some Cartesian designs.
However, it's important to acknowledge that a CoreXY conversion is not a trivial task. It demands a good understanding of mechanical assembly, electronics, and firmware configuration. The cost and time commitment can be substantial, and the success hinges heavily on the quality of components and the precision of the build.
Key components for a CoreXY conversion
A successful CoreXY conversion requires careful selection and integration of several critical components. The quality and type of these parts will directly influence the final cost and performance characteristics of your upgraded printer.
Frame and structural rigidity
The frame is the backbone of any 3D printer, and its rigidity is paramount for a CoreXY system. Any flex or wobble in the frame will undermine the benefits of reduced moving mass. Many conversions utilize aluminum extrusions (e.g., 2020, 3030) due to their modularity and strength. Custom-cut metal plates or even robust plywood can also form the basis of a frame, depending on the desired rigidity and budget.
Linear motion system
This is where much of the precision is gained or lost. Options include:
- Smooth Rods and Linear Bearings (LM8UU, etc.): Often carried over from existing Cartesian printers, these are the most budget-friendly. However, they can introduce play and friction if not precisely aligned or if the quality is poor.
- Linear Rails (MGN9, MGN12, etc.): A significant upgrade, linear rails offer superior rigidity, precision, and smoother motion. They come at a higher cost, and quality varies widely between manufacturers (e.g., generic vs. Hiwin, LDO, or other reputable brands).
Stepper motors
Most CoreXY systems use NEMA 17 stepper motors. The key considerations are torque and step angle. While higher torque motors might seem appealing, they also add weight. Often, standard NEMA 17 motors are sufficient, especially when paired with efficient drivers. High-quality motors from brands like LDO or Moons' are preferred for their reliability and consistent performance, but generic options are available for budget builds.
Belts and pulleys
GT2 belts are the standard for 3D printers. The quality of the belt (fiberglass-reinforced is common) and the precision of the pulleys (20-tooth or 16-tooth for higher resolution) are crucial. Proper belt tensioning is also critical to prevent backlash and ensure accurate motion. Idlers, especially those with bearings, should be chosen for smooth operation.
Electronics and firmware
A CoreXY conversion often necessitates an upgrade to the mainboard and stepper drivers. Many entry-level Cartesian boards might not have enough motor drivers or the processing power for high-speed CoreXY kinematics. Options range from:
- Mid-range boards: Such as BigTreeTech SKR series, which offer good value, multiple driver slots, and Klipper compatibility.
- High-end boards: Like Duet3D or more advanced BigTreeTech options, providing more features, better thermal management, and robust firmware support.
For firmware, while Marlin can run CoreXY, Klipper is often the preferred choice for high-speed CoreXY systems due to its input shaping capabilities, which effectively mitigate ringing and ghosting, and its ability to offload kinematics calculations to a more powerful host (like a Raspberry Pi).
Print bed and heating system
In many CoreXY designs, the print bed moves only along the Z-axis, reducing its impact on X/Y inertia. Considerations include:
- Static Bed (Z-only movement): Reduces moving mass, but requires a robust Z-axis system.
- Heated Bed: Essential for many materials. The power supply and wiring must be adequate.
Extruder and hotend
The choice of extruder (direct drive vs. Bowden) significantly impacts the moving mass on the X-axis. A Bowden setup (where the extruder motor is stationary on the frame) is generally preferred for CoreXY to keep the print head as light as possible. However, modern lightweight direct-drive extruders are becoming more viable for high-speed CoreXY systems.

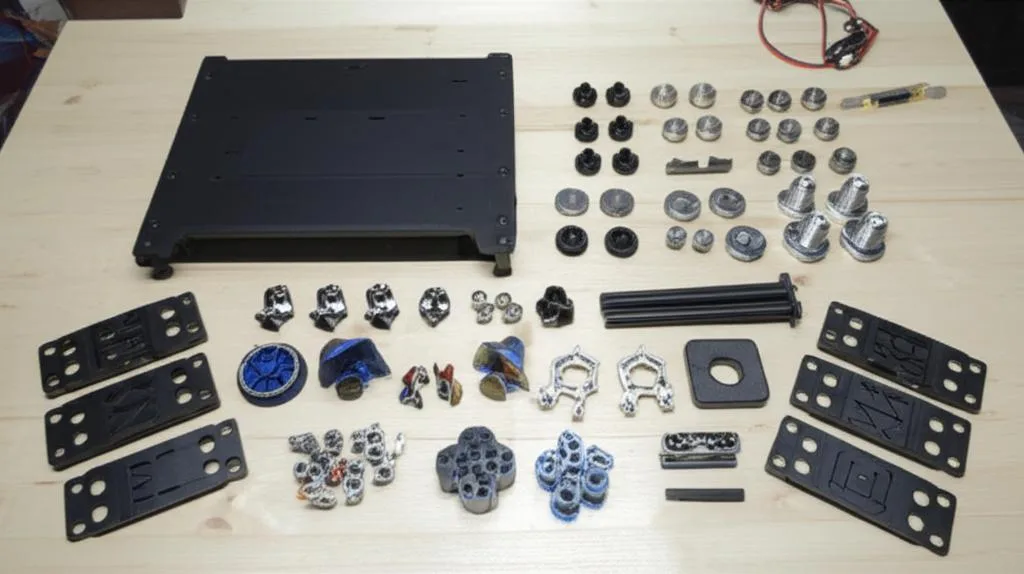

Cost structure analysis: different approaches
The cost of a CoreXY conversion can vary dramatically, ranging from a few hundred dollars to well over a thousand, depending on the quality of components, the extent of the upgrade, and how much you can reuse from your existing printer. Here, we'll outline three general approaches.
1. The budget-conscious conversion
This approach focuses on minimizing costs by reusing as many existing components as possible and opting for the most economical new parts. It's suitable for those with a tight budget and a willingness to compromise on ultimate performance for the sake of getting a CoreXY system up and running.
- Frame: Often involves reusing parts of the existing frame or constructing a new one from readily available, inexpensive materials like plywood or basic aluminum extrusions. Minimal custom machining.
- Linear Motion: Primarily reuses existing smooth rods and linear bearings. If new ones are needed, generic LM8UU bearings and rods are chosen.
- Motors: Reuses existing NEMA 17 motors. If new motors are required, generic, low-cost options are selected.
- Belts and Pulleys: Generic GT2 belts and aluminum pulleys.
- Electronics: Attempts to reuse the existing mainboard if it supports CoreXY kinematics and has enough drivers. If an upgrade is necessary, a basic 32-bit board (e.g., older SKR mini series) is chosen, possibly with basic stepper drivers (e.g., A4988, DRV8825).
- Other Components: Printed parts are used extensively, minimizing custom metal or machined parts.
Typical Cost Range: $100 - $300 (assuming significant reuse and DIY effort). This range can fluctuate wildly based on what's salvaged and what needs to be purchased new at the lowest price point.
Features and Performance: This approach will likely offer some speed improvement over a stock Cartesian but may not reach the full potential of CoreXY. Precision might be limited by the quality of linear motion components and the rigidity of the frame. It's a good learning experience but might require further upgrades down the line to truly shine.
2. The balanced performance conversion
This approach strikes a balance between cost and performance, aiming for a significant upgrade without breaking the bank. It involves investing in quality-of-life improvements and better components that offer a noticeable boost in speed and precision.
- Frame: New, sturdy aluminum extrusions (e.g., 2020 or 3030 profiles) are purchased, often with 3D printed corner brackets or basic cast brackets for good rigidity.
- Linear Motion: Mid-range linear rails (e.g., generic MGN9 or MGN12) are typically used for X and Y axes, offering a substantial improvement over smooth rods.
- Motors: New, standard NEMA 17 motors from reputable budget brands or reusing existing ones if they are of decent quality.
- Belts and Pulleys: Good quality GT2 belts (e.g., fiberglass reinforced) and precision-machined aluminum pulleys.
- Electronics: A modern 32-bit mainboard with dedicated slots for at least 5 stepper drivers (e.g., BigTreeTech SKR 1.4 Turbo, BTT Octopus Mini) paired with silent stepper drivers (e.g., TMC2208, TMC2209). Klipper firmware setup is often recommended and implemented.
- Other Components: A mix of 3D printed and some off-the-shelf metal components for critical junctions.
Typical Cost Range: $300 - $700 (less reuse, focus on better components). This depends heavily on the source and specific brands of linear rails and electronics.
Features and Performance: This conversion level offers a significant leap in performance, with noticeable increases in speed and improved print quality. The use of linear rails and better electronics provides a more reliable and precise printing experience. Klipper firmware allows for advanced features like input shaping, further enhancing print quality at higher speeds.
3. The high-performance conversion
This approach spares no expense in seeking the absolute best performance, precision, and reliability. It involves investing in premium components and often custom solutions, targeting professional-grade results.
- Frame: Heavy-duty aluminum extrusions (e.g., 3030 or 4040), or custom-machined metal plates for maximum rigidity. Often, a fully enclosed design is considered for thermal stability.
- Linear Motion: High-end linear rails from top-tier manufacturers (e.g., Hiwin, THK, LDO) for all axes, ensuring minimal play and maximum precision.
- Motors: High-quality NEMA 17 motors from renowned manufacturers (e.g., LDO, Moons') known for their precision and reliability.
- Belts and Pulleys: Premium GT2 belts (e.g., Gates PowerGrip) and high-precision, low-backlash pulleys.
- Electronics: Top-tier mainboards (e.g., Duet 3 Mini 5+, BigTreeTech Octopus Pro) with advanced, high-current stepper drivers (e.g., TMC2209, TMC5160). Klipper is almost universally used, often with a dedicated Raspberry Pi 4 or similar for processing power.
- Other Components: Extensive use of custom-machined metal parts (aluminum, stainless steel) for critical assemblies, rather than 3D printed parts, to ensure ultimate rigidity and accuracy.
Typical Cost Range: $700 - $1500+ (minimal reuse, focus on premium components and custom work). This can easily exceed $1500 if custom machining or very large build volumes are involved.
Features and Performance: This level of conversion delivers the highest possible performance for a CoreXY system. Expect industry-leading print speeds, exceptional precision, and consistent, reliable operation. The investment in premium components leads to a printer that can rival or exceed the performance of many commercial high-end machines, albeit with a significant financial and time commitment for the build.
Features and performance considerations across approaches
Beyond raw cost, the chosen approach directly impacts several key performance metrics and user experience features.
Speed capabilities
- Budget: Offers moderate speed improvements. Likely limited by frame rigidity, linear motion quality, and potential resonance issues.
- Balanced: Significant speed increases are achievable, often reaching print speeds that were previously unattainable on the original Cartesian. Klipper with input shaping becomes a game-changer here.
- High-Performance: Maximizes print speed while maintaining exceptional quality. Can push the boundaries of what's possible with FDM, often limited more by extrusion rates than motion system capabilities.
Precision and accuracy
- Budget: Improved over stock Cartesian, but still susceptible to minor inaccuracies from lower-quality components or less rigid frame.
- Balanced: Noticeably better precision and dimensional accuracy due to linear rails and a sturdier frame.
- High-Performance: Top-tier precision and accuracy, minimizing artifacts and producing highly detailed prints consistently.
Reliability and longevity
- Budget: Component wear might be faster, and maintenance more frequent, especially with generic linear motion parts.
- Balanced: Good overall reliability. Quality linear rails and electronics offer a longer lifespan with proper maintenance.
- High-Performance: Built for endurance. Premium components are designed for heavy use and offer exceptional longevity and consistent performance over time.
Noise levels
- Budget: Can still be noisy, especially if using older stepper drivers or a less rigid frame that amplifies vibrations.
- Balanced: Significantly quieter due to silent stepper drivers (TMC series) and a more stable frame.
- High-Performance: Extremely quiet operation, often only the fans and the sound of the nozzle extruding are audible.
Complexity of build and maintenance
- Budget: Can be complex due to improvisation and fitting disparate parts. Maintenance might involve more frequent adjustments.
- Balanced: Still requires technical skill but benefits from more standardized components and clearer build instructions (often from community projects). Easier to maintain than a fully custom budget build.
- High-Performance: While using premium parts, the precision required for assembly can be demanding. However, once built, these systems are typically very stable and require less frequent maintenance due to component quality.

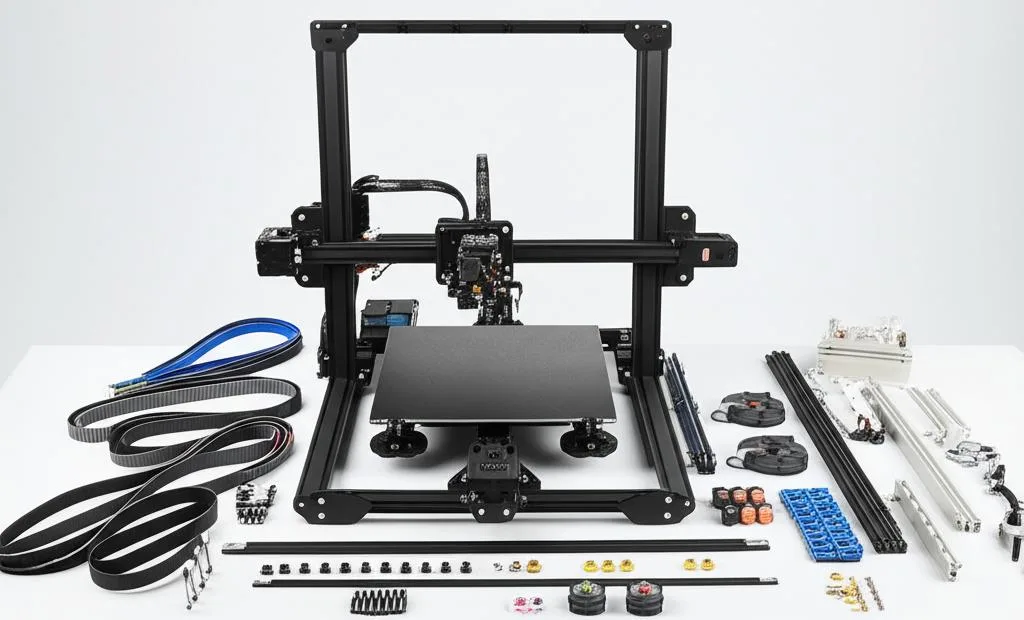

A conceptual step-by-step overview of the conversion process
Regardless of the chosen approach, the CoreXY conversion typically follows a similar sequence of stages, each demanding careful attention to detail.
1. Planning and design
This initial phase is critical. It involves researching existing CoreXY designs (e.g., Voron, Hypercube, RatRig), understanding their kinematics, and deciding on your specific design based on desired build volume, components, and budget. CAD software (Fusion 360, SolidWorks, FreeCAD) can be invaluable for designing custom parts and visualizing the layout. Component selection occurs here, aligning with your chosen cost and performance tier.
2. Sourcing components
Once the design is finalized, the next step is to acquire all necessary parts. This can involve purchasing new components, salvaging parts from your existing printer, and 3D printing custom brackets and mounts. Careful attention to lead times and shipping costs from various suppliers is important.
3. Frame assembly
The frame must be assembled with utmost precision. Squareness and rigidity are paramount. Use appropriate fasteners and ensure all joints are tight and stable. Any misalignment here will propagate throughout the entire system and negatively impact print quality.
4. Linear motion installation
Mounting the linear rails or smooth rods for the X and Y axes requires meticulous alignment. Even slight parallelism errors can lead to binding, excessive wear, and print artifacts. Shimming or precise drilling may be necessary to achieve perfect alignment.
5. Motor and belt routing
Installing the stepper motors in their stationary positions and routing the CoreXY belts correctly is a critical step. The belts must be tensioned properly – not too loose (causing backlash) and not too tight (causing excessive wear on motors and bearings). The belt path must be free of obstructions and sharp angles.
6. Electronics wiring
Connecting the mainboard, stepper motors, endstops, hotend, heated bed, and other peripherals requires careful attention to wiring diagrams. Proper crimping, soldering, and cable management are essential for safety and reliability. Firmware flashing and initial configuration often occur in this stage.
7. Firmware configuration
This is where the printer truly comes to life. Configuring the firmware (Marlin or Klipper) to understand CoreXY kinematics, set motor directions, calibrate steps per millimeter, and define print area limits is crucial. Klipper users will also configure their Raspberry Pi and run initial tests for input shaping.
8. Calibration and testing
The final stage involves extensive calibration. This includes PID tuning for the hotend and heated bed, Z-offset calibration, bed leveling (manual or automatic), and fine-tuning steps per millimeter. Test prints are essential to identify and troubleshoot any remaining issues, such as ghosting, layer shifts, or dimensional inaccuracies.
Factors to consider before embarking on a CoreXY conversion
Before committing to a CoreXY conversion, it's wise to reflect on several personal and practical factors:
- Your Skill Level: Do you have experience with mechanical assembly, electronics wiring, and firmware configuration? A CoreXY conversion is a challenging project that requires a good level of technical proficiency.
- Your Budget: Have you realistically assessed the costs involved, considering both components and potential tools you might need?
- Desired Outcome: What are your primary goals? Is it just speed, or are you also aiming for extreme precision? Your goals will dictate the quality and cost of components.
- Time Commitment: This is not a weekend project. It can take weeks or even months of dedicated effort, especially for complex custom builds.
- Available Tools: Do you have access to basic hand tools, multimeters, and potentially 3D printing capabilities for custom parts?
- Community Support: Are there active communities (e.g., Discord servers, forums) for the specific CoreXY design you're considering? Support can be invaluable during troubleshooting.

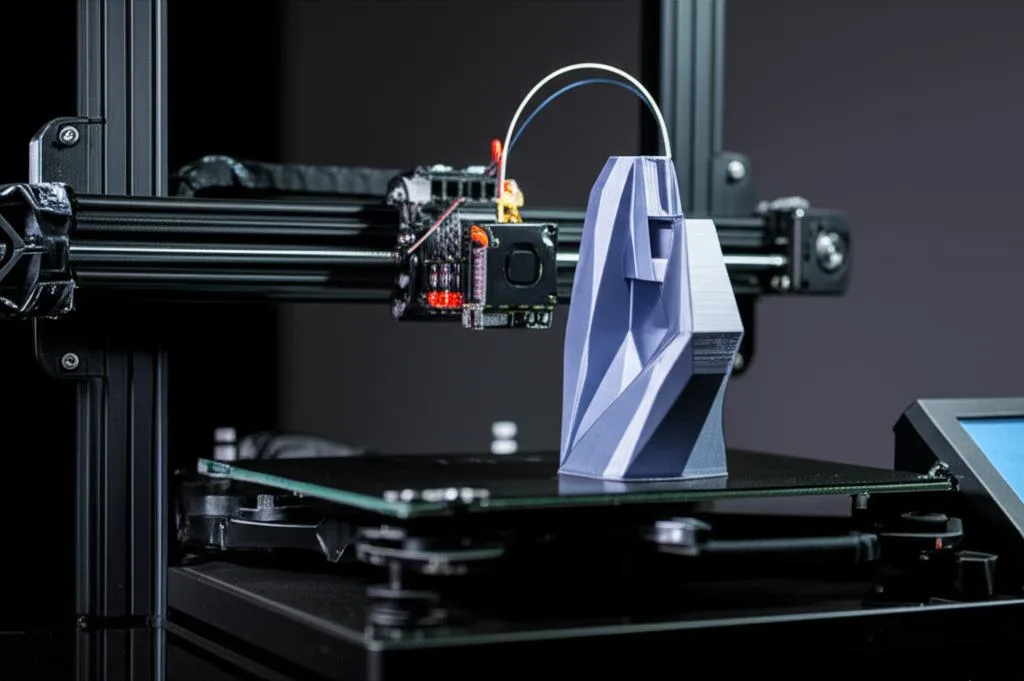

Conclusion
A CoreXY conversion can be a profoundly rewarding endeavor, transforming a standard Cartesian 3D printer into a high-performance machine capable of impressive speeds and precision. However, it's a journey that demands careful planning, a clear understanding of the mechanical and electronic principles involved, and a realistic assessment of costs versus desired features. By objectively evaluating the various approaches—from budget-conscious to high-performance—and understanding the implications of component choices, you can tailor your conversion project to perfectly align with your technical skills, financial resources, and ultimate printing aspirations. The decision of which path to take is ultimately yours, armed with the knowledge to build a printer that truly meets your needs.
