The heart of any 3D printer lies within its control board, often referred to as the mainboard or motherboard. This crucial component dictates virtually every operation, from interpreting G-code commands to precisely moving stepper motors and managing temperature. For many 3D printing enthusiasts, the journey inevitably leads to considering a mainboard upgrade, seeking enhanced performance, quieter operation, new features, or simply greater control over their machine. Navigating the myriad of options can be daunting, with popular choices like the BigTreeTech SKR series and Duet3D boards often leading the discussion. This article aims to provide an objective board comparison, delving into the features, capabilities, and general cost implications of these prominent 3D printer control board solutions, empowering you to make an informed decision that aligns with your specific needs and technical comfort level.
Understanding the core function of a 3D printer control board
Explore the
Snapmaker U1
At its essence, a 3D printer control board acts as the central nervous system, orchestrating the complex dance of components that bring a digital design to life. It houses the microcontroller, which processes the G-code instructions generated by slicing software. Beyond mere processing, the board manages a host of critical functions:
- Stepper Motor Control: It sends precise electrical pulses to the stepper motor drivers, which in turn move the motors responsible for the X, Y, Z axes, and the extruder(s). The accuracy and smoothness of these movements directly impact print quality.
- Temperature Regulation: The board monitors thermistors (temperature sensors) for the hotend and heated bed, activating heaters as needed to maintain target temperatures. This is vital for consistent material extrusion and bed adhesion.
- Input/Output Management: It handles inputs from endstops (limit switches), filament runout sensors, and touch screens, while controlling outputs like cooling fans and status LEDs.
- Communication: It facilitates communication with a host computer (via USB), an SD card for standalone printing, or network interfaces (Wi-Fi/Ethernet) for remote control.
- Power Distribution: It safely distributes power from the power supply to all connected components.
An upgrade to this central component can unlock new possibilities, from achieving whisper-quiet operation to enabling advanced kinematics and sophisticated remote management.

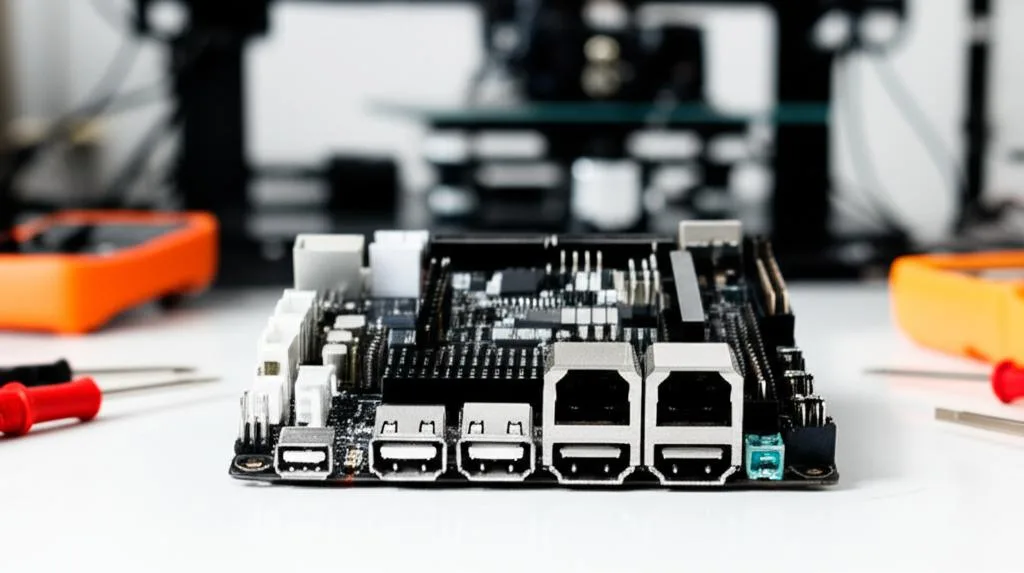

Key considerations for a mainboard upgrade
Before diving into specific board models, it's crucial to understand the factors that differentiate them and how these might impact your printing experience. Identifying your priorities will significantly narrow down your choices.
Processing power and architecture
Modern 3D printer control boards typically feature 32-bit ARM microcontrollers, a significant leap from older 8-bit boards. A more powerful processor allows for faster computation of complex movements, especially beneficial for advanced kinematics like delta or coreXY printers, and for running advanced firmware features. It also enables smoother motion planning and higher step rates, which can translate to better print quality and faster printing speeds without sacrificing precision.
Stepper motor drivers
The stepper motor drivers are responsible for translating the digital signals from the microcontroller into electrical currents that drive the stepper motors. These components have a profound impact on noise levels, print quality, and the maximum speed achievable. Key aspects include:
- Integrated vs. Removable: Some boards have drivers soldered directly onto the PCB, while others use removable modules (e.g., TMC2208, TMC2209, TMC2226). Removable drivers offer flexibility for upgrades or replacements but can add to the overall cost and complexity.
- Silent Operation: Drivers like the TMC series (e.g., TMC2208, TMC2209) are renowned for their silent operation, significantly reducing the noise generated by stepper motors.
- Advanced Features: Features like sensorless homing (TMC2209, TMC2130) or StallGuard can simplify printer setup and enhance functionality.
Firmware compatibility and ecosystem
The firmware is the operating system of your 3D printer. The choice of board often dictates which firmware you can run effectively, or at least which is best supported.
- Marlin: The most widely used firmware, open-source, highly configurable, and supported by a massive community. It runs on a vast array of boards.
- Klipper: A newer, more modular firmware that offloads complex calculations to a more powerful host computer (e.g., Raspberry Pi). It offers advanced features like input shaping and pressure advance, and allows for rapid configuration changes without recompiling.
- RepRapFirmware (RRF): Developed specifically for Duet boards, RRF offers a web-based interface for configuration and control, advanced kinematics support, and robust networking capabilities.
Connectivity and user interface
How you interact with your printer is a key consideration. Options include:
- USB: Standard for connecting to a host computer (e.g., OctoPrint, Pronterface).
- SD Card: For standalone printing without a connected computer.
- Ethernet/Wi-Fi: Enables remote control, monitoring, and file transfer via a web interface or network protocols.
- Dedicated Display Ports: For connecting LCD screens or touchscreens.
Expansion capabilities
Consider your future plans. Do you foresee adding more extruders, a laser engraver, an auto-leveling sensor, or perhaps a second Z-axis motor? Boards with ample GPIO pins, extra fan headers, and dedicated expansion ports offer greater flexibility for future modifications.
Ecosystem and community support
The availability of documentation, tutorials, and a supportive community can be invaluable, especially when troubleshooting or attempting advanced configurations. Some ecosystems are more mature and well-documented than others.
Cost implications
The price of a control board can vary significantly. Beyond the initial purchase, consider the cost of additional components (e.g., stepper drivers if not integrated, screens, Wi-Fi modules), and the time investment required for installation and configuration. A cheaper board might require more effort and additional purchases to reach your desired functionality.
Deep dive into popular control board series
Let's examine two of the most popular and influential series of 3D printer control boards: the BigTreeTech SKR series and the Duet3D series.
BigTreeTech SKR series
BigTreeTech (BTT) has become a dominant player in the aftermarket 3D printer control board market, largely due to its SKR (Super Klipper/RepRap) series. These boards are renowned for their affordability, versatility, and strong community backing.
Overview and target audience
The SKR series caters to a broad audience, from hobbyists looking for a budget-friendly upgrade to experienced modders seeking a highly customizable platform. BTT offers a range of boards, from compact, drop-in replacements like the SKR Mini E3 (designed specifically for Creality Ender 3 series printers) to more feature-rich boards like the SKR 2 and SKR 3, which offer more motor drivers and expansion options.
Typical features
- Microcontroller: Most SKR boards utilize powerful 32-bit ARM Cortex-M processors (e.g., STM32F103, STM32F407, STM32H743). These provide ample processing power for complex kinematics and advanced firmware features.
- Removable Stepper Motor Drivers: A hallmark of the SKR series is the use of sockets for removable stepper motor drivers. This allows users to choose their preferred drivers (e.g., TMC2208, TMC2209, TMC2226) based on their budget and desired features (e.g., silent operation, sensorless homing).
- Firmware Flexibility: SKR boards are highly compatible with Marlin firmware and are exceptionally popular for running Klipper firmware, often paired with a Raspberry Pi. This dual-firmware support offers users significant choice.
- Connectivity: Standard features include USB (for serial communication), SD card slots, and dedicated ports for various display types (LCD12864, TFT touchscreens). Many boards also include dedicated ports for auto-leveling sensors (BLTouch, CRTouch) and filament runout sensors.
- Cost-Effectiveness: Generally, SKR boards offer an excellent performance-to-price ratio, making them an attractive option for those on a budget or looking to significantly upgrade their printer without breaking the bank.
Pros of SKR boards
- Affordability: Often significantly less expensive than high-end alternatives, especially when considering the base board price.
- Modularity: Removable drivers allow for easy upgrades, replacements, or customization of driver types per axis.
- Wide Community Support: A vast user base and extensive online resources (forums, GitHub repositories, YouTube tutorials) make troubleshooting and configuration relatively straightforward.
- Firmware Versatility: Excellent support for both Marlin and Klipper, giving users flexibility in their software ecosystem.
Cons of SKR boards
- Technical Know-How: While widely supported, configuring Marlin or Klipper, especially for custom setups, can require a certain level of technical expertise, including firmware compilation.
- Documentation Variability: While improving, official documentation can sometimes be less comprehensive or organized compared to more premium brands.
- Quality Control: As with any budget-oriented electronics, there can be occasional variability in manufacturing quality, though BTT has generally improved significantly over time.
Duet3D series
The Duet3D series, developed by Duet3D (formerly Think3DPrint3D), represents the premium end of the 3D printer control board spectrum. These boards are known for their robust design, integrated features, and the powerful RepRapFirmware ecosystem.
Overview and target audience
Duet boards are typically aimed at advanced hobbyists, small businesses, and professionals who prioritize reliability, advanced features, and a highly integrated, polished user experience. They are often found in higher-end DIY builds, coreXY machines, and multi-tool setups where precision and control are paramount. The Duet 2 WiFi/Ethernet boards were hugely popular, and the newer Duet 3 series (e.g., Duet 3 Mini 5+, Duet 3 Mainboard 6HC) builds upon this legacy with a focus on modularity via CAN bus expansion.
Typical features
- Microcontroller: Duet boards feature powerful 32-bit ARM processors (e.g., SAM4E8E for Duet 2, SAM5X510 for Duet 3), providing exceptional processing capabilities for complex tasks and high step rates.
- Integrated Stepper Motor Drivers: Most Duet boards come with high-quality stepper motor drivers (e.g., TMC2660 on Duet 2, TMC2209 on Duet 3 Mini 5+, TMC5160 on Duet 3 Mainboard 6HC) soldered directly onto the board. These are chosen for their performance, silence, and reliability.
- RepRapFirmware (RRF): The cornerstone of the Duet ecosystem, RRF is a sophisticated firmware offering a feature-rich web interface (Duet Web Control) for configuration, control, and monitoring. It supports advanced kinematics, tool changing, and sophisticated macro capabilities.
- Network Connectivity: Integrated Wi-Fi (Duet 2 WiFi, Duet 3 Mini 5+) or Ethernet (Duet 2 Ethernet, Duet 3 Mainboard 6HC) is a standard feature, enabling seamless remote access and control without the need for an external host like a Raspberry Pi.
- Robust Power Management: Duet boards are designed with robust power delivery systems, often featuring higher current ratings for heaters and motors, contributing to reliability.
- CAN Bus Expansion (Duet 3 Series): The Duet 3 series introduces a CAN-FD bus, allowing for modular expansion with smart tool boards and expansion boards that can be distributed around the printer, simplifying wiring and increasing flexibility for complex machines.
Pros of Duet boards
- Integrated Excellence: High-quality integrated components, especially the stepper drivers, provide a reliable and high-performance solution out of the box.
- RepRapFirmware Ecosystem: The web-based Duet Web Control offers an intuitive and powerful interface for printer management, configuration, and monitoring, eliminating the need for firmware recompilation for most settings.
- Robust and Reliable: Known for their high build quality and robust design, contributing to long-term reliability.
- Advanced Features: Excellent support for multi-tool setups, advanced kinematics, sophisticated temperature control, and a powerful macro system.
- Strong Documentation and Support: Duet3D provides comprehensive documentation and has a dedicated, active forum for support.
Cons of Duet boards
- Higher Cost: Duet boards are significantly more expensive than most SKR boards, reflecting their premium components and integrated features.
- Less Driver Modularity: While the integrated drivers are high quality, they are not user-replaceable in the same way as on SKR boards, limiting options if a specific driver type is desired or if a driver fails.
- RepRapFirmware Learning Curve: While powerful, RRF has its own configuration syntax and philosophy which can require a learning adjustment for users accustomed to Marlin or Klipper.
Other notable options
While SKR and Duet boards are prominent, other manufacturers also offer compelling 3D printer control board solutions:
- MKS (Makerbase) Boards: MKS offers a wide range of boards, often competing directly with BigTreeTech in terms of features and price. They also typically feature 32-bit ARM processors and removable stepper drivers, supporting Marlin and Klipper.
- FYSETC Boards: FYSETC is another manufacturer producing feature-rich boards, often at competitive price points. Their offerings are generally comparable to SKR boards in terms of functionality and firmware support.
- Original Printer Boards: Many stock printer boards (e.g., Creality's 8-bit or some 32-bit silent boards) are functional but may lack the processing power, expansion capabilities, or silent stepper drivers found in aftermarket upgrades. Upgrading from these often unlocks significant performance and feature improvements.

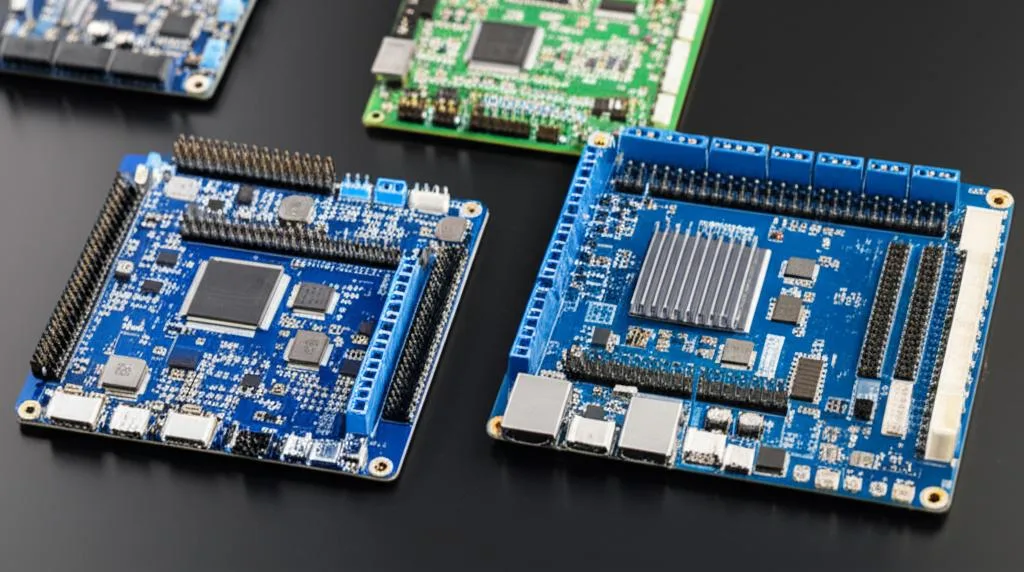

Comparative analysis: SKR vs. Duet and beyond
To help solidify your understanding, let's directly compare key aspects of these control board philosophies.
Processing power and architecture
- SKR: Utilizes various STM32 ARM Cortex-M series processors. While powerful, specific models like the SKR Mini E3 might have slightly less powerful chips than the larger SKR boards. They provide ample power for most Marlin and Klipper setups.
- Duet: Employs high-end ARM Cortex-M processors (SAM4E8E, SAM5X510) specifically chosen for their robust performance, real-time capabilities, and extensive peripheral support. This provides a solid foundation for RepRapFirmware's advanced features and multi-axis control.
- Implication: Both are 32-bit and capable, but Duet boards often leverage more powerful chips as a standard, which is particularly beneficial for complex kinematics or very high step rates. For most common Cartesian or CoreXY printers, both offer sufficient processing power.
Stepper motor drivers
- SKR: Primarily uses removable stepper drivers (e.g., TMC2208, TMC2209, TMC2226). This modularity is a double-edged sword: it allows for customization and easy replacement but requires careful installation and separate purchases. The quality depends on the specific driver modules chosen.
- Duet: Features high-performance integrated drivers (TMC2660, TMC2209, TMC5160). These are factory-tuned and integrated for optimal performance and reliability. While not user-replaceable in the same way, this integration often leads to a more robust and cleaner setup, reducing potential points of failure.
- Implication: SKR offers flexibility and cost control over drivers; Duet offers a highly optimized, integrated, and robust driver solution, often with advanced features enabled by default.
Firmware ecosystem
- SKR: Strong support for Marlin and Klipper. Marlin is widely used and documented, but requires compilation for changes. Klipper offers dynamic configuration and offloads processing, but requires a separate host (e.g., Raspberry Pi).
- Duet: Exclusively uses RepRapFirmware (RRF). This firmware is highly integrated with the Duet hardware, offering a powerful web interface for configuration and control. All settings are managed via G-code commands and configuration files on the SD card, making changes dynamic without recompilation.
- Implication: The choice here often comes down to preference for a firmware philosophy. Marlin/Klipper offers open-source flexibility and broad hardware support, while RRF provides a highly polished, integrated, and powerful web-based experience.
Connectivity and user interface
- SKR: Typically relies on USB for host connection (e.g., OctoPrint for network access) and physical LCD/TFT screens. Network connectivity is usually achieved through an external Raspberry Pi running OctoPrint or Klipper.
- Duet: Features integrated Wi-Fi or Ethernet as standard. The primary user interface is the Duet Web Control (DWC), a sophisticated web application accessible from any browser on the network. This eliminates the need for an external host or dedicated screen for most operations.
- Implication: Duet offers a more streamlined, integrated network-centric control experience out of the box. SKR boards require additional hardware (like a Raspberry Pi) to achieve similar network capabilities, though the combination of SKR + Klipper + Mainsail/Fluidd on a Pi is an extremely powerful and popular setup.
Expandability and modularity
- SKR: Provides numerous pin headers for fans, sensors, and other peripherals. The modularity comes primarily from interchangeable stepper drivers and the ability to connect various external modules.
- Duet: Duet 2 boards offer decent expandability. The Duet 3 series takes this further with a robust CAN-FD bus, allowing for multiple expansion boards (e.g., tool boards, more axis drivers) to be connected with minimal wiring. This distributed control system is ideal for very large or complex machines with many tools or axes.
- Implication: For basic to moderately complex setups, both offer sufficient expansion. For highly complex machines, especially those with multiple extruders, tool changers, or many axes, the Duet 3's CAN bus system offers a more elegant and scalable solution.
Cost structure
- SKR: Generally has a lower initial board cost. However, users often need to purchase stepper drivers separately, and potentially a Raspberry Pi for Klipper or advanced network features. The total cost can still be very competitive.
- Duet: Carries a higher initial price tag. This cost typically includes integrated, high-quality stepper drivers and built-in network connectivity, potentially reducing the need for additional purchases to achieve a fully featured setup.
- Implication: The "cheaper" option isn't always clear-cut. An SKR board plus quality drivers and a Raspberry Pi can approach the cost of a lower-end Duet. The value proposition depends on whether you prefer integrated solutions or modularity, and what existing hardware you might already possess.
Ease of use and learning curve
- SKR + Marlin: Can be relatively plug-and-play for common printer models if using pre-compiled firmware. Customizing requires learning Marlin's configuration files and firmware compilation.
- SKR + Klipper: The initial setup of Klipper and its host software (Mainsail/Fluidd) can have a steeper learning curve, involving command-line interactions and YAML configuration files. However, once set up, configuration changes are instant and do not require recompilation.
- Duet + RRF: The initial setup and understanding of RepRapFirmware's G-code based configuration can be a hurdle for those new to it. However, the Duet Web Control simplifies daily operation and allows for most configuration changes through an intuitive web interface.
- Implication: Each ecosystem has its own learning curve. Marlin is familiar to many, Klipper offers a modern approach, and RRF provides a powerful, integrated web experience. Your comfort with different software paradigms will play a role.
Target user profile
- SKR: Ideal for budget-conscious hobbyists, DIY enthusiasts, and modders who enjoy tinkering with firmware and hardware. It's a fantastic platform for learning and experimenting, especially with Klipper.
- Duet: Suited for advanced hobbyists, small businesses, and professional users who demand reliability, a polished user experience, and advanced features for complex or mission-critical prints. Users who value a highly integrated solution and robust network control will find it appealing.
- Implication: Consider your own technical comfort, budget, and the level of integration versus modularity you desire.
Making an informed decision
There is no universally "best" 3D printer control board; the optimal choice is deeply personal and depends on a confluence of factors unique to your situation. To guide your decision, reflect on the following questions:
- What is your budget? Be realistic about the total cost, including drivers, screens, and any necessary host computers (like a Raspberry Pi).
- What is your technical comfort level? Are you comfortable compiling firmware, navigating command lines, and troubleshooting complex electrical connections? Or do you prefer a more plug-and-play experience with a polished graphical interface?
- What are your performance priorities? Are you seeking silent operation, faster print speeds, higher print quality, or advanced kinematics?
- What features are essential for you? Do you need integrated Wi-Fi, sensorless homing, multi-tool support, or extensive expansion capabilities?
- What is your current and future printer setup? Is it a simple Cartesian printer, or are you building a complex CoreXY or delta machine? Do you plan for future upgrades like a laser, second extruder, or tool changer?
- What kind of support do you value? Do you prefer a vast community with many user-generated tutorials, or official, comprehensive documentation and dedicated forum support?
By carefully evaluating these points against the characteristics of the SKR series, Duet series, and other available options, you can align a control board's features and ecosystem with your specific requirements. Both SKR and Duet offer exceptional capabilities for a mainboard upgrade, but they cater to different philosophies and user expectations. Your ideal 3D printer control board is the one that best empowers your printing journey.
