Post-processing 3D prints is an art form in itself, transforming raw plastic or resin into a polished, professional-looking piece. Among the various steps, priming stands out as a critical stage, acting as the crucial bridge between your printed model and its final paint finish. Far from being a mere aesthetic choice, a well-chosen primer significantly impacts paint adhesion, durability, and the overall quality of your finished project. However, the world of 3D printing encompasses a diverse range of materials, each with unique surface characteristics and chemical compositions. What works wonders for a PLA print might be detrimental or ineffective for an ABS or resin model. This guide delves into the nuances of selecting the appropriate 3D print primer, offering a material-specific analysis for PLA, ABS, and resin, while objectively comparing their cost structures and features.

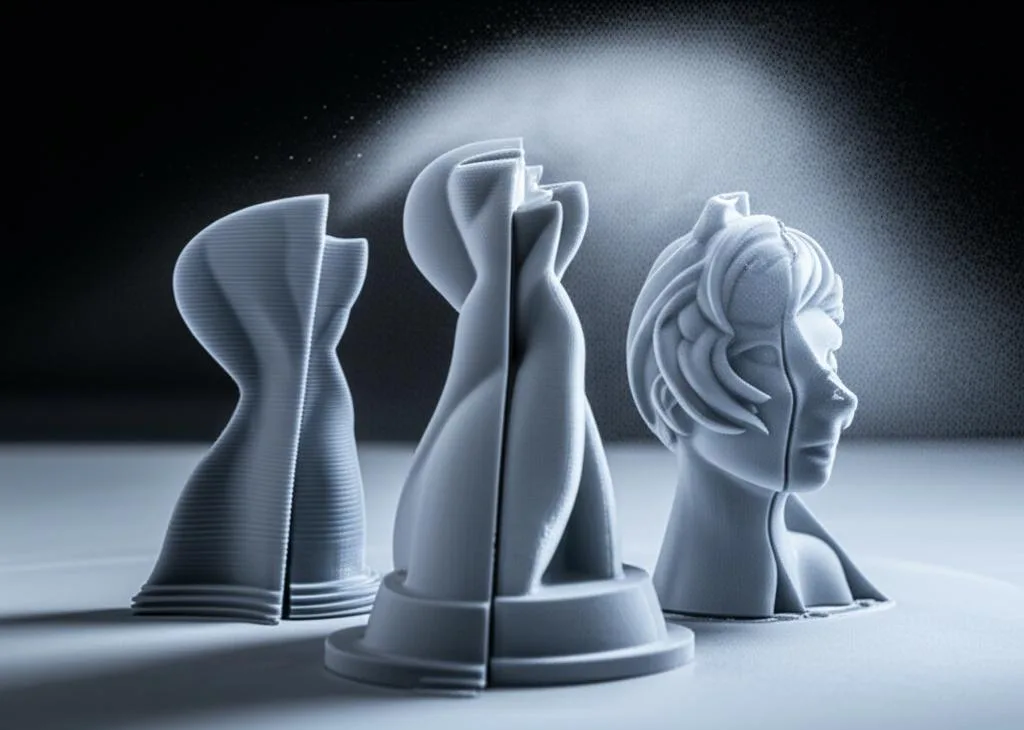

Understanding the role of 3D print primer
Explore the
Snapmaker U1
Before diving into material specifics, it's essential to grasp why priming is so indispensable. A primer serves several key functions:
- Enhanced Paint Adhesion: 3D printed surfaces, especially FDM prints, can be slick or porous, making it difficult for paint to adhere directly. Primer creates a uniform, microscopically textured layer that provides an excellent 'tooth' for subsequent paint layers to grip onto.
- Surface Leveling and Imperfection Hiding: Layer lines, minor blemishes, and print artifacts are common in 3D prints. Many primers, particularly filler primers, can effectively fill these tiny imperfections, creating a smoother, more uniform surface.
- Color Uniformity: The base color of your 3D print can influence the final appearance of your paint. A neutral-colored primer (e.g., grey, white) provides a consistent canvas, ensuring your topcoats appear true to their intended color.
- Increased Durability: Primer adds an extra protective layer, contributing to the overall resilience of the painted surface against minor abrasions or impacts.
- Chemical Barrier: In some cases, a primer can act as a barrier, preventing potential chemical reactions between the print material and certain types of paint, which could otherwise lead to poor adhesion or surface degradation.

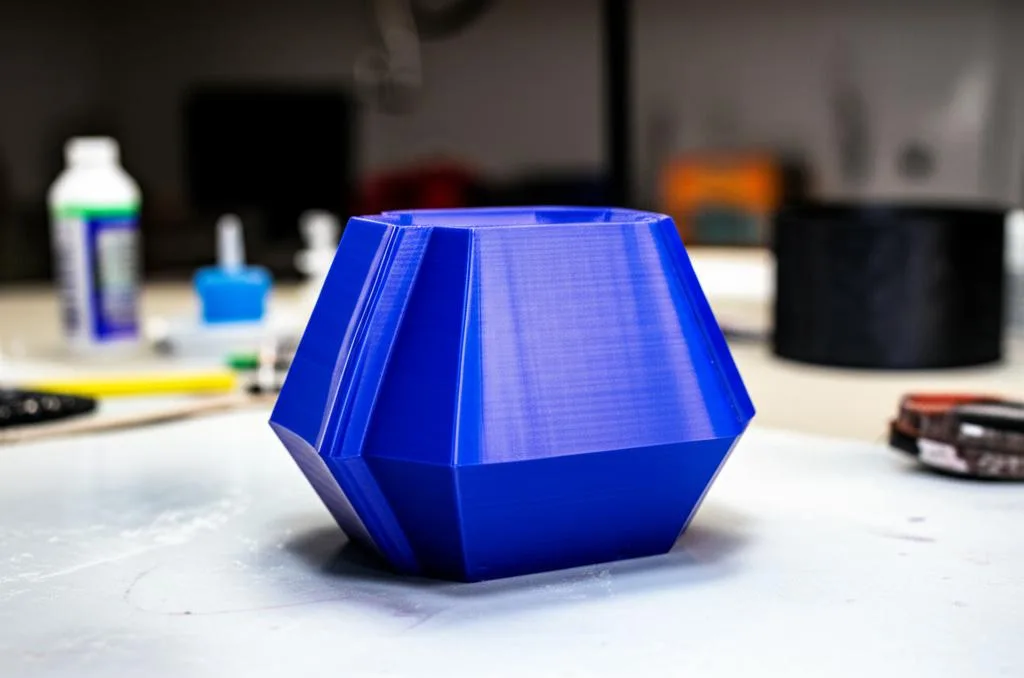

General principles for effective priming
Regardless of the material, a few universal principles apply to achieve optimal priming results:
- Thorough Surface Preparation: This is arguably the most critical step. Any grease, dust, support material residue, or uncured resin will compromise primer adhesion. Cleaning, light sanding, and degreasing are paramount.
- Good Ventilation: Primers often contain volatile organic compounds (VOCs). Always work in a well-ventilated area or use appropriate respiratory protection.
- Multiple Thin Coats: Instead of one thick layer, apply several thin, even coats. This prevents drips, preserves fine details, and ensures better adhesion and drying.
- Appropriate Drying Times: Allow each coat to dry completely according to the manufacturer's instructions before applying the next or moving to topcoats. Rushing this step can lead to poor adhesion, bubbling, or an uneven finish.
- Temperature and Humidity: Ideal conditions for priming are typically moderate temperatures and low humidity. Extreme conditions can affect drying times and primer performance.
Material-specific primer considerations
Each 3D printing material presents its own set of challenges and opportunities for priming.
Priming PLA (Polylactic Acid) prints
PLA is perhaps the most common FDM 3D printing material, known for its ease of use and biodegradability. Its surface can range from relatively smooth to slightly textured, depending on print settings.
Characteristics of PLA relevant to priming:
- Relatively Smooth Surface: Compared to some other plastics, PLA can have a fairly smooth finish, though layer lines are almost always present.
- Lower Heat Resistance: PLA softens at lower temperatures, so avoid excessive heat during drying or sanding.
- Good Adhesion with Many Paints: PLA generally accepts paint well, but a primer improves consistency and durability.
- Biodegradable Nature: While not directly impacting primer choice, it's a defining characteristic.
Suitable primer types for PLA:
For PLA, acrylic-based primers are often the go-to choice due to their excellent adhesion, quick drying times, and ease of use. Many general-purpose plastic primers or automotive primers (specifically those labeled for plastics) also work exceptionally well.
- Acrylic-based Primers: These are widely available in spray cans or brush-on formulas. They dry quickly, offer good coverage, and provide a strong base for acrylic, enamel, and lacquer paints. Brands often include Tamiya, Vallejo, or Rust-Oleum plastic primers.
- Filler Primers (Light): For prints with more pronounced layer lines, a light filler primer can help smooth the surface. These are typically acrylic or urethane-based and can be sanded down after drying.
Application and features for PLA:
Surface preparation for PLA involves removing supports, sanding down major imperfections (starting with coarser grits like 220, moving to finer like 400-600), and then cleaning thoroughly with isopropyl alcohol (IPA) or a mild degreaser. Apply primer in thin, even coats, allowing sufficient drying time between each. Two to three coats are usually sufficient. PLA primers typically offer good adhesion and quick drying, with minimal impact on detail if applied correctly.
Cost implications for PLA primers:
Primers suitable for PLA are generally among the most affordable options. Standard acrylic primers in spray cans can range from $5 to $15 per can, depending on brand and volume. Brush-on acrylic primers are similarly priced for smaller bottles. Filler primers might be slightly higher but still within an accessible range, typically $10 to $20 per can.
Priming ABS (Acrylonitrile Butadiene Styrene) prints
ABS is a robust engineering plastic known for its strength, flexibility, and heat resistance. However, it can be more challenging to print due to warping and often exhibits a slightly rougher surface finish compared to PLA.
Characteristics of ABS relevant to priming:
- Stronger and More Durable: ABS is more resilient, making it suitable for functional parts.
- Prone to Warping: This can sometimes lead to more surface imperfections that require filling.
- Slightly Rougher Surface: Layer adhesion can sometimes be less smooth, necessitating more aggressive sanding or filling.
- Good Chemical Resistance: Requires primers with strong adhesion properties.
Suitable primer types for ABS:
Due to its robustness and potential for more pronounced layer lines, ABS often benefits significantly from filler primers. Automotive primers are also an excellent choice, as they are designed for durable adhesion to various plastics and can withstand more rigorous post-processing.
- Automotive Filler Primers: These are highly effective for ABS. They are designed to fill minor scratches and imperfections on car body parts, making them ideal for smoothing out layer lines on 3D prints. They often provide excellent adhesion and a very durable base. Brands like Bondo, Rust-Oleum Automotive, or Dupli-Color are common.
- High-Build Primer Surfacers: Similar to filler primers, these are formulated to build up a thicker layer that can be sanded smooth, effectively eliminating layer lines and minor print defects.
- Specific Plastic Primers: Some primers are explicitly formulated for engineering plastics like ABS, offering superior adhesion.
Application and features for ABS:
Surface preparation for ABS is crucial. After removing supports, extensive sanding (starting coarse, e.g., 180-220 grit, and progressing to 400-600 grit) is often necessary to remove layer lines. Acetone vapor smoothing is an option for ABS, which can drastically reduce layer lines before priming. Clean thoroughly with IPA or a degreaser. Apply automotive or filler primers in thin, even coats. Due to their filling properties, these primers might require more sanding after drying (e.g., 600-800 grit wet sanding) to achieve a perfectly smooth finish. Features include excellent adhesion, superior filling capabilities, and a very durable surface once cured.
Cost implications for ABS primers:
Given their specialized formulations and often larger can sizes, automotive and high-build filler primers for ABS can be slightly more expensive than basic acrylic primers. Expect prices to range from $15 to $30 per can for quality automotive-grade filler primers. While a higher initial cost, their effectiveness in smoothing and adhesion can save time and effort in the long run.
Priming Resin (SLA/DLP/LCD) prints
Resin 3D prints, produced by stereolithography (SLA), digital light processing (DLP), or LCD technologies, are renowned for their incredibly high detail and smooth surface finish. However, they present their own unique challenges for priming.
Characteristics of Resin relevant to priming:
- Exceptional Detail: Resin prints can capture very fine features, which can be easily obscured by thick primer coats.
- Very Smooth/Slick Surface: Unprimed resin can be quite slick, making paint adhesion difficult without proper preparation.
- Requires Thorough Curing: Any uncured resin on the surface will prevent primer adhesion and can leach out over time.
- Brittle Nature: Resin prints can be more brittle than FDM plastics, requiring careful handling.
Suitable primer types for resin:
The key for resin prints is to use primers that are very fine-particle, self-leveling, and designed for maximum adhesion without obscuring delicate details. Hobby-grade primers are often ideal.
- Fine-Particle Primers: These primers are formulated with extremely fine pigments that lay down a very thin, smooth coat, preserving intricate details. Brands like Tamiya Fine Surface Primer, Mr. Hobby Mr. Surfacer, or Vallejo Surface Primer are popular choices among modelers.
- Specific Resin Primers: Some manufacturers offer primers specifically designed for resin models, ensuring optimal adhesion to the cured resin surface.
- Automotive Primers (Light Coats): While some automotive primers can work, they must be applied in extremely thin, controlled coats to avoid obscuring detail. Opt for lighter, non-filler versions.
Application and features for resin:
Surface preparation for resin prints is paramount. After printing, models must be thoroughly cleaned of uncured resin (typically with IPA) and then fully post-cured under UV light. Any residual uncured resin will prevent proper primer adhesion. Light sanding (800-1000 grit) may be done carefully if there are support marks, but generally, resin prints require less sanding than FDM. Clean thoroughly with IPA. Apply fine-particle primers in very light, misted coats. The goal is to just barely cover the surface, building up minimal thickness. These primers offer excellent adhesion to smooth surfaces, dry to a very fine finish, and are designed to preserve even the smallest details.
Cost implications for resin primers:
Fine-particle, hobby-grade primers for resin prints can sometimes be at the higher end of the spectrum, reflecting their specialized formulation for detail preservation. Prices typically range from $12 to $25 per can for spray primers from dedicated hobby brands. Brush-on versions can be more economical for small areas but require more skill for a smooth finish. The investment is often justified by the desire to maintain the high fidelity of resin prints.
Comparing cost structures and features: a summary
When evaluating primer options, it's not simply about the sticker price; it's about the features offered and how they align with your project's needs and the material being used. Here’s a comparative overview:
Cost structures:
- Entry-Level (PLA): Generally the most budget-friendly, with standard acrylic or general plastic primers being readily available and effective. Cost per application is low.
- Mid-Range (ABS/PLA with imperfections): Automotive or filler primers for ABS and heavily-layered PLA prints fall into a slightly higher price bracket. While more expensive per can, their filling properties can reduce the need for extensive sanding, potentially saving labor time.
- Premium (Resin/Fine Detail): Fine-particle, hobby-grade primers designed for resin or highly detailed models often command a higher price. This premium reflects their specialized formulation to preserve intricate details and provide superior adhesion on very smooth surfaces.
It's important to consider the overall project cost. A slightly more expensive primer that eliminates hours of sanding or prevents paint failure might be more cost-effective in the long run than a cheaper primer that requires extensive rework.
Key features comparison:
- Adhesion Strength: All primers aim for good adhesion, but automotive-grade and specialized resin primers often offer superior bonding to challenging surfaces (like slick resin or robust ABS) compared to general-purpose acrylics.
- Filling Capabilities: Filler primers (common for ABS, also useful for PLA) excel at smoothing out layer lines and minor imperfections. Fine-particle primers (for resin) have minimal filling capabilities, designed instead for detail preservation.
- Drying Time: Most acrylic-based primers (good for PLA) dry relatively quickly. Some automotive or high-build primers might have longer curing times, especially if applied thickly.
- Sandability: Filler primers are typically designed to be easily sanded to a smooth finish once dry, which is a crucial feature for ABS and FDM prints with visible layer lines. Fine-particle primers are less about sanding and more about providing a smooth base coat.
- Flexibility/Durability: Automotive primers, in particular, are formulated for high durability and some degree of flexibility, making them suitable for parts that might experience minor stresses.
- Detail Preservation: This is where fine-particle resin primers truly shine, ensuring that intricate features are not lost under the primer layer.
Surface preparation: the foundation of success
Explore the
Snapmaker U1
No matter which primer you choose, its performance hinges on impeccable surface preparation. This isn't just a suggestion; it's a non-negotiable step for professional results.
- Cleaning: All prints must be free of dust, oils, and residues. For FDM prints (PLA, ABS), isopropyl alcohol (IPA) or a mild dish soap and water solution followed by thorough drying works well. For resin prints, meticulous cleaning with IPA (or manufacturer-recommended cleaner) and complete post-curing are absolutely essential to remove uncured resin.
- Sanding: This step helps to reduce layer lines and smooth imperfections. Start with a coarser grit (e.g., 220-400 for FDM, 600-800 for resin if needed) and progressively move to finer grits (600-1000+). Wet sanding can help achieve a smoother finish and reduce dust. Always sand lightly and evenly.
- Degreasing: Even after cleaning, skin oils can transfer to the print. A final wipe with IPA or a dedicated degreaser before priming ensures a pristine surface for primer adhesion.
Application techniques for optimal results
The way you apply primer is just as important as the primer you choose.
- Shake Well: Always shake spray primers thoroughly (for at least a minute after you hear the mixing ball) to ensure pigments and binders are evenly mixed.
- Distance and Motion: Hold the spray can approximately 8-12 inches (20-30 cm) from the print. Use smooth, even passes, overlapping slightly, rather than holding the can stationary. This prevents pooling and drips.
- Thin Coats are Key: This cannot be overstated. Multiple thin coats build up adhesion and coverage without obscuring details or creating texture. Allow flash-off time between coats (a few minutes) and full drying time (as per manufacturer) between sets of coats.
- Light Source: Use a strong, angled light source while priming to highlight areas that need more coverage or to spot imperfections.
- Priming Small Details: For very intricate parts, consider using an airbrush with a fine-particle liquid primer. This allows for unparalleled control and extremely thin layers.
Safety and environmental considerations
Working with primers involves chemicals, so safety should always be a top priority:
- Ventilation: Always work in a well-ventilated area, ideally outdoors or in a spray booth with an exhaust fan.
- Personal Protective Equipment (PPE): Wear a respirator mask (rated for organic vapors) to protect your lungs from fumes. Use gloves to protect your skin from chemicals and to prevent transferring skin oils to your print. Eye protection is also advisable.
- Flammability: Many primers are flammable. Keep them away from open flames, sparks, and heat sources.
- Disposal: Dispose of empty cans and primer-soaked rags according to local regulations.
Conclusion: making an informed decision
The journey from a raw 3D print to a beautifully finished model is paved with careful choices, and selecting the right primer is undoubtedly one of the most impactful. As this guide illustrates, there is no single "best" primer; rather, the optimal choice is a thoughtful alignment of the 3D print material's characteristics, the desired final finish, and the specific features offered by various primer types.
For PLA, readily available and affordable acrylic-based primers often suffice, offering good adhesion and quick drying. ABS, with its robust nature and potential for more pronounced layer lines, benefits greatly from the superior filling and durability of automotive-grade or high-build filler primers, albeit at a slightly higher cost. Resin prints, with their exquisite detail and smooth surfaces, demand fine-particle, hobby-grade primers that preserve intricate features while ensuring strong adhesion, often representing a premium investment.
Ultimately, the decision rests with you, the maker. By understanding the unique demands of each material, evaluating the cost structures against the features and benefits, and committing to thorough surface preparation and meticulous application techniques, you can confidently choose the primer that will lay the perfect foundation for your 3D printing masterpieces.
