A step-by-step guide to DIY copper electroplating for PLA and ABS 3D prints

Transforming a mundane plastic 3D print into an object with the lustrous sheen and tactile weight of metal is a truly captivating endeavor. While professional metal plating services exist, the world of DIY electroplating offers an accessible and immensely rewarding path for hobbyists and makers. This comprehensive guide will walk you through the intricate yet achievable process of copper plating your PLA and ABS 3D prints right from your home workshop, delving into the nuances of preparation, execution, and the various approaches you can take.

Electroplating is, at its core, an electrochemical process that deposits a thin layer of metal onto a conductive surface. For 3D prints, which are inherently non-conductive, the magic begins with making them electrically receptive. Copper is an excellent choice for a first foray into electroplating due to its relatively forgiving nature, beautiful finish, and its ability to serve as an ideal base layer for subsequent plating with other metals like nickel or chrome, should you wish to explore further. This guide focuses specifically on PLA post-processing and ABS finishing, two of the most common FDM printing materials, offering insights tailored to their unique characteristics.

Understanding the science behind electroplating

Explore the
Snapmaker U1

Meet the U1

Before diving into the practical steps, a brief understanding of the underlying principles will greatly enhance your success. Electroplating relies on a simple circuit:

• Anode: The positively charged electrode, typically made of the metal you wish to plate (in this case, copper). It gradually dissolves into the electrolyte.
• Cathode: The negatively charged electrode, which is your 3D printed part, made conductive. Metal ions from the electrolyte are attracted to and deposit onto this surface.
• Electrolyte: A solution containing metal ions (copper sulfate for copper plating) that acts as the medium for ion transfer.
• Power Supply: A DC (direct current) power source that provides the electrical energy to drive the reaction, pushing electrons from the anode to the cathode.

When current flows, copper atoms from the anode lose electrons and enter the electrolyte as positively charged copper ions. These ions then migrate towards the negatively charged cathode (your print), gain electrons, and deposit as a solid layer of metallic copper. This controlled process allows for an even and adherent coating.

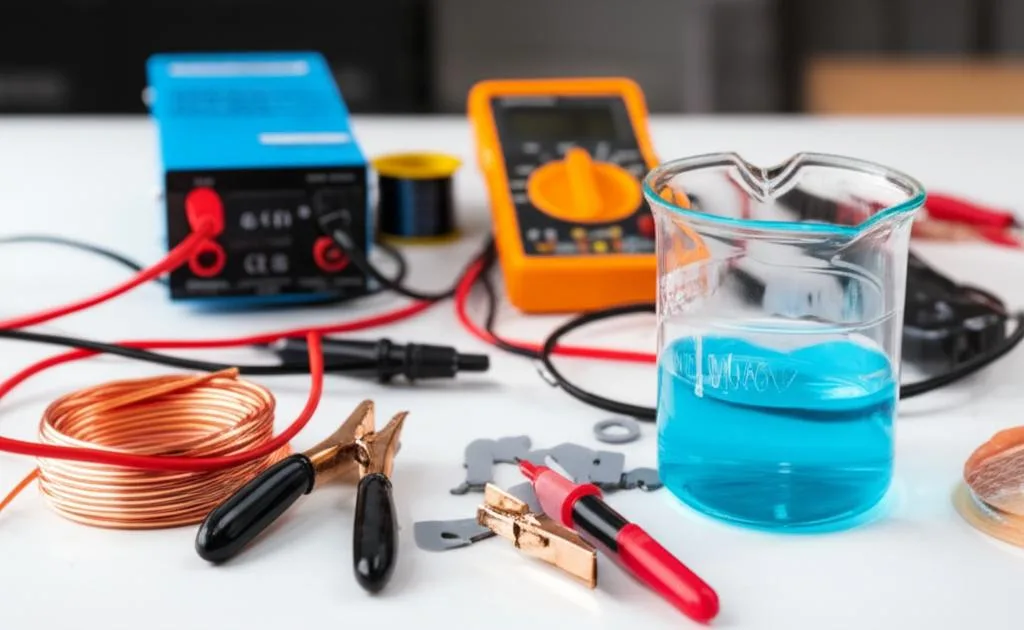

Essential materials and equipment

Embarking on your home metal coating journey requires a careful selection of materials and equipment. The choices you make here can influence the cost, convenience, and ultimate quality of your plated prints.

3D prints (PLA and ABS)

• PLA (Polylactic Acid): Generally easier to work with. It's stiffer and holds fine details well. Requires good surface preparation to ensure conductive paint adhesion.
• ABS (Acrylonitrile Butadiene Styrene): Known for its slightly more forgiving nature when it comes to post-processing like sanding, as it's a bit softer. Adhesion of conductive paints can sometimes be more challenging due to its surface properties.

Conductive paint

This is the critical component that transforms your plastic print into a cathode. Various options exist, each with its own cost structure and performance characteristics:

• Graphite Paint: Often the most economical choice. It provides decent conductivity but can sometimes result in a slightly duller finish or require longer plating times due to higher resistance. Application needs to be very even.
• Copper Conductive Paint: A mid-range option in terms of cost. Offers superior conductivity compared to graphite, often leading to faster and more uniform plating. The copper particles in the paint can sometimes contribute to a more robust initial layer.
• Silver Conductive Paint: The most expensive but offers the best conductivity. Ideal for intricate parts or when aiming for the highest quality finish and fastest plating times. Its high cost usually reserves it for smaller, high-value projects.

Copper anode

This is your source of copper ions. You'll need:

• Pure Copper Sheet or Wire: Scraps can work, but for best results, use high-purity copper (e.g., plumbing pipe, bus bar, or dedicated electroplating anodes). Purity affects the quality of your plating bath over time.

Electrolyte solution

This is where the magic happens. You have options for sourcing your solution:

• Pre-mixed Electroplating Kits: These are convenient and ensure a balanced solution with brighteners and other additives for optimal results. They come at a higher upfront cost but offer consistency and ease of use, especially for beginners.
• DIY from Raw Chemicals: More cost-effective in the long run if you plan extensive plating. Typically involves copper sulfate, sulfuric acid (battery acid), and distilled water. You'll need to carefully measure and mix, and potentially add your own brighteners (e.g., hydrochloric acid, molasses, or specific proprietary additives). This approach requires more knowledge, careful handling of chemicals, and can be more prone to inconsistencies if not done precisely.

Power supply

A crucial component for controlling the plating process.

• DC Variable Power Supply: The ideal choice. Allows you to precisely control both voltage and current (amperage). This fine-tuning is essential for achieving optimal plating results and adapting to different part sizes and desired finishes. While a higher initial investment, it offers unparalleled control and versatility.
• Fixed Voltage Power Supply (e.g., repurposed phone charger): Can be used for very basic setups, but offers limited control. You'll likely need to adjust current by varying the distance between anode and cathode or adding resistors, making consistent results harder to achieve. Less flexible, but very low cost.

Other essentials

• Glass or Plastic Containers: Beakers or food-safe plastic containers that can hold your electrolyte and submerse your prints. Avoid metal containers.
• Alligator Clips and Wires: For making electrical connections. Ensure they are insulated.
• Stirring Rod: Glass or plastic.
• Distilled Water: For mixing solutions and rinsing. Tap water can introduce impurities.
• Safety Gear: Absolutely non-negotiable. Chemical-resistant gloves, eye protection (goggles), and proper ventilation (a fume hood or well-ventilated area) are paramount.
• Cleaning Supplies: Isopropyl alcohol, degreaser, fine-grit sandpaper (400-800 grit), microfiber cloths.

The step-by-step electroplating process

Step 1: Print preparation – the foundation of a flawless finish

The quality of your final electroplated item is directly proportional to the effort put into preparation. This stage is crucial for good adhesion and a smooth finish.

1. Sanding and Filling (Optional but Recommended): 3D prints often have layer lines or minor imperfections. For a truly metallic look, these need to be minimized. Sand your print starting with a coarser grit (e.g., 220-320) and progressively move to finer grits (400-800). For deep lines or gaps, use a suitable filler (e.g., epoxy putty or specific 3D print fillers) and sand smooth once cured. Remember, any imperfection on the plastic will be magnified by the plating.
2. Cleaning and Degreasing: This is paramount. Oils from your hands, dust, or residual sanding particles will prevent proper adhesion of the conductive paint. Wash your print thoroughly with soap and water, then rinse with distilled water. For a deeper clean, use isopropyl alcohol or a dedicated degreaser. Allow the print to air dry completely or use compressed air. Handle the print only with gloves from this point forward.

Step 2: Making the print conductive – the gateway to plating

Since plastic is an insulator, we need to apply a conductive layer.

1. Applying Conductive Paint: Shake your chosen conductive paint thoroughly. Apply an even, thin coat to the entire surface you wish to plate. Use a brush, airbrush, or even a sponge, depending on the paint type and desired finish. Ensure every nook and cranny is covered, as any unpainted area will not plate. Pay particular attention to edges and intricate details.
2. Drying Time: Allow the paint to dry completely according to the manufacturer's instructions. This can range from a few hours to overnight. Rushing this step can lead to poor conductivity and plating failures. Some paints benefit from multiple thin coats.
3. Testing Conductivity (Optional): Once dry, you can use a multimeter to check the resistance across different points of your painted print. While not strictly necessary for every project, it can help diagnose issues before plating.

Step 3: Setting up the electroplating bath – creating the environment

Careful setup ensures a stable and efficient plating process.

1. Prepare the Electrolyte: If using a pre-mixed kit, follow its instructions. If mixing your own, carefully combine copper sulfate, sulfuric acid, and distilled water in your container. Always add acid to water slowly, never the other way around, to prevent violent reactions. Stir thoroughly until the copper sulfate is fully dissolved. Ensure proper ventilation during this step.
2. Position the Anode: Suspend your copper anode(s) in the electrolyte. For even plating, it's often best to have anodes on multiple sides of your print, or a larger anode that encircles it. Ensure the anode is clean and free of oxides.
3. Prepare the Cathode (Your Print): Attach a wire to your painted 3D print. This wire will serve as the electrical connection to the power supply. Ensure the connection point is also painted and conductive. You can use an alligator clip, but for best results, embed a small wire into the print or create a small loop that can be easily plated over.
4. Submerge the Print: Carefully lower your prepared print (cathode) into the electrolyte. Ensure it is fully submerged and does not touch the anode or the bottom of the container. Maintain a consistent distance between the anode and cathode for even plating.

Step 4: The electroplating process – watching the magic unfold

This is where the actual metal deposition occurs.

1. Connect the Power Supply: Connect the positive (+) terminal of your DC power supply to the copper anode(s). Connect the negative (-) terminal to the wire attached to your 3D print (cathode). Double-check all connections.
2. Set Voltage and Current: This is critical. For copper plating, a good starting point is often around 0.1-0.3 amps per square inch of surface area. Voltage will typically be in the range of 0.5-2 volts. Start with a low current and gradually increase it. Too high a current can lead to a burnt, brittle, or uneven deposit. Too low, and plating will be very slow or non-existent. A variable power supply is invaluable here, allowing you to fine-tune these parameters. Observe the print carefully for the first few minutes. You should see a uniform, reddish-brown deposit forming.
3. Monitor and Adjust: The plating process can take several hours, depending on the desired thickness. Periodically check the print. If you see dark spots, excessive bubbling, or a powdery deposit, your current might be too high. If plating is too slow or uneven, adjust slightly. Gentle agitation of the solution (with a stirring rod or a small pump) can help ensure fresh electrolyte reaches the surface, leading to more uniform plating.
4. Duration: Plate until you achieve your desired thickness and coverage. For a robust coating, several hours are usually required.

Step 5: Post-plating finishing – revealing the brilliance

Once plating is complete, your work isn't quite finished.

1. Rinsing: Carefully remove the plated print from the bath. Rinse it thoroughly with distilled water to remove any residual electrolyte.
2. Drying: Allow the print to air dry completely or use a soft cloth.
3. Polishing: The freshly plated copper will likely have a matte or semi-bright finish. To achieve a high-gloss, mirror-like shine, you'll need to polish it. Start with a fine-grit polishing compound designed for metals and use a soft cloth or a buffing wheel. Work in stages, gradually increasing the fineness of the compound until you reach the desired luster.
4. Optional Lacquering/Clear Coating: Copper naturally oxidizes and tarnishes over time, turning a darker brown or green. To preserve the bright, polished finish, you can apply a clear lacquer or a clear coat specifically designed for metals.

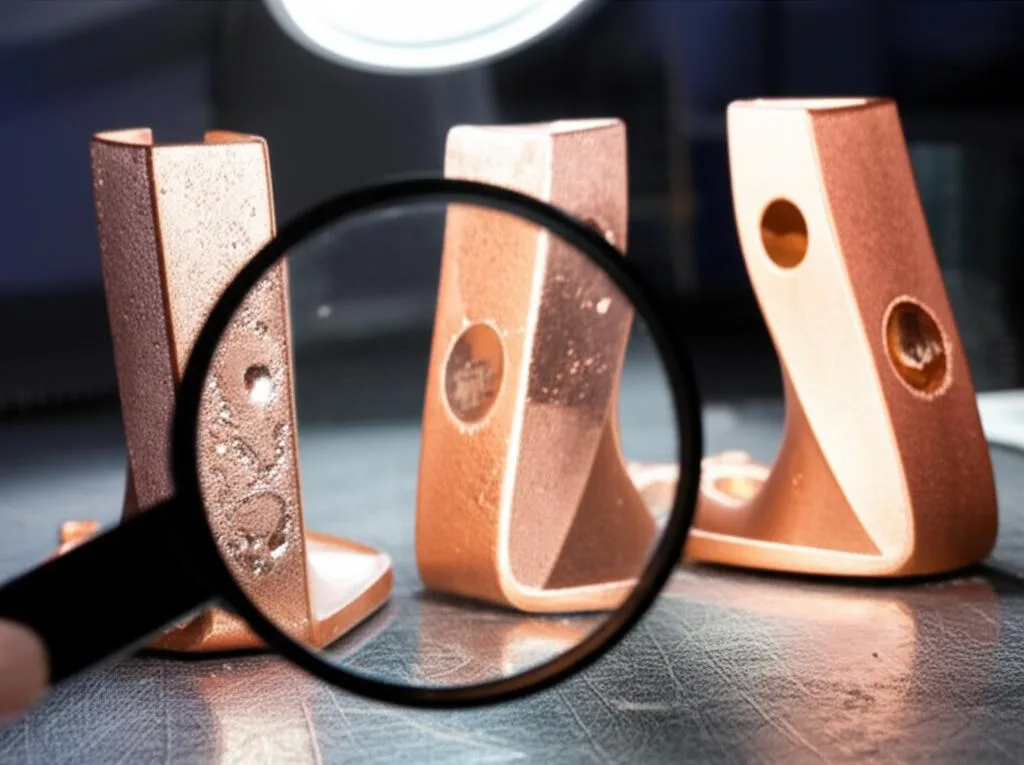

Troubleshooting common issues

Even with careful preparation, issues can arise. Here are some common problems and potential solutions:

• Uneven Plating:
  • Cause: Inconsistent conductivity of the paint, uneven current distribution, too far/close to anode, print moving.
  • Solution: Ensure paint is applied evenly, adjust anode placement, use lower current, gently agitate solution.
• Poor Adhesion / Peeling:
  • Cause: Insufficient cleaning, paint not fully dry, too high current, poor quality conductive paint.
  • Solution: Re-clean thoroughly, ensure paint is fully cured, lower current, consider a different conductive paint.
• Dull or Powdery Finish:
  • Cause: Current too high, electrolyte contaminated or out of balance, lack of brighteners.
  • Solution: Reduce current, replace electrolyte, add brighteners, ensure anode is clean.
• No Plating:
  • Cause: Broken electrical connection, non-conductive paint, dead power supply, incorrect polarity.
  • Solution: Check all wires and connections, ensure paint is conductive, verify power supply output, confirm anode to positive and cathode to negative.

Cost considerations and solution comparison

When approaching DIY electroplating, understanding the cost implications and comparing different solutions is key to making informed decisions. There isn't a single "cheapest" or "best" option, as it depends on your budget, desired quality, and frequency of use.

Conductive paints: balancing cost and performance

• Graphite Paint: Generally the lowest initial cost per volume. It's a good entry point for beginners or for projects where a perfectly mirror-like finish isn't the top priority. However, its higher electrical resistance can mean longer plating times and potentially a slightly less uniform deposit, which might require more post-plating polishing.
• Copper Conductive Paint: A moderate investment. Offers a better balance of conductivity and cost. Plating times are usually faster, and the initial copper layer can be more robust. It's often a good middle-ground for quality and budget.
• Silver Conductive Paint: The highest cost, often significantly more expensive than copper or graphite. Its superior conductivity ensures the fastest plating and the most uniform, high-quality initial layer, especially on intricate details. Best reserved for smaller, high-precision projects where cost is secondary to finish quality.

Electrolyte solutions: DIY versus pre-mixed

• DIY from Raw Chemicals: Building your own solution from copper sulfate and sulfuric acid is typically more cost-effective in the long run, especially if you plan to do a lot of electroplating. The raw chemicals are cheaper per unit than pre-mixed solutions. However, this approach demands careful measurement, understanding of chemical safety, and potentially sourcing additional brighteners. The initial learning curve is steeper, and getting the balance just right can take experimentation.
• Pre-mixed Kits: These offer convenience and reliability. They are formulated to provide consistent results, often including proprietary brighteners and additives that enhance the finish. The upfront cost is higher, but you save time and reduce the risk of errors associated with chemical mixing. Ideal for beginners or those who value convenience and consistent results over the lowest possible cost per batch.

Power supplies: control versus budget

• DC Variable Power Supply: Represents a higher initial investment but provides unparalleled control over voltage and current. This precision allows for optimal plating conditions, better troubleshooting, and the ability to adapt to various part sizes and desired finishes. For serious hobbyists, this is a worthwhile long-term investment.
• Fixed Voltage Power Supply: Can be repurposed from old electronics (e.g., phone chargers). This is the lowest-cost option, potentially even free. However, the lack of control means you'll have to rely on other methods (like adjusting anode-cathode distance or using resistors) to manage current, making the process less predictable and often resulting in less consistent finishes. Suitable for experimental or very basic projects where precision isn't paramount.

Anodes and other consumables

• Copper Anodes: Scrap copper can be cheap or free, but its purity might be questionable, potentially introducing impurities into your bath. Dedicated high-purity copper anodes are a modest investment that ensures a cleaner plating process and better long-term bath health.
• Safety Gear: While an upfront cost, investing in quality gloves, eye protection, and ensuring good ventilation is non-negotiable and should not be skimped on. This is an essential safety investment, not a cost to be minimized.

Ultimately, the "best" solution for your DIY electroplating setup balances your budget with your commitment to quality and the frequency of your projects. A beginner might start with graphite paint and a basic power supply, upgrading as their skills and ambitions grow. A more experienced maker might invest in a variable power supply and higher-quality conductive paints for superior results.

Safety precautions: paramount importance

Working with chemicals and electricity demands respect and adherence to safety protocols. Never underestimate the risks involved.

• Ventilation: Always work in a well-ventilated area, ideally with a fume hood. Electrolyte solutions can produce fumes that are hazardous if inhaled.
• Personal Protective Equipment (PPE): Wear chemical-resistant gloves (nitrile or neoprene), eye protection (goggles or a face shield), and appropriate clothing to protect your skin.
• Chemical Handling: Store chemicals in clearly labeled containers, away from children and pets. Never mix chemicals without understanding their reactions. Always add acid to water slowly, never water to acid.
• Electrical Safety: Ensure all wiring is properly insulated. Avoid touching electrical connections with wet hands. Use a ground fault circuit interrupter (GFCI) for your power supply if possible.
• Disposal: Do not pour used electrolyte solutions down the drain. Research local regulations for proper disposal of chemical waste.

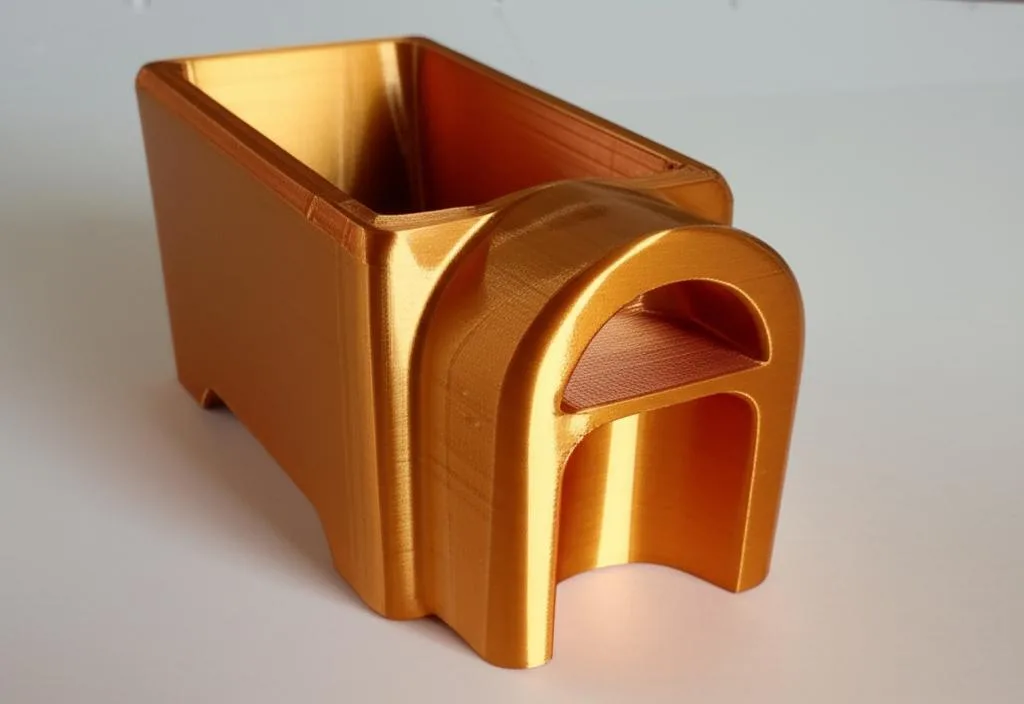

Conclusion

DIY electroplating is a skill that blends art, science, and patience, offering an incredibly satisfying way to elevate your PLA post-processing and ABS finishing. The journey from a raw 3D print to a gleaming, metal-coated masterpiece is an experience that builds both technical prowess and a deep appreciation for the transformation possible within your own home workshop. By understanding the principles, carefully selecting your materials, and meticulously following each step, you can achieve stunning, professional-looking results. While there are choices to be made regarding cost and complexity of various components, the satisfaction of holding a metal-plated print that you crafted yourself is truly priceless. Embrace the challenge, prioritize safety, and enjoy the rewarding world of home metal coating!
