Diving into the world of resin 3D printing can be an exhilarating experience, opening up new possibilities for incredibly detailed and high-resolution models. Unlike FDM printing, resin (SLA/DLP/LCD) printers offer a level of precision that's perfect for miniatures, jewelry, and intricate prototypes. However, getting started requires careful attention to detail, especially during the initial resin printer setup and calibration. This comprehensive beginner's guide will walk you through every crucial step, ensuring your first resin print is a success and laying the groundwork for many more.
Essential safety considerations for resin printing
Explore the
Snapmaker U1
Before you even unbox your printer, understanding and implementing proper safety protocols is paramount. Resin, in its liquid form, is a chemical irritant and can be harmful if not handled correctly. Prioritizing safety will not only protect your health but also make the entire process more enjoyable and less hazardous.
- Ventilation: Always work in a well-ventilated area. Resin fumes can be strong and irritating. Consider an air purifier or working near an open window.
- Personal Protective Equipment (PPE):
- Nitrile Gloves: Essential for handling liquid resin, contaminated parts, and cleaning. Avoid latex gloves, as some resins can react with them.
- Safety Glasses/Goggles: Protect your eyes from splashes.
- Respirator: While good ventilation is key, a respirator with organic vapor cartridges offers an additional layer of protection, especially for prolonged exposure or in less-than-ideal ventilation.
- Workspace Protection: Cover your work surface with disposable mats (e.g., silicone mats, old newspapers, or plastic sheeting) to catch spills.
- First Aid: Keep a supply of soap and water readily available for immediate washing if resin comes into contact with skin.
- Proper Disposal: Never pour liquid resin down the drain. Cured resin can be disposed of as regular plastic waste, but liquid resin requires special handling (cure it under UV light first).

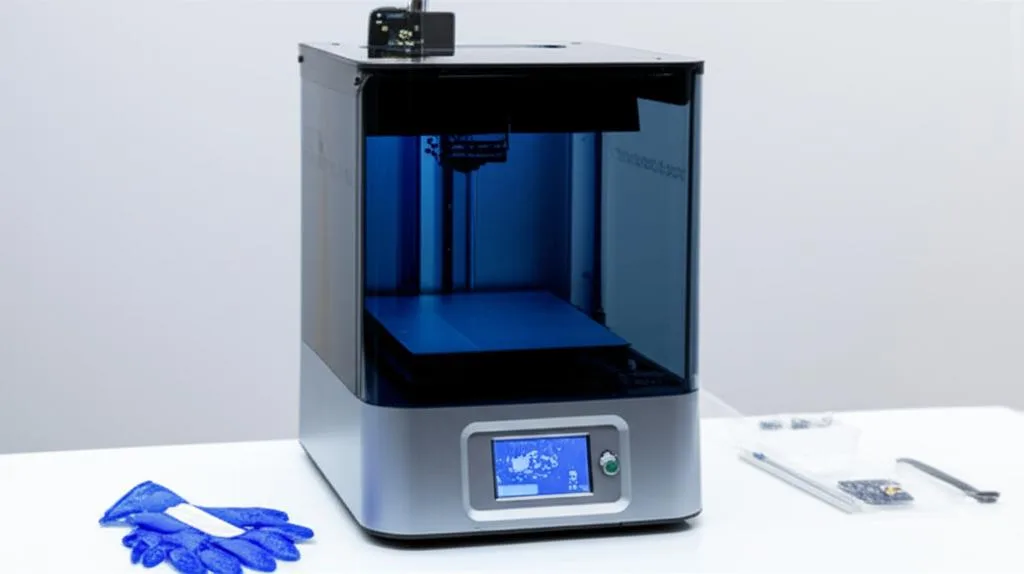

Unboxing and initial setup
With safety measures in place, it's time to prepare your workspace and unbox your new resin printer.
Preparing your workspace
Your printing area should be stable, level, and dedicated. This reduces the risk of accidental bumps or spills during operation.
- Stable Surface: Ensure your table or workbench is sturdy and won't wobble.
- Level Surface: Use a spirit level to check that your printer's resting surface is perfectly horizontal. This aids in consistent printing.
- Accessibility: Position the printer so you have easy access to all sides for maintenance and operation.
- Power: Have a reliable power outlet nearby, preferably with a surge protector.
Unpacking your printer
Carefully remove your printer from its packaging. Most printers come with protective foam inserts and tape that need to be removed. Consult your printer's manual for specific instructions.
- Remove all packaging materials, including any tape securing internal components.
- Locate all accessories: build plate, resin vat, USB drive, power supply, tools, and any included PPE.
- Inspect the printer for any visible damage that might have occurred during shipping.
Hardware assembly and inspection
Now, let's get the core components of your printer ready for action.
Attaching the build plate
The build plate is where your prints will form. It needs to be securely attached to the Z-axis arm.
- Carefully slide the build plate onto the Z-axis arm.
- Tighten the locking screw(s) to secure it firmly in place. Ensure it's not loose, as any movement during printing will lead to failure.
Installing the resin vat
The resin vat (or tank) holds the liquid resin and has a FEP (or nFEP) film at the bottom, through which UV light cures the resin layers.
- Gently place the resin vat into its designated slot on the printer.
- Ensure it sits flush and is properly seated. Many printers have small clips or screws to secure the vat; make sure these are engaged.
- Inspect the FEP film for any dust, debris, or damage. A clean, smooth FEP is crucial for successful prints.
Powering on and initial checks
Plug in your printer and power it on. The display should light up, and you might hear some initial fan noise.
- Navigate through the printer's menu. Familiarize yourself with options like Z-axis movement, exposure tests, and system information.
- Perform a screen test (often called a "UV light test" or "exposure test" in the menu) to ensure the UV LCD screen is functioning correctly. It should display a solid rectangle or the printer's logo evenly across the screen.

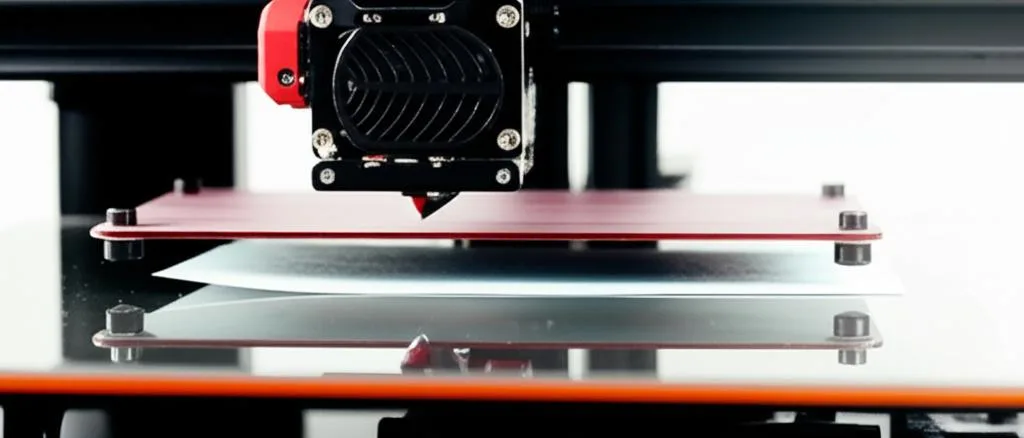

The critical step: Build plate leveling and Z-axis calibration
This is arguably the most important part of your resin printer setup. Proper build plate leveling and Z-axis calibration ensure that your first layer adheres correctly and that your prints are dimensionally accurate. Neglecting this step is a common cause of print failures.
Why leveling matters
The build plate must be perfectly parallel to the UV LCD screen. If it's even slightly off-kilter, one side of your print will be too close to the screen (crushing layers), and the other too far (failing to adhere or forming weak layers). This leads to prints detaching from the build plate or having warped bases.
The manual leveling process
While some advanced printers boast auto-leveling features, most entry-level and mid-range machines require a manual approach. The exact steps may vary slightly between manufacturers, so always refer to your printer's manual. Here's a general procedure:
- Remove the resin vat: Ensure the vat is empty and removed from the printer.
- Loosen build plate screws: Loosen the screws (usually two or four) that hold the build plate in place, allowing it to wiggle freely.
- Place a leveling sheet: Most printers come with a piece of paper or a dedicated leveling card. Place this on the UV LCD screen.
- Lower the build plate to Z=0: On your printer's menu, select the option to "Home" the Z-axis or "Move Z to 0". The build plate will descend until it lightly presses against the leveling sheet on the screen.
- Apply gentle pressure and tighten: While the build plate is resting on the leveling sheet, gently press down on the build plate with one hand to ensure even contact. With your other hand, tighten the build plate screws in a criss-cross pattern (if applicable) or one by one, ensuring the plate remains perfectly flat.
- Raise the build plate: Once tightened, raise the build plate slightly (e.g., 0.1mm or 1mm) using the printer's controls, then carefully remove the leveling sheet.
- Set Z=0: Go back into the menu and find the option to "Set Z=0" or "Set Home Position". This tells the printer that this new, leveled position is its starting point for printing.
- Test: Manually raise and lower the build plate a few times to ensure it returns to the exact Z=0 position without any scraping or excessive pressure.
Note on auto-leveling systems: Some newer printers feature auto-leveling. While these systems can significantly simplify the initial setup, they often involve sensors that detect the plate's position. While they reduce manual effort, understanding the underlying principle of parallelism is still beneficial for troubleshooting. The convenience factor of auto-leveling can be a significant advantage, potentially saving time and reducing initial calibration frustrations, but printers with this feature typically come at a higher initial investment.
Software setup: Slicer configuration
Your 3D model needs to be translated into instructions your printer can understand. This is done by a slicer software.
Choosing your slicer
Popular choices include Chitubox and Lychee Slicer, both offering free versions with premium upgrades. Your printer manufacturer might also recommend or include their own proprietary slicer.
- Chitubox: Widely supported, user-friendly, and often comes pre-configured for many printer models.
- Lychee Slicer: Known for its advanced support generation and user interface, popular among experienced users.
Adding your printer profile
Once you've installed your chosen slicer, you'll need to add your specific printer model. This typically involves selecting it from a dropdown list. The slicer will then load default settings tailored to your machine's build volume and resolution.
Basic slicer settings for your first print
For your first print, stick to conservative settings. You can fine-tune later.
- Layer Height: Start with 0.05mm (50 microns). This offers a good balance of detail and print time.
- Bottom Exposure Time: This is crucial for initial layer adhesion. Consult your resin's manufacturer recommendations, but a common starting point is 20-35 seconds.
- Normal Exposure Time: This determines how long each subsequent layer is exposed. Again, follow resin manufacturer guidelines, usually 2-4 seconds for standard resins.
- Lift Height/Distance: How high the build plate lifts after each layer. Typically 5-8mm.
- Lift Speed: How fast the build plate moves up and down. Start with 40-60 mm/min. Slower speeds reduce stress on the FEP film and print.
- Anti-aliasing: Enable this (usually 2x or 4x) for smoother layer lines.
Discussion on resin profiles and their impact: Different resins (standard, ABS-like, tough, flexible, clear, castable) have unique properties and require distinct exposure settings. While standard grey or white resins are excellent for beginners due to their forgiving nature and lower cost, specialized resins offer specific mechanical properties but often come at a higher price point and demand more precise calibration. Always check the manufacturer's recommended settings for your specific resin and printer combination. Experimenting with different resins will impact your material costs and print characteristics, necessitating further calibration for optimal results.

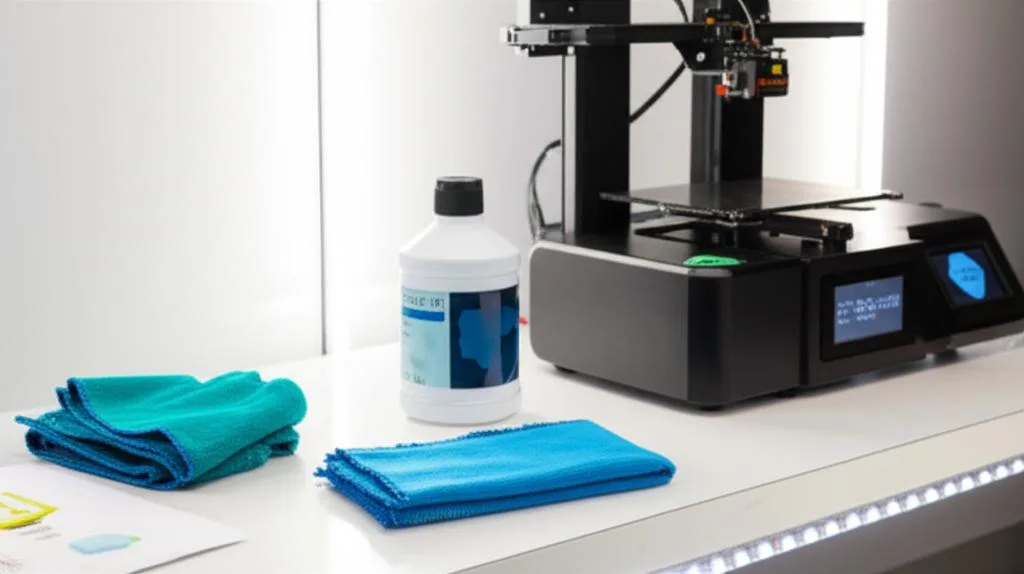

Preparing for your first print
With your printer leveled and slicer configured, you're almost ready to print!
Selecting your first model
Choose something simple and small for your initial print. Many printer manufacturers provide test models (e.g., a rook, a calibration cube) on the included USB drive. These are often pre-supported and optimized.
- Pre-supported models: Highly recommended for beginners to avoid the complexities of support generation.
- Small size: Reduces print time and resin consumption, making troubleshooting quicker.
Adding resin to the vat
Ensure you're wearing your PPE, especially gloves.
- Shake the resin bottle well to ensure all pigments and components are evenly mixed.
- Carefully pour the resin into the vat, filling it to about one-third to half full. Do not overfill.
- Replace the printer's cover to protect the resin from ambient UV light.
Transferring the sliced file
Save your sliced .CTB, .LYC, or other proprietary file format to a USB drive (typically included with the printer). Insert the USB drive into your printer's port.

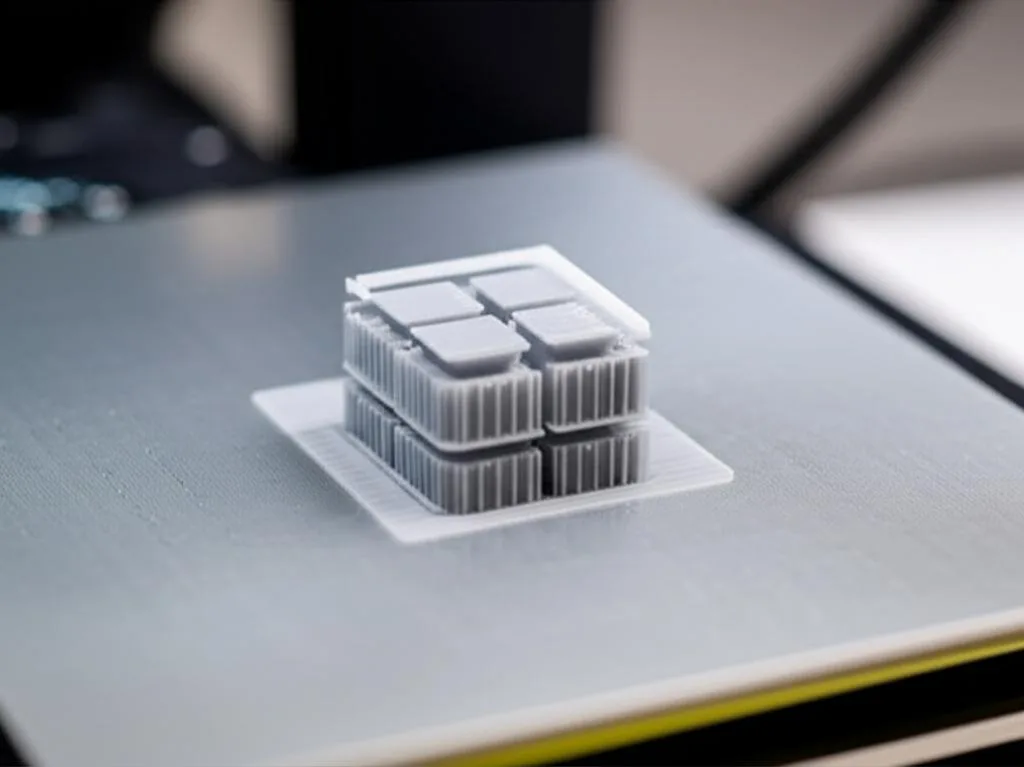

The first print: What to expect
Select your file from the printer's menu and hit print! The build plate will descend, and the printing process will begin.
Monitoring the print
Stay near the printer for the first 15-30 minutes. Listen for unusual noises and observe the build plate's initial movements. You might even see the first layers forming if your printer has a transparent cover.
Troubleshooting common issues
Don't be discouraged if your first print isn't perfect. It's a learning process!
- Print failed to adhere to the build plate: The most common issue. Often due to improper leveling, insufficient bottom exposure time, or a cold environment. Re-level, increase bottom exposure, or warm your resin/room.
- Print stuck to the FEP film: Can be caused by insufficient normal exposure time, too fast lift speed, or a worn FEP film. Increase normal exposure, reduce lift speed, or inspect/replace FEP.
- Warped or deformed base: Usually a sign of poor leveling or insufficient bottom exposure.
- Partial prints/missing features: Could indicate insufficient normal exposure, dirty FEP, or a problem with the sliced file/supports.

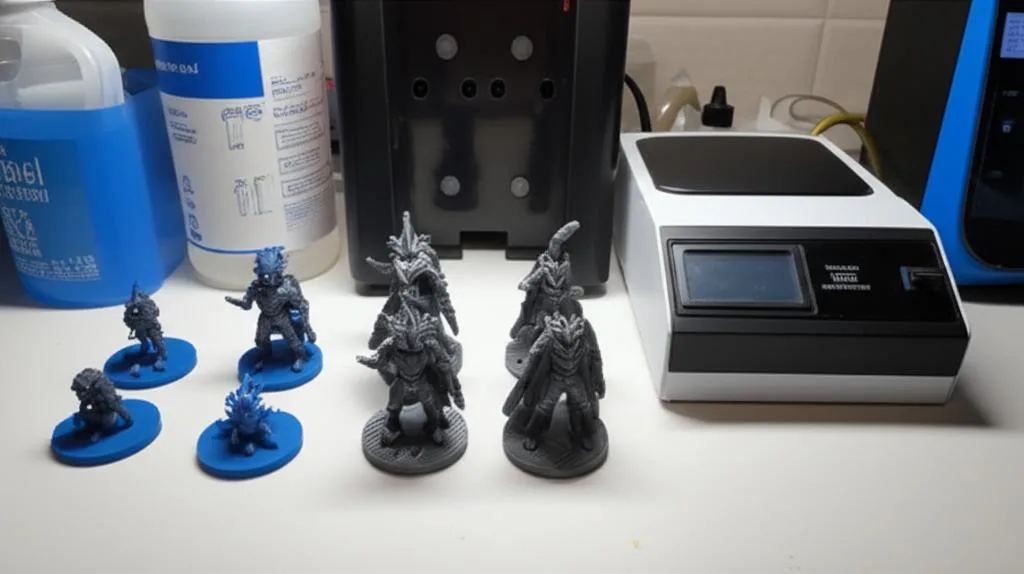

Post-processing: Cleaning and curing
Once your print is finished, it will be covered in uncured liquid resin. Post-processing is essential for a complete, durable part.
Removing the print from the build plate
Always wear gloves. Use a metal scraper (often included) to carefully pry the print off the build plate. Be gentle to avoid scratching the plate or damaging your print.
Washing the print
The uncured resin needs to be washed off. There are several solutions available, each with its own cost and feature set:
- Isopropyl Alcohol (IPA) 90%+: The most common and effective cleaner. It's relatively inexpensive but highly flammable and produces fumes. Requires proper ventilation and disposal.
- Resin Cleaners (e.g., Mean Green, specialized resin washes): Less flammable and often less odorous than IPA, these can be a safer alternative for some. Their cost per volume might be higher than IPA, but they can sometimes be reused more effectively or require less specific disposal. Their effectiveness varies by brand and resin type.
- Wash & Cure Stations: These integrated units (e.g., Elegoo Mercury, Anycubic Wash & Cure) combine washing (with IPA or other cleaners) and UV curing into one convenient, often automated, device. They significantly streamline the post-processing workflow, improving consistency and reducing manual handling. While they represent an additional upfront cost, the time savings, reduced mess, and improved safety features can be a worthwhile investment for frequent printing.
Regardless of the solution, wash your prints thoroughly, often in two stages: a dirty wash to remove the bulk of the resin, followed by a clean wash for a final rinse.
Curing the print
After washing, your print needs to be fully cured under UV light to harden and achieve its final strength.
- UV Curing Station: The most consistent and efficient method. These dedicated stations provide controlled UV light for a complete cure, often with rotating platforms for even exposure. They offer convenience and professional results but are an additional purchase.
- DIY UV Curing: You can create your own curing station using a UV lamp (e.g., nail lamp) and a reflective enclosure. This is a more budget-friendly option, but results can be less consistent than a dedicated station.
- Sunlight: The cheapest option! Place your washed print in direct sunlight for a few hours. This method is highly dependent on weather and can be slow, but it's effective for casual users. Note that direct sunlight can sometimes yellow prints.

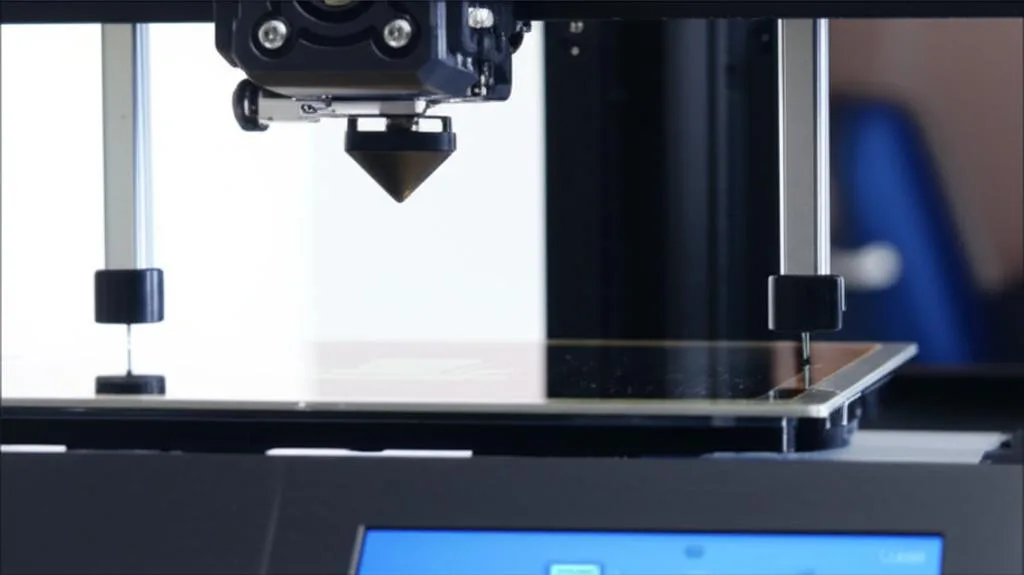

Advanced calibration and fine-tuning for optimal results
Once you've achieved your first successful print, you can start optimizing your settings for even better results.
Exposure time calibration
This is crucial for print quality. Every resin, even from the same brand, can have slightly different optimal exposure times. Using calibration prints like the RERF (Resin Exposure Range Finder) matrix or exposure test models (e.g., AmeraLabs Town, Cones of Calibration) can help you dial in the perfect normal exposure time for your specific resin and printer combination. These tests involve printing small models with varying exposure times to identify the sweet spot where details are crisp without over-curing.
Understanding resin properties and their impact on settings
As you gain experience, you might explore different types of resin, each with distinct features and cost implications:
- Standard Resins: Most affordable, good for general models.
- ABS-like/Tough Resins: Offer increased durability and impact resistance, often at a slightly higher price point. They may require longer exposure times.
- Flexible Resins: Produce pliable parts, ideal for gaskets or prototypes requiring elasticity. Significantly more expensive and require very specific, often longer, exposure times and slower lift speeds.
- Clear Resins: Produce transparent parts, but are notoriously difficult to post-process without cloudiness and often require specialized polishing and curing techniques. Can be more costly.
- Castable Resins: Designed for jewelry making and dental applications, these burn out cleanly in a furnace. They are among the most expensive resins and demand precise exposure and specialized post-processing.
Each resin type necessitates a fresh calibration of exposure settings. The cost difference between a liter of standard resin and a liter of specialized resin can be substantial, influencing your overall printing budget and the complexity of your setup process.
Embarking on your resin printing journey is a rewarding experience that blends technology with artistry. By meticulously following these steps for resin printer setup, calibration, and understanding the nuances of different materials and post-processing solutions, you'll be well-equipped to overcome initial challenges and produce stunning, high-quality prints. Remember, patience and a methodical approach are your best allies in this exciting hobby. Happy printing!
