The burgeoning world of 3D printing is constantly seeking new frontiers, not just in innovation but also in sustainability. Recycled filament represents a significant step towards a more eco-conscious additive manufacturing future, transforming post-consumer and post-industrial plastic waste into valuable printing material. Embracing these sustainable materials offers numerous environmental benefits, reducing landfill waste and decreasing the carbon footprint associated with virgin plastic production. However, working with recycled filament often introduces a unique set of challenges that can impact print quality and reliability. Unlike their virgin counterparts, recycled materials can exhibit greater variability in composition, moisture content, and material properties, leading to common 3D printing problems that require specific attention. This guide aims to equip you with the knowledge to navigate these hurdles, providing practical troubleshooting tips to achieve excellent print quality with your recycled filament.
Understanding the unique characteristics of recycled filament
Explore the
Snapmaker U1
Before diving into specific issues, it’s crucial to understand why recycled filament behaves differently. The primary factor is variability. Depending on the source, recycled plastics can be a blend of different polymer types, contain impurities, or have undergone thermal degradation during previous processing cycles. This can lead to:
- Inconsistent Diameter: While virgin filaments are manufactured to tight tolerances, recycled versions might have slight variations in diameter, affecting extrusion.
- Variable Material Properties: Different melt flow indexes, glass transition temperatures, and tensile strengths can make consistent printing challenging.
- Moisture Absorption: Many plastics readily absorb moisture, and recycled materials, often exposed to varying environmental conditions, can be particularly prone to this, leading to steam bubbles during extrusion.
- Additives and Contaminants: Residual dyes, fillers, or even small foreign particles from the recycling process can alter material behavior and potentially clog nozzles.
Acknowledging these inherent differences is the first step towards successful printing with sustainable materials.

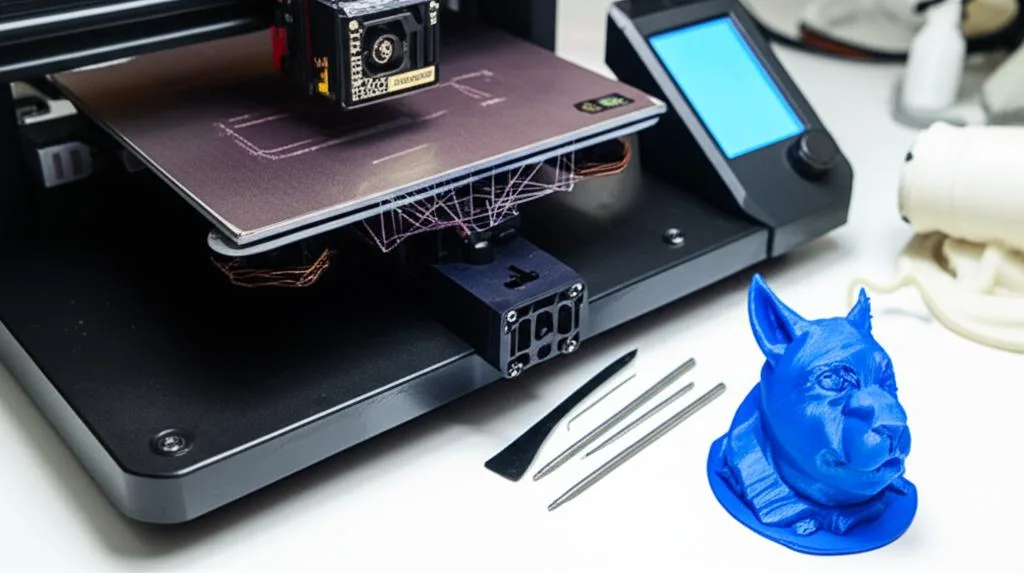

Common print issues and how to fix them for quality results
Poor bed adhesion and layer adhesion
One of the most frustrating 3D printing problems is when your print detaches from the build plate or layers fail to bond properly. With recycled filament, this can be exacerbated by inconsistent material properties.
- Solution for Bed Adhesion:
- Clean Build Plate: Ensure your print surface is meticulously clean. Isopropyl alcohol or soap and water work well depending on the surface type.
- Optimize Bed Temperature: Recycled filaments might require slightly different bed temperatures than their virgin counterparts. Start with the manufacturer's recommendation (if available) and adjust in small increments.
- Adhesive Aids: Don't shy away from gluestick, hairspray, or PEI sheets. These can significantly improve first layer stick.
- First Layer Settings: Increase the first layer height, width, and flow rate slightly to ensure good squish and surface contact. Slow down the first layer print speed considerably.
- Solution for Layer Adhesion:
- Increase Nozzle Temperature: A slightly higher extrusion temperature can improve layer bonding by ensuring the plastic is sufficiently molten when deposited. Experiment within the recommended range.
- Reduce Cooling: For some materials, excessive cooling can prevent layers from fusing. Reduce fan speed, especially for the first few layers.
- Print Speed: Printing too fast can lead to insufficient time for layers to bond. Reduce overall print speed.
- Flow Rate Calibration: Ensure your extruder is pushing the correct amount of material. Calibrate your E-steps and fine-tune flow rate in your slicer.
Extrusion inconsistencies: Clogging, stringing, and blobs
These issues directly impact print quality and are often linked to the variable nature of recycled filament.
- Solution for Clogging:
- Dry Your Filament: This is paramount for recycled materials. Moisture trapped in the filament turns to steam, creating pressure build-up and blockages. Use a filament dryer or dehydrator.
- Check for Impurities: If you suspect foreign particles, consider a larger nozzle diameter (e.g., 0.6mm instead of 0.4mm) to reduce the likelihood of clogging.
- "Cold Pull" or "Atomic Pull": If a clog occurs, perform a cold pull to clear debris.
- Nozzle Maintenance: Regularly inspect and clean your nozzle. Replace it if wear is evident.
- Solution for Stringing and Blobs:
- Retraction Settings: Optimize retraction distance and speed. Recycled materials might require different settings due to varying melt flow properties. Experiment with slightly higher retraction distances or speeds.
- Wipe and Coasting: Enable these slicer features. Wiping moves the nozzle slightly after extrusion to clean excess material, while coasting stops extrusion just before a travel move.
- Print Temperature: Printing too hot can lead to more oozing. Try reducing the print temperature in small increments.
- Dry Filament: Again, moisture can cause popping and oozing, leading to blobs.
Dimensional inaccuracy and warping
Achieving precise dimensions and preventing warping can be tricky with any filament, but recycled filament can add another layer of complexity due to inconsistent shrinkage rates.
- Solution for Warping:
- Enclosure: A heated enclosure significantly helps maintain a stable temperature around the print, reducing thermal stress and warping.
- Brims/Rafts: Use a brim or raft in your slicer settings to increase the footprint of the first layer and improve bed adhesion.
- Bed Leveling: A perfectly level bed is non-negotiable for preventing warping.
- Material Specifics: Some recycled materials, especially ABS or ASA variants, are inherently more prone to warping and require more aggressive measures.
- Solution for Dimensional Inaccuracy:
- Flow Rate Calibration: An incorrectly calibrated flow rate will lead to parts that are either too thick or too thin.
- Extrusion Multiplier: Fine-tune this setting in your slicer to compensate for slight variations in filament diameter.
- Print Speed: Very high print speeds can sometimes lead to material being stretched or compressed, affecting dimensions.
Poor surface finish and brittle prints
A rough surface or prints that snap easily detract from the overall print quality.
- Solution for Poor Surface Finish:
- Dry Filament: Moisture is a common culprit for rough surfaces, bubbles, and poor layer lines.
- Print Speed and Temperature: Experiment with slightly slower speeds and optimized temperatures. Printing too cold can lead to rough, matte finishes, while too hot can cause excessive oozing and shiny, inconsistent surfaces.
- Retraction Settings: Incorrect retraction can lead to zits and blobs on the surface.
- Nozzle Wear: A worn nozzle can produce inconsistent extrusion and poor surface finish.
- Solution for Brittle Prints:
- Dry Filament: Wet filament can lead to weaker prints.
- Increase Nozzle Temperature: Ensure adequate layer fusion.
- Reduce Print Speed: Slower speeds allow more time for layers to bond.
- Infill and Wall Thickness: Increase infill density or wall count to improve overall part strength.
- Annealing: For some materials, post-processing annealing can improve strength and reduce internal stresses.
General best practices for printing with recycled filament
Explore the
Snapmaker U1
Beyond specific fixes, adopting a proactive approach can significantly enhance your success with sustainable materials.
- Filament Drying is Non-Negotiable: This cannot be stressed enough. Invest in a dedicated filament dryer or use a food dehydrator. Dry your recycled filament before and during printing.
- Start with a Clean Slate: Ensure your printer is well-maintained, calibrated, and clean. This includes a level bed, clean nozzle, and properly tensioned belts.
- Temperature Towers and Calibration Prints: Since properties can vary, print temperature towers, retraction towers, and flow rate calibration cubes with each new spool of recycled filament to dial in optimal settings.
- Experiment with Slicer Settings: Don't assume settings for virgin PLA will work perfectly for recycled PLA. Be prepared to adjust print speed, temperatures (nozzle and bed), retraction, cooling, and flow rate.
- Consider Nozzle Material: If you're frequently encountering clogs or suspect abrasive contaminants in your recycled filament, a hardened steel nozzle might be a worthwhile investment.
- Store Properly: Keep your recycled filament in an airtight container with desiccant when not in use to prevent moisture absorption.

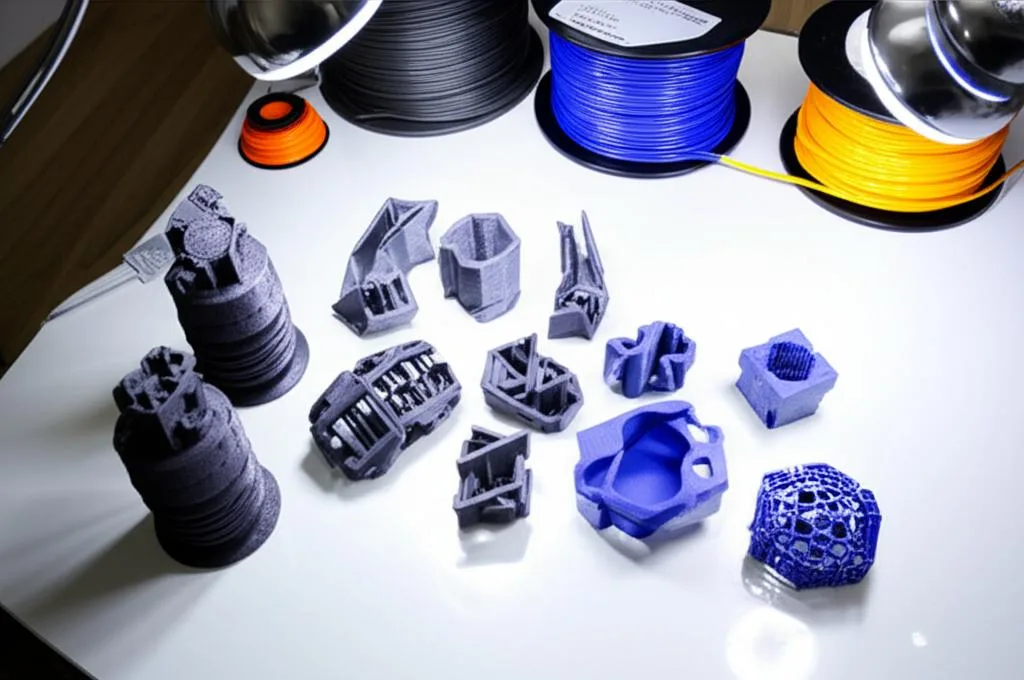

Embracing sustainability with quality results
While recycled filament may present a steeper learning curve compared to its virgin counterparts, the rewards are well worth the effort. By understanding the unique characteristics of these sustainable materials and applying targeted troubleshooting strategies, you can overcome common 3D printing problems and consistently achieve impressive print quality. Each successful print with recycled filament contributes to a more sustainable future for additive manufacturing, demonstrating that environmental responsibility and high-quality results can indeed go hand-in-hand. Embrace the challenge, learn from each print, and become a part of the solution for a greener tomorrow.
