Troubleshooting primer flaws: Fixing runs, orange peel, and poor adhesion on your 3D prints

Achieving a professional finish on your 3D prints often hinges on one critical step: priming. While it might seem straightforward, primer application is an art form, and a misstep can lead to a host of frustrating issues. From unsightly runs and the dreaded orange peel effect to frustratingly poor adhesion, these primer problems can derail your entire post-processing effort. This comprehensive guide will delve into the root causes of common primer flaws and equip you with the knowledge to diagnose, fix, and ultimately prevent them, ensuring your 3D prints look their absolute best.

Understanding the importance of primer in 3D printing

Explore the
Snapmaker U1

Meet the U1

Before diving into troubleshooting, it's crucial to understand why primer is indispensable for 3D prints. Primer serves multiple vital functions:

• Surface preparation: It creates a uniform, smooth base for paint, masking minor imperfections like layer lines or sanding marks.
• Adhesion promotion: It acts as a bonding agent, allowing subsequent paint layers to adhere properly to the plastic surface of the print.
• Color uniformity: It provides a consistent base color, preventing the underlying plastic from influencing the final paint shade.
• Filling minor gaps: Some primers, particularly filler primers, can subtly fill tiny voids and scratches, further smoothing the surface.

Neglecting proper priming or encountering common primer problems can lead to a less durable, less attractive, and ultimately disappointing final product.

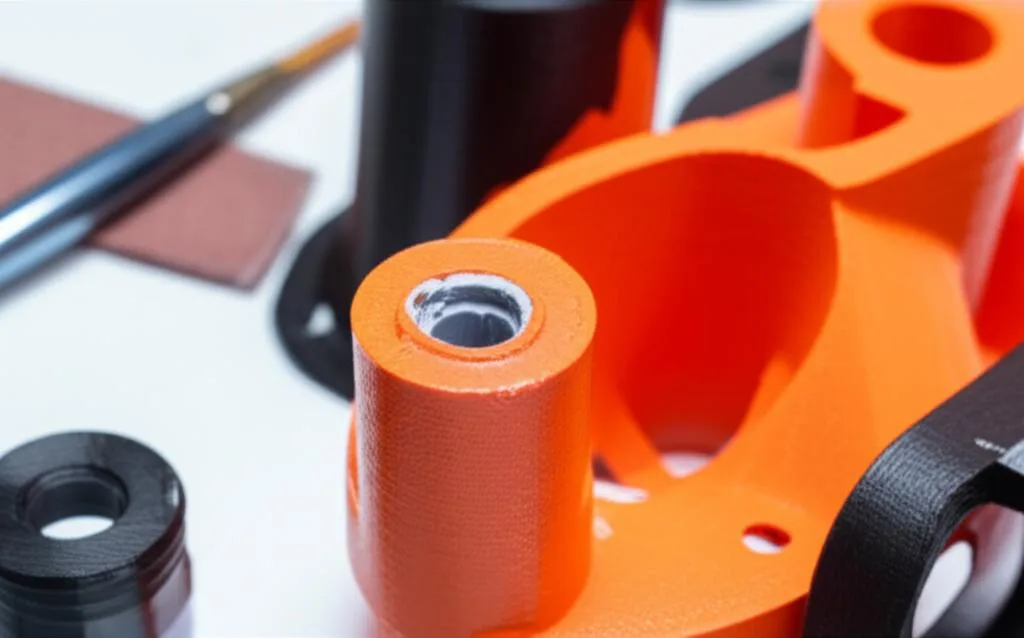

Common primer problems and their solutions

Let's break down the most frequently encountered primer flaws and how to tackle them head-on.

1. Primer runs and drips

Few things are as disheartening as watching a perfectly smooth surface develop unsightly 3D print primer runs. These occur when too much liquid primer accumulates in one area before it has a chance to dry, gravity doing the rest.

Causes of primer runs:

• Too much primer applied at once: The most common culprit.
• Spraying too close to the surface: Concentrates primer in a small area.
• Moving the spray can/gun too slowly: Allows excessive build-up.
• Incorrect primer viscosity: Primer that is too thin will run more easily.
• Cold temperatures: Can slow drying time, increasing the chance of runs.

Fixing primer runs:

1. Let it dry completely: Attempting to fix a wet run will only make it worse.
2. Sand it down: Once dry, carefully sand the run smooth using fine-grit sandpaper (e.g., 400-600 grit). You might need to start with a slightly coarser grit if the run is substantial, then progressively move to finer grits.
3. Clean and re-prime: Clean the sanded area thoroughly to remove dust, then apply very light, even coats of primer, paying close attention to technique.

Preventing primer runs:

• Apply thin, even coats: Always aim for multiple light coats rather than one thick one. Allow each coat to flash off (partially dry) before applying the next.
• Maintain proper distance: Typically 6-12 inches (15-30 cm) from the surface, depending on the primer and applicator.
• Keep moving: Use smooth, consistent, overlapping passes. Start spraying off the part and end off the part.
• Check temperature and humidity: Work in a well-ventilated area with moderate temperature and humidity as recommended by the primer manufacturer.
• Properly thin primer: If using a spray gun, ensure your primer is thinned to the correct viscosity.

2. The orange peel effect

The orange peel effect gives your primed surface a textured, bumpy appearance, resembling the skin of an orange. This significantly detracts from a smooth finish.

Causes of orange peel:

• Primer drying too quickly: Often due to high temperatures, low humidity, or too much airflow, preventing the primer from leveling out.
• Applying primer too dry or in too thin coats: The primer particles don't flow together properly.
• Spraying too far from the surface: Primer particles can partially dry in the air before hitting the surface.
• Incorrect air pressure (for spray guns): Too high pressure can atomize the primer too much, making it dry faster; too low can lead to poor atomization.
• Improperly mixed or thinned primer: Primer that is too thick.

Fixing orange peel:

1. Allow to cure: Ensure the primer is fully cured.
2. Wet sand: Gently wet sand the affected area with very fine-grit sandpaper (e.g., 800-1200 grit or higher), using water as a lubricant. The goal is to level the surface without removing all the primer.
3. Clean and re-prime: Clean thoroughly and apply a new, thin coat, adjusting your technique and environment.

Preventing orange peel:

• Control environmental factors: Work in moderate temperatures and humidity. Avoid direct drafts or excessive heat.
• Maintain proper spray distance and speed: Ensure the primer hits the surface wet enough to flow, but not so wet that it runs.
• Use correct air pressure (spray gun): Refer to your primer and spray gun manufacturer's recommendations.
• Proper thinning: If thinning, ensure the correct ratio of primer to reducer.
• Apply slightly wetter coats (without causing runs): This allows the primer more time to self-level.

3. Poor paint adhesion

Poor paint adhesion is when the primer doesn't stick properly to the 3D print, or subsequent paint layers don't stick to the primer. This can manifest as peeling, chipping, or flaking.

Causes of poor adhesion:

• Insufficient surface preparation: The most common reason. Dirt, grease, oils, or mold release agents prevent proper bonding.
• Incompatible primer: Using a primer not designed for the specific type of plastic (e.g., PLA, ABS, resin) or for the subsequent paint.
• Applying primer over an unsuitable surface: Such as uncured resin, a very glossy surface without scuffing, or a dusty surface.
• Excessive humidity: Can interfere with the primer's ability to bond.
• Improper curing time: Painting over primer that hasn't fully cured.

Fixing poor adhesion:

1. Strip and restart: In most cases, if the primer is peeling, the best course of action is to completely remove it. Use a plastic-safe paint stripper or sand it back to the bare plastic.
2. Thoroughly re-prepare: Clean the print meticulously.
3. Re-prime with compatible products: Ensure you're using the right primer for your material and follow all application guidelines.

Preventing poor adhesion:

• Thorough surface cleaning: Always wash your 3D print with soap and water (e.g., dish soap), rinse thoroughly, and let it dry completely. For resin prints, ensure all resin residue is removed and the print is fully cured.
• Light sanding/scuffing: For very smooth prints, a light sanding with 320-400 grit sandpaper creates microscopic scratches, giving the primer something to grip onto.
• Choose the right primer: Research primers specifically designed for plastics or for the type of plastic your print is made from. Some primers are universal, others are specialized.
• Use a tack cloth: After sanding and before priming, wipe the surface with a tack cloth to pick up any remaining dust.
• Control humidity: Avoid priming in very humid conditions.
• Allow adequate cure time: Always follow the primer manufacturer's recommendations for drying and curing times before applying subsequent coats or paint.

4. Rough or grainy texture

A rough or grainy finish indicates tiny particles embedded in or on the primer layer, leading to a gritty feel.

Causes of rough texture:

• Dust and airborne contaminants: The most common cause. Particles settle on the wet primer.
• Dry spray/overspray: Primer particles partially dry in the air before reaching the surface, resulting in a textured finish. This is similar to orange peel but often feels rougher and less uniform.
• Old or improperly stored primer: Can develop clumps or separate.
• Contaminated air supply (for spray guns): Moisture or oil in the air line.

Fixing rough texture:

1. Dry sand: Once dry, lightly sand the rough areas with fine-grit sandpaper (e.g., 600-800 grit) to smooth out the texture.
2. Clean and re-prime: Clean off all dust with a tack cloth and re-prime with thin, controlled coats.

Preventing rough texture:

• Work in a clean, dust-free environment: Clean your workspace thoroughly before priming.
• Use a tack cloth: Always wipe the print with a tack cloth immediately before priming.
• Ensure proper ventilation without excessive airflow: Good ventilation removes fumes, but strong drafts can stir up dust or cause dry spray.
• Maintain proper spray distance: Avoid spraying too far from the object.
• Filter air supply (spray guns): Use an air filter/water trap on your compressor.
• Shake primer thoroughly: Especially aerosol cans, to ensure proper mixing.

5. Cracking or chipping primer

This issue involves the primer layer developing cracks or flaking off in larger pieces, indicating a deeper structural problem.

Causes of cracking/chipping:

• Excessively thick coats: Primer applied too thickly can become brittle and crack as it dries or cures, especially if subsequent coats are applied before the previous one is fully dry.
• Incompatible materials: The primer and the 3D print material (or subsequent paint) may not be chemically compatible, leading to stress or poor adhesion.
• Rapid temperature changes: Extreme fluctuations can cause the primer and print to expand and contract at different rates, leading to cracking.
• Underlying print issues: If the 3D print itself has internal stresses or is prone to warping, the primer layer can reflect these issues.

Fixing cracking/chipping:

1. Complete removal: This is often the only reliable fix. Strip the primer back to the bare plastic using appropriate removers or sanding.
2. Re-evaluate materials and technique: Ensure your chosen primer is compatible with your print material and subsequent paint. Reapply using multiple thin coats.

Preventing cracking/chipping:

• Apply thin, multiple coats: This is paramount for flexibility and proper curing.
• Ensure material compatibility: Always check that your primer is suitable for your specific 3D print material.
• Allow full cure time: Do not rush the drying and curing process between coats or before painting.
• Maintain stable environment: Avoid priming or curing in areas with drastic temperature swings.

6. Bubbles or pinholes in the primer

Small bubbles or pinholes appearing in the primer layer can be a nuisance, especially on smooth surfaces.

Causes of bubbles/pinholes:

• Trapped air: Air from the spray process or from within the print material itself.
• Gassing off from the print: Certain 3D print materials, especially porous ones or those not fully cured (like some resins), can release gases that bubble through the wet primer.
• Humidity: Moisture trapped under the primer can vaporize and create bubbles.
• Too thick a coat: A thick coat can trap air or gases more easily.

Fixing bubbles/pinholes:

1. Sand down: Once dry, gently sand the affected areas until the bubbles/pinholes are gone.
2. Clean and re-prime: Reapply primer with thinner coats, being mindful of potential gassing.

Preventing bubbles/pinholes:

• Degassing prints: For resin prints, ensure they are fully cured and degassed. For FDM prints, ensure they are clean and dry.
• Apply thin coats: Reduces the chance of trapping air.
• Warm the print slightly: A slightly warmed print can help prevent gases from forming bubbles as they escape.
• Work in controlled humidity: Avoid high humidity environments.

General best practices for flawless priming

Explore the
Snapmaker U1

Meet the U1

Beyond specific fixes, a few overarching principles can help you avoid most priming mistakes:

• Read the label: Always follow the primer manufacturer's instructions regarding application, drying times, and environmental conditions.
• Practice makes perfect: Before priming your prized print, practice on a scrap piece of plastic or an old print to get a feel for the spray pattern and distance.
• Ventilation and safety: Work in a well-ventilated area and always wear appropriate personal protective equipment, including a respirator and gloves.
• Shake well: Thoroughly shake aerosol cans or mix liquid primers to ensure all components are properly combined.
• Consistent temperature: Ensure your primer, print, and workspace are all at a consistent, moderate temperature. Cold primer can spray poorly, and cold prints can cause issues.
• Patience is a virtue: Rushing the priming process, especially drying and curing times, is a recipe for disaster.

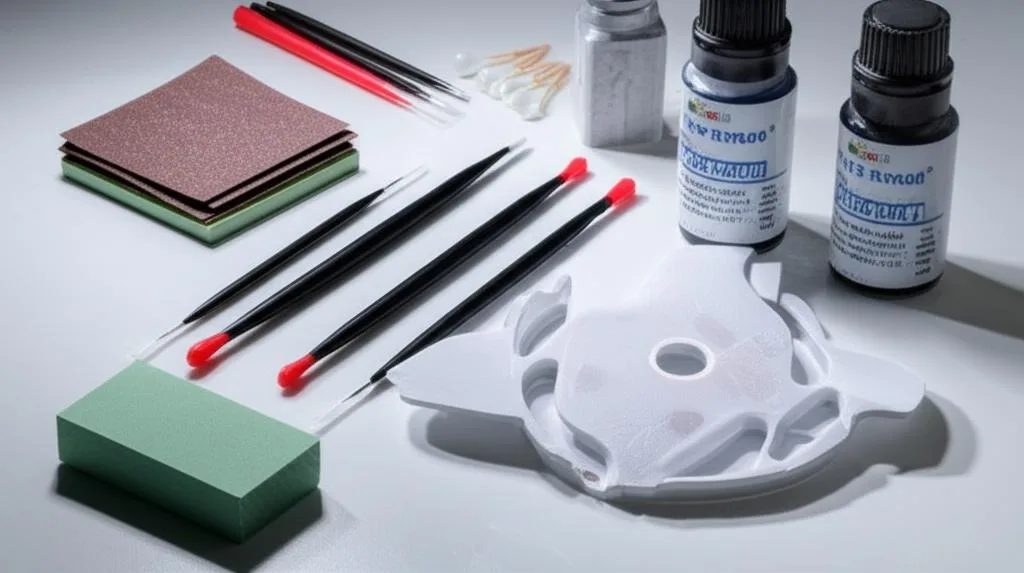

Tools and materials for fixing primer issues

Having the right tools on hand will make fixing primer flaws much easier:

• Assorted sandpaper: Various grits from 320 to 2000 for dry and wet sanding.
• Sanding blocks/pads: For even pressure and flat surfaces.
• Tack cloth: Essential for removing dust particles.
• Cleaners: Isopropyl alcohol or plastic-safe degreasers for surface prep.
• Respirator and gloves: For safety.
• Good lighting: Helps to spot imperfections.
• Paint stripper (plastic-safe): For when you need to start over completely.

Conclusion

Primer problems can be frustrating, but they are rarely insurmountable. By understanding the common causes behind issues like 3D print primer runs, the orange peel effect, and poor paint adhesion, you can effectively troubleshoot and correct them. More importantly, by adopting meticulous surface preparation, choosing the right products, and perfecting your application technique, you can prevent most priming mistakes from occurring in the first place. With a bit of practice and patience, you'll be well on your way to achieving consistently smooth, professional-grade finishes on all your 3D prints.
