A 3D printer nozzle might seem like a small component, but it plays an outsized role in the quality of your prints. Over time, even the most diligent hobbyist or professional will find their nozzle succumbing to wear and tear, leading to frustrating print failures, inconsistent extrusion, and a noticeable drop in overall print quality. Knowing how to replace your 3D printer nozzle isn't just a useful skill; it’s an essential part of routine 3D printer maintenance that can breathe new life into your machine and ensure your creations come out looking their best. This comprehensive guide will walk you through every step, from identifying when a replacement is due to understanding different nozzle types and executing the swap with confidence, helping you achieve that coveted perfect print.
When to consider replacing your 3D printer nozzle
Timely nozzle replacement is paramount for maintaining optimal print quality. Ignoring the signs of a worn or damaged nozzle can lead to endless frustration and wasted filament. Here’s what to look out for:
- Degrading print quality: This is often the most obvious indicator. If your prints suddenly exhibit stringing, poor layer adhesion, inconsistent line width, or a generally rough finish, a worn nozzle could be the culprit.
- Frequent clogging: While clogs can stem from various issues, a nozzle with an enlarged or irregular orifice due to wear is more prone to blockages, especially with abrasive filaments.
- Inconsistent extrusion: You might notice that the amount of filament being laid down varies, leading to thin spots or gaps in your print. This can be due to an unevenly worn nozzle orifice.
- Visible wear: If you remove your nozzle and can visually inspect an enlarged, deformed, or scratched orifice, it's definitely time for a replacement. Sometimes, the tip might even appear flattened or chipped.
- Excessive backpressure: If your extruder motor seems to be struggling more than usual or skipping steps, it could be trying to push filament through a partially restricted or damaged nozzle.
The lifespan of a nozzle largely depends on the filament types you use. Printing with abrasive materials like carbon fiber-filled, glass fiber-filled, or glow-in-the-dark filaments will significantly accelerate nozzle wear compared to standard PLA or ABS. Regular inspection and proactive replacement are key to consistent, high-quality results.
Understanding nozzle types: a comparison of solutions
Choosing the right nozzle for your printing needs is a crucial decision that impacts print quality, speed, and the lifespan of your hotend. Different materials offer varying degrees of wear resistance, thermal conductivity, and cost, presenting a range of solutions for diverse applications. Understanding these differences allows you to make an informed decision based on your specific printing habits and budget, rather than simply picking the cheapest or most readily available option.
Brass nozzles
- Features: Brass is the most common and affordable nozzle material. It boasts excellent thermal conductivity, meaning it heats up quickly and maintains a stable temperature, which is beneficial for consistent extrusion.
- Cost: Generally the least expensive option, making them a popular choice for beginners and those printing non-abrasive materials.
- Best for: Ideal for printing common, non-abrasive filaments such as PLA, PETG, ABS, and Nylon.
- Drawbacks: Their primary downside is low wear resistance. Abrasive filaments will quickly enlarge the nozzle orifice, leading to print quality degradation after just a few prints.
Stainless steel nozzles
- Features: Stainless steel nozzles offer improved wear resistance compared to brass. They are also considered food-safe and medical-grade in certain alloys, making them suitable for specific applications.
- Cost: Moderately priced, typically a step up from brass.
- Best for: A good all-rounder for slightly abrasive filaments, and for applications where brass contamination (e.g., lead content) is a concern. They handle standard filaments well and can withstand some light abrasive use.
- Drawbacks: While better than brass, they still wear down with highly abrasive materials. Their thermal conductivity is also lower than brass, which might necessitate slightly higher printing temperatures or slower print speeds to achieve consistent melting.
Hardened steel nozzles
- Features: These nozzles are heat-treated to achieve significant hardness, making them highly resistant to abrasion. They are designed to withstand the rigors of printing with composite materials.
- Cost: Higher than brass or stainless steel, reflecting their enhanced durability.
- Best for: The go-to choice for printing abrasive filaments like carbon fiber-filled, glass fiber-filled, metal-filled, or glow-in-the-dark materials. They maintain their orifice integrity much longer.
- Drawbacks: Hardened steel has lower thermal conductivity than brass, which can lead to a need for higher print temperatures or reduced print speeds to ensure proper melting and flow. Some types may also be more prone to sticking with certain filaments.
Ruby-tipped nozzles
- Features: These premium nozzles typically feature a brass or copper body with a tiny ruby insert at the tip. The ruby is incredibly hard, offering extreme wear resistance, while the metal body ensures excellent thermal conductivity.
- Cost: Significantly more expensive than any other option, representing a substantial investment.
- Best for: The ultimate solution for printing all types of abrasive filaments, especially in high-volume production environments where nozzle lifespan and consistent quality are critical. They offer the best of both worlds: extreme durability and good thermal performance.
- Drawbacks: The high cost is the main barrier. While extremely hard, the ruby tip can be brittle and susceptible to damage if mishandled or if the nozzle crashes into the print bed or other hard objects.
When weighing your options, consider the types of filaments you print most often, your budget, and how frequently you're willing to replace components. A higher upfront cost for a specialized nozzle can often be offset by its longevity and the consistent print quality it provides, reducing the frequency of replacements and troubleshooting.
Tools and materials you'll need
Before you begin the nozzle replacement process, gather all the necessary tools and materials. Having everything at hand will make the procedure smoother and safer:
- New nozzle: Ensure it's the correct size and thread type for your hotend (e.g., M6, V6, MK8).
- Wrench or socket set: Typically a 6mm or 7mm wrench/socket, depending on your nozzle. An adjustable wrench can work in a pinch, but a proper fit prevents stripping.
- Pliers or another wrench: To hold the hotend's heater block steady while unscrewing/screwing the nozzle.
- Heat-resistant gloves: Essential for protecting your hands from the hot components.
- Brass brush or cotton swabs: For cleaning the hotend.
- Paper towels or cloth: To wipe away any oozing filament.
- Allen wrenches: If you need to access or remove any parts of the hotend assembly.
- Optional: Thermal paste (if replacing a heat break or thermistor) or a torque wrench for precise tightening.
Step-by-step guide to replacing your 3D printer nozzle
Replacing your 3D printer nozzle is a straightforward process, but it requires careful attention to detail and safety. Follow these steps for a successful swap:

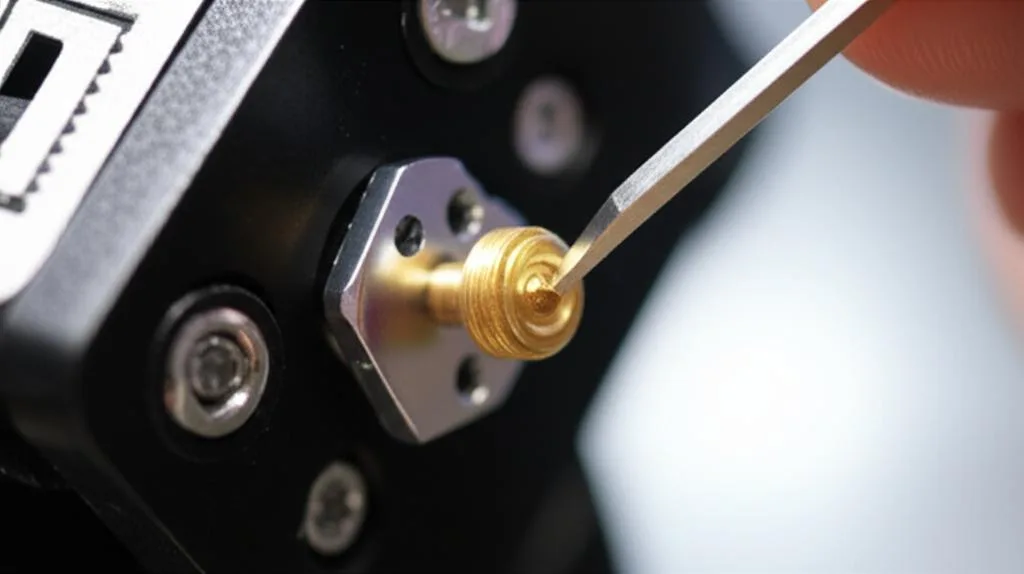

Step 1: Prepare your printer
First, you need to get your hotend to temperature. Heat your hotend to the typical printing temperature of the filament you last used (e.g., 200-220°C for PLA). This softens any residual filament inside the hotend and nozzle, making removal easier and preventing damage to the delicate threads. Once heated, perform a 'cold pull' or simply extrude a small amount of filament to clear the nozzle, then retract the filament completely from the hotend.
Step 2: Ensure safety
This step is crucial. While the hotend is still at temperature, immediately power off your printer from the mains. This prevents accidental movements or further heating while you work. Put on your heat-resistant gloves. The hotend will remain extremely hot for a considerable time, so exercise extreme caution to avoid burns.
Step 3: Remove the old nozzle
With your gloves on, use pliers or a second wrench to firmly hold the heater block steady. This prevents it from twisting and potentially damaging the heat break or thermistor wires. Using your primary wrench or socket, carefully unscrew the old nozzle counter-clockwise. It should come out relatively easily if the hotend was properly heated. Be prepared for a small amount of melted filament to ooze out as you remove it. Place the old nozzle on a heat-resistant surface.
Step 4: Clean the hotend
While the hotend is still warm, take the opportunity to clean any filament residue from the heater block and the exposed threads of the heat break. A brass brush is excellent for this. Ensure the area where the new nozzle will seat is clean and free of debris, as any obstruction can lead to leaks. Avoid touching the thermistor or heater cartridge wires, as they are fragile.

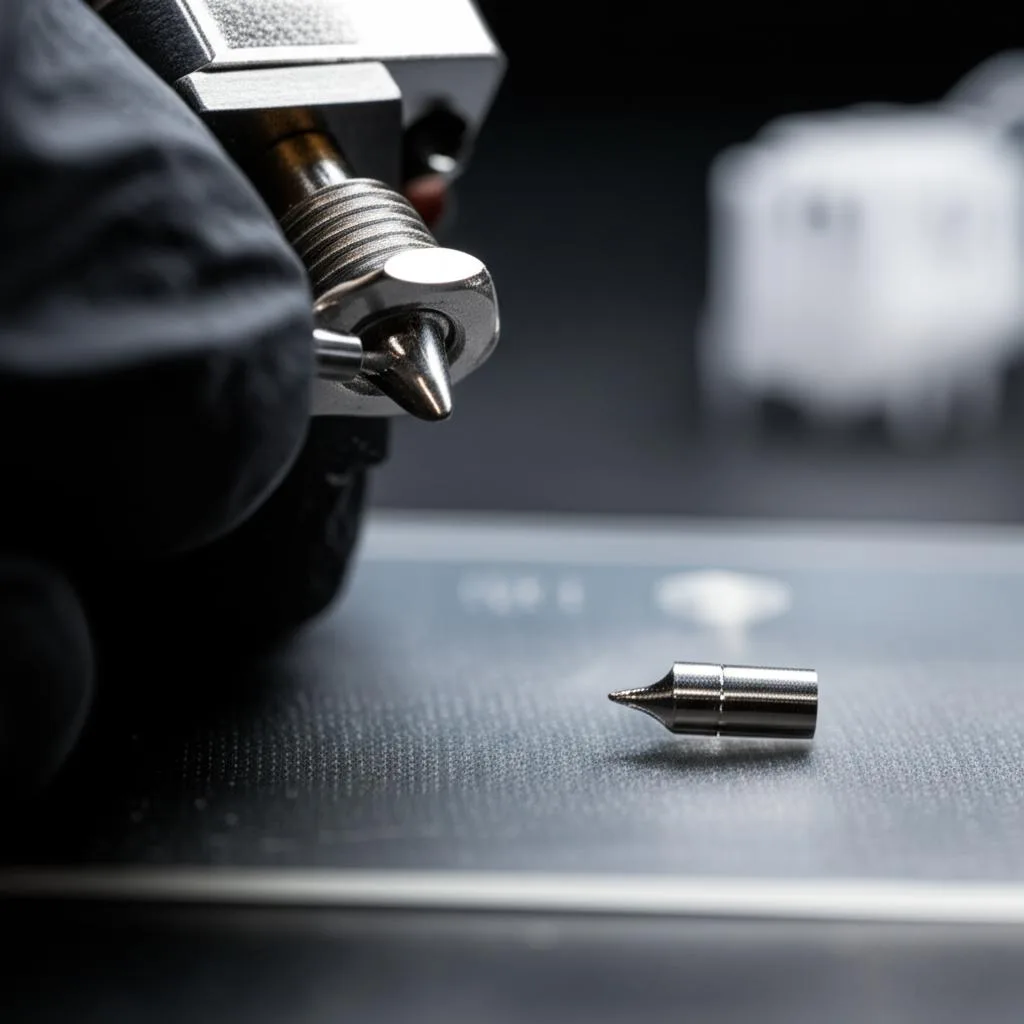

Step 5: Install the new nozzle
Carefully thread the new nozzle into the heater block clockwise by hand until it's finger-tight. Then, using your wrench and holding the heater block steady, gently tighten the nozzle. The critical part here is 'hot tightening'. Re-heat your hotend to printing temperature (e.g., 200-220°C). Once at temperature, give the nozzle a final, firm but not excessive, turn with your wrench. This ensures the nozzle is fully seated and sealed against the heat break while the metal is expanded, preventing leaks. Overtightening can strip threads or damage the hotend, so be mindful of the force.
Step 6: Re-level your print bed
Even if your new nozzle is the exact same size as the old one, variations in manufacturing tolerances mean its tip might sit slightly higher or lower. It's imperative to re-level your print bed after a nozzle change to ensure proper first layer adhesion and prevent the nozzle from crashing into the bed. Perform a full bed leveling procedure, whether manual or automatic, according to your printer's specifications.
Step 7: Test and calibrate
Once your bed is leveled, it's time for a test print. A simple calibration cube or a first layer test print is ideal. Observe the extrusion carefully. You might find that your printer's flow rate (or extrusion multiplier) needs slight adjustment. If you notice over-extrusion or under-extrusion, perform a flow rate calibration to dial in the perfect amount of filament for your new nozzle and filament combination. This ensures consistent line widths and robust prints.
Troubleshooting common issues after nozzle replacement
Even with careful execution, sometimes issues can arise after a nozzle replacement. Here’s how to tackle the most common problems:
- Filament leaking from the hotend: This is almost always due to improper hot tightening. The nozzle wasn't fully seated against the heat break, or debris prevented a proper seal. Power off, re-heat, and repeat the hot tightening process carefully. Ensure the heat break is also securely fastened into the heater block.
- New clogs: If your new nozzle clogs quickly, it could be due to residual debris in the hotend that wasn't cleaned out, or a manufacturing defect in the new nozzle itself (though rare). Try a cold pull to clear it, or disassemble and clean the hotend thoroughly. Ensure your filament is dry and your print temperatures are appropriate.
- Poor first layer adhesion: This is usually a bed leveling issue. Re-level your bed meticulously. Check your Z-offset if your printer uses one. The gap between the nozzle and the bed is crucial for the first layer.
- Inconsistent extrusion or stringing: After ensuring your bed is level, this often points to needing a flow rate calibration (as mentioned in Step 7) or adjusting retraction settings. Different nozzles can sometimes behave slightly differently, requiring minor tuning.

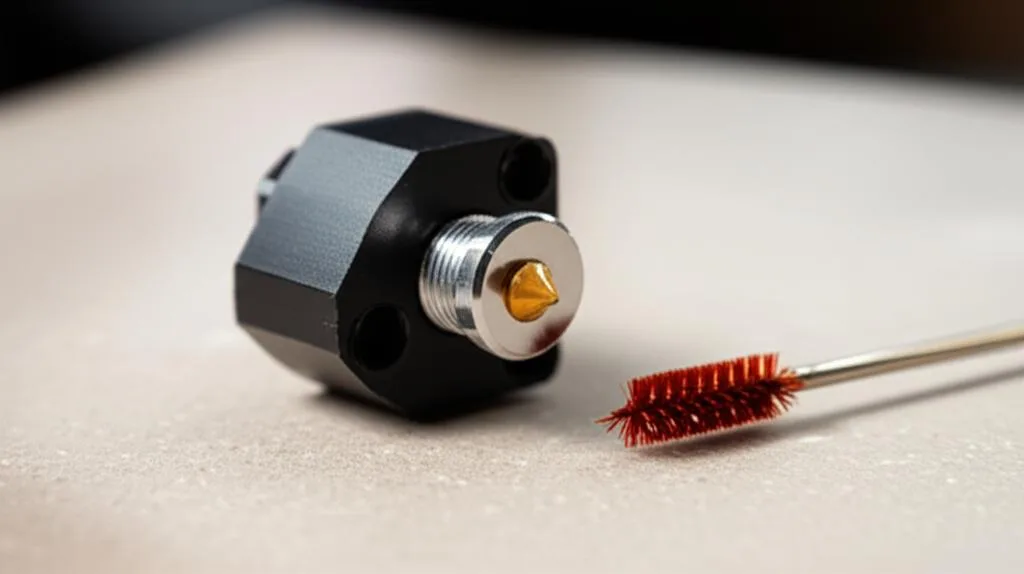

Maintaining your hotend for longevity
Regular hotend maintenance goes hand-in-hand with nozzle replacement to ensure your printer runs smoothly and produces high-quality prints for years to come. Proactive care can significantly extend the life of your components and prevent unexpected failures:
- Regular cleaning: Periodically use a brass brush to clean any plastic residue from the exterior of your nozzle and heater block. This prevents material buildup that can affect heating and print quality.
- Performing cold pulls: If you suspect a partial clog or are switching filament types, a 'cold pull' (also known as an atomic pull) can effectively clean the inside of your hotend and nozzle.
- Inspect heat break and Bowden tube: If you have a Bowden setup, inspect the end of your PTFE tube where it meets the nozzle. It should be cut perfectly square and sit flush against the nozzle to prevent clogs. Replace it if it shows signs of degradation. For all-metal hotends, ensure the heat break is clear and free of blockages.
- Monitor temperatures: Keep an eye on your hotend's temperature readings. Fluctuations can indicate issues with the thermistor or heater cartridge, which can impact extrusion and print quality.
- Proper filament storage: Store your filaments in a dry, sealed environment. Moist filament can cause steaming, inconsistent extrusion, and clogs, putting undue stress on your hotend and nozzle.
Replacing your 3D printer nozzle is a fundamental skill that every 3D printing enthusiast should master. It's not just about fixing a problem; it's about understanding your machine and optimizing its performance. By following this guide, you'll be well-equipped to identify when a nozzle change is needed, select the appropriate replacement, execute the swap safely and effectively, and troubleshoot any subsequent issues. Embrace this essential aspect of 3D printer maintenance, and you'll be rewarded with consistently perfect prints and a deeper appreciation for the intricate workings of your machine.
