The landscape of 3D printing materials is vast and ever-evolving, offering a diverse palette for creators to bring their digital designs into the physical world. For those venturing into resin 3D printing, specifically with the intent of producing functional prototypes, a critical decision often arises: choosing between standard resins and their more robust counterparts, often termed "tough" resins. While both fall under the umbrella of photopolymer resins, their distinct mechanical properties and cost structures warrant a careful examination to ensure the right material is selected for the job.
Understanding standard resin properties
Standard resins, often the entry point for many resin 3D printing enthusiasts, are typically acrylate-based photopolymers. They are celebrated for their ability to capture intricate details and produce models with exceptionally smooth surface finishes. These characteristics make them ideal for aesthetic prototypes, display models, miniatures, and any application where visual fidelity is paramount. When evaluating standard resin properties, several key attributes stand out:
- Brittleness: A primary characteristic of standard resins is their relative brittleness. While they offer good rigidity, they tend to fracture under sudden impact or bending forces rather than deforming. This limits their utility for parts that will experience mechanical stress or repeated handling.
- Cost-effectiveness: Generally, standard resins are significantly more affordable than engineering-grade resins like tough resins. This makes them an economical choice for initial concept validation, rapid prototyping where multiple iterations are expected, or for non-functional models.
- Ease of printing: Most standard resins are formulated for ease of use across a wide range of resin 3D printers, offering reliable print success rates and straightforward post-processing.
- Surface finish and detail: They excel at reproducing fine features and intricate geometries, resulting in visually appealing prints directly off the build plate.
While excellent for visual mock-ups, the inherent fragility of standard resins often means they are not the optimal choice when the printed part needs to withstand real-world forces or serve a practical, mechanical purpose. Their low resin durability under stress makes them less suitable for components requiring strength or flexibility.

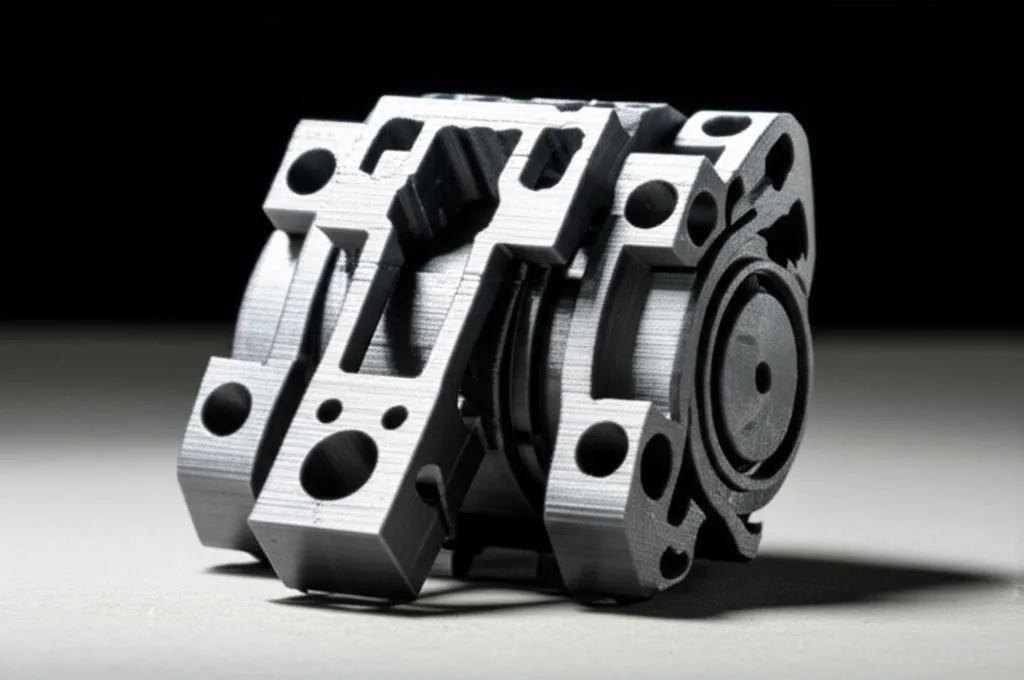

Exploring tough resin applications and characteristics
In contrast to standard resins, tough resins are engineered with enhanced mechanical properties, specifically designed to bridge the gap between brittle photopolymers and more durable thermoplastics. These resins often incorporate additives that improve their resistance to impact, abrasion, and deformation, making them far more suitable for functional 3D prints. When considering tough resin applications, one immediately thinks of parts that require a degree of flexibility, impact resistance, or the ability to withstand repeated stress cycles.
Key attributes of tough resins:
- Enhanced durability and impact resistance: The most significant advantage of tough resins is their improved ability to absorb energy before fracturing. They exhibit higher tensile strength, elongation at break, and impact strength compared to standard resins. This makes them ideal for parts that might be dropped, bent, or subjected to moderate loads.
- Flexibility (relative): While not as flexible as truly flexible resins, tough resins offer a noticeable degree of pliability, allowing them to bend or deform slightly before breaking. This characteristic is crucial for snap-fit enclosures, living hinges, or parts that need to tolerate minor deflections.
- Higher cost: Due to their specialized formulations and superior mechanical performance, tough resins come at a higher price point than standard resins. This cost needs to be weighed against the functional requirements and the potential savings from producing a more robust, long-lasting prototype.
- Post-processing considerations: While generally manageable, some tough resins might require slightly different post-curing parameters or support removal techniques compared to standard resins, depending on their specific formulation.
For engineers, product designers, and hobbyists needing prototypes that perform under stress, tough resins are often the go-to choice. They enable the creation of truly functional 3D prints, allowing for rigorous testing and validation of designs before committing to expensive tooling or manufacturing processes.
A comparative look: standard vs. tough resin for functional prototypes
Making an informed decision between standard and tough resins hinges on a clear understanding of your project's specific needs and constraints. Here’s a detailed comparison to guide your material selection guide process:
Mechanical performance and resin durability
- Standard Resin: Excels in stiffness and detail but lacks impact resistance and flexibility. Parts are prone to brittle failure under stress. Resin durability is low when subjected to mechanical forces.
- Tough Resin: Offers significantly improved impact strength, higher elongation at break, and better resistance to bending and compression. These materials are designed for longevity in functional roles, providing superior resin durability.
Cost implications
- Standard Resin: Lower upfront material cost, making it attractive for visual models or early-stage conceptual prototyping where mechanical performance is not a priority.
- Tough Resin: Higher material cost per liter. However, this investment can be justified if it prevents repeated printing due to part failure, ultimately saving time and resources in the long run for functional 3D prints.
Application suitability
- Standard Resin: Ideal for visual mock-ups, artistic models, intricate jewelry, and non-functional parts where aesthetics and fine detail are paramount. Not recommended for parts that will experience any significant mechanical load or impact.
- Tough Resin: Perfect for engineering prototypes, jigs and fixtures, functional components, snap-fit assemblies, enclosures, and parts requiring a degree of impact resistance or flexibility. It is the preferred choice for most tough resin applications where the part needs to perform.
Printability and post-processing
- Standard Resin: Generally easier to print with wider exposure latitude and simpler support removal. Cures quickly.
- Tough Resin: May require slightly longer exposure times and more careful post-curing to achieve optimal mechanical properties. Support structures can sometimes be tougher to remove due to increased material strength, though this varies by specific formulation.

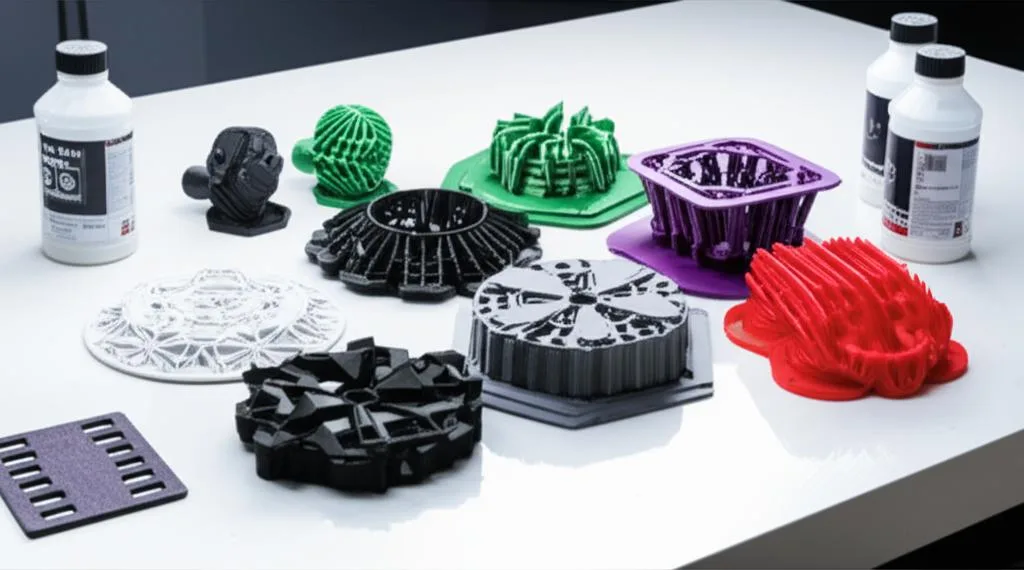

Guiding your material selection for functional 3D prints
To navigate the choice between standard and tough resins, consider these crucial questions as part of your material selection guide:
- What is the primary function of the printed part? If it's purely visual, standard resin is likely sufficient. If it needs to bear loads, withstand impacts, or flex, tough resin is the clear choice for functional 3D prints.
- What are the expected stresses on the part? Will it be dropped, squeezed, twisted, or exposed to repeated use? Assess the required resin durability.
- What is your budget? While tough resins are more expensive, consider the total cost of ownership, including potential failures and re-prints with less suitable materials.
- How critical is surface finish versus mechanical performance? Both can offer good detail, but if extreme durability is needed, some minor trade-offs in surface perfection might be acceptable.
- What are the environmental conditions? Temperature, UV exposure, and chemical resistance might also play a role, though this article focuses on mechanical properties.
Choosing the right resin is not about finding a universally "better" material, but rather identifying the one that best aligns with the specific demands and constraints of your project. Each resin type offers a unique set of advantages, making it suitable for different phases of product development and end-use scenarios.
In conclusion, while standard resins excel in delivering high-fidelity visual models at an economical price point, their inherent brittleness limits their use in applications requiring mechanical resilience. Tough resins, conversely, are engineered to offer significantly improved strength, impact resistance, and a degree of flexibility, making them indispensable for true functional 3D prints and demanding tough resin applications. By carefully evaluating the required standard resin properties against the performance needs of your prototype, you can make an informed decision that ensures the success and longevity of your 3D printed components, optimizing both performance and cost-effectiveness in your additive manufacturing workflow.
