3D print warping is a common and often frustrating challenge for enthusiasts and professionals alike. It occurs when a printed part lifts and detaches from the print bed, typically at the corners, due to uneven cooling and thermal stress. While many materials can exhibit this phenomenon, it is particularly prevalent and persistent with filaments like Acrylonitrile Butadiene Styrene (ABS) and Polyethylene Terephthalate Glycol (PETG). Understanding the underlying causes and implementing advanced strategies is crucial for achieving successful, high-quality prints. This guide delves into comprehensive solutions, focusing on bed adhesion, temperature calibration, and environmental control to mitigate 3D print warping effectively.
Understanding the mechanics of 3D print warping
Explore the
Snapmaker U1
At its core, 3D print warping is a material-science issue driven by thermal dynamics. As molten plastic is extruded onto the build plate, it begins to cool and solidify. Most plastics contract as they cool. If different parts of a print cool at different rates, or if the adhesion to the build plate is insufficient to counteract the material's natural contraction, internal stresses build up. These stresses manifest as pulling forces that can cause the edges or corners of the print to lift away from the print bed.
- Thermal contraction: All plastics shrink when they cool. Materials with a high coefficient of thermal expansion, like ABS, exhibit more significant shrinkage, making them more susceptible to warping.
- Differential cooling: The bottom layers of a print are often warmer due to the heated bed, while upper layers and exposed edges cool more rapidly due to ambient air. This temperature gradient creates varying contraction rates throughout the part.
- Internal stresses: As layers cool and shrink, they pull on the layers below them. If these stresses exceed the bond strength between the print and the build plate, warping occurs.

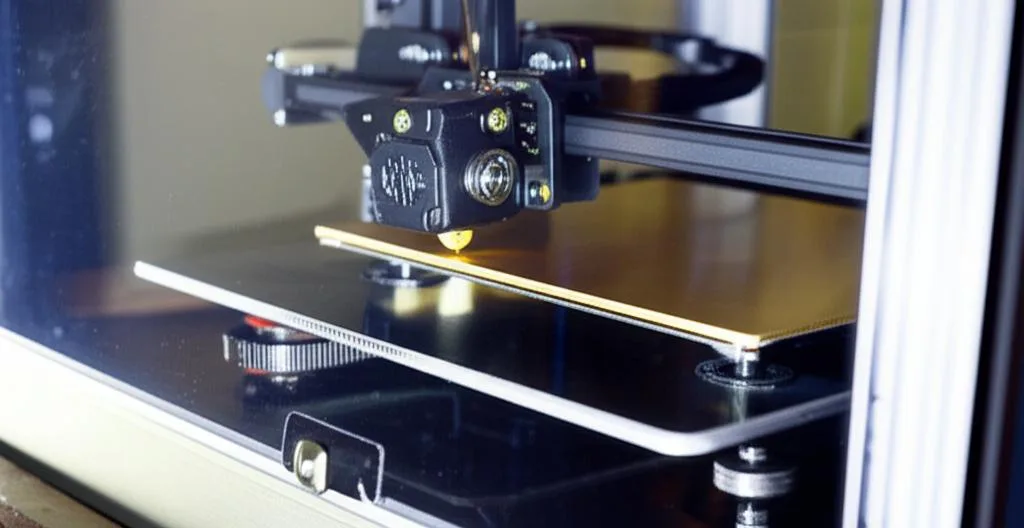

Core strategies for combating 3D print warping
Addressing warping requires a multi-faceted approach, focusing on foundational principles that apply across various filament types.
Optimizing bed adhesion
A strong bond between the first layer and the print bed is paramount. Without it, even minor thermal stresses can lead to lifting.
- Heated bed importance: A heated bed keeps the base of the print warm, reducing the temperature differential between the print's bottom and top layers. This significantly lessens internal stresses and helps maintain adhesion.
- Surface materials: Different build plate surfaces offer varying levels of adhesion. Common options include:
- Glass: Offers a very smooth finish but often requires an adhesive.
- PEI (Polyetherimide): A popular choice for many filaments, providing excellent adhesion when heated and often releasing prints easily once cooled.
- Textured or coated build plates: These surfaces, often proprietary, are designed to enhance adhesion and print removal.
- Adhesive aids: Depending on the material and surface, additional adhesives may be necessary:
- Glue stick (PVA-based): A versatile and widely used option for many filaments.
- Hairspray: Can provide a thin, even layer of adhesion.
- Specialized adhesion sprays: Formulated for specific filament types.
- Leveling and Z-offset: A perfectly level bed and a correctly calibrated Z-offset (the distance between the nozzle and the bed) are critical. The first layer needs to be slightly compressed against the bed to ensure maximum surface contact and adhesion without being too squished.
Temperature calibration and management
Precise temperature control is a cornerstone of warp prevention.
- Nozzle temperature considerations: Printing at the lower end of the filament's recommended temperature range can reduce thermal contraction, but care must be taken not to go too low, which can lead to poor layer adhesion and underextrusion.
- Bed temperature: This is perhaps the most critical temperature setting for warping. It needs to be high enough to keep the print's base warm and malleable but not so high that it causes 'elephant's foot' or other base deformations. Optimal temperatures vary significantly by material.
- Ambient temperature control: A stable, warm ambient environment around the print helps reduce rapid cooling and drafts, which are major contributors to warping.
- First layer settings: Printing the first layer slower and slightly wider (increased extrusion multiplier) can significantly improve bed adhesion. This allows the plastic more time to bond with the print surface.
Advanced strategies for ABS filaments
Explore the
Snapmaker U1
ABS is renowned for its strength and durability but also for its propensity to warp. Addressing ABS warping effectively often requires more rigorous environmental control.
The unique challenges of ABS warping
ABS has a relatively high glass transition temperature and a significant coefficient of thermal expansion. This means it shrinks considerably more than many other plastics as it cools from its extrusion temperature (around 230-250°C) down to room temperature. This substantial shrinkage generates high internal stresses, making ABS warping fix strategies essential.
Enclosure printing for ABS
An enclosure is arguably the most effective tool for mitigating ABS warping.
- Passive enclosures: These are simple boxes or covers that trap the heat generated by the print bed and nozzle. DIY solutions can be made from acrylic, wood, or even cardboard. They help maintain a stable, warm ambient temperature, minimizing drafts and reducing the temperature differential.
- Heated enclosures (active temperature control): More advanced enclosures incorporate active heating elements (e.g., small ceramic heaters) and temperature sensors to maintain a consistent, elevated internal temperature (e.g., 40-60°C). This significantly reduces thermal shock and stress on the print.
- Benefits: Enclosures create a controlled microclimate, crucial for materials like ABS. They reduce sudden temperature drops, stabilize the cooling process, and allow the entire print to cool more uniformly, thereby preventing corners from lifting.
ABS warping fix: Specific bed adhesion techniques
Beyond general adhesives, ABS benefits from specialized adhesion methods.
- ABS juice/slurry: This is a mixture of ABS filament dissolved in acetone. A thin layer applied to a glass build plate creates an ABS-rich surface that bonds exceptionally well with the extruded ABS. Caution: Acetone fumes are strong and require good ventilation.
- High-temperature build plates: PEI sheets are often excellent for ABS when heated appropriately. Some specialized build surfaces are designed specifically for high-temperature filaments.
- High bed temperatures: ABS typically requires a bed temperature of 90-110°C to maintain sufficient warmth and adhesion throughout the print.
Cooling considerations for ABS
For ABS, cooling is generally detrimental to warp prevention. Most users find that disabling the part cooling fan entirely, or using it at a very low setting (e.g., 0-10%) only for intricate overhangs or bridges, yields the best results. Rapid cooling exacerbates shrinkage and internal stresses.
Advanced strategies for PETG filaments
PETG is often considered a bridge between PLA and ABS, offering good strength and flexibility with less warping than ABS, but it presents its own unique challenges.
The nuances of PETG warping
While less prone to severe lifting than ABS, PETG can still warp, especially on larger prints or in drafty environments. Its inherent stickiness, while beneficial for layer adhesion, can sometimes lead to excessive bonding with certain print surfaces, causing damage upon removal if not managed correctly. Effective PETG warping solutions balance adhesion with ease of removal.
PETG warping solutions: Bed adhesion specifics
PETG's sticky nature requires careful consideration for bed adhesion.
- Lower bed temperatures than ABS: PETG generally performs well with a bed temperature of 70-85°C. Too high, and it can become excessively sticky; too low, and adhesion suffers.
- Specific surfaces:
- PEI: Often an excellent choice for PETG, providing good adhesion when warm and releasing well when cool.
- Glass with release agent: If using a bare glass bed, it's crucial to use a release agent like a thin layer of glue stick or painter's tape. PETG can bond so strongly to bare glass that it can chip or damage the glass surface upon removal.
- Textured build plates: Many textured PEI or proprietary coated plates work well, offering a balance of adhesion and release.
- Avoiding direct adhesion: Unlike ABS where you might want maximum stick, with PETG, you often want just enough adhesion to prevent warping, but not so much that the print is difficult or damaging to remove.
Cooling and environmental factors for PETG
PETG typically benefits from some part cooling, but not as aggressively as PLA.
- Moderate cooling fan usage: A part cooling fan set to 20-50% is often a good starting point for PETG. This helps with bridging and overhangs without causing excessive thermal shock to the main body of the print. Experimentation is key to finding the optimal balance for specific prints.
- Enclosure benefits: While not as critical as for ABS, a passive enclosure can still be beneficial for PETG, especially for larger prints, by stabilizing the ambient temperature and preventing drafts. It helps to maintain a more consistent temperature around the print, reducing sudden cooling that could lead to warping.
Print speed and first layer for PETG
A slower first layer speed is highly recommended for PETG to ensure proper bonding to the build plate. This allows the material to flow and adhere thoroughly, minimizing the chances of initial lifting.
Slicer settings for warp prevention
Beyond hardware and material properties, slicer settings offer powerful tools to combat warping.
- Brims and rafts:
- Brims: These are single-layer perimeters printed around the base of the part, increasing the surface area contacting the build plate. They are excellent for small parts or parts with minimal bed contact, effectively acting as an extended base to spread out the thermal stress.
- Rafts: A raft is a disposable base printed underneath the entire part. It provides a larger, more stable foundation, isolating the print from any inconsistencies on the build plate. Rafts are particularly useful for parts with very small first layers or those prone to extreme warping.
- Skirts: While not directly preventing warping, a skirt prints a few outlines around the part without touching it, helping to prime the nozzle and ensure consistent extrusion before the actual print begins.
- Infill patterns and density: Higher infill densities can sometimes contribute to warping by increasing the overall material shrinkage. However, very low infill can also lead to structural weakness. Experimenting with different patterns (e.g., grid, gyroid) and densities can help manage internal stresses.
- Part orientation: Orienting the part on the build plate to maximize the contact area for critical sections can significantly reduce warping. For long, thin parts, consider printing them diagonally to increase the first layer's length, thus enhancing adhesion points.

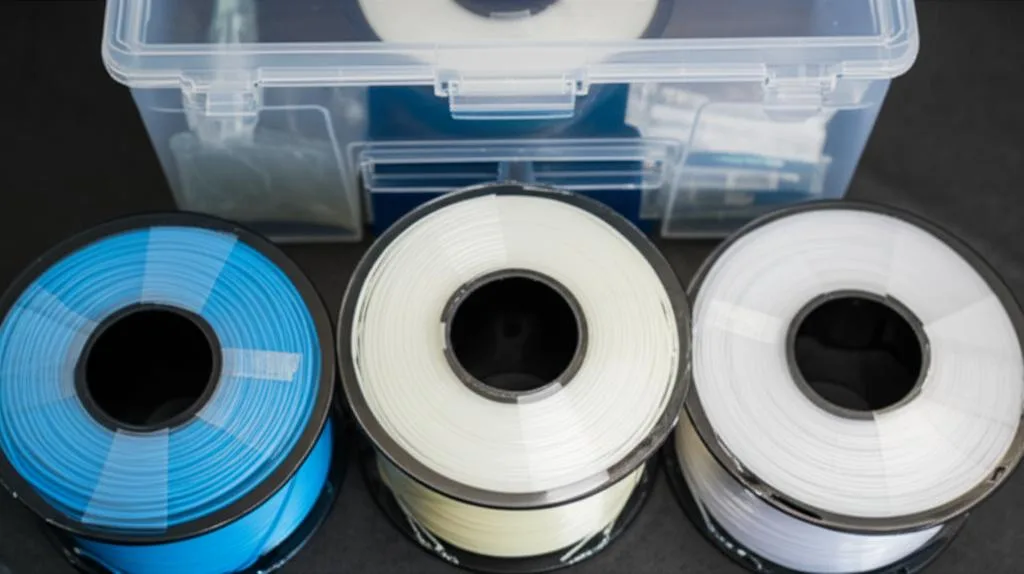

Filament quality and storage
The condition of your filament plays a subtle but significant role in print quality and warp prevention.
- Moisture absorption: Hydroscopic filaments like PETG and ABS readily absorb moisture from the air. Moist filament can lead to inconsistent extrusion, bubbles, and poor layer adhesion, all of which can exacerbate warping. Storing filaments in dry boxes with desiccant is crucial.
- Consistent diameter: High-quality filaments have a consistent diameter, ensuring predictable extrusion and reliable layer bonding. Inconsistent filament can lead to weak layers that are more susceptible to internal stresses and warping.
Conclusion
Persistent 3D print warping, particularly with challenging materials like ABS and PETG, requires a diligent and systematic approach. There is no single magic bullet; rather, success hinges on a combination of optimized bed adhesion, precise temperature calibration, effective environmental control (especially with enclosures for ABS), and intelligent slicer settings. By understanding the material properties and the mechanics of thermal contraction, users can systematically troubleshoot and implement the advanced strategies outlined in this guide. Each printer, filament, and print environment is unique, necessitating an iterative process of testing and refinement to find the optimal settings for consistently warp-free prints. Through careful attention to these details, even the most stubborn warping issues can be effectively managed, leading to a more rewarding 3D printing experience.
