Fiber-reinforced composite filaments have revolutionized FDM 3D printing, enabling the creation of parts with exceptional strength, stiffness, and heat resistance. From carbon fiber-filled nylon to glass fiber-reinforced PETG, these advanced materials open doors to applications previously confined to traditional manufacturing methods. However, working with composites also introduces a unique set of challenges that can lead to frustrating print failures. Understanding these common composite printing problems and how to address them is paramount for anyone looking to harness the full potential of these high-performance materials. This guide delves into the prevalent issues of warping, layer delamination, and nozzle clogging, offering practical insights and FDM troubleshooting strategies to help you achieve successful, reliable prints.
Addressing print warping in FDM composite materials
Explore the
Snapmaker U1
Warping, characterized by the corners or edges of a print lifting from the build plate, is a pervasive issue in FDM 3D printing, and it's often exacerbated when dealing with composite materials. The primary culprit is differential cooling. As the extruded material cools, it shrinks. If the print cools unevenly, internal stresses build up, causing the material to pull away from the build surface. Composites, particularly those with high infill percentages or large footprints, can be particularly prone to this due to their inherent material properties and higher shrinkage rates compared to standard plastics.
Understanding the root causes of composite print warping
- Thermal Contraction: Different materials contract at different rates. The polymer matrix in composite filaments, especially engineering plastics like nylon or ABS, contracts significantly as it cools.
- Poor Bed Adhesion: An insufficient bond between the first layer and the print surface allows the contracting material to easily detach.
- Temperature Gradients: Large temperature differences between the printed part and the ambient air, or across different sections of the part, intensify internal stresses.
Strategies to mitigate warping
Effectively combating print warping requires a multi-faceted approach, focusing on optimizing the thermal environment and enhancing bed adhesion.
- Build Plate Adhesion:
- Surface Preparation: Ensure your build plate is meticulously clean. Grease or dust can severely impair adhesion.
- Adhesive Solutions: Utilize appropriate adhesives. For PLA-based composites, glue stick or painter's tape might suffice. For more challenging materials like carbon fiber nylon, specialized adhesion sheets (e.g., PEI, Garolite) or liquid adhesives (e.g., Magigoo, ABS slurry) are often necessary.
- Bed Temperature: Maintain an optimal bed temperature. This keeps the base of the print warm, reducing the temperature differential and improving adhesion. Consult your filament manufacturer's recommendations, but experimentation within a safe range is often required.
- Environmental Control:
- Enclosed Printer: An enclosure helps maintain a stable, warm ambient temperature around the print, significantly reducing temperature gradients and drafts. For high-temperature composites, a heated chamber can be a game-changer.
- Draft Prevention: Avoid placing your printer near open windows, air conditioning vents, or high-traffic areas where sudden drafts can cool the print unevenly.
- Slicer Settings Optimization:
- Brims and Rafts: A brim adds a sacrificial perimeter around the base of your part, increasing its surface area on the build plate and providing a stronger anchor. Rafts create an entire disposable base layer, offering an even more robust foundation, especially for parts with small footprints.
- First Layer Settings: Print the first layer slower and slightly thicker than subsequent layers, and consider increasing its extrusion multiplier to ensure maximum adhesion.
- Cooling Fans: While cooling is crucial for overhangs and bridging, excessive cooling on early layers, especially with materials prone to warping, can be detrimental. Consider turning off part cooling for the first few layers.

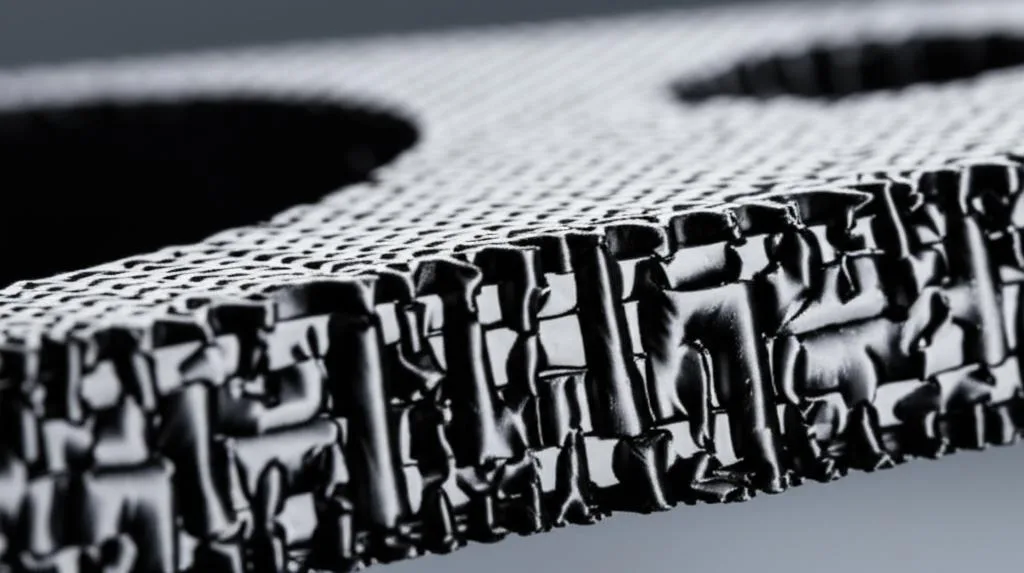

Overcoming layer delamination in composite prints
Layer delamination, or splitting between print layers, is another common composite printing problem that severely compromises the structural integrity and aesthetic quality of a part. It occurs when individual layers fail to bond adequately with one another, often leading to brittle prints that can easily break along the layer lines. This issue is particularly prevalent with composite materials due to factors related to their material composition and thermal properties.
Key factors contributing to layer delamination
- Insufficient Inter-layer Adhesion: The primary cause. Layers don't properly fuse, leaving weak points.
- Cooling Too Rapidly: If a layer cools too much before the next hot layer is deposited, the thermal energy isn't sufficient to create a strong bond.
- Moisture Absorption: Many composite filaments, especially nylon-based ones, are hygroscopic. Moisture in the filament can lead to steam bubbles during extrusion, creating voids and weakening layer adhesion.
- Print Speed vs. Temperature: A mismatch between print speed and extrusion temperature can result in underextrusion or insufficient melt time for proper fusion.
Strategies for preventing layer delamination
Addressing layer delamination involves ensuring optimal material flow, thermal management, and proper filament conditioning.
- Extrusion Temperature:
- Higher Print Temperature: Often, printing at the higher end of the filament manufacturer's recommended temperature range can significantly improve layer adhesion. A hotter melt ensures better flow and more effective fusion with the previous layer.
- Temperature Towers: Print temperature towers to find the optimal temperature for your specific filament and printer setup.
- Cooling Settings:
- Reduced Part Cooling: While cooling is essential for certain print features, excessive cooling can prevent layers from bonding. For composite materials, especially those with high thermal expansion, reducing or even turning off part cooling (particularly in an enclosed printer) can dramatically improve layer adhesion.
- Controlled Cooling: If cooling is necessary, ensure it's controlled and not overly aggressive.
- Print Speed:
- Slower Print Speeds: Printing too fast can reduce the time available for proper heat transfer and fusion between layers. Reducing print speed allows more time for the material to melt and bond.
- Consistent Speed: Maintain consistent print speeds throughout the print to avoid uneven layer bonding.
- Layer Height and Nozzle Diameter:
- Optimal Layer Height: Printing too high a layer height relative to your nozzle diameter can weaken bonds. Aim for a layer height that is typically 40-80% of your nozzle diameter.
- Wider Nozzle: A larger nozzle diameter (e.g., 0.6mm instead of 0.4mm) can deposit more material per layer, potentially leading to stronger bonds, but may also require higher temperatures and slower speeds.
- Filament Management:
- Dry Filament: Always store composite filaments in a dry environment (e.g., sealed bags with desiccant). If suspected of being wet, dry the filament using a dedicated filament dryer or a food dehydrator before printing.
- Filament Quality: Use high-quality filaments from reputable manufacturers, as consistency in material properties directly impacts print quality.
Preventing nozzle clogging with abrasive composite filaments
Nozzle clogging is arguably one of the most frustrating composite printing problems, often bringing a print to an abrupt halt and potentially damaging your hotend. Composite filaments, particularly those filled with carbon fiber, glass fiber, or metal particles, are inherently abrasive. These reinforcing particles can slowly wear down standard brass nozzles, enlarging the orifice and eventually leading to inconsistent extrusion, blockages, or complete failure.
Common reasons for composite-induced nozzle clogging
- Abrasive Particles: The reinforcing fibers grind away at the nozzle interior, changing its geometry and creating rough surfaces where molten plastic can accumulate.
- Heat Creep: Heat from the hotend migrates too far up the cold end, causing the filament to soften prematurely and swell, leading to a jam.
- Retraction Settings: Incorrect retraction settings can pull molten material into the cold zone, where it cools and hardens, forming a clog.
- Dust and Debris: Poorly stored filament can pick up dust, which then gets dragged into the hotend.
- Nozzle Material: Standard brass nozzles are simply not designed to withstand the abrasive nature of composites.
Solutions for mitigating nozzle clogging
Successfully managing nozzle clogging with composite filaments centers around using appropriate hardware and fine-tuning your print settings.
- Upgrade Your Nozzle:
- Hardened Steel Nozzles: These are a significant upgrade over brass, offering much greater wear resistance. They are a good all-around choice for most composite filaments.
- Tool Steel Nozzles: Similar to hardened steel but often with better thermal conductivity.
- Ruby-Tipped Nozzles: The ultimate solution for extreme abrasion, offering exceptional longevity, though at a higher cost. The ruby insert is extremely hard and resistant to wear.
- Optimize Print Settings:
- Extrusion Temperature: Ensure your print temperature is adequate for the material. Too low a temperature can make the filament too viscous, increasing resistance and leading to clogs.
- Retraction Settings:
- Retraction Distance: Find the sweet spot. Too much distance can pull molten filament into the cold zone, while too little can cause stringing. Start with manufacturer recommendations and fine-tune.
- Retraction Speed: Too slow and the filament can ooze. Too fast and it can grind against the drive gears or cause excessive pressure changes.
- Print Speed: Extremely high print speeds can sometimes outpace the hotend's ability to melt the filament, leading to back pressure and potential clogs.
- Flow Rate/Extrusion Multiplier: Calibrate your E-steps and flow rate. Over-extrusion can build up excessive pressure, contributing to clogs.
- Filament Handling and Maintenance:
- Filament Dryer: As mentioned for delamination, dry filament is key. Moisture can cause popping and inconsistent extrusion, leading to clogs.
- Filament Filter: A simple foam or cloth filter can be placed before the extruder to wipe off any dust or debris from the filament surface.
- Cold Pulls: If you suspect a partial clog, a "cold pull" (or atomic pull) can often clear it. Heat the hotend to just above the filament's softening point, push some filament through, then quickly cool it down and pull the filament out, hopefully bringing the clog with it.
- Regular Nozzle Inspection/Replacement: Even hardened nozzles wear out eventually. Periodically inspect your nozzle for signs of wear or damage.
Overarching considerations for successful composite printing
Beyond addressing specific failure modes, adopting a holistic approach to your FDM composite printing workflow can significantly improve success rates and print quality. These general best practices serve as a foundation for reliable production.
- Material Storage and Handling:
- Humidity Control: This cannot be stressed enough. Store all hygroscopic composite filaments in airtight containers with desiccant. Consider an active dry box for printing directly from storage.
- Temperature Control: While less critical than humidity, extreme temperature fluctuations can also affect filament properties over long periods.
- Printer Calibration and Maintenance:
- E-steps and Flow Rate: Calibrate your extruder's E-steps and fine-tune the flow rate for each new composite filament. This ensures accurate material deposition.
- PID Tuning: Perform PID tuning for your hotend and heated bed to ensure stable and accurate temperature control, crucial for composites.
- Bed Leveling: A perfectly level and properly gapped print bed is fundamental for good first layer adhesion and preventing warping.
- Hotend Maintenance: Regularly inspect your hotend for leaks, loose components, or signs of wear, especially the heat break and PTFE tubing (if applicable).
- Slicer Software Proficiency:
- Profile Management: Create and save distinct profiles for each composite filament. Document your successful print settings.
- Experimentation: Don't be afraid to experiment with settings within safe limits. Small adjustments to temperatures, speeds, or cooling can yield significant improvements.
- Seam Placement: Strategically place seams to minimize their visual impact, especially important for aesthetic parts.
- Environmental Awareness:
- Stable Environment: Maintain a consistent room temperature, if possible, to minimize external influences on your prints.
- Ventilation: Some composite materials can release ultrafine particles or volatile organic compounds (VOCs) during printing. Ensure adequate ventilation or use an air filtration system, especially when printing in enclosed spaces.
Conclusion
FDM composite printing offers an incredible avenue for creating strong, functional, and high-performance parts. While the journey can be fraught with challenges like print warping, layer delamination, and nozzle clogging, these composite printing problems are far from insurmountable. By systematically understanding their root causes, meticulously optimizing your print settings, and investing in appropriate hardware, you can overcome these hurdles. The key lies in a methodical FDM troubleshooting approach, careful filament management, and a commitment to continuous learning. Embrace the challenge, and you'll unlock a new realm of possibilities in your 3D printing endeavors.
