The landscape of modern dentistry has been profoundly transformed by the advent of 3D printing, enabling precision, customization, and efficiency previously unattainable. At the forefront of this revolution are two dominant resin-based technologies: Stereolithography (SLA) and Digital Light Processing (DLP). Both offer distinct advantages for various dental applications, from surgical guides and orthodontic models to temporary crowns and bridges. However, understanding their fundamental differences in terms of accuracy, speed, cost structures, and operational nuances is crucial for dental professionals looking to integrate or upgrade their dental 3D printing capabilities.
Understanding stereolithography (SLA) technology for dental applications
Explore the
Snapmaker U1
Stereolithography, or SLA, is one of the oldest and most established 3D printing technologies, known for its exceptional precision and smooth surface finish. In an SLA dental printer, a UV laser precisely traces the cross-section of a 3D model onto a vat of photosensitive liquid resin, curing and solidifying it layer by layer. Once a layer is complete, the build platform moves down, and the process repeats until the entire object is formed.
How SLA technology works
- Laser precision: A highly accurate UV laser beam is directed by a system of mirrors (galvanometers) to solidify resin in specific patterns. The laser's spot size dictates the smallest feature an SLA printer can produce, directly impacting the resin printer accuracy.
- Layer-by-layer solidification: Each layer is cured sequentially, allowing for very fine details and intricate geometries.
- Build platform movement: After each layer, the build platform slightly lowers, and a recoater blade or wiper ensures an even resin surface for the next layer.
Advantages of SLA for dental applications
- Superior accuracy and detail: SLA printers are renowned for their ability to produce extremely fine details and smooth surface finishes, which is paramount for dental models, surgical guides, and prosthetics requiring exact fit. The small laser spot size allows for intricate anatomical features to be captured with high fidelity.
- Excellent surface finish: The parts typically come off the printer with a very smooth surface, reducing the need for extensive post-processing and polishing, a significant benefit for patient-facing applications.
- Wide material compatibility: A broad range of biocompatible and specialized dental resins are available for SLA, including those for surgical guides, dental models, clear aligner molds, and temporary restorations.
Considerations for SLA in dentistry
- Print speed: SLA printers cure one point at a time with the laser, which can make them slower for printing large batches of identical objects compared to DLP technology. The print time is largely dependent on the total area traced by the laser.
- Initial cost and maintenance: SLA printers, especially professional-grade units, can have a higher initial investment. Furthermore, laser calibration and replacement can contribute to ongoing maintenance costs.
- Resin consumption and waste: The resin vat often needs a larger volume of resin to operate, and unused resin can degrade over time or become contaminated, leading to potential waste.
Exploring digital light processing (DLP) technology for dental applications

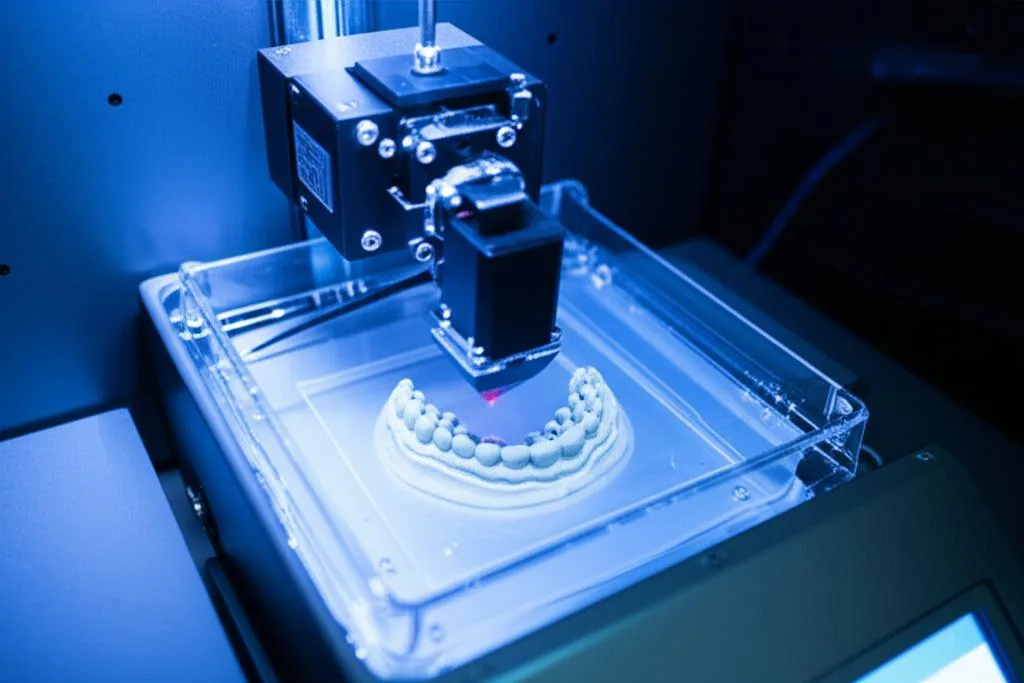

Digital Light Processing, or DLP, is another resin-based 3D printing technology that has gained significant traction in the dental sector, primarily due to its speed and efficiency for certain applications. Unlike SLA's point-by-point laser tracing, DLP uses a digital light projector to flash an entire layer of an image at once, curing the resin in a single pass.
How DLP technology works
- Projector-based curing: A high-resolution digital light projector, often a UV LED array, projects an image of an entire layer onto the resin vat. This image is composed of thousands or millions of tiny mirrors (DMD chip) that selectively reflect or block light.
- Rapid layer solidification: Because an entire layer is cured simultaneously, DLP printers can achieve significantly faster print times, especially when printing multiple objects in a single build.
- Fixed pixel size: The resolution of a DLP printer is determined by the projector's native pixel resolution and the size of the build area. Each pixel corresponds to a voxel (a 3D pixel) in the printed object.
Advantages of DLP for dental applications
- High print speed: The ability to cure an entire layer at once makes DLP printers much faster for batch production, which is a significant advantage for dental labs producing multiple models, guides, or aligner molds daily. This contributes to rapid prototyping in a clinical setting.
- Consistent layer quality: Curing an entire layer simultaneously can lead to more uniform layer thickness and consistent mechanical properties across the build platform.
- Lower maintenance: DLP projectors typically have longer lifespans than traditional UV lasers, potentially reducing maintenance frequency and costs, though projector replacement is still a factor.
Considerations for DLP in dentistry
- Resolution vs. build volume: While DLP offers high resolution, the pixel size is fixed. If you increase the build area, the pixel size (and thus the X/Y resolution) increases, potentially leading to a slight decrease in precision compared to SLA, where laser spot size remains constant. For DLP dental applications, this trade-off needs careful consideration.
- "Stair-stepping" effect: Due to the pixelated nature of the projected image, very fine curves or angled surfaces might exhibit a subtle "stair-stepping" effect, though modern DLP printers have largely mitigated this with anti-aliasing techniques.
- Projector lifespan and cost: While generally robust, the projector is a key component and its eventual replacement cost should be factored into the long-term operational expenses.
Comparing SLA and DLP: key considerations for dental professionals
Choosing between SLA and DLP for medical 3D printing in a dental context often comes down to a careful evaluation of specific needs, priorities, and budget constraints. Both technologies are powerful, but their strengths lie in different areas.
Accuracy and resolution
When discussing resin printer accuracy, both SLA and DLP can achieve impressive results. SLA typically offers superior detail resolution due to its ability to cure incredibly small points with a focused laser, often down to 25-50 microns, independent of the build area. This makes it ideal for highly intricate models and prosthetics where micron-level precision is critical.
DLP's resolution is determined by its projector's native pixel resolution and the size of the build area. While it can also achieve fine details (often 35-75 microns), the X/Y resolution is fixed per pixel. If you print a smaller object on a larger build plate, the pixels effectively spread out, potentially reducing the perceived detail compared to an SLA system. However, for many dental applications, modern DLP printers offer more than sufficient accuracy.
Print speed and throughput
This is where DLP often holds a significant advantage, especially for high-volume dental labs. Because DLP cures an entire layer simultaneously, the print time for a full build plate of models is often comparable to printing a single model. This makes DLP ideal for rapid prototyping and batch production of items like clear aligner models, study models, or multiple surgical guides.
SLA, by tracing each point, can be slower for a full build plate, as the laser has to cover the entire area of each layer. However, for single, highly detailed, and intricate prints, the speed difference might be less pronounced, and the superior surface finish might outweigh the slight time difference.
Material compatibility and cost
Both SLA and DLP technologies utilize photosensitive resins, and the market offers a wide array of specialized dental 3D printing resins, including biocompatible Class I and Class IIa materials. These resins are formulated for specific applications, such as:
- Surgical guides (autoclavable)
- Dental models (high precision, low shrinkage)
- Orthodontic models (for aligner thermoforming)
- Temporary crowns and bridges
- Denture bases and try-ins
- Casting patterns
The cost of these specialized resins can be substantial, and it's a recurring operational expense. While resin costs per milliliter might be similar between the two technologies, factors like print success rates, resin waste, and the specific application's material requirements will influence the overall material expenditure.
Post-processing requirements
Both SLA and DLP prints require post-processing, which typically involves:
- Washing: Removing uncured resin from the printed part using isopropyl alcohol (IPA) or other cleaning solutions.
- Post-curing: Exposing the washed part to UV light to fully cure the resin, enhancing its mechanical properties and biocompatibility.
- Support removal: Detaching the printed object from its support structures and finishing the surface.
Due to SLA's often finer support structures and smoother initial surface, post-processing might be slightly less labor-intensive in terms of surface finishing, but both require careful handling to preserve detail.
Hardware costs and maintenance
The initial investment for professional-grade SLA and DLP dental 3D printing systems can vary widely, often ranging from several thousand to tens of thousands of dollars. Generally, SLA printers might have a slightly higher entry point due to the precision required for their laser and galvanometer systems. However, this is not a hard and fast rule, as high-end DLP systems can also be quite expensive.
Beyond the initial purchase, consider:
- Consumables: Resins, build platforms, resin tanks (which have limited lifespans).
- Replacement parts: Lasers for SLA, projectors for DLP, and other mechanical components.
- Software licenses: For slicing and printer management.
- Service and support: Warranty, technical assistance, and potential calibration services.
DLP projectors often boast longer lifespans than SLA lasers, potentially reducing the frequency of costly component replacements, though both require eventual servicing or replacement.
Making an informed decision for your dental practice
Ultimately, the choice between SLA and DLP dental 3D printing technologies is not about one being definitively "better" than the other, but rather about aligning the technology with your specific clinical or laboratory needs, volume requirements, and budget.
- If your primary need is for exceptionally high-resolution models, intricate surgical guides, or highly detailed prosthetics where micron-level precision and a flawless surface finish are paramount, an SLA dental printer might be the more suitable choice. Its strength lies in uncompromising detail.
- If your practice or lab requires high throughput for batch production of models, aligner molds, or multiple guides daily, and speed is a critical factor, then a DLP dental printer could offer significant advantages in efficiency and rapid prototyping capabilities.
Consider the types of applications you'll be printing most frequently, the desired volume, the level of detail required for patient safety and efficacy, and your long-term operational budget, including resin costs and maintenance. Engaging with manufacturers, requesting print samples, and comparing total cost of ownership over several years can provide a clearer picture tailored to your unique circumstances. Both technologies represent powerful tools in the ongoing digital transformation of dentistry, each offering a pathway to enhanced patient care and practice efficiency.
