The burgeoning popularity of 3D printing has brought advanced manufacturing capabilities into homes and small workshops worldwide. While the creative possibilities are virtually limitless, a critical aspect that often warrants closer attention is the management of airborne emissions. The process of 3D printing, whether Fused Deposition Modeling (FDM) with thermoplastics or Stereolithography (SLA) with resins, can release various Volatile Organic Compounds (VOCs) and ultrafine particles (UFPs) into the surrounding environment. Addressing these emissions through effective 3D printing ventilation is not merely a matter of comfort but a significant consideration for maintaining optimal indoor air quality.
This guide aims to provide an objective comparison of different fume extraction solutions, delving into their cost structures, operational features, and suitability for various home 3D printing setups. Rather than advocating for a singular "best" or "cheapest" option, our goal is to present a comprehensive analysis, empowering readers to make informed decisions tailored to their specific needs and circumstances.
Understanding the need for effective 3D printing ventilation
The emissions from 3D printers vary significantly depending on the printing technology and the materials used. FDM printers, for instance, often release VOCs and UFPs when heating filaments like ABS, PETG, and even PLA, though the latter is generally considered less emissive. Resins used in SLA/DLP printing can produce strong odors and VOCs during printing and post-curing processes. These airborne contaminants, especially UFPs, can penetrate deep into the respiratory system, while VOCs can cause irritation, headaches, and, with prolonged exposure, potentially more serious health concerns.
Therefore, implementing a robust fume extraction system is paramount. It helps mitigate the accumulation of these substances in the air, ensuring a safer and more pleasant environment for hobbyists and professionals alike. The challenge lies in selecting a system that is both effective and practical for a home setting, balancing performance with factors like space, budget, and ease of installation.
Key metrics for fume extraction: CFM calculations
One of the most crucial parameters when evaluating any 3D printing ventilation system is its Cubic Feet per Minute (CFM) rating. CFM quantifies the volume of air a fan or extractor can move in one minute. A higher CFM generally indicates a more powerful system capable of clearing a larger volume of air more quickly. Understanding your CFM requirements is fundamental to selecting an appropriately sized and effective system.
Estimating required CFM
To determine the approximate CFM needed for your setup, you typically consider the volume of the space requiring ventilation and the desired number of air changes per hour (ACH). For a 3D printing enclosure or a small room dedicated to printing, a common recommendation for ACH ranges from 10 to 20 for effective fume removal. For general room ventilation, 6-10 ACH might suffice, but for direct fume extraction, higher rates are often preferred.
The basic formula for calculating required CFM is:
CFM = (Room Volume in Cubic Feet * Desired Air Changes Per Hour) / 60 minutes
For example, if you have an enclosure measuring 2 feet x 2 feet x 2 feet (8 cubic feet) and you desire 15 air changes per hour:
CFM = (8 cubic feet * 15 ACH) / 60 = 2 CFM
This calculation provides a baseline. However, practical considerations often necessitate a higher CFM. Factors such as the type of printer, the specific materials being used (some are much more emissive than others), the presence of an enclosure, and the length and bends in ducting (which create static pressure and reduce actual airflow) all influence the effective CFM required. It's often prudent to select a system with a CFM rating slightly higher than your calculated minimum to account for real-world inefficiencies and provide a buffer for peak emissions.
Types of fume extraction systems
Various approaches exist for managing 3D printer emissions, each with distinct features, advantages, and cost implications. Understanding these options is key to choosing the right fume extraction strategy.
1. Enclosure-based systems
Many 3D printers, particularly those designed for home use, benefit greatly from operating within an enclosure. These enclosures, whether purpose-built or DIY, create a contained environment that allows for targeted ventilation.
Description: These systems typically involve a fan mounted directly to the enclosure, drawing air from within and either filtering it or exhausting it outdoors. They can be as simple as a small computer fan with a basic filter or more sophisticated setups with powerful inline fans and dedicated filter cartridges.
Features: Direct capture of fumes at the source, reduced spread of emissions, potential for temperature control within the enclosure (beneficial for certain materials).
Cost Considerations:
- DIY Solutions: Can be very cost-effective, ranging from $50-$200 for fans, basic ducting, and filter media. Requires some technical know-how for assembly.
- Commercial Enclosures with Integrated Ventilation: Often come as part of a printer package or as an upgrade. Costs can range from $200-$800+, depending on the enclosure's features and the sophistication of the integrated ventilation.
Pros: Highly effective at source capture, can be relatively quiet, and integrates well with the printer's operation.
Cons: Requires an enclosure, which adds to the overall footprint and initial cost. The effectiveness is highly dependent on the enclosure's seal and the fan's power.
2. Dedicated fume extractors (benchtop/portable)
These are self-contained units designed specifically for local fume extraction. They are highly versatile and can be moved between different workstations or used for multiple printers.
Description: Portable extractors typically consist of a fan, a multi-stage filter system (often including activated carbon filters and HEPA filtration), and an articulated arm or hood to direct airflow to the emission source. Some models are designed to sit on a workbench, while others might be floor-standing.
Features: Portability, often includes multiple filter stages, adjustable arms for precise positioning, variable fan speeds.
Cost Considerations:
- Entry-Level Units: Start around $200-$400, typically with basic fan control and combined filter cartridges.
- Mid-Range to High-End Professional Units: Can range from $500-$1500+, offering higher CFM, more robust construction, advanced filtration, and quieter operation.
Pros: Flexible, no permanent installation required, effective for capturing fumes close to the source, good for multiple printers or occasional use.
Cons: Can be bulky, may require manual repositioning, ongoing cost of filter replacements, and some models can be noisy.
3. External venting systems (exhaust fans)
Considered the gold standard for comprehensive emission removal, these systems physically remove contaminated air from the indoor environment and expel it outdoors.
Description: This approach involves ducting the air from an enclosure (or even an entire room) directly to the outside using an inline fan or window exhaust fan. The system typically includes an intake point (e.g., from an enclosed printer), ductwork, and an exhaust vent.
Features: Complete removal of all airborne contaminants (gases and particles), prevents recirculation of filtered air back into the room.
Cost Considerations:
- DIY Window/Wall Exhaust: Can be relatively inexpensive, from $100-$300 for a suitable fan, ducting, and window/wall adapter. Installation may require some basic tools and DIY skills.
- Integrated HVAC Solutions: More complex, potentially involving professional installation. Costs can vary widely from $500 to several thousand dollars, especially if new ductwork is required.
Pros: Most effective method for maintaining pristine indoor air quality, as pollutants are removed entirely from the building. Reduces heat buildup from printers.
Cons: Requires access to an exterior wall or window for venting. Can lead to heat loss/gain, impacting room temperature. Installation can be more involved, especially for permanent solutions. Does not filter air, only exhausts it, so if the intake air contains pollutants, they are simply exhausted.
4. Room air purifiers (supplementary)
While not a primary fume extraction solution for direct emissions, general room air purifiers can play a valuable supplementary role in improving overall indoor air quality.
Description: These units circulate room air through a series of filters to remove general airborne contaminants like dust, allergens, and some odors. They are not designed for direct source capture of concentrated fumes.
Features: Often include pre-filters, HEPA filtration, and activated carbon filters. Some have smart features like air quality sensors and automatic fan speed adjustment.
Cost Considerations:
- Entry-Level Units: $100-$300, suitable for smaller rooms.
- Mid-Range to High-End Units: $300-$800+, offering higher CFM for larger spaces, more advanced filtration, and quieter operation.
Pros: Improves general indoor air quality, removes ambient dust and odors, easy to set up and move.
Cons: Not effective for direct source capture of concentrated 3D printer fumes. Should not be relied upon as the sole ventilation solution.

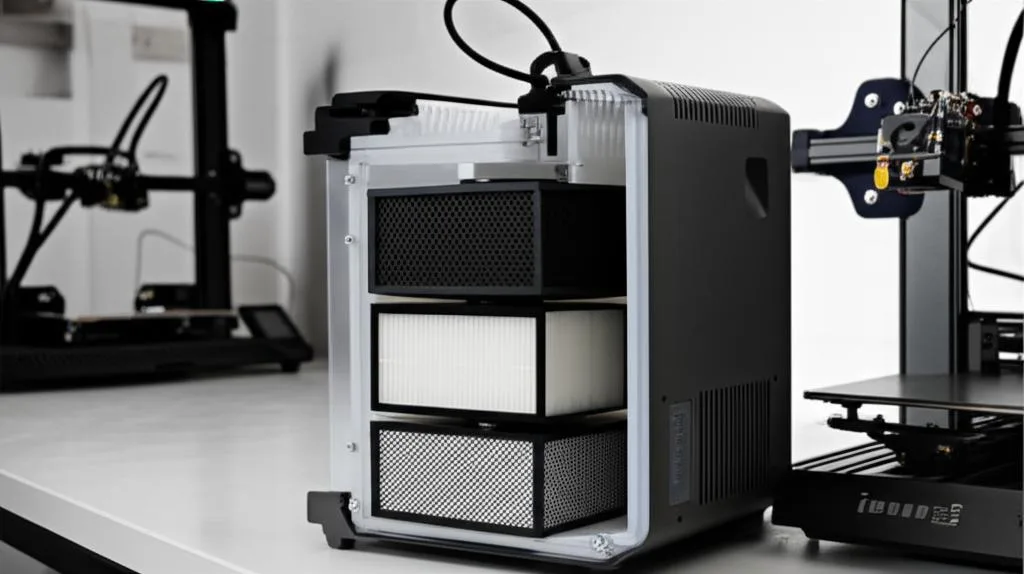

Filtration technologies for 3D printing fumes
The effectiveness of any recirculating fume extraction system hinges on its filtration capabilities. Different filter types target different classes of pollutants, and a comprehensive system often employs a combination of technologies.
1. Activated carbon filters
Mechanism: Activated carbon (also known as activated charcoal) is a highly porous material with a vast surface area. It removes gaseous pollutants, VOCs, and odors through a process called adsorption, where molecules adhere to the carbon's surface.
Effectiveness: Extremely effective at capturing the gaseous emissions and unpleasant odors associated with 3D printing, especially from resins and certain FDM filaments (e.g., ABS, ASA). It excels at trapping chemical fumes that HEPA filters cannot.
Limitations: Does not capture particulate matter (dust, UFPs). Its adsorption capacity is finite; once saturated, it becomes ineffective and must be replaced. The lifespan depends on the concentration of pollutants and the volume of carbon in the filter.
Cost Implications: Activated carbon filters are consumable items. Their replacement cost is an ongoing operational expense. Larger filters with more carbon generally last longer but are more expensive upfront. Costs can range from $20-$100+ per filter, depending on size and quality.
2. HEPA filtration
Mechanism: HEPA (High-Efficiency Particulate Air) filters are mechanical air filters that work by trapping particles as air passes through a dense mat of randomly arranged fibers. They are rated to capture 99.97% of particles that are 0.3 micrometers in diameter. Critically, they are also highly effective at trapping particles both larger and smaller than 0.3 microns, including the ultrafine particles (UFPs) emitted by FDM printers.
Effectiveness: Indispensable for capturing particulate matter, including dust, allergens, and the UFPs generated during filament extrusion. This is crucial for protecting respiratory health.
Limitations: HEPA filters do not remove gases, VOCs, or odors. Therefore, a HEPA filter alone is insufficient for comprehensive fume extraction from 3D printers.
Cost Implications: Like activated carbon, HEPA filters are consumables. Their lifespan depends on the amount of particulate matter they capture. Replacement costs can range from $30-$150+ per filter, varying with size and efficiency rating.
3. Combination filters
Description: Many dedicated fume extraction systems utilize combination filters that integrate both activated carbon filters and HEPA filtration into a single cartridge or a multi-stage system. This often includes a pre-filter layer as well.
Benefits: Offers comprehensive protection by addressing both gaseous VOCs/odors and particulate matter/UFPs. This is generally considered the most effective filtration strategy for 3D printing emissions in recirculating systems.
Cost Implications: Combination filters tend to be more expensive than individual filter types due to their multi-functional design. However, they offer the convenience of a single replacement item and ensure both aspects of air purification are covered. Costs can range from $50-$200+ per unit.
4. Pre-filters
Role: Pre-filters are the first line of defense in a multi-stage filtration system. They capture larger dust particles, hair, and other debris, preventing them from clogging the more expensive HEPA and activated carbon filters. This significantly extends the lifespan of the primary filters.
Cost Implications: Pre-filters are typically inexpensive (e.g., $5-$20 each) and are designed for frequent replacement or cleaning. Investing in good pre-filtration can lead to substantial savings on the more costly primary filters over time.
Cost structures and features comparison
When considering a 3D printing ventilation system, it's essential to look beyond the initial purchase price and evaluate the total cost of ownership, which includes ongoing operational expenses and the value provided by various features.
Initial purchase cost
DIY Solutions (Fans, Ducts, Basic Filters): Often the lowest entry point, ranging from $50 to $200. This requires sourcing individual components and assembling them. The cost savings are balanced by the time and effort invested in design and construction.
Entry-Level Dedicated Extractors: Typically priced between $200 and $400. These are usually compact benchtop units offering basic fume extraction with a combined filter. They are a good starting point for hobbyists with limited budgets.
Mid-Range Integrated Systems (e.g., enclosure with fan and basic filtration): These can range from $200 to $800, often providing a more cohesive solution than DIY, but still requiring some user setup. They offer a balance of performance and convenience.
High-End Professional/Prosumer Solutions (Advanced dedicated extractors, comprehensive external venting): These systems can cost anywhere from $500 to over $1500, and sometimes significantly more for industrial-grade solutions. They feature higher CFM, multi-stage filtration, quieter operation, advanced controls, and robust construction, justifying their higher price tag with superior performance and durability.
Ongoing operational costs
Filter Replacement: This is arguably the most significant ongoing cost for any recirculating fume extraction system. Activated carbon filters and HEPA filtration units have finite lifespans. The frequency of replacement depends on usage, the types of materials printed, and the volume of contaminants. Regularly printing with highly emissive materials will necessitate more frequent filter changes, increasing annual costs. Budgeting $100-$300 annually for filter replacements is not uncommon for active users.
Energy Consumption: Fans and extractors consume electricity. While individual units typically have low power consumption, continuous operation can add up. Larger, more powerful fans will naturally use more energy. Most home-use units are designed to be energy-efficient, but it's a factor to consider for 24/7 operations.
Features to consider
Noise Levels: Fans can be noisy. For home environments, a system with a lower decibel (dB) rating can significantly improve comfort, especially during long print jobs. Some higher-end units feature sound-dampened housings or quieter fan technologies.
Portability vs. Permanent Installation: Dedicated benchtop extractors offer flexibility, while external venting or integrated enclosure systems are more permanent. Your workspace layout and the need to move equipment will influence this choice.
Fan Speed Control: Variable fan speed allows users to adjust airflow based on the material being printed or the current emission levels, potentially saving energy and extending filter life when full power isn't needed.
Filter Life Indicators: Some advanced systems include sensors or timers that alert users when filters are nearing the end of their lifespan, ensuring optimal performance and timely replacement.
Enclosure Compatibility: If you plan to use an enclosure, ensure the ventilation system can be seamlessly integrated. This includes ducting size, mounting options, and airflow dynamics.
Ducting Options: For systems that vent outdoors, consider the type of ducting (flexible vs. rigid), its diameter, and the availability of adapters for windows or walls. Longer, convoluted duct runs will reduce effective CFM.
Safety Features: While less common for typical home 3D printing, some industrial-grade systems may include features like spark arrestors for specific applications. For home users, ensuring electrical safety and proper sealing to prevent leaks is more pertinent.
Making an informed decision
The array of choices in 3D printing ventilation systems can seem daunting, but by systematically evaluating your specific requirements, you can pinpoint the most suitable solution. There is no universally "better" or "cheaper" option; rather, the optimal system is one that aligns with your operational needs, budget constraints, and commitment to indoor air quality.
Assess Your Setup: Consider the type and number of 3D printers you operate, the materials you commonly use (e.g., high-fume resins vs. low-fume PLA), and the size and ventilation characteristics of your printing area.
Determine Your CFM Needs: Use the CFM calculations as a starting point, then factor in practical considerations like ducting and potential static pressure losses.
Evaluate Filtration Requirements: If recirculating air, a combination of activated carbon filters for VOCs and HEPA filtration for UFPs is often recommended for comprehensive protection. For external venting, filtration isn't strictly necessary for the exhaust air itself, but a pre-filter on the intake might still be beneficial for protecting the fan.
Budget for Total Cost of Ownership: Account for both the initial purchase price and the ongoing costs of filter replacements and energy consumption. A seemingly inexpensive system might become costly over time due to frequent and expensive filter changes.
Prioritize Features: Decide which features are most important to you – whether it's quiet operation, portability, ease of installation, or advanced monitoring.
Consult Material Safety Data Sheets (MSDS/SDS): Always refer to the manufacturer's safety data sheets for the specific materials you use. These documents provide crucial information on potential hazards and recommended ventilation practices.
Conclusion
Investing in a well-chosen fume extraction system is a proactive step towards a safer and more enjoyable 3D printing experience. By understanding the principles of 3D printing ventilation, the nuances of CFM calculations, and the distinct roles of different filter types like activated carbon filters and HEPA filtration, you can effectively manage airborne emissions and significantly improve your indoor air quality. Whether opting for a DIY enclosure setup, a portable extractor, or a dedicated external venting system, the objective remains the same: to create an environment where creativity flourishes without compromising health and well-being.
