For any 3D printing enthusiast, the pursuit of flawless, dimensionally accurate prints is paramount. However, a common and often underestimated adversary is stepper motor driver overheating. These crucial components translate digital commands into precise physical movements, dictating print accuracy. When they overheat, performance degrades, leading to issues from minor cosmetic flaws to complete print failures. Understanding why drivers overheat and how to prevent it is essential for consistent, high-quality results.
Understanding stepper motor driver overheating
Stepper motor drivers are integrated circuits controlling current flow to your stepper motors. This current generates electromagnetic fields for precise motor movement. Regulating this current, especially at higher speeds or with powerful motors, inevitably generates heat. If not properly dissipated, this heat can push the driver beyond operational limits.
Common causes of driver overheating
- Excessive current settings: The most frequent cause is setting driver current too high for the motor or the driver's capability. Higher current boosts torque but drastically increases heat (I²R).
- Insufficient cooling: Many 3D printers, particularly budget models, have minimal or inadequate driver cooling. Small heatsinks or poor airflow quickly lead to thermal issues.
- High ambient temperatures: Operating in a warm environment, especially an enclosed build chamber without proper ventilation, exacerbates overheating.
- Rapid acceleration and high speeds: Sustained high-speed movements and rapid accelerations demand more from drivers, increasing heat production.
Consequences of an overheated driver
The most visible consequence of an overheated stepper motor driver is degraded print quality:
- Layer shifts: A frustratingly common symptom. Overheating drivers can temporarily shut down or reduce current, causing the motor to skip steps. This results in misaligned layers and a staggered print, often rendering the part unusable. A recurring layer shift fix frequently begins with addressing driver temperatures.
- Reduced dimensional accuracy: Intermittent step losses can lead to slightly undersized or oversized parts along certain axes.
- Motor stuttering or skipping: Motors may not move smoothly, exhibiting stuttering or an audible "thunk."
- Thermal runaway: In extreme cases, sustained overheating can permanently damage the driver chip or mainboard if thermal protection fails or is absent.

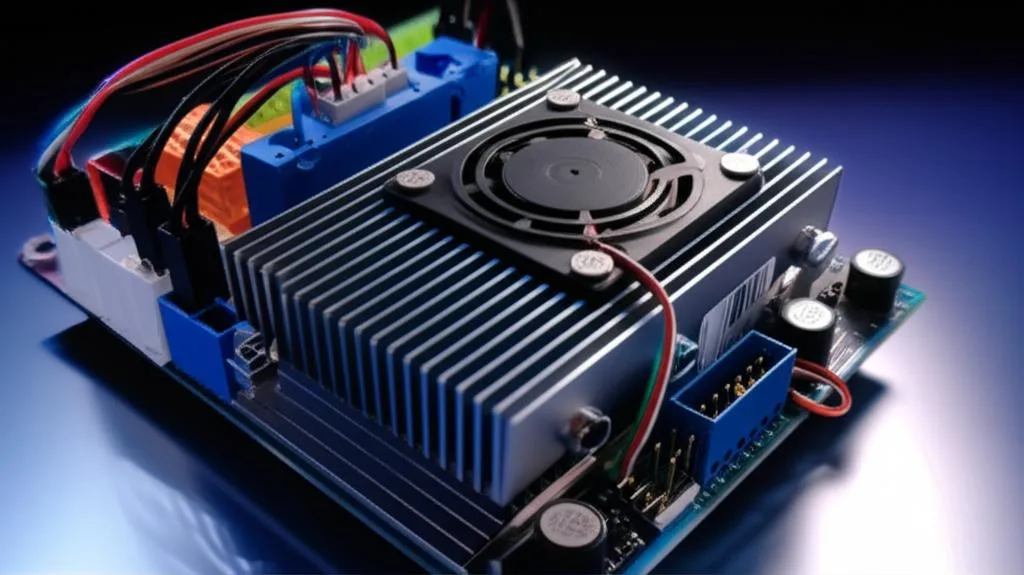

Strategies for preventing stepper motor driver overheating
Addressing driver overheating requires a multi-faceted approach, balancing performance, cost, and complexity. Here's an objective look at various solutions, allowing you to weigh their features and potential cost implications.
1. Optimizing driver current settings
This is often the first, cheapest, and most effective defense. Most drivers have a potentiometer (VREF) or digital setting to adjust motor current.
- Features: Fine-grained control over motor torque and heat. Adjustable without extra hardware.
- Cost implications: Essentially free, requiring only a multimeter for VREF or firmware changes for digital control.
- Analysis: Set current just high enough to prevent skipped steps under normal printing. Too low causes weak torque; too high generates excessive heat. Modern drivers (e.g., TMC series) offer easier, more precise digital adjustment.
2. Enhancing passive cooling: Heatsinks
Many drivers come with small aluminum heatsinks, but their effectiveness varies.
- Features: Simple, no moving parts, silent. Dissipates heat via convection and radiation.
- Cost implications: Very low. A pack of generic heatsinks costs a few dollars.
- Analysis: Essential for all drivers. Ensure proper attachment with thermal adhesive. Larger heatsinks offer better dissipation. While fundamental, passive cooling alone is often insufficient for high-current or warm environments.
3. Implementing active cooling: Fans
Adding a dedicated fan to blow air over your drivers significantly upgrades cooling efficiency.
- Features: Highly effective at removing heat. Can be precisely directed.
- Cost implications: Low to moderate. A small 40mm fan costs a few dollars; mounting solutions add minimal cost.
- Analysis: Fans dramatically increase convective heat transfer. Proper placement is crucial: airflow must directly hit heatsinks and driver chips. Consider fan noise; larger, slower fans are generally quieter. This is a highly recommended upgrade for most printers with overheating issues.
4. Upgrading to advanced stepper motor drivers (e.g., TMC series)
This is where significant advancements in thermal management and print quality emerge. Trinamic (TMC) drivers are known for silent operation and superior thermal performance.
- Key Features & Thermal Benefits:
- CoolStep™: Dynamically adjusts motor current based on load, reducing power consumption and heat when not under heavy load.
- StealthChop™: Offers extremely quiet motor operation, but may generate more heat at very high speeds compared to SpreadCycle.
- SpreadCycle™: A high-precision chopper mode providing smooth current regulation, often preferred for higher speeds and better torque with good thermal performance.
- Higher current ratings: Many advanced drivers handle higher continuous currents before thermal limits, enabling more powerful motors or higher torque settings without immediate overheating.
- Digital configuration: Via UART or SPI, offering precise current setting and advanced feature control.
- Cost implications: Moderate to high. Individual TMC drivers (e.g., TMC2208, TMC2209, TMC2225, TMC5160) are significantly more expensive than basic A4988 or DRV8825 drivers. A full set can range from $20 to $100+, depending on model and quantity.
- Analysis: Upgrading to TMC drivers is often a "layer shift fix" due to superior thermal management and quietness.
- TMC2208/2225: Good entry-level for quietness and improved thermal performance.
- TMC2209: Adds StallGuard (sensorless homing) and CoolStep, balancing features and cost effectively.
- TMC5160: A more powerful, higher-current driver for larger printers or high-power motors, often featuring CoolStep and SpreadCycle for optimal thermal and torque performance.
The higher initial investment can lead to substantial benefits in print quality, reduced noise, and thermal stability, minimizing failed prints and troubleshooting.
5. Environmental considerations and printer enclosures
Your printer's operating environment impacts driver temperatures.
- Features: Controls ambient temperature, protects from dust, aids consistent print temperatures for certain materials.
- Cost implications: Varies. DIY enclosures are low cost; pre-built ones moderate to high.
- Analysis: While enclosures benefit materials like ABS, they trap heat around electronics. If using an enclosure, ensure adequate ventilation for the electronics compartment, ideally with a dedicated fan exhausting hot air or drawing in cool air. Neglecting this turns an enclosure into a thermal trap.
6. Firmware settings and thermal protection
Modern 3D printer firmware (e.g., Marlin) offers settings impacting thermal performance.
- Features: Software-based control, advanced thermal management.
- Cost implications: Free, requires firmware compilation and flashing knowledge.
- Analysis: Ensure thermal runaway protection is enabled for hotends/beds. For TMC drivers, enabling features like CoolStep in firmware can significantly reduce heat during idle or low-load periods. Properly configured firmware is a powerful tool for stability.
A holistic approach to thermal management
Preventing stepper motor driver overheating rarely involves a single fix. It requires combining strategies tailored to your printer, motors, and printing habits. Start with simple, low-cost options like current adjustment and adequate passive cooling. If issues persist, add active cooling with a fan. For ultimate print quality, quietness, and thermal stability, investing in advanced drivers like the TMC series (especially models with CoolStep) offers a robust solution, despite a higher initial outlay.
Pro Tip: Always monitor driver temperatures after making changes. Thermal cameras or carefully touching heatsinks can provide valuable feedback. The goal is operation within the specified temperature range, not necessarily "cold" drivers.
By systematically addressing heat sources and implementing appropriate cooling and control, you can effectively combat driver overheating. This leads to significantly improved print quality, fewer frustrating layer shifts, and a more reliable 3D printing experience. Stable drivers mean stable prints, allowing you to confidently push your 3D printing endeavors.
