When venturing into the fascinating world of 3D printing, few challenges are as universally recognized and occasionally frustrating as printing horizontal spans, commonly known as 'bridges.' These are sections of your 3D model that extend horizontally over an empty space, connecting two points without any direct support from below. Achieving flawless bridges is a hallmark of a well-tuned printer and a thoughtfully designed model, significantly impacting print quality and the need for post-processing.
Understanding the mechanics of 3D printing bridges
Explore the
Snapmaker U1
At its core, 3D printing builds layers sequentially. When a printer encounters a bridge, it's essentially trying to extrude molten plastic into thin air. Without proper cooling and precise extrusion, gravity takes over, causing the plastic to sag, string, or even detach entirely. The success of a bridge hinges on the material solidifying quickly enough to hold its shape before gravity can deform it. This delicate balance is influenced by a myriad of factors, from your model's design to your printer's settings and even the ambient environment.
Strategic design considerations for robust bridges
The journey to successful 3D printing bridges often begins long before you hit the 'print' button – it starts in your 3D modeling software. Thoughtful design can drastically reduce or even eliminate the need for printing supports, saving material, time, and post-processing effort.
- Minimize span length: This is perhaps the most straightforward advice. Shorter bridges are inherently easier to print as they offer less opportunity for sagging. If possible, redesign your model to break long spans into multiple shorter ones, or incorporate intermediate support points.
- Optimize cross-sectional geometry: The shape of your bridge matters. A thin, wide rectangle might sag more than a thicker, narrower one. Consider incorporating chamfers or fillets on the underside of your bridge to provide a smoother transition and reduce the initial unsupported overhang. Teardrop shapes, for instance, are often cited as excellent for bridging as they gradually build out from the supported edges.
- Integrate sacrificial bridges: For particularly challenging spans, you can design 'sacrificial' bridge structures directly into your model. These are thin, easily removable structures that provide temporary support during printing and are snipped away afterward. This approach offers a cleaner underside than traditional slicer-generated supports.
- Consider part orientation: Sometimes, simply reorienting your model on the build plate can transform a difficult bridge into an easily printable overhang or eliminate it entirely. Analyze your model for critical bridging sections and experiment with different orientations in your slicer.
Dialing in your printer settings for optimal horizontal printing
Even the most perfectly designed model can fall victim to poor printer settings. Calibrating your slicer for bridging is crucial for achieving clean, crisp spans.
Cooling: the unsung hero of bridging
For most materials, especially PLA, adequate cooling is paramount. The faster the extruded filament cools and solidifies, the less it will sag. Ensure your part cooling fan is running at 100% during bridging sections. Some slicers allow you to specify different fan speeds for bridges, which can be a game-changer.
Print speed: finding the sweet spot
While counter-intuitive, printing bridges slightly slower than your regular print speed can often yield better results. This gives the cooling fan more time to solidify the plastic before the next layer is deposited. However, going too slow can lead to excessive heat buildup and stringing. Experiment to find the optimal speed for your specific filament and printer.
Extrusion temperature: a delicate balance
Lowering your extrusion temperature slightly for bridges can help the plastic solidify faster. However, be cautious not to go too low, as it can lead to poor layer adhesion or under-extrusion. A temperature tower print can help identify the ideal bridging temperature for your filament.
Layer height and extrusion width
While less impactful than cooling or speed, a slightly thicker extrusion width for bridge lines can sometimes provide more material to bond with, improving stability. Similarly, reducing layer height can make individual layers less prone to sagging, but increases print time.
The role of material choice in bridge performance
Different filament types exhibit varying characteristics when it comes to bridging, largely due to their thermal properties and rigidity.
- PLA (Polylactic Acid): Generally considered the easiest material for bridging due to its relatively low melting point and quick solidification. It responds very well to aggressive cooling.
- PETG (Polyethylene Terephthalate Glycol): More challenging than PLA. PETG tends to be stringier and requires more precise temperature and cooling control. Its higher melting point means it stays molten for longer, increasing sag potential.
- ABS (Acrylonitrile Butadiene Styrene): Often the most difficult for bridging. ABS requires higher temperatures and is very prone to warping and sagging without an enclosure and careful cooling management. Aggressive cooling can lead to delamination.
Understanding these material differences allows you to anticipate potential issues and adjust your design and print settings accordingly. For example, if you know you'll be printing a complex bridge with PETG, you might opt for a design that incorporates more integrated supports or shorter spans.
When supports become a necessity
Despite all best efforts, some models will simply require external supports for their horizontal spans. In such cases, optimizing your support settings is key to minimizing material waste and post-processing.
- Support density and pattern: Lower support density reduces material usage and makes removal easier, but might not provide sufficient support for very long or heavy bridges. Experiment with different patterns (e.g., lines, grid, zig-zag) to find one that offers the best balance of support and removability.
- Support contact Z distance: This setting determines the gap between the top of the support structure and the bottom of your model. A larger gap makes supports easier to remove but can result in a rougher surface finish on the supported area. A smaller gap improves surface quality but makes removal harder and can fuse supports to the model.
- Support interface layers: Many slicers offer an option for a denser 'interface' layer at the top of the support structure. This can significantly improve the surface finish of the supported part of your bridge, albeit at the cost of slightly more material and potentially harder removal.
The decision to use supports involves a trade-off: increased print time and material consumption versus potentially better surface quality and reduced risk of print failure. Evaluate your model's specific needs and your desired outcome to make an informed choice.

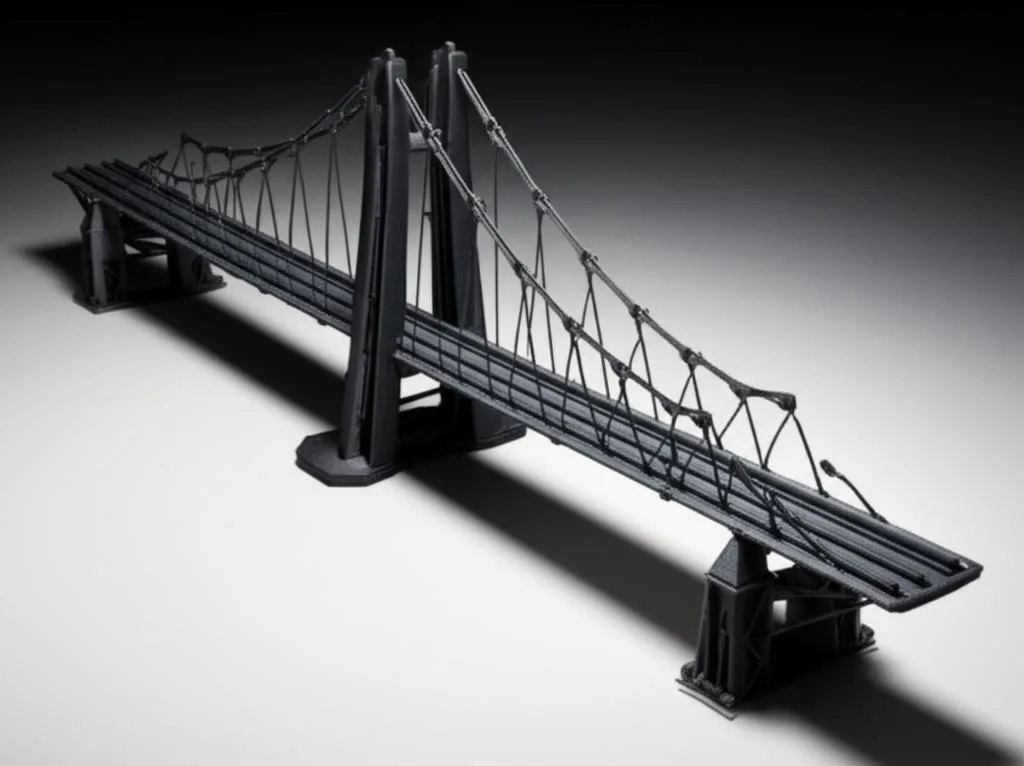

Conclusion: mastering the art of 3D printing bridges
Achieving flawless 3D printing bridges is a skill honed through a combination of intelligent design and meticulous printer calibration. By understanding the underlying physics, optimizing your model's geometry, fine-tuning your slicer settings, and making informed material choices, you can significantly improve the quality of your horizontal spans. While supports will always have their place for truly challenging geometries, striving for support-free or minimally-supported bridges is a rewarding pursuit that elevates your 3D printing expertise and yields cleaner, more efficient prints.
