Mitigating ABS fumes: strategies for effective air purification in enclosed 3D printer environments

The burgeoning world of 3D printing has revolutionized prototyping, manufacturing, and creative endeavors, bringing sophisticated fabrication capabilities to homes and workshops alike. However, with this innovation comes a critical consideration: the byproducts of the printing process, particularly when working with materials like Acrylonitrile Butadiene Styrene (ABS). ABS, a popular thermoplastic known for its strength and durability, is notorious for emitting volatile organic compounds (VOCs) and ultrafine particles (UFPs) during extrusion. These emissions, often referred to as 'ABS fumes,' pose potential health concerns and necessitate robust air purification strategies, especially in enclosed 3D printer environments.

While an enclosed 3D printer offers numerous benefits, such as improved print quality through temperature stability and reduced noise, it concurrently concentrates these harmful emissions within a confined space. This concentration exacerbates the need for effective fume control, moving it from a mere convenience to a paramount safety measure. Navigating the landscape of available solutions requires a clear understanding of their underlying technologies, operational features, and associated cost structures. This guide aims to objectively compare various ABS fume control methods, providing a factual analysis to empower readers in making informed decisions tailored to their specific needs and constraints, without endorsing any single 'best' or 'cheaper' option.

Understanding the nature of ABS fumes

Explore the
Snapmaker U1

Meet the U1

ABS is a terpolymer composed of three monomers: acrylonitrile, butadiene, and styrene. During the 3D printing process, particularly when heated to its extrusion temperature, these components can degrade and off-gas. The primary culprits in ABS fumes are styrene and acrylonitrile monomers, along with other complex organic compounds and ultrafine particulate matter. Styrene, for instance, is a known irritant and suspected carcinogen, while acrylonitrile is classified as a probable human carcinogen. Exposure to these substances, even at low levels, can lead to immediate symptoms such as respiratory irritation, headaches, dizziness, and nausea. Prolonged or high-level exposure raises concerns about more serious health effects on the respiratory system, central nervous system, and other organs.

The emissions from 3D printers are not limited to VOCs; they also include a significant quantity of ultrafine particles (UFPs). These particles, typically less than 100 nanometers in diameter, are small enough to penetrate deep into the lungs and potentially enter the bloodstream, posing risks to cardiovascular and respiratory health. The combination of VOCs and UFPs makes ABS fume control a multifaceted challenge, requiring solutions capable of addressing both gaseous and particulate contaminants effectively. While regulatory guidelines for 3D printing emissions are still evolving, the scientific consensus underscores the importance of minimizing exposure.

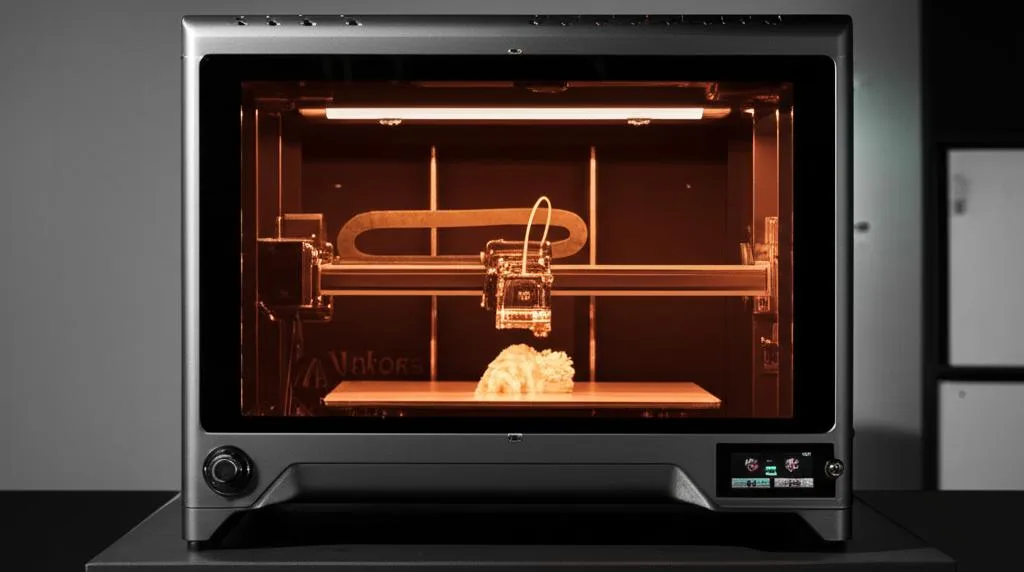

The dual role of enclosed 3D printers

Enclosed 3D printers have become increasingly popular, and for good reason. They provide a stable thermal environment, crucial for printing warp-prone materials like ABS by minimizing temperature fluctuations around the print bed. This thermal consistency often translates to superior print quality, fewer failures, and better layer adhesion. Additionally, enclosures can significantly reduce operational noise and offer a degree of physical protection against moving parts and hot surfaces. From a fume management perspective, an enclosure prevents the immediate dispersal of emissions into the broader room environment, which can be seen as both a benefit and a challenge.

The benefit lies in the containment: by keeping the fumes localized, it becomes theoretically easier to capture and treat them. However, the challenge arises from the concentration effect. Without an active and efficient extraction or filtration system, the air inside the enclosure can quickly become saturated with high levels of VOCs and UFPs. This concentrated plume can then escape when the enclosure door is opened, or through imperfect seals, leading to a sudden release into the user's breathing zone. Consequently, merely enclosing a 3D printer is not a solution for fume control; rather, it creates a contained environment that necessitates a dedicated and often integrated air purification strategy to truly mitigate risks.

Core strategies for ABS fume control

Explore the
Snapmaker U1

Meet the U1

Effective ABS fume control typically revolves around three primary strategies, often employed in combination for optimal results. Each approach targets different aspects of contaminant removal and comes with its own set of characteristics in terms of effectiveness, complexity, and cost.

1. Local exhaust ventilation (LEV) systems / ventilation hoods

Local Exhaust Ventilation (LEV) systems, often referred to as ventilation hoods or ducted systems, are designed to capture pollutants at their source and exhaust them directly outside the building. This method is highly effective because it removes the contaminants from the workspace entirely, preventing them from accumulating in the ambient air. A typical LEV system for a 3D printer consists of a capture hood positioned over or around the printer's enclosure, ductwork to transport the contaminated air, a fan to create the necessary airflow, and an exhaust point to release the air outdoors.

Cost structure and features of LEV systems:

• Initial setup costs: These can vary widely. A basic DIY setup involving an inline duct fan, flexible ducting, and a window exhaust kit might range from approximately $100 to $300. More robust or professionally installed systems with rigid ductwork, higher-capacity fans (e.g., centrifugal fans for longer runs or higher static pressure), and custom enclosure modifications can easily cost $500 to $1500 or more. The cost is influenced by the fan's cubic feet per minute (CFM) rating, the length and type of ducting, and the complexity of the exhaust termination.
• Installation complexity: DIY installation is feasible for many, requiring basic tools and a willingness to measure and cut. Professional installation ensures optimal airflow, proper sealing, and adherence to local building codes, but adds significantly to the cost through labor charges.
• Ongoing costs: Primarily consist of electricity consumption for the fan. Compared to filtration systems, there are generally no recurring filter replacement costs for the primary exhaust pathway, making long-term operational expenses relatively low. However, in colder climates, exhausting heated indoor air can lead to increased heating costs, a factor to consider in the overall energy budget.
• Effectiveness: LEV systems offer superior removal of both VOCs and UFPs by physically removing them from the indoor environment. They also remove heat generated by the printer, which can be beneficial.
• Environmental considerations: While effective indoors, direct exhaustion of untreated air outdoors raises environmental concerns, particularly for commercial or industrial operations where emissions might be regulated. For hobbyist or small-scale use, the impact is generally considered negligible.
• Limitations: Requires access to an external venting point (window, wall, or dedicated vent). Can be noisy depending on the fan type and installation. May lead to negative pressure in the room, potentially drawing in unconditioned outdoor air.

2. Activated carbon and HEPA filtration systems (recirculating)

Recirculating air filtration systems, often integrated into a standalone unit or designed to connect directly to a printer enclosure, work by drawing air from the enclosure (or room), passing it through a series of filters, and then returning the cleaned air to the same space. These systems are particularly popular where external venting is not feasible or desired. The core components typically include a pre-filter, a High-Efficiency Particulate Air (HEPA) filter, and an activated carbon filter.

Cost structure and features of recirculating filtration systems:

• Initial setup costs: The price of a dedicated filtration unit can range from approximately $200 for compact, lower-capacity desktop models to $1000 or more for industrial-grade systems with higher airflow rates and larger filter banks. Integrated solutions sold with high-end printers will typically add to the overall printer cost, making a direct comparison challenging.
• Components:
• Pre-filter: Captures larger dust particles, extending the life of subsequent filters. Relatively inexpensive to replace (e.g., $10-$30).
• HEPA filter: Essential for capturing ultrafine particles. True HEPA filters capture 99.97% of particles 0.3 microns in size. These are more expensive, ranging from $50 to $200+ per filter, and need replacement every 6-12 months depending on usage.
• Activated carbon filter: Designed to adsorb VOCs and odors. The effectiveness depends on the amount and quality of activated carbon. These filters are consumable, with replacement costs ranging from $30 to $150 and a lifespan of 3-6 months with regular use, as they become saturated over time.
• Ongoing costs: The most significant ongoing cost is the regular replacement of filters. The frequency depends heavily on printing volume, filament type, and the filter's capacity. Energy consumption for the fan is also a factor but typically less than filter costs.
• Effectiveness: Highly effective at removing particulates (HEPA) and a broad range of VOCs (activated carbon). Maintains room temperature as air is recirculated.
• Advantages: No external venting required, making them suitable for apartments or spaces without easy outdoor access. Often portable and easy to set up.
• Limitations: Filters have a finite lifespan; saturated filters lose effectiveness and must be replaced. They do not remove heat from the enclosure or room. Some complex VOCs may not be fully captured by activated carbon, and filter bypass can occur if not properly sealed.

3. Hybrid systems

Hybrid systems aim to combine the strengths of both LEV and recirculating filtration. These solutions can take several forms. One common approach is an enclosure with an internal filtration system (HEPA and carbon) that also has the option to vent air externally. Another might involve a primary LEV system for bulk fume removal, supplemented by an ambient air purifier in the room to catch any escaped or residual contaminants. Some sophisticated industrial setups might even filter the exhaust air before releasing it outdoors.

Cost structure and features of hybrid systems:

• Initial setup costs: Generally the highest among the options due to the inclusion of multiple components. A system that offers both internal filtration and external venting capabilities could start from $500 and extend well beyond $2000, depending on the sophistication and capacity of both filtration and ventilation components.
• Installation complexity: Can be more involved than single-method systems, potentially requiring more space and careful planning for both ducting and filter unit placement.
• Ongoing costs: Higher than standalone systems, as they typically incur both filter replacement costs (for the internal filtration) and energy costs for the fan(s) involved in ventilation.
• Effectiveness: Offers the most comprehensive fume control, addressing both direct source capture and ambient air purification. Can significantly reduce exposure to a wider range of contaminants.
• Flexibility: Allows users to choose the appropriate mode of operation based on conditions (e.g., vent outside when possible, recirculate when not).
• Considerations: The increased complexity can also mean more points of failure or maintenance. Careful system design is crucial to ensure both components work synergistically rather than redundantly.

4. Integrated printer solutions

A growing number of professional and prosumer enclosed 3D printers now come with integrated fume filtration systems. These are typically compact units built directly into the printer's chassis, often featuring a combination of HEPA and activated carbon filters designed to purify the air within the enclosure before it potentially escapes into the room.

Cost structure and features of integrated printer solutions:

• Initial setup costs: The cost of the filtration system is bundled into the overall purchase price of the 3D printer. Printers with integrated filtration tend to be at the higher end of their respective categories, with the filtration system contributing to that premium. It's difficult to isolate the exact cost of the filtration component itself.
• Installation complexity: Virtually none, as it's part of the printer. Users simply power on the printer.
• Ongoing costs: Primarily involves the purchase of proprietary replacement filters from the printer manufacturer. These can sometimes be more expensive than generic filters for standalone units, ranging from $40 to $100+ per set, with replacement frequency dependent on usage.
• Effectiveness: Varies significantly by manufacturer. While convenient, some integrated systems may have smaller filter capacities or lower airflow rates compared to dedicated external solutions, potentially limiting their effectiveness during very long or frequent prints. They are primarily designed to maintain air quality within the enclosure and reduce emissions upon door opening, not necessarily to purify the entire room's air.
• Advantages: Seamless integration, aesthetic appeal, often quieter operation, and no additional footprint. Some systems include smart features like filter life monitoring.
• Limitations: Limited capacity, potentially higher cost for proprietary filters, and may not be sufficient for environments with high printing volume or for individuals with high sensitivity to fumes. Replacement can sometimes be more challenging due to compact design.

Key considerations for choosing a solution

The optimal ABS fume control strategy is not a one-size-fits-all proposition. Several factors play a crucial role in determining which solution, or combination of solutions, best fits a particular user's needs and circumstances.

• Printer type and enclosure size: A small desktop printer in a compact enclosure will have different requirements than a large-format industrial printer or multiple printers operating simultaneously. Larger volumes of air require higher airflow capacities (CFM) from fans or filtration units.
• Printing volume and frequency: Casual hobbyists who print occasionally for short durations may find simpler solutions adequate. Professional users or those engaged in continuous production will require more robust, higher-capacity systems with lower maintenance intervals to ensure consistent air quality.
• Available space and venting options: The physical layout of the workspace is critical. The presence of an accessible window, wall vent, or the feasibility of installing one directly impacts the viability of LEV systems. Spaces without external venting options will naturally lean towards recirculating filtration.
• Budget – initial vs. long-term: It's essential to consider not just the upfront purchase price but also the ongoing operational costs, particularly for filter replacements in recirculating systems. A solution with a lower initial cost might incur higher long-term expenses, and vice-versa.
• Desired air quality standards and personal sensitivity: Some users may prioritize basic odor reduction, while others, particularly those with respiratory sensitivities or operating in shared spaces, may aim for the highest possible level of contaminant removal. Understanding one's personal tolerance and the expectations for the environment is key.
• Noise levels: Fans and filtration units can generate noise. For environments where quiet operation is paramount (e.g., home offices, educational settings), this factor warrants careful consideration. Some units are designed with noise reduction in mind, but this often comes at a premium.
• Ease of installation and maintenance: The complexity of setting up and maintaining the system (e.g., filter changes, duct cleaning) can be a deciding factor for users with limited technical expertise or time.
• Specific fume composition: While this guide focuses on ABS, it's worth noting that different filaments (e.g., ASA, PETG, Nylon, composites) emit varying profiles of VOCs and UFPs. Some advanced filtration systems may offer specialized filter media for specific chemical challenges, though activated carbon is broadly effective for many organic compounds.

Supplementary measures for enhanced safety

While primary fume control systems form the backbone of a safe 3D printing environment, several supplementary measures can further enhance safety and provide additional layers of protection.

Respiratory protection (PPE)

Personal Protective Equipment (PPE) in the form of respirators can serve as a critical last line of defense, particularly during tasks that might expose users to concentrated fumes, such as opening an enclosure after a print, changing filters, or in situations where primary ventilation is temporarily compromised or insufficient. It is crucial to distinguish between simple dust masks and certified respirators:

• N95/P100 respirators: These are effective against particulate matter (UFPs). A P100 respirator offers higher filtration efficiency (99.97%) than an N95 (95%) and is often recommended for fine particulate exposure.
• Organic vapor cartridges: For protection against VOCs, a respirator equipped with organic vapor cartridges is necessary. These cartridges contain activated carbon or other sorbents to capture gaseous contaminants.
• Cost implications: Disposable N95 masks are relatively inexpensive (e.g., $1-3 each). Reusable respirators with replaceable cartridges involve a higher initial cost for the mask itself (e.g., $20-50) but lower ongoing costs for cartridges (e.g., $15-30 per pair), which need replacement periodically based on use and saturation.

Air quality monitors

Dedicated air quality monitors can provide real-time data on the presence of VOCs and particulate matter (PM2.5, PM10) in the workspace. These devices are invaluable for:

• Assessing system effectiveness: Verifying that the chosen fume control solution is performing as expected.
• Indicating filter saturation: A rise in contaminant levels despite an active filtration system can signal that filters need replacement.
• Identifying exposure risks: Alerting users to potential issues during or after printing.
• Cost implications: Entry-level consumer air quality monitors range from $50 to $200. More accurate and comprehensive professional-grade monitors, capable of detecting specific VOCs or offering higher precision, can cost several hundreds to over a thousand dollars.

General room ventilation

While not a primary fume control method, ensuring good general room ventilation can help dilute any residual fumes that escape primary capture systems. This might involve opening windows, using an exhaust fan in the room, or ensuring adequate HVAC airflow. It is a complementary strategy, not a substitute for source capture or dedicated filtration, as dilution alone is often insufficient to reduce contaminant concentrations to safe levels, especially for UFPs and highly toxic VOCs.

Material choice

Where feasible, considering alternative filaments that produce fewer or less harmful emissions can be a proactive safety measure. For instance, PLA (Polylactic Acid) generally produces significantly fewer VOCs and UFPs compared to ABS. While not always suitable for every application due to different material properties, it's a valuable consideration for reducing overall exposure risks.

Comparative cost analysis overview

Understanding the cost implications of different ABS fume control solutions involves looking beyond the initial purchase price to encompass installation, ongoing maintenance, and energy consumption. Here's a generalized comparison:

• Local Exhaust Ventilation (LEV) Systems:
  • Initial investment: Moderate ($100 - $1500+). Lower end for DIY with basic components; higher end for robust systems or professional installation.
  • Ongoing costs: Low (primarily electricity for the fan). Potential for increased heating/cooling costs due to exhausted conditioned air.
  • Maintenance: Minimal, occasional duct cleaning.
• Activated Carbon and HEPA Filtration Systems (Recirculating):
  • Initial investment: Moderate to High ($200 - $1000+). Varies based on unit capacity and filter quality.
  • Ongoing costs: Moderate to High (significant recurring expense for filter replacements, plus electricity). Filters can cost $50 - $300+ annually, depending on usage and filter types.
  • Maintenance: Regular filter changes are critical.
• Hybrid Systems:
  • Initial investment: High ($500 - $2000+). Combines the costs of both LEV and filtration components.
  • Ongoing costs: High (both filter replacements and electricity for potentially multiple fans).
  • Maintenance: Requires maintenance for both ventilation and filtration components.
• Integrated Printer Solutions:
  • Initial investment: Included in the higher price of the 3D printer (e.g., printer costs $500-$1000 more than a comparable non-filtered model).
  • Ongoing costs: Moderate (proprietary filter replacements, often more expensive per filter).
  • Maintenance: Filter replacement, which can sometimes be less straightforward due to integrated design.

It is evident that there are trade-offs across the spectrum. A solution with a lower initial outlay, such as a basic LEV setup, might offer long-term cost efficiency in terms of consumables but requires external venting. Conversely, a recirculating filtration unit, while offering flexibility in placement, necessitates a continuous budget for filter replacements. Hybrid systems, though offering superior protection, demand the highest investment and ongoing commitment. Integrated solutions provide convenience but tie users into potentially higher-priced proprietary consumables.

Conclusion

Effective ABS fume control in enclosed 3D printer environments is not merely a recommendation; it is a critical aspect of responsible and safe 3D printing. The choice of an appropriate system hinges on a comprehensive evaluation of various factors, including the specific printing setup, usage patterns, available space, and budget. There is no universally 'better' or 'cheaper' option; rather, the optimal solution is one that effectively balances performance with the unique constraints and priorities of the user.

By objectively comparing the features and cost structures of local exhaust ventilation, recirculating filtration, hybrid systems, and integrated printer solutions, this guide aims to equip users with the knowledge necessary to navigate these choices. Whether opting for direct outdoor venting, sophisticated internal air purification, or a combination of both, the goal remains the same: to significantly mitigate exposure to volatile organic compounds and ultrafine particles, ensuring a safer and healthier environment for all 3D printing enthusiasts and professionals.
