Achieving clean overhangs in Fused Deposition Modeling (FDM) 3D printing is often considered a litmus test for a printer's calibration and a user's expertise. An overhang, by definition, is any part of a 3D print that extends outwards without direct support from the layer below. As the molten plastic is extruded into thin air, gravity and the material's inherent properties come into play, determining whether the layer sags, curls, or forms a perfect extension. While general principles apply, the optimal strategy for managing these unsupported printing features varies significantly across different filament types, with PLA, PETG, and ABS each presenting unique challenges and opportunities.
Understanding the challenge of PLA overhangs
Explore the
Snapmaker U1
PLA (Polylactic Acid) is often lauded for its ease of use, and this reputation generally extends to its overhang performance. PLA's relatively low melting point and quick solidification make it quite forgiving when it comes to unsupported structures. The rapid cooling allows freshly extruded layers to stiffen quickly, minimizing sag and enabling steeper angles without the need for extensive support.
- Optimal Angles: PLA can often achieve impressive overhangs, with many users successfully printing angles up to 60-70 degrees without dedicated supports. Beyond this, minor imperfections might appear, but significant failure is less common than with other materials.
- Material Properties at Play: The low glass transition temperature (Tg) of PLA means it cools and hardens rapidly after extrusion. This characteristic is a double-edged sword: excellent for bridging and overhangs, but potentially problematic for warping on very large, flat prints if cooling is uneven.
- Strategies for Success: Aggressive part cooling is typically beneficial for PLA overhangs. A well-tuned cooling fan can make a significant difference. Furthermore, optimizing print speed and layer height can fine-tune results. Slower speeds give each layer more time to cool, while smaller layer heights reduce the amount of unsupported material per layer.

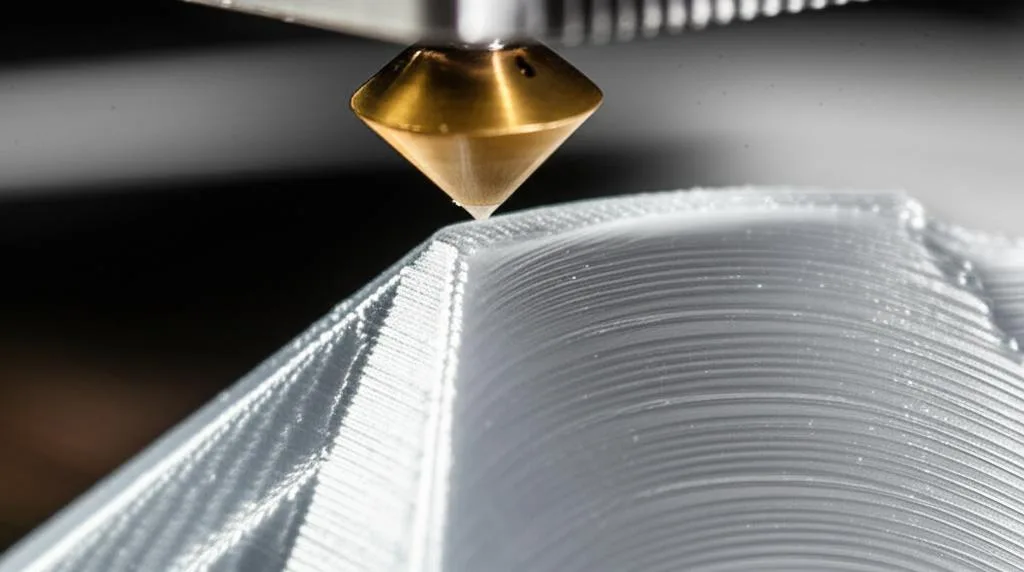

PETG (Polyethylene Terephthalate Glycol) offers a compelling balance of strength, flexibility, and ease of printing, but its overhang performance sits somewhere between PLA and ABS. It's known for its stickiness and tendency to string, which can complicate unsupported printing.
- Optimal Angles: PETG generally performs best with overhangs up to 45-55 degrees without supports. Pushing beyond this often leads to noticeable curling, stringing, or a 'blobby' appearance as the material struggles to solidify cleanly.
- Material Properties at Play: PETG's higher melting point and inherent stickiness mean it doesn't cool as rapidly as PLA. This can lead to layers sagging before they fully solidify. Its elastic nature also contributes to stringing, where fine strands of plastic are pulled between features, including overhangs.
- Strategies for Success: Unlike PLA, PETG often benefits from less aggressive cooling, or at least highly controlled cooling. Too much cooling can cause delamination, while too little leads to sag. Slower print speeds are crucial for PETG overhangs, giving the material more time to settle. Careful calibration of retraction settings (distance and speed) is also vital to combat stringing and improve overhang quality.
Mastering ABS overhangs
ABS (Acrylonitrile Butadiene Styrene) is prized for its durability, heat resistance, and post-processing capabilities, but it is arguably the most challenging of the three materials when it comes to printing overhangs without support. Its significant thermal expansion and contraction are the primary culprits.
- Optimal Angles: ABS typically struggles with steep angles, often requiring supports for anything beyond 40-45 degrees to ensure structural integrity and aesthetic quality. Even at shallower angles, quality can be compromised if environmental conditions are not ideal.
- Material Properties at Play: The high glass transition temperature and substantial thermal contraction of ABS mean it warps and curls readily as it cools. This tendency is exacerbated on unsupported overhangs, where the material is exposed to ambient air and cools unevenly. Without a controlled environment, layers can delaminate or curl upwards significantly.
- Strategies for Success: Printing ABS requires an enclosed printer and a heated build chamber to maintain a stable, warm ambient temperature. This minimizes the temperature differential between the extruded plastic and the surrounding air, significantly reducing warping and curling on overhangs. Part cooling fans are often kept off or at a very low setting for ABS to promote even cooling. Optimized print speed, ensuring good layer adhesion, and a heated bed are all non-negotiable for successful ABS printing, especially for steep angles.

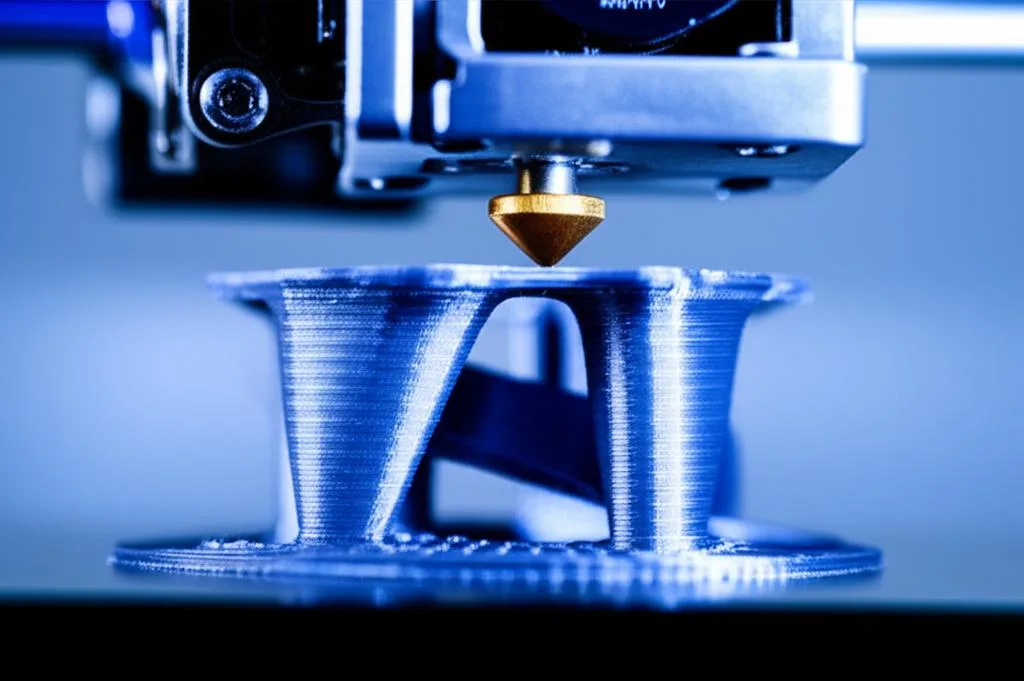

Conclusion: A tailored approach to unsupported printing
Ultimately, achieving pristine overhangs is a nuanced art, heavily dependent on the specific material's properties. While PLA excels with rapid cooling and can handle steep angles, PETG demands a balance of cooling and careful retraction to mitigate its stickiness. ABS, on the other hand, necessitates a controlled, warm environment to combat its propensity for warping and curling. Understanding these material-specific nuances and adjusting your printer settings accordingly—from cooling fan speed to print temperature and speed—is key to unlocking superior print quality for unsupported printing features across the spectrum of common 3D printing filaments. Experimentation and iterative refinement of settings will always be your best allies in mastering the art of the overhang.
