A common nemesis for any 3D printing enthusiast is the dreaded nozzle clog. These insidious blockages can ruin prints, waste filament, and generally lead to a frustrating experience. While various methods exist for tackling clogs, one of the most effective and widely recommended advanced nozzle cleaning techniques is the cold pull 3D printer method, also known as an atomic pull or filament pull. This guide will walk you through the process, helping you master this essential skill to keep your hot end running smoothly.
Understanding nozzle clogs: the enemy you're fighting
Before diving into the solution, it's crucial to understand the problem. Nozzle clogs occur when molten filament solidifies or foreign particles accumulate inside the hot end, impeding the flow of new material. These can manifest in various ways, from partial blockages leading to underextrusion to complete obstructions that halt printing altogether.
- Partial clogs: Often caused by small debris, heat creep, or filament swelling. Symptoms include inconsistent extrusion, stringing, and thin print layers.
- Full clogs: A complete blockage where no filament can pass through. This usually results in the extruder motor skipping steps as it tries to push filament against an immovable obstruction.
- Material-related clogs: Can stem from carbonized filament (especially after printing at high temperatures), dust and debris from poorly stored filament, or heat creep causing filament to soften prematurely in the cold end.
Symptoms of a clogged nozzle
Recognizing the signs early can prevent further damage or wasted prints. Look out for:
- No filament extruding from the nozzle.
- Clicking or grinding noises from the extruder motor.
- Severely underextruded lines or gaps in print layers.
- Poor layer adhesion or weakened prints.
- Filament grinding at the extruder gears.
Why choose the cold pull method?
When faced with a stubborn clog, you have several options, each with its own advantages and considerations regarding effectiveness, effort, and potential cost. The cold pull stands out as a highly effective, low-cost, and relatively non-invasive technique for remove stubborn clog issues.
- Effectiveness: Unlike simply poking with a needle, a cold pull attempts to extract the entire obstruction, including any carbonized material or debris lodged deeper within the nozzle or heat break.
- Cost-efficiency: It primarily uses a small amount of sacrificial filament, making it significantly cheaper than replacing a nozzle. Compared to specialized cleaning filaments, it often provides a more aggressive and thorough cleaning for severe clogs.
- Reduced risk of damage: While disassembling the hot end offers a complete cleaning, it carries a higher risk of damaging delicate components. The cold pull minimizes this risk by keeping the hot end largely intact.
- Comprehensive cleaning: It effectively cleans the internal geometry of the nozzle and the heat break, areas often difficult to reach with other methods.
While a brand-new nozzle is a guaranteed solution for a clogged one, a successful cold pull can save you the material cost and the time required for a replacement, making it a highly valuable tool in your 3D printing troubleshooting arsenal.
Preparing for a cold pull: essentials and safety
Explore the
Snapmaker U1
Before you begin, gather your tools and ensure a safe working environment. Safety first!
Tools needed
- Your 3D printer, obviously.
- A roll of sturdy filament (PLA or PETG are excellent choices due to their rigidity; avoid flexible filaments). A lighter color is often preferred as it makes it easier to inspect the extracted clog.
- Needle-nose pliers or tweezers.
- Wire cutters (optional, for a clean filament cut).
- Heat-resistant gloves (recommended for handling the hot end).
Safety precautions
- Always be mindful of the hot end's temperature. It can cause severe burns.
- Ensure your printer is stable and won't move unexpectedly.
- Avoid touching electrical components while the printer is powered.
- If you're unsure about any step, consult your printer's manual or seek expert advice.
The step-by-step cold pull process
This is the core of the hot end cleaning technique. Follow these steps carefully for the best chance of success.

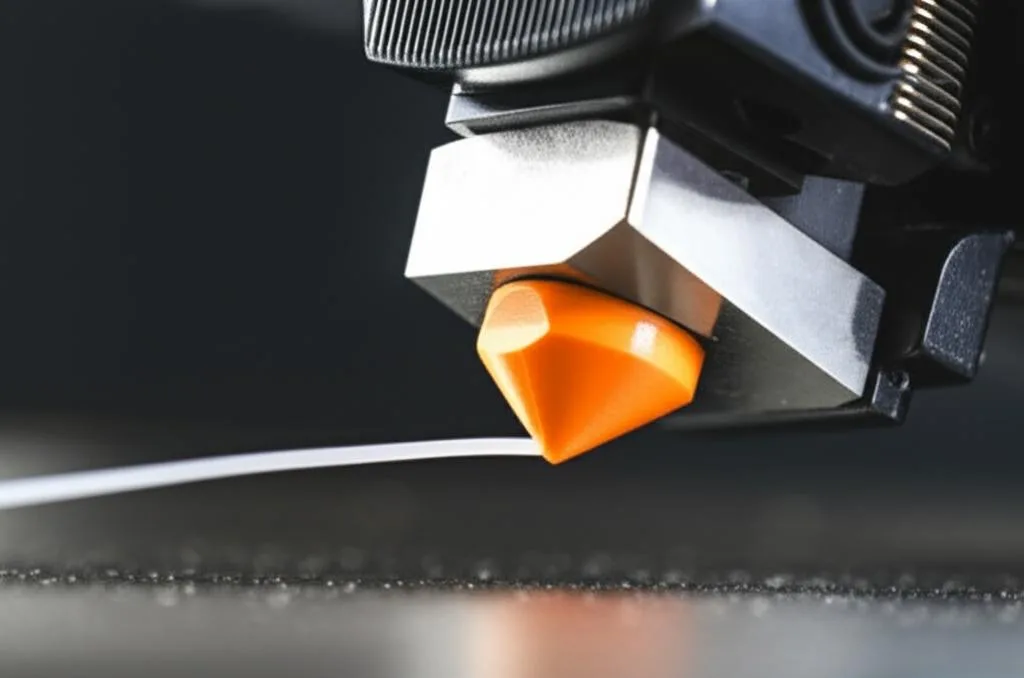

Step 1: Heat the hot end and load filament
First, heat your hot end to a temperature slightly higher than the typical printing temperature for the filament you plan to use for the cold pull (e.g., 230-240°C for PLA, 250-260°C for PETG). Once at temperature, manually push the chosen filament (e.g., PLA or PETG) through the hot end until it extrudes cleanly. This ensures the new filament fills the nozzle and pushes out any easily removable material.
Step 2: Push new filament through
Continue pushing about 10-20mm of new filament through the nozzle. You should see it extrude smoothly. This step helps to ensure the new, clean filament makes good contact with the clog and fills the entire volume of the hot end, ready to encapsulate the debris.
Step 3: Cool down to the optimal temperature
This is the critical part of the filament pull. Reduce the hot end temperature to the optimal "pulling" temperature. This temperature is specific to the filament type and is usually just above its glass transition temperature, where it becomes rigid enough to pull out the clog but still soft enough to release from the hot end walls without breaking. For PLA, this is often between 90-110°C. For PETG, it might be 120-140°C. Allow the hot end to cool to this temperature, which may take a few minutes.
Step 4: The pull
Once the hot end reaches the target temperature, gently but firmly pull the filament straight up and out of the hot end. Do not yank it. Apply steady, increasing pressure. You should feel some resistance, and then ideally, the filament should come out with a "pop" or a distinct release. If it breaks, don't worry, you can try again.
Step 5: Inspect and repeat
Examine the tip of the extracted filament. It should have a perfect mold of the inside of your nozzle, including the tip, and possibly some dark or discolored material (the clog itself). If the tip is jagged, broken, or doesn't show a clear imprint of the nozzle, the pull was not successful, or the filament broke prematurely. Repeat the process from Step 1 until the filament tip comes out clean and perfectly formed.
Optimal temperatures for different filaments
Finding the sweet spot for the pulling temperature is key. Here are some general guidelines, but always test with your specific filament and printer:
- PLA: 90-110°C
- PETG: 120-140°C
- ABS: 140-160°C
- Nylon: 160-180°C
Experiment within these ranges. A temperature that's too high will result in the filament stretching or leaving residue; too low, and it will break.

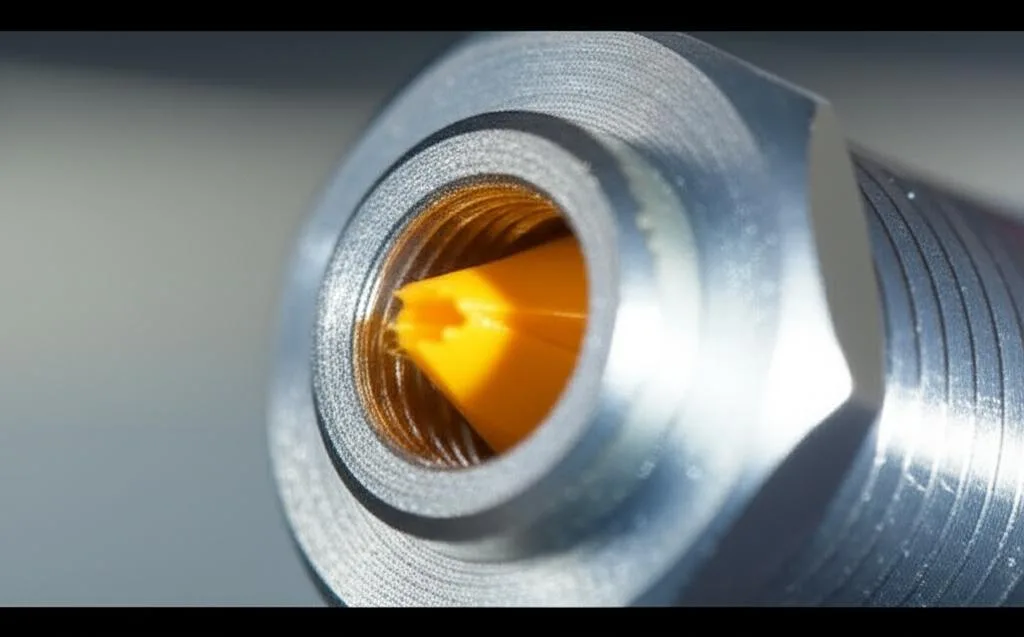

Troubleshooting common cold pull issues
Even with the right technique, you might encounter some hiccups.
Filament breaks
If the filament consistently breaks during the pull, it's likely too cold or you're pulling too aggressively. Increase the pulling temperature by 5-10°C and try again. Ensure you're pulling straight up with steady force.
Clog persists
If, after several attempts, the clog remains or the filament tip doesn't come out clean, the clog might be too severe or deeply embedded. In such cases, consider increasing the initial heating temperature slightly or using a different, stiffer filament for the pull.
When a cold pull isn't enough: alternative solutions
While the cold pull is a powerful advanced nozzle cleaning technique, there are instances where more drastic measures are required. Understanding these alternatives helps in deciding the best course of action, comparing the effort, risk, and material cost involved.
Nozzle replacement
If a clog is truly intractable, or if the nozzle has been damaged (e.g., by abrasive filaments or repeated hot/cold cycles), replacing the nozzle is often the most straightforward solution. This incurs the direct cost of a new nozzle but guarantees a clean, unblemished extrusion path. It's generally a simple process, but care must be taken to avoid overtightening or damaging the heat break.
Hot end disassembly
For persistent clogs that extend into the heat break or for general preventative maintenance, a full hot end disassembly and manual cleaning might be necessary. This is the most thorough approach but also the most labor-intensive and carries the highest risk of damaging components if not done carefully. It involves disconnecting wires, removing the heat block, and meticulously cleaning each part. This method represents a higher investment of time and potential for component replacement if mistakes are made, compared to the quick and low-risk cold pull.
Preventative measures for a clog-free printing experience
An ounce of prevention is worth a pound of cure. Implement these habits to minimize future clogs:
- Filament management: Store filament in dry, sealed containers to prevent moisture absorption and dust accumulation.
- Regular maintenance: Periodically clean your extruder gears and hot end exterior. Consider performing a cold pull as preventative maintenance every few weeks or after printing with particularly problematic filaments.
- Proper print settings: Ensure your retraction settings are optimized to prevent heat creep and filament grinding. Avoid excessively high print temperatures that can lead to carbonization.
- Use a filament filter: A simple foam or sponge filter can wipe dust off your filament before it enters the extruder.
- "Atomic pull" after abrasive filaments: If you print with carbon fiber or glow-in-the-dark filaments, perform a cold pull with PLA afterwards to clear out any remaining abrasive particles.
Mastering the cold pull is an invaluable skill for any 3D printer owner. By understanding its mechanics, practicing the technique, and knowing when to apply it, you can effectively tackle most stubborn nozzle clogs, extend the life of your hot end, and ensure consistently high-quality prints. Keep these tips in mind, and you'll be well on your way to a smoother, clog-free 3D printing journey.
