Mastering multi-material 3D printing: Integrating and calibrating ERCF or MMU systems on your existing printer

Multi-material 3D printing represents a significant leap forward in additive manufacturing, empowering enthusiasts and professionals alike to produce parts with enhanced functionality, intricate aesthetics, and improved mechanical properties. The ability to combine different colors, textures, or even material types within a single print opens up a world of possibilities, from vibrant artistic creations to complex functional prototypes. However, transforming a standard single-extruder 3D printer into a multi-material powerhouse requires careful consideration of hardware modifications, particularly the integration and calibration of a reliable filament changing system. This guide delves into two prominent solutions: the Prusa Multi-Material Unit (MMU) and the open-source Enraged Rabbit Carrot Feeder (ERCF) system, offering an objective comparison of their features, cost structures, and the intricacies involved in their setup.

Understanding the appeal of multi-material 3D printing

Before diving into the technicalities, it's worth appreciating why multi-material 3D printing is a coveted upgrade. Traditional FDM (Fused Deposition Modeling) printers are limited to a single filament per print, restricting design choices. Multi-material capabilities break these barriers, allowing for:

• Aesthetic Versatility: Printing objects with multiple colors, creating striking visual effects and detailed logos without post-processing.
• Functional Enhancement: Combining materials with different properties, such as rigid plastics with flexible elastomers, or support materials that dissolve easily, leading to more complex and robust parts.
• Improved Print Quality: Using dedicated support materials can result in cleaner overhangs and less scarring on the final print surface.

At its core, a multi-material system enables a single hotend to process multiple filaments sequentially. This is achieved by mechanisms that load and unload different filament strands as dictated by the print G-code, often requiring a purge block or prime tower to ensure color transitions are clean and the nozzle is properly primed for the new material.

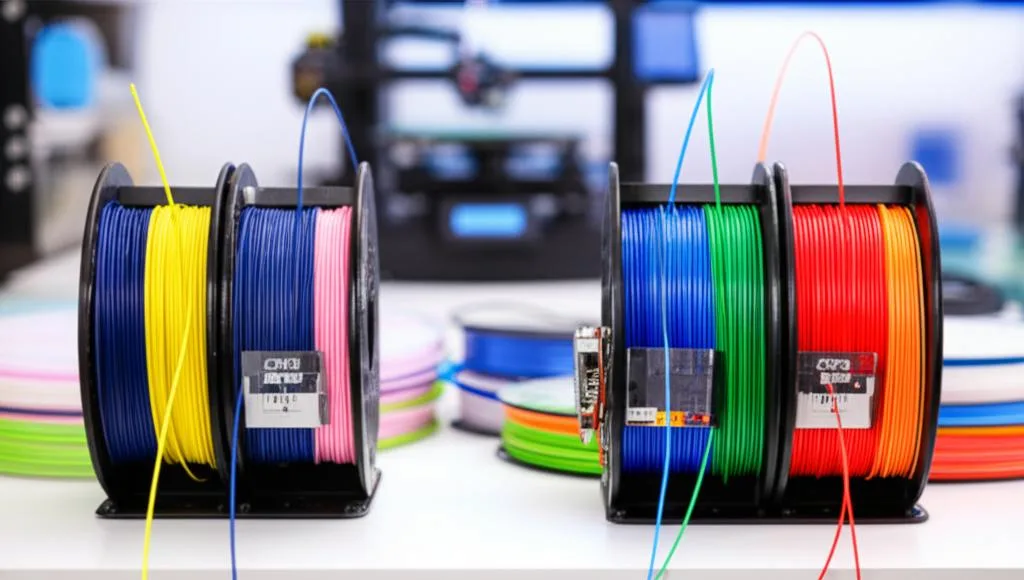

Exploring the leading filament changing systems: ERCF vs. MMU

When considering advanced 3D printer mods for multi-material capabilities, the Prusa MMU and ERCF systems stand out as popular choices, each with distinct philosophies and implementation approaches.

The Prusa Multi-Material Unit (MMU) system

The Prusa MMU is a proprietary, integrated solution primarily designed for Prusa's own line of i3 MK3S+ 3D printers. It represents a highly refined and well-supported ecosystem for multi-material printing.

• Features: The MMU2S (the latest iteration) typically supports up to five different filaments. It features a selector mechanism that moves a single PTFE tube to align with the desired filament. A built-in idler and drive gears push the filament into the hotend. It also incorporates a filament buffer to manage excess filament during unloading and ensure smooth loading.
• Integration: Designed as a direct upgrade for specific Prusa printers, its integration is relatively seamless, leveraging Prusa's custom firmware and the powerful PrusaSlicer software, which includes dedicated profiles and features for MMU operation.
• Cost Structure: The MMU is sold as a complete kit, including all necessary mechanical parts, electronics, and a new extruder body. The cost is a fixed price, reflecting the research, development, and support provided by Prusa Research. While the initial investment might seem higher than a purely DIY solution, it includes the assurance of a cohesive system and manufacturer support. Replacement parts are typically sourced directly from Prusa.
• Complexity: For existing Prusa users, the Prusa MMU upgrade is generally considered a plug-and-play experience, albeit one that still requires careful assembly and calibration. The documentation provided by Prusa is comprehensive and well-regarded.

The Enraged Rabbit Carrot Feeder (ERCF) system

In stark contrast to the MMU's proprietary nature, the ERCF is an open-source, community-driven project that emphasizes modularity, flexibility, and adaptability. It's often the preferred choice for users with non-Prusa printers or those who enjoy a more hands-on, DIY approach.

• Features: ERCF systems can support a varying number of filaments, often ranging from 4 to 9 or more, depending on the chosen configuration and the user's requirements. It typically uses a rotary selector mechanism to present the chosen filament to a common drive unit, which then feeds it to the hotend. The design is highly customizable, allowing users to print many of the necessary parts themselves.
• Integration: Due to its open-source nature, the ERCF offers broad compatibility across a wide range of 3D printers, especially those running Klipper firmware. Integration requires more effort, including mechanical assembly, custom wiring, and extensive firmware configuration.
• Cost Structure: The cost of an ERCF system is highly variable. Users typically source individual components: stepper motors, sensors, fasteners, PTFE tubing, and a controller board (often a spare mainboard or a dedicated low-cost board like an ESP32 or a BTT SKR Mini E3). A significant portion of the mechanical parts are 3D printable, reducing material costs but requiring print time and filament. The overall cost can potentially be lower than a proprietary system if components are sourced efficiently or if the user already possesses some parts. However, the time investment for assembly and configuration is higher.
• Complexity: The ERCF installation guide typically involves detailed mechanical assembly, soldering (for some sensor setups), and in-depth Klipper firmware configuration, including writing custom macros for filament loading, unloading, and tool changes. This makes it a more challenging but ultimately more flexible and rewarding project for experienced users.

Comparative analysis: Features and cost structures

Deciding between an ERCF and an MMU system involves weighing several factors, particularly concerning flexibility, cost, and the level of technical engagement desired.

1. Flexibility and compatibility

• MMU: Highly integrated but largely confined to the Prusa ecosystem. If you don't own a compatible Prusa printer, the MMU is not a viable option without significant, unofficial modifications.
• ERCF: Offers unparalleled flexibility. It can be adapted to virtually any FDM printer, regardless of brand, provided you are willing to undertake the necessary mechanical and firmware modifications. This makes it an excellent choice for users looking to upgrade non-Prusa machines.

2. Cost of entry

• MMU: Presents a clear, upfront cost for a complete kit. This includes all parts, documentation, and access to Prusa's renowned customer support. While the initial outlay might be higher than a bare-bones ERCF, it offers a predictable expenditure.
• ERCF: The cost is distributed and highly dependent on the user's approach. If you already have a collection of spare parts (motors, sensors) or can source components economically, the cash outlay can be significantly lower. However, the 'cost' also includes a substantial investment of time for research, sourcing, printing parts, assembly, and configuration. Consider the value of your time when assessing the true cost.

3. Installation and setup difficulty

• MMU: Generally considered more straightforward for Prusa owners due to official guides and integrated software. It's still a complex upgrade, but the path is well-defined.
• ERCF: Requires a higher degree of technical proficiency. Mechanical assembly can be intricate, wiring needs to be done correctly, and the Klipper firmware configuration demands a solid understanding of G-code, macros, and printer kinematics. This is a project for those comfortable with significant DIY effort and troubleshooting.

4. Software and firmware integration

• MMU: Benefits from tight integration with Prusa's firmware and PrusaSlicer. This means dedicated profiles, robust error handling, and a user-friendly experience within the Prusa ecosystem.
• ERCF: Primarily thrives in the Klipper environment, leveraging its powerful macro system for filament management. Users will need to write or adapt existing Klipper macros. While Marlin support exists, Klipper is generally the more feature-rich and flexible platform for ERCF. Slicer setup involves custom start/end G-code and tool change scripts.

5. Maintenance and support

• MMU: Prusa provides official support channels, replacement parts, and a large community of users. Troubleshooting often involves following official guidelines.
• ERCF: Relies heavily on community forums (e.g., Discord, Reddit, GitHub) for support. While the community is vibrant and helpful, solutions are often community-derived and may require more self-reliance in diagnosing and fixing issues. Parts are generic, making replacements easy to source, but without a single point of official support.

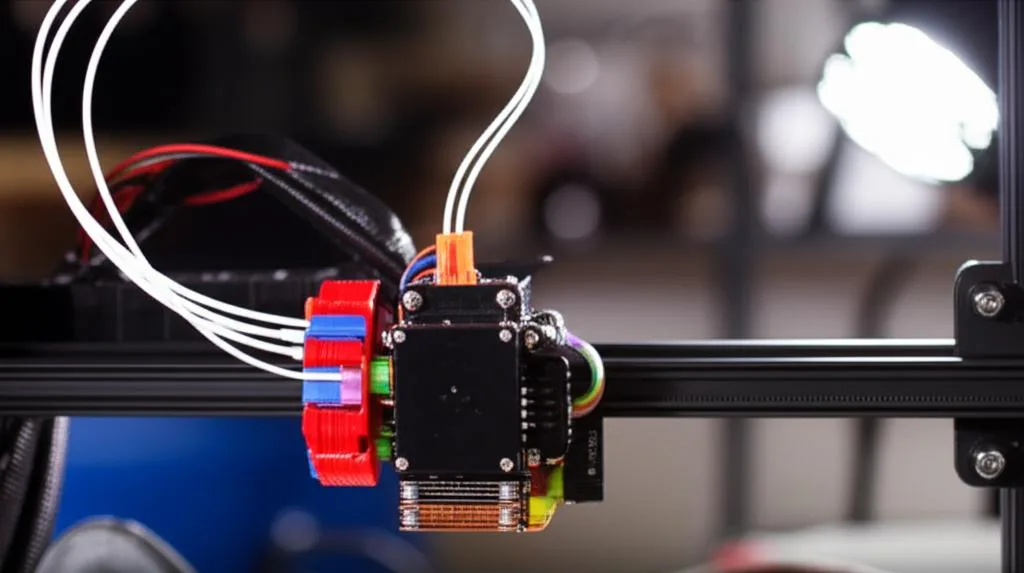

Integrating your filament changing system: A general guide

Regardless of whether you choose an ERCF or MMU, the integration process shares common principles, albeit with specific nuances for each system. This section provides a general framework for integrating a filament changing system.

Pre-installation considerations

• Printer Compatibility: Ensure your printer's mainboard has enough free stepper drivers and I/O pins for the additional motors and sensors. For ERCF, Klipper firmware is highly recommended for its flexibility.
• Workspace: Prepare a clean, well-lit workspace.
• Tools: Gather essential tools: screwdrivers, Allen keys, wire strippers, crimpers, multimeter, soldering iron (for ERCF), and potentially a 3D printer for ERCF parts.
• Documentation: Thoroughly review the official Prusa MMU manual or the ERCF project documentation (GitHub, community guides) before starting.

Mechanical assembly

This phase involves physically attaching the multi-material unit to your printer and setting up the filament paths.

• Mounting the Unit: The MMU typically mounts directly on top of the Prusa i3 frame. ERCF units are more versatile, often mounted to the side of the printer frame, on an enclosure, or even directly to the printer's gantry, requiring custom brackets.
• Filament Path: Carefully route PTFE tubes from your filament spools, through any filament buffers (essential for both systems to manage filament slack), into the multi-material unit, and finally to your hotend. Ensure these paths are as straight and unobstructed as possible to minimize friction and prevent jams.
• Extruder Modification: Both systems may require modifications to your printer's existing extruder. For the MMU, this often involves replacing the stock extruder with a specific MMU-compatible version (e.g., Bondtech gears). For ERCF, you might need to ensure your extruder is capable of fast, reliable retractions and has a clean filament path to accept the pushed filament.

Electrical wiring

Connecting the motors, sensors, and power supply is a critical step.

• MMU: Connects to the Prusa mainboard via a dedicated cable harness, simplifying the process.
• ERCF: Involves wiring multiple stepper motors (for the selector and drive unit), various endstop or filament presence sensors, and potentially a dedicated controller board. This may require crimping JST connectors or soldering, depending on your chosen components. Ensure correct polarity and pin assignments to avoid damage.

Firmware configuration

This is where your printer learns to communicate with the new hardware.

• MMU: Requires updating your Prusa i3 MK3S+ firmware to the MMU-compatible version. PrusaSlicer then handles the specific G-code generation and settings.
• ERCF (Klipper): This is the most involved step. You will need to modify your printer.cfg file extensively. This includes:
  • Defining each stepper motor for the ERCF selector and drive.
  • Configuring all filament presence sensors (IR, optical, microswitch).
  • Creating custom Klipper macros for:
    • T<tool_number> (tool change) to unload the current filament, move the selector, load the new filament, and purge.
    • LOAD_FILAMENT and UNLOAD_FILAMENT for manual control.
    • Filament runout detection and recovery.
  • Integrating these macros into your start and end G-code scripts.

  This phase demands meticulous attention to detail and thorough testing.

Slicer setup

Your slicer needs to be configured to generate G-code for multi-material prints.

• PrusaSlicer (MMU): Select your Prusa printer with the MMU profile. The software automatically handles tool changes, purge blocks, and related settings.
• Orca Slicer/Cura (ERCF): You'll need to define multiple extruders (even though you have one hotend) and configure custom G-code for tool changes. This involves calling your Klipper macros (e.g., T0, T1, etc.) at the appropriate points in the print. You'll also need to configure purge volumes and potentially enable a purge tower or prime tower to ensure clean color transitions.

Calibration essentials for multi-material printing

Once integrated, precise calibration is paramount for reliable multi-material 3D printing. Skipping this step often leads to frustration and failed prints.

1. Filament Loading/Unloading Lengths and Speeds:
   • MMU: Prusa's firmware has default values, but fine-tuning may be needed.
   • ERCF: You'll define these in your Klipper macros. Experiment with speeds and lengths to ensure filament loads smoothly into the hotend and unloads completely without snagging or leaving residual material. Too slow, and changes are lengthy; too fast, and jams can occur.
2. Tool Change Sequence Optimization:
   • Refine the sequence of retractions, movements, purges, and primes. The goal is to minimize time and filament waste while ensuring a perfect transition.
   • Consider the 'wipe' action after unloading to clean the nozzle before loading the new filament.
3. Purge Volume Calibration:
   • This is crucial for preventing color bleeding or material contamination. Print small test cubes with color changes and adjust the purge volume (either in your slicer or Klipper macros) until the new color is pure.
   • Balancing purge volume between minimal waste and sufficient cleanliness is key.
4. First Layer Calibration (Per Material):
   • Different filaments (even different colors of the same type) can have slightly different extrusion characteristics. Ensure your first layer is perfect for each material used, adjusting Z-offset if necessary.
5. Retraction Settings:
   • Critical for preventing stringing and clogs during filament changes. Calibrate retraction length and speed for each material, especially when switching between different types (e.g., PLA to PETG).
6. Pressure Advance (Klipper users):
   • If using Klipper, calibrate pressure advance for each filament. This helps prevent blobs and stringing at the start and end of lines, which is especially important during frequent material changes.
7. Temperature Towers:
   • Always print temperature towers for each new spool of filament to find its optimal printing temperature. This ensures consistent extrusion and adhesion across all materials in a multi-material print.

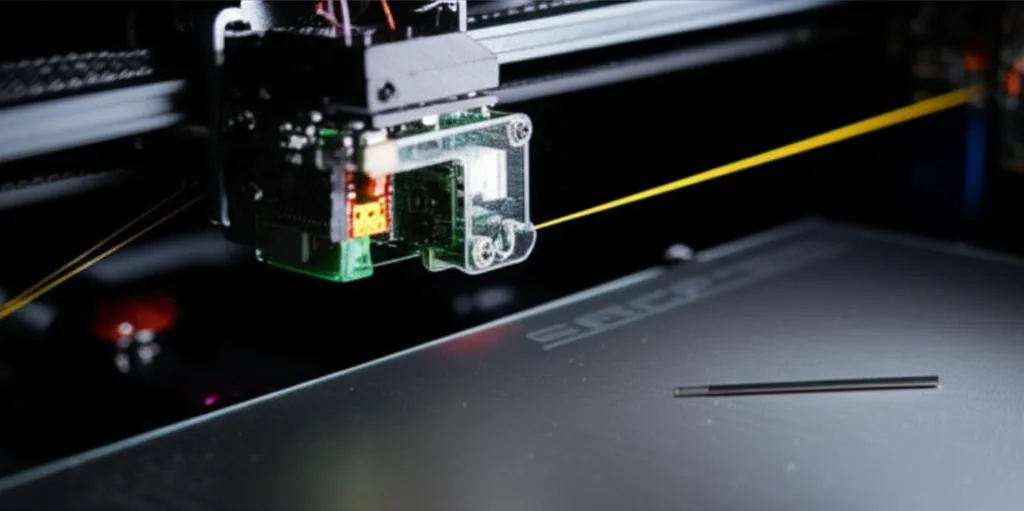

Advanced considerations and troubleshooting

Even after successful integration and calibration, a few advanced tips can enhance your filament changing system experience.

• Filament Buffers: These devices manage the slack created when filament is unloaded from the hotend but not yet fully retracted by the multi-material unit. A well-designed buffer prevents tangles and ensures smooth re-loading. Both MMU and ERCF benefit greatly from effective buffering.
• Humidity Control: Multi-material prints can take a long time, exposing filaments to ambient humidity for extended periods. Store your filaments in dry boxes, especially hygroscopic materials like PETG, Nylon, and ABS, to prevent print failures and maintain material properties.
• Common Issues:
  • Jams: Often caused by incorrect loading/unloading lengths, overly tight filament paths, or heat creep. Check PTFE tube integrity and hotend cooling.
  • Misfeeds: Ensure drive gears are clean and tensioned correctly. Filament sensors might be misaligned or faulty.
  • Color Bleeding: Increase purge volume or optimize wipe routines.
  • Failed Tool Changes: Review firmware macros, check sensor functionality, and inspect mechanical components for binding.
• Community Resources: For ERCF users, the Discord servers and GitHub repositories are invaluable resources for troubleshooting and sharing configurations. Prusa's forums are excellent for MMU support.

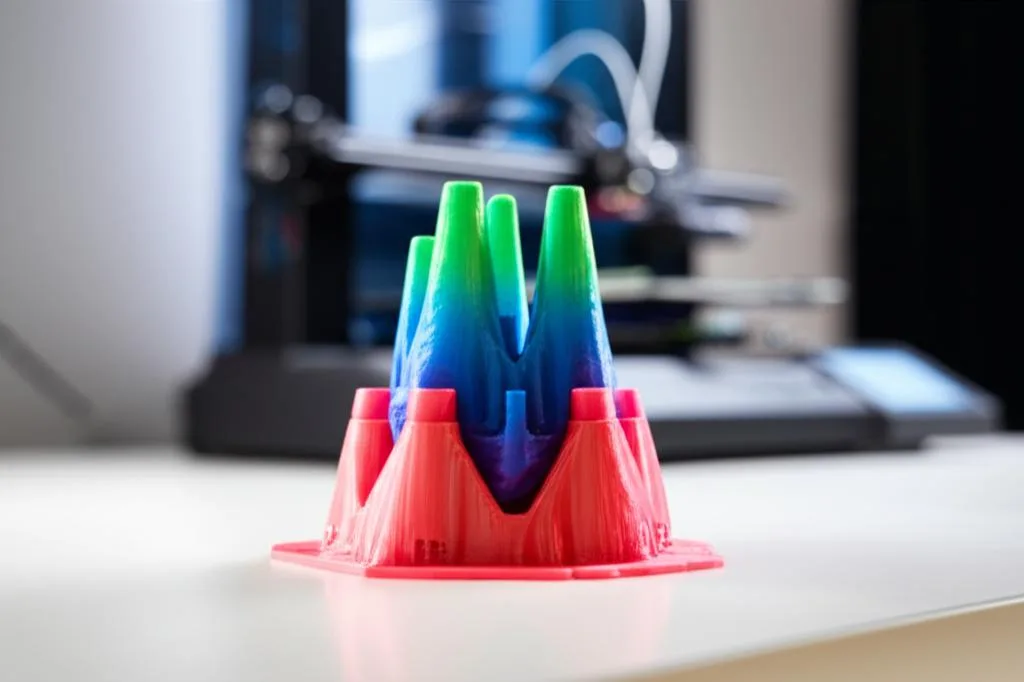

Conclusion

Embracing multi-material 3D printing opens up a new dimension of creativity and functionality for your projects. Both the Prusa MMU and the ERCF system offer robust pathways to achieve this, but they cater to different user profiles and printer ecosystems. The MMU provides a polished, integrated experience primarily for Prusa printer owners, with a predictable cost and strong manufacturer support. The ERCF, conversely, champions an open-source, highly customizable approach, offering broad compatibility and potentially lower component costs for those willing to invest significant time and effort in a DIY build. Neither option is inherently "better" or "cheaper" in all scenarios; the optimal choice hinges on your existing printer, technical comfort level, budget, and willingness to engage in a more hands-on upgrade. By carefully considering the features, cost structures, and integration complexities outlined in this guide, you are now equipped to make an informed decision and embark on your journey into the exciting world of multi-color and multi-material 3D printing.
