Mastering E-steps calibration: Achieve precise filament extrusion every time

In the intricate world of 3D printing, precision is paramount. Every layer, every curve, and every dimension hinges on the exact amount of plastic extruded by your printer. This is where E-steps calibration comes into play – a fundamental process that ensures your extruder motor pushes precisely the right length of filament for flawless prints. Without accurate E-steps, your printer might suffer from under-extrusion, leaving gaps and weak layers, or over-extrusion, leading to blobs, stringing, and dimensional inaccuracies. Mastering this calibration is not just a technical chore; it's the cornerstone of achieving consistent, high-quality results every single time.

Understanding E-steps and filament extrusion

Explore the
Snapmaker U1

Meet the U1

The extruder is the heart of your 3D printer's material delivery system. Its primary role is to feed filament through the hotend and out of the nozzle. The 'E' in E-steps stands for 'Extruder,' and the 'steps' refer to the number of stepper motor movements required to push a specific length of filament, typically one millimeter. This value is determined by a combination of your stepper motor's resolution, the gear ratio of your extruder (if it's geared), and the effective diameter of the drive gear that grips the filament.

Accurate filament extrusion is crucial because it directly controls how much material is deposited on the print bed. If your printer thinks it's extruding 100mm but only pushes 95mm, your prints will be starved of material. Conversely, if it pushes 105mm, your prints will be bloated and dimensionally incorrect. These discrepancies, even minor ones, accumulate over hundreds or thousands of layers, leading to significant print quality issues.

The consequences of incorrect E-steps

• Under-extrusion: This is perhaps the most common symptom of incorrectly calibrated E-steps. Prints will exhibit gaps between perimeters and infill, weak layer adhesion, brittle parts, and an overall 'airy' or 'thin' appearance. Fine details may be missing, and the print might even fail prematurely due to insufficient material.
• Over-extrusion: On the other end of the spectrum, over-extrusion results in excessive material being laid down. This manifests as blobs, stringing, oozing, and a generally 'messy' appearance. Dimensional accuracy suffers significantly, as features become thicker than intended, and the nozzle might even drag through previously printed layers, causing artifacts or clogs.
• General print quality issues: Beyond the obvious, incorrect E-steps can subtly degrade overall print quality. Layer lines might be inconsistent, surfaces may feel rougher than they should, and the structural integrity of your prints can be compromised. It's a foundational setting that impacts almost every aspect of your 3D printer's performance.

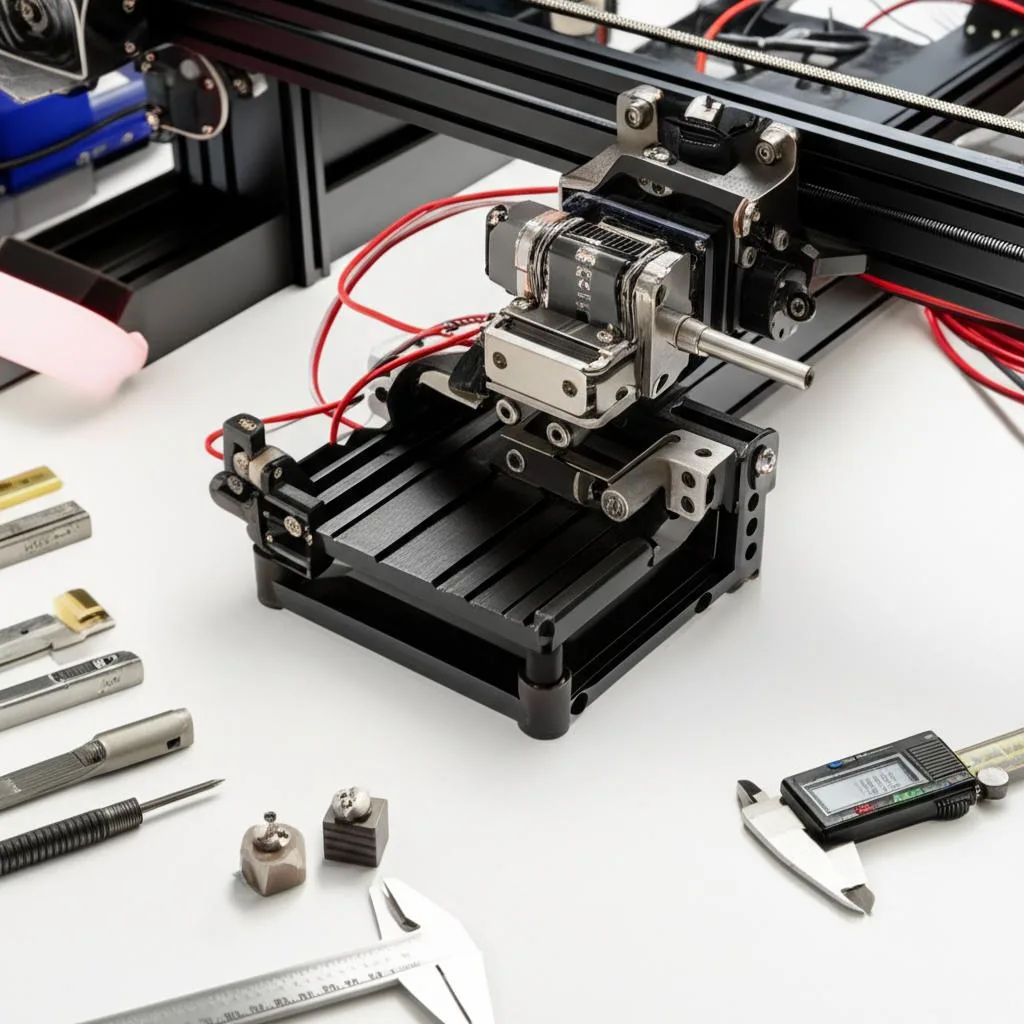

Preparing for E-steps calibration

Before diving into the calibration process, gathering the right tools and setting up your printer correctly will ensure accurate measurements and a smooth workflow. Precision at this stage translates directly to precision in your final E-steps value.

Essential tools and materials

• Ruler or digital caliper: A precise measuring tool is non-negotiable. While a good quality ruler can work, a digital caliper offers superior accuracy for measuring small lengths of filament.
• Marker or painter's tape: Used to clearly mark the filament for measurement. A fine-tip marker works best.
• Calculator: For crunching the numbers in the calibration formula. Your phone's calculator is perfectly adequate.
• Access to your printer's terminal or control panel: You'll need to send G-code commands to your printer. This can be done via a dedicated terminal program (like Pronterface or OctoPrint), through your slicer's terminal window, or directly via your printer's LCD control panel if it supports G-code commands.
• Filament: Use the type of filament you typically print with (e.g., PLA, PETG). While E-steps are largely filament-independent, different filaments can have slightly different friction characteristics, so it's good practice to use a representative one.

Initial printer setup

• Pre-heat the hotend: Heat your hotend to your typical printing temperature for the chosen filament (e.g., 200°C for PLA). This is crucial because filament extrudes differently when cold, and you want to simulate actual printing conditions as closely as possible.
• Ensure the nozzle is clear: A partially clogged nozzle will introduce back pressure and lead to inaccurate extrusion. Perform a cold pull or a quick purge to ensure the nozzle is completely clear.
• Disable any filament runout sensors: If your printer has a filament runout sensor, temporarily disable it or ensure it won't interfere with the manual extrusion process.
• Retract filament slightly: Before marking, retract the filament a few millimeters to ensure a clean, consistent starting point for your measurement.

Step-by-step E-steps calibration guide

This section will walk you through the precise process of fine-tuning your extruder steps for optimal filament extrusion. Follow each step carefully to ensure accurate results.

Step 1: Mark the filament

• Feed your filament into the extruder as you normally would for printing.
• Measure exactly 120mm from a fixed point on your extruder. A common fixed point is where the filament enters the extruder body or the top of the extruder stepper motor.
• Make a clear, visible mark on the filament at this 120mm point using your marker. The extra 20mm beyond the 100mm target extrusion provides a buffer for easier measurement.

Step 2: Prepare for extrusion

• If your printer uses a Bowden tube setup, disconnect the tube from the hotend side (the end closest to the nozzle). This allows the filament to extrude freely into the air, eliminating any back pressure or resistance from the hotend and nozzle, which could skew your results.
• For direct drive extruders, simply ensure the hotend is heated and clear, as described in the preparation section. There's no Bowden tube to disconnect.
• Confirm that your extruder motor is enabled and ready to receive commands.

Step 3: Extrude a known length

• Using your printer's control panel or a terminal command, instruct the printer to extrude exactly 100mm of filament.
• The G-code commands for this are typically:
  • G92 E0 (resets the extruder's current position to zero, ensuring an accurate start).
  • G1 E100 F100 (instructs the extruder to move 100 units of E-axis at a feed rate of 100mm per minute). The F100 feed rate is slow enough to prevent skipping but fast enough to be practical.
• Observe the extrusion. Listen for any unusual noises like skipping or grinding, which could indicate issues with your extruder or excessive resistance.

Step 4: Measure the actual extruded length

• Once the extrusion stops, carefully measure the distance from your fixed point on the extruder (the same point you measured from in Step 1) to the mark you made on the filament.
• To calculate the length of filament *actually extruded*, subtract this new measurement from your initial 120mm mark. For example, if you measured 23mm remaining from your mark to the fixed point, then your actual extrusion length was 120mm - 23mm = 97mm.

Step 5: Calculate the new E-steps value

• First, you need to know your printer's current E-steps value. You can usually find this in your printer's Marlin firmware configuration (Configuration.h file) or by sending the M92 G-code command without any parameters (e.g., just M92 or M92 E? in some terminals) and looking for the E-axis value.
• Now, use the following formula to calculate your new, corrected E-steps value:


  New E-steps = (Current E-steps * Desired Extrusion Length) / Actual Extrusion Length

• Let's use an example: If your current E-steps value is 93, your desired extrusion length was 100mm, and you actually extruded 97mm: New E-steps = (93 * 100) / 97 = 95.876. Round this to two decimal places for practical use (e.g., 95.88).

Step 6: Update your 3D printer settings

• Temporary change (for testing): To immediately apply the new E-steps value, send the G-code command M92 E[new_e_steps_value] (e.g., M92 E95.88). This change is active until the printer is reset or powered off.
• Permanent change:
  • Option A: Save to EEPROM: After sending the M92 E[new_e_steps_value] command, send M500. This command saves the current active settings to the printer's EEPROM (Electrically Erasable Programmable Read-Only Memory), making the change permanent across reboots. Most modern printers running Marlin firmware support this.
  • Option B: Firmware Update (Marlin firmware): If your printer doesn't support EEPROM saving, or if you prefer a more robust method, you'll need to modify your printer's firmware. Open the Configuration.h file in your Marlin firmware source code, locate the DEFAULT_AXIS_STEPS_PER_UNIT line, and change the E-value to your newly calculated E-steps. Then, recompile and flash the updated firmware to your printer. This method requires more technical skill but ensures the setting is hard-coded.
• Verify: After making the change (and saving to EEPROM or flashing firmware), it's good practice to send the M503 command (or M501 on some older firmware) to display the printer's current active settings. Confirm that your new E-steps value is indeed active.

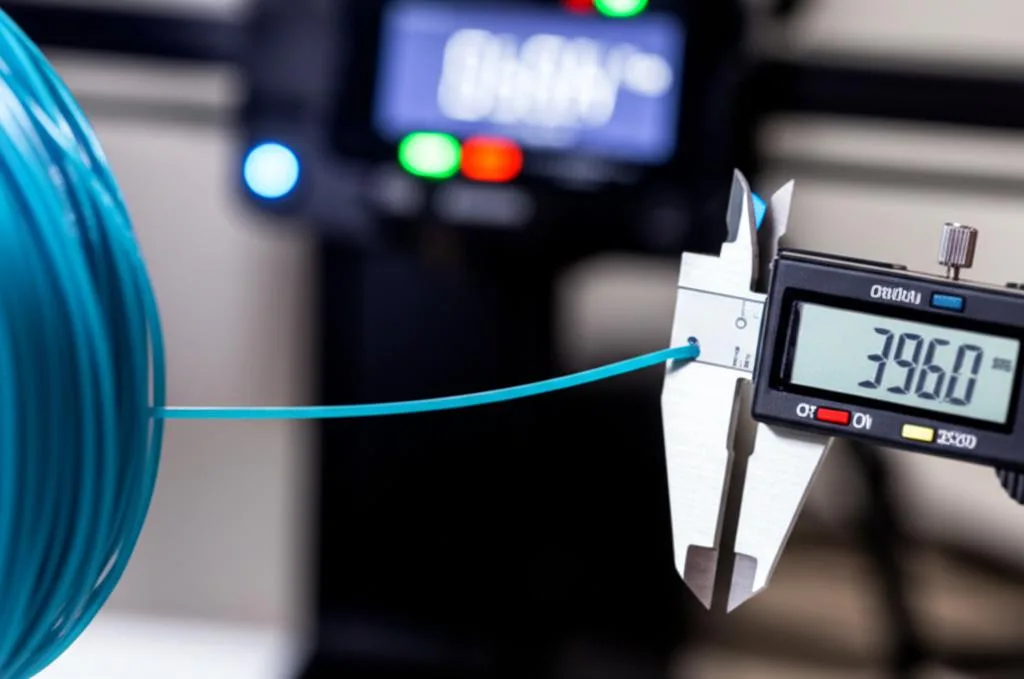

Verification and fine-tuning

After implementing your new E-steps value, it's crucial to verify the change and fine-tune your settings to ensure optimal performance. A single calibration might get you close, but a quick re-test and a practical print can confirm everything is spot on.

Re-test the extrusion

• Repeat Steps 1-4 of the calibration guide with your newly applied E-steps value.
• Ideally, you should now observe that the printer extrudes very close to the desired 100mm. A deviation of +/- 1mm is generally acceptable, but aiming for perfect is always the goal. If there's still a significant deviation, you can recalculate and apply the new value again, iterating until you achieve satisfactory accuracy.

Print a calibration cube

• While E-steps calibration ensures the correct amount of filament is pushed by the extruder motor, a calibration cube is an excellent real-world test for overall print quality and dimensional accuracy. Print a simple 20x20x20mm cube with 0% infill and 2 perimeters using your typical print settings.
• Once printed, measure the wall thickness of the cube. It should ideally match your nozzle diameter (e.g., 0.4mm) multiplied by the number of perimeters (e.g., 2 perimeters * 0.4mm nozzle = 0.8mm wall thickness).
• If the wall thickness is consistently too thin, you might still be slightly under-extruding. If it's too thick, you might be over-extruding. However, it's important to note: if your E-steps are accurately calibrated, wall thickness issues at this stage are more likely related to your slicer's flow rate (or extrusion multiplier) setting, rather than E-steps. E-steps dictates how many motor steps per mm of filament the extruder *tries* to push, while flow rate adjusts the *actual amount* of plastic that comes out relative to the intended amount, compensating for filament diameter variations or specific material properties.

Common pitfalls and troubleshooting

Even with a clear step-by-step guide, issues can occasionally arise during or after E-steps calibration. Here are some common problems and how to troubleshoot them effectively:

Filament slipping or grinding

• Cause: The extruder gear might not be gripping the filament sufficiently, or there could be excessive resistance preventing smooth extrusion. This can be due to insufficient extruder tension, a worn or dirty extruder gear, or a partially clogged hotend/nozzle.
• Solution: Check and adjust the idler tension on your extruder; it should be firm enough to grip without deforming the filament. Clean the extruder gear of any plastic debris, or replace it if it's visibly worn. Ensure your hotend is clear and heated to the correct temperature.

Inconsistent measurements

• Cause: Manual measurement errors are common. Using an imprecise ruler, inconsistent marking of the filament, or variations in filament diameter can all lead to inaccurate results.
• Solution: Always use a digital caliper for the most accurate measurements. Ensure your mark on the filament is precise and consistent relative to your fixed point on the extruder. Consider performing the extrusion test multiple times and averaging the results to minimize error.

Extruder motor skipping

• Cause: If your extruder motor skips steps during the 100mm extrusion test, it indicates it's encountering too much resistance. This could be a severely clogged nozzle (even after pre-heating), an insufficient hotend temperature for the filament, a stepper motor current that's set too low, or attempting to extrude too quickly.
• Solution: First, ensure your nozzle is completely clear and your hotend is at the correct temperature for the filament. Try reducing the extrusion speed by lowering the F value in your G1 command (e.g., G1 E100 F50). If skipping persists, you might need to investigate your stepper motor's VREF (voltage reference) setting, though this is an advanced adjustment and should be done with caution.

Settings not saving

• Cause: You might have forgotten to send the M500 command after setting the new E-steps, or your printer's firmware might have EEPROM saving disabled or a bug preventing it from saving.
• Solution: Always ensure you send M500 after M92 E[new_e_steps_value]. If problems persist, connect to your printer via a terminal and send M503 to see if EEPROM is enabled (look for EEPROM_SETTINGS in your Marlin firmware configuration if flashing). If all else fails, consider updating your Marlin firmware and hard-coding the E-steps value directly into Configuration.h.

Bowden tube issues

• Cause: For Bowden setups, if the tube slips within its couplers or has excessive internal friction, it can lead to inconsistent extrusion and affect your calibration.
• Solution: Ensure that your Bowden tube couplers are securely fastened and that the tube itself is not moving during extrusion. If the tube is old or worn, consider replacing it with a high-quality PTFE tube to reduce friction. This is why disconnecting the Bowden tube from the hotend side during calibration is a crucial step – it isolates the extruder from these potential issues.

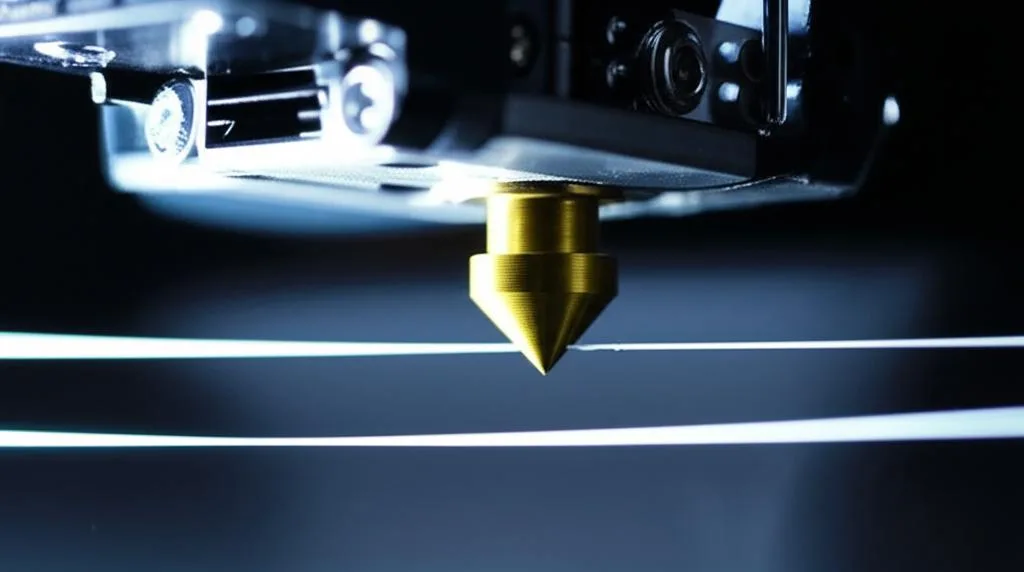

When to recalibrate your E-steps

While E-steps calibration is often a one-time adjustment for a given printer, certain modifications or persistent issues warrant a re-calibration. Knowing when to revisit this setting can save you a lot of troubleshooting headaches down the line.

• New Extruder: This is the most common reason for re-calibration. If you replace your entire extruder assembly – including the stepper motor, gears, or the main body – it's almost guaranteed that your E-steps will change. Different motors, gear ratios, or even manufacturing tolerances will alter how many steps are needed to push a millimeter of filament.
• Hotend Replacement: While E-steps primarily relates to the extruder, a new hotend *can* sometimes subtly influence the effective resistance the extruder faces. While not always strictly necessary, it's good practice to perform a quick E-steps check after a hotend replacement, especially if you notice new extrusion issues.
• Major Firmware Updates: If you flash a completely new version of your Marlin firmware, especially if it's a generic build or one that doesn't carry over your previous settings, your E-steps value might revert to a default. Always verify your 3D printer settings, including E-steps, after a significant firmware update.
• Persistent Extrusion Issues: If you're consistently battling under- or over-extrusion across different filaments and print settings, and adjusting your slicer's flow rate isn't resolving the problem, it's a strong indicator that your E-steps might be off. Re-calibrating can often be the fundamental fix.

Conclusion: The foundation of flawless prints

Mastering E-steps calibration is more than just a technical chore; it's a fundamental step towards achieving consistent, high-quality 3D prints. By ensuring precise filament extrusion, you lay the groundwork for accurate dimensions, strong layer adhesion, and beautiful surface finishes. This crucial adjustment sets the stage for all subsequent 3D printer settings and slicer profiles to work their magic effectively.

Don't underestimate the profound impact that accurately calibrated extruder steps can have on your overall printing experience and the final output. Take the time to calibrate meticulously, verify your results with a follow-up test, and consider printing a calibration cube to confirm real-world performance. By doing so, you'll unlock a new level of precision and reliability in your 3D printing endeavors, transforming frustrating failures into consistently flawless creations.
