Mastering ABS: essential enclosure techniques and settings to eliminate warping and cracking

Acrylonitrile Butadiene Styrene (ABS) is a formidable material in the realm of 3D printing, prized for its exceptional mechanical properties, heat resistance, and durability. From functional prototypes to end-use parts, ABS offers a robust solution for demanding applications. However, its inherent characteristics also present significant challenges to even experienced users, primarily manifesting as frustrating warping, unsightly cracking, and problematic layer delamination. These issues often stem from the material's sensitivity to temperature fluctuations and its high coefficient of thermal expansion and contraction.

This comprehensive guide delves deep into the essential enclosure techniques and print settings necessary to tame ABS, transforming it from a temperamental filament into a reliable workhorse. We will explore the underlying causes of these common printing woes and objectively compare various solutions, from budget-friendly DIY setups to advanced integrated systems, analyzing their features and cost implications. Our aim is to equip you with the knowledge to make informed decisions, allowing you to independently select the best approach for your specific needs and achieve consistent, high-quality ABS prints.

Understanding the root causes: why ABS is tricky

Explore the
Snapmaker U1

Meet the U1

Before diving into solutions, it's crucial to grasp why ABS behaves the way it does. Its unique material properties are both its strength and its Achilles' heel in the context of FDM 3D printing.

Thermal contraction: the primary antagonist

The most significant challenge with ABS is its high coefficient of thermal expansion and contraction. This means that as ABS cools, it shrinks considerably more than many other common 3D printing filaments like PLA. In a typical open-air 3D printing environment, this cooling happens unevenly:

• Rapid Cooling: Exposed surfaces and upper layers cool much faster than the inner or lower layers of a print.
• Temperature Gradients: This differential cooling creates internal stresses within the printed part. The rapidly cooling outer layers try to shrink, but they are still attached to warmer, larger inner layers.
• Warping: When these stresses become too great, especially at the base of the print, they can overcome the adhesion to the build plate, causing the corners to lift. This phenomenon is known as warping or 'curling'. The edges of the print detach and pull upwards, distorting the entire first layer and subsequent layers.
• Cracking and Delamination: If the temperature difference between layers is too pronounced, the bond between successive layers can be weakened. As a new, hot layer is deposited onto a cooler, shrinking layer, the stress can cause the layers to pull apart, leading to cracks within the print or complete delamination between layers. This is particularly noticeable in taller prints or prints with thin walls.

Adhesion challenges

While thermal contraction is the main culprit, bed adhesion plays a critical supporting role. If the first layer doesn't adhere strongly to the build plate, even minor thermal stresses can cause it to detach. The high bed temperatures required for ABS (often 90-110°C) are intended to keep the base of the print warm, reducing the temperature differential between the print and the bed. However, maintaining this temperature evenly across the entire print and preventing drafts is paramount.

Environmental sensitivity

ABS is highly susceptible to environmental factors. Drafts from open windows, air conditioning, or even people walking by can introduce localized cooling, exacerbating temperature gradients and accelerating warping and cracking. Humidity can also play a subtle role, though less significant than temperature control.

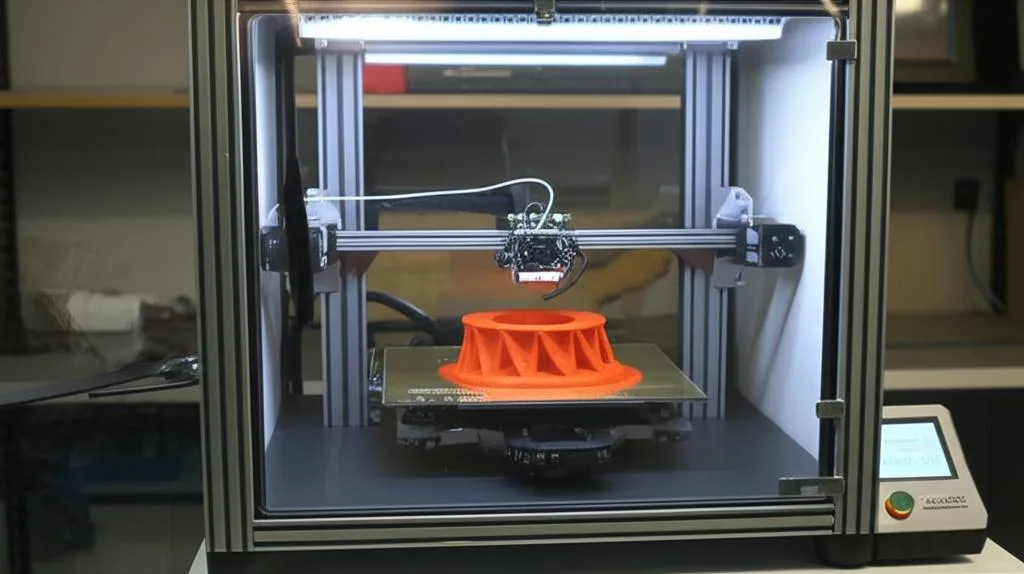

The enclosure: your primary weapon against ABS woes

The most effective strategy for mitigating ABS's thermal challenges is to create a controlled, warm environment around the print. This is where an enclosure comes into play.

The fundamental principle of enclosures

An enclosure works by isolating the print area from the ambient room temperature and external drafts. By trapping the heat radiated from the heated bed and hot end, the air inside the enclosure warms up. This elevated and stable ambient temperature around the print achieves several critical objectives:

• Reduces Temperature Gradients: The difference in temperature between the printed part and the surrounding air is significantly minimized. This allows the ABS to cool much more slowly and uniformly.
• Minimizes Thermal Stress: With slower, more even cooling, the internal stresses that lead to warping and cracking are drastically reduced, allowing layers to bond more effectively and the print to retain its intended geometry.
• Improves Layer Adhesion: A warmer environment ensures that each new layer is deposited onto a layer that is still relatively warm, promoting better molecular fusion and stronger inter-layer adhesion.

Types of enclosures and their cost/feature comparison

Enclosures come in a wide variety, each offering a different balance of cost, complexity, and performance. Understanding these distinctions is key to choosing the right solution.

DIY solutions

• Features: DIY enclosures are characterized by their high degree of customizability and often minimal material cost. They range from simple, temporary setups to more permanent, robust structures. Basic thermal retention is the primary feature, aiming to trap heat and block drafts. Materials can include cardboard boxes, repurposed furniture (like IKEA Lack tables), foam board, plywood, or acrylic/polycarbonate sheets.
• Cost Structure: The cost is primarily driven by the raw materials. A basic cardboard box might cost next to nothing, while a well-built Lack enclosure with acrylic panels and custom fittings could range from $50 to $200. The most significant "cost" is often the time and effort invested in design, sourcing materials, and construction. Tools required might include saws, drills, and various fasteners.
• Analysis: DIY enclosures offer an excellent entry point for users on a tight budget or those who enjoy tinkering. Their effectiveness can vary widely based on the quality of construction, insulation, and sealing. A poorly sealed DIY enclosure will allow drafts and heat to escape, diminishing its benefits. However, a meticulously constructed DIY enclosure, perhaps with double-pane acrylic or insulated walls, can be remarkably effective, rivaling some commercial options in thermal stability. They require a hands-on approach and a willingness to troubleshoot.

Semi-prebuilt kits

• Features: These solutions strike a balance between DIY and fully integrated systems. They are typically designed for specific printer models or offer a universal fit. Features often include pre-cut panels (acrylic, aluminum composite), mounting hardware, and sometimes basic add-ons like exhaust fan ports or LED lighting. They offer better aesthetics and often a more professional finish than most DIY projects.
• Cost Structure: Kit prices generally range from $150 to $500, depending on size, materials, and included features. While the initial investment is higher than basic DIY, they save considerable time in design and material sourcing. Installation is usually straightforward, requiring only basic tools. Some kits might offer optional upgrades like activated carbon filters or small heating elements, which add to the overall cost.
• Analysis: Semi-prebuilt kits are ideal for users who want improved performance over basic DIY without the full expense of a new printer with an integrated enclosure. They provide a more consistent and reliable thermal environment than most casual DIY solutions. The trade-off is less customization than a scratch-built DIY unit but significantly less effort. They are a popular choice for hobbyists and small businesses seeking a good balance of cost, convenience, and performance.

Integrated/factory enclosures

• Features: These are printers that come with a built-in enclosure as part of their original design. They represent the pinnacle of thermal control for FDM printing. Often, these are actively heated chambers, meaning they have dedicated heating elements to maintain a precise, elevated ambient temperature. They typically include advanced features such as HEPA and activated carbon filtration systems for managing ABS fumes, safety interlocks, internal lighting, and sometimes even automated material handling systems.
• Cost Structure: The primary cost here is the printer itself, which can range from $1,500 to $10,000+ for professional or industrial-grade machines. The enclosure's cost is absorbed into the printer's price. While the initial outlay is substantial, the "cost" per successful print can be lower due to higher reliability and reduced material waste.
• Analysis: Integrated enclosures offer the best performance for ABS printing, providing the most stable and controlled environment. They require minimal user intervention for thermal management and are designed for consistent, high-quality results. These systems are typically found in professional, industrial, or research settings where print consistency, material diversity, and safety are paramount. For users whose primary goal is high-volume or critical ABS production, the higher upfront cost is often justified by the superior reliability and reduced operational headaches.

Essential enclosure features and considerations

Regardless of the type, certain features enhance an enclosure's effectiveness for ABS printing:

• Temperature Control: Passive enclosures rely solely on the heat from the bed and hot end. Active heating (a heated chamber) uses dedicated heating elements to maintain a set internal temperature, offering superior control and faster warm-up times.
• Insulation: The material of the enclosure significantly impacts its ability to retain heat. Double-pane acrylic or polycarbonate, insulated panels (e.g., foam core, wood), or even reflective insulation can improve thermal stability.
• Sealing: Gaps and cracks allow drafts and heat to escape. Good sealing around doors, panels, and cable pass-throughs is crucial. Gaskets or weather stripping can be highly effective.
• Ventilation and Filtration: ABS printing releases volatile organic compounds (VOCs) and ultrafine particles (UFPs) that are harmful to inhale. An enclosure should ideally include a system for exhausting fumes to the outside or filtering them through activated carbon and HEPA filters. This adds to the cost but is a critical safety feature.
• Accessibility: Well-designed doors or removable panels are essential for easy access to the printer for maintenance, print removal, and filament changes.
• Lighting and Monitoring: Internal LED lighting and a webcam can be invaluable for monitoring prints without opening the enclosure and disturbing the thermal environment.
• Cost Implications: Each additional feature, from active heating to advanced filtration, adds to the complexity and overall cost of the enclosure solution. Users must weigh the benefits against their budget and specific needs.

Optimizing print settings for ABS success

While an enclosure is paramount, fine-tuning your slicer settings is equally critical. These settings work in conjunction with the enclosure to ensure optimal results.

Bed temperature

• Setting: The heated bed temperature is arguably the most critical setting for ABS, second only to an enclosure. It's vital for establishing strong first-layer adhesion and preventing the base of the print from cooling too rapidly.
• Range: Typically, ABS requires a bed temperature between 90°C and 110°C. The exact value can depend on the specific ABS brand, the build surface material, and the effectiveness of your enclosure.
• Analysis: Too low a bed temperature will almost guarantee warping, as the first layer will cool and shrink excessively. Too high, and you might experience an 'elephant's foot' effect where the base of the print squishes out, or the print becomes too soft to remove cleanly. Experimentation within the recommended range is key.
• Cost/Feature Implication: A heated bed is standard on most FDM printers. However, the quality and evenness of heating can vary. Some printers have better insulated beds or more powerful heating elements, leading to more consistent temperatures.

Extruder temperature

• Setting: ABS generally requires higher extrusion temperatures than PLA.
• Range: A common range is 220°C to 250°C. Again, this can vary by filament brand and color.
• Analysis: Too low, and the ABS won't melt sufficiently, leading to underextrusion, poor layer adhesion, and a brittle print. Too high, and you risk material degradation (leading to weaker prints and more fumes), stringing, and oozing. The goal is to find the lowest temperature that still provides good layer adhesion and flow.
• Cost/Feature Implication: Most standard hotends can comfortably reach these temperatures. For sustained printing at the higher end of the range, or for specific high-temperature ABS variants, an all-metal hotend can offer greater reliability and prevent heat creep issues common with PTFE-lined hotends.

Cooling fan

• Setting: For ABS, the general rule is to use minimal to no cooling fan.
• Analysis: Rapid cooling is the enemy of ABS. Running the cooling fan at high speeds will quickly cool the extruded plastic, increasing temperature gradients and making warping and cracking far more likely. Disabling the part cooling fan entirely for the majority of the print is often recommended.
• Exceptions: For very small features, steep overhangs, or bridges that require immediate solidification to maintain geometry, a minimal fan speed (e.g., 10-20%) might be necessary, but only after the first few layers have been printed to ensure strong bed adhesion. This should be used sparingly and carefully.
• Cost/Feature Implication: Fan control is a standard feature in all slicer software and on virtually all FDM printers.

Print speed

• Setting: Slower print speeds are generally beneficial for ABS.
• Analysis: Printing slower allows each layer more time to cool gradually and bond properly with the previous layer, reducing internal stresses. It also gives the heated chamber (if present) more time to equalize temperatures. While it increases overall print time, it significantly improves print quality and reliability for ABS.
• Cost/Feature Implication: There is no direct financial cost, but it does mean a longer time to print. This is a trade-off many users accept for successful ABS prints.

Layer height

• Setting: Layer height can subtly impact thermal dynamics.
• Analysis: Thicker layers (e.g., 0.25mm - 0.3mm) can retain heat longer, potentially reducing warping in some cases by slowing the overall cooling rate of the part. However, they also introduce more heat into the part overall. Thinner layers (e.g., 0.1mm - 0.15mm) might cool faster, which could be detrimental without a very effective enclosure. Experimentation with your specific setup is key to finding the optimal balance.

First layer settings

The first layer is paramount for ABS success. Optimizing these settings can make or break your print:

• Initial Layer Height: A slightly thicker initial layer (e.g., 0.25mm - 0.3mm for a 0.4mm nozzle) can improve adhesion by providing more material to squish onto the build plate.
• Initial Layer Line Width: Increasing the initial layer line width (e.g., 120-150% of nozzle diameter) further increases the contact area with the build plate, enhancing adhesion.
• Initial Layer Speed: Print the first layer very slowly (e.g., 10-20 mm/s) to ensure proper squish and maximum adhesion to the heated bed.
• Bed Adhesion Aids: These are crucial for ABS, especially without a perfectly tuned enclosure.
• Brims: A brim is a single-layer skirt of extra plastic printed around the base of your part, expanding its footprint on the build plate. It significantly increases the surface area gripping the bed, distributing thermal stresses and helping prevent corner lift. Brims are generally easy to remove post-print.
• Rafts: A raft is a disposable base printed underneath the entire part. It provides a stable, larger base for the actual print, completely isolating it from any bed adhesion issues. Rafts consume more material and can leave a less desirable finish on the bottom of the part, requiring more post-processing.
• Adhesive Coatings:
  • ABS Slurry/Juice: A mixture of ABS filament dissolved in acetone. Applied to the bed, it creates a thin layer of ABS that bonds exceptionally well with the first layer of the print.
  • Kapton Tape: A high-temperature resistant polyimide film that offers good adhesion for ABS.
  • PEI (Polyetherimide) Sheets: A popular build surface known for excellent adhesion when heated. ABS sticks well to PEI at appropriate temperatures and releases cleanly once cooled.
  • Glue Sticks (PVA-based): A common, inexpensive solution that provides a sticky layer for ABS to adhere to.

  Cost/Feature Comparison: ABS slurry is virtually free if you have acetone and spare filament, but can be messy and requires careful application. Kapton tape is moderately priced but can be challenging to apply bubble-free. PEI sheets are a higher upfront cost but offer excellent, consistent, and low-maintenance adhesion for many materials, including ABS. Glue sticks are very cheap and easy to apply but may require reapplication between prints.

Infill and perimeters

• Analysis: Higher infill percentages and more perimeter walls mean more material in the print. While this increases part strength, it also means more heat retention within the part, potentially leading to greater internal stresses as it cools. For parts where maximum strength isn't absolutely critical, reducing infill (e.g., 15-25%) and perimeter count (e.g., 2-3) can help manage thermal stresses and reduce warping.

Retraction settings

• Analysis: Proper retraction settings (distance and speed) are crucial for preventing stringing and oozing, which can degrade print quality. However, overly aggressive retraction can lead to clogs or air gaps in the extrusion, weakening the print. Fine-tuning these settings for your specific hotend and ABS filament is important, but they generally have less direct impact on warping and cracking than temperature or enclosure settings.

Advanced strategies and considerations

Beyond the fundamental enclosure and print settings, a few advanced techniques can further enhance your ABS printing success.

Pre-heating the enclosure

• Technique: For optimal results, especially with actively heated enclosures, allow the enclosure to pre-heat to your desired ambient temperature before starting the print.
• Analysis: This ensures that the entire print volume is uniformly warm from the moment the first layer is laid down, minimizing thermal shock and further reducing the likelihood of warping or cracking. Passive enclosures can also benefit from a warm-up period, allowing the heated bed to slowly bring the internal air temperature up.
• Cost/Feature Implication: This is easier and more precise with actively heated chambers, which often have dedicated pre-heating functions. For passive enclosures, it simply requires patience and adding a delay before starting the print.

Annealing (post-processing)

• Technique: Annealing involves heat treating the printed part after it has been removed from the printer. This typically involves placing the part in an oven at a temperature just below the material's glass transition temperature (Tg) for a specific duration, followed by slow cooling.
• Analysis: Annealing helps to relieve residual internal stresses built up during the printing process. It can significantly improve the mechanical properties of ABS prints, increasing their strength, stiffness, and heat deflection temperature, while also reducing the potential for long-term deformation.
• Cost/Feature Implication: Requires access to an oven capable of maintaining precise temperatures (a conventional kitchen oven can sometimes suffice, but dedicated lab ovens offer better control). This adds a post-processing step and additional time to the overall production process.

Material selection and quality

• Analysis: Not all ABS filaments are created equal. The quality of the raw ABS polymer, the presence of additives, and the manufacturing process (e.g., consistency of filament diameter) can all significantly impact printability. Some manufacturers offer "low-warp" or "modified" ABS variants that are engineered to be less prone to warping and cracking. Virgin ABS typically offers more consistent performance than recycled ABS.
• Cost/Feature Implication: Higher quality, premium ABS filaments often come at a slightly higher price point. However, this increased cost can be offset by fewer failed prints, less material waste, and less time spent troubleshooting. Investing in a reputable brand can save headaches in the long run.

Printer calibration and maintenance

• Analysis: A well-calibrated and maintained 3D printer is fundamental for success with any material, but especially with challenging ones like ABS. Ensuring your E-steps (extrusion multiplier) are accurate, your Z-offset is perfectly set, and your bed is meticulously leveled are crucial prerequisites. A clean nozzle, proper belt tension, and well-lubricated moving parts all contribute to consistent extrusion and accurate layer placement, which are vital for strong layer adhesion and minimizing stress points in ABS prints.
• Cost/Feature Implication: This primarily involves a time investment in regular checks and adjustments. Occasional replacement parts like nozzles or PTFE tubes are minor costs but essential for maintaining print quality.

Comparing approaches: a holistic view

When considering the various strategies for mastering ABS, it's helpful to look at them through the lens of cost, effort, and expected results. There is no single "best" solution; the optimal choice depends on individual circumstances, budget constraints, and desired outcomes.

Entry-level: DIY enclosure + optimized settings

• Cost: Low upfront material cost (potentially <$100 for basic materials), but a high investment in time for design, construction, and iterative optimization.
• Features: Basic thermal control through passive heat retention and draft blocking. Relies heavily on meticulous manual adjustment of print settings.
• Effectiveness: Can be surprisingly effective if executed carefully and sealed well. Requires the user to be highly engaged in understanding and mitigating ABS challenges. Success often comes after some trial and error.
• Ideal for: Hobbyists, students, or those new to ABS printing who want to experiment without a significant financial commitment. It's a great learning experience.

Mid-range: kit enclosure + advanced settings

• Cost: Moderate upfront cost (typically $150-$500), with less time investment compared to DIY, as components are pre-fabricated.
• Features: Better integration, often designed for specific printers, improved aesthetics. Provides more consistent thermal stability than most casual DIY solutions. May include basic provisions for ventilation or lighting.
• Effectiveness: Offers reliable performance for a wide range of ABS applications. The structured design often leads to more predictable results and a higher success rate with less troubleshooting time.
• Ideal for: Enthusiasts, small businesses, or educational institutions seeking a good balance between cost, convenience, and consistent ABS print quality without investing in a new, high-end printer.

Professional/high-end: integrated heated chamber + fine-tuned settings

• Cost: High upfront cost, as the enclosure is part of a premium or industrial-grade printer (typically $1,500+). Minimal ongoing time investment for enclosure management.
• Features: Optimal thermal control, often with actively heated chambers for precise temperature regulation. Advanced filtration systems, safety interlocks, and robust build quality are standard. Designed for minimal user intervention.
• Effectiveness: Highest success rates for ABS and other high-temperature materials. Provides the most stable and controlled environment, leading to exceptional print consistency and quality, even for complex geometries.
• Ideal for: Engineering firms, manufacturing companies, research labs, or any user requiring the highest reliability, repeatability, and print quality for critical functional ABS parts.

The interplay of cost, effort, and results

It's evident that each approach presents a unique trade-off. A lower financial investment often necessitates a higher investment of time and personal effort in understanding the nuances of ABS and meticulously fine-tuning settings. Conversely, a higher financial outlay, particularly for integrated systems, typically translates to reduced user effort and a higher likelihood of success from the outset.

The key takeaway is that success with ABS printing is achievable across all these tiers. Even with a basic, well-executed DIY enclosure, meticulous attention to print settings can yield impressive results. However, an enclosure, regardless of its sophistication, significantly broadens the "sweet spot" for successful ABS prints by mitigating the primary thermal challenges. The decision ultimately rests on your budget, the frequency and criticality of your ABS prints, and your personal willingness to engage in the iterative process of optimization.

Mastering ABS printing is undeniably a journey that requires patience, a keen eye for detail, and a willingness to experiment. While its propensity for warping and cracking can be a source of frustration, understanding the underlying thermal dynamics and implementing the right strategies can transform your experience. The combination of a controlled environment, whether a simple DIY box or a sophisticated heated chamber, and meticulously optimized print settings is the bedrock of consistent ABS success.

By carefully considering the features and cost structures of various enclosure solutions, from the hands-on approach of DIY builds to the seamless integration of professional systems, you can select an option that aligns with your resources and goals. Coupled with precise adjustments to bed and extruder temperatures, minimal cooling, and robust first-layer adhesion techniques, you are well-equipped to overcome the challenges. Embrace the process of iterative improvement, and you will unlock the full potential of ABS, enabling you to produce durable, functional, and dimensionally accurate parts for a multitude of applications.
