A 3D printer's hotend and nozzle are the heart of its extrusion system, responsible for melting and depositing filament with precision. When this crucial component experiences an issue, particularly a clogged nozzle, it can quickly turn a promising print into a frustrating failure. Understanding whether you're dealing with a partial or a full extrusion blockage is the first, most critical step in diagnosing and resolving your 3D printing woes. This guide will walk you through the distinct visual cues and symptoms to help you accurately identify the type of clog you're facing, empowering you to tackle print issues effectively.
Understanding 3D printing extrusion blockages
Extrusion is the process by which your 3D printer pushes molten plastic through a tiny orifice – the nozzle – onto the print bed. For a successful print, this flow needs to be consistent and uninterrupted. When something obstructs the filament's path, an extrusion blockage occurs. These blockages aren't always black and white; they manifest differently depending on their severity, leading to either a partial or a full clog.
What causes a clogged nozzle?
Several factors can contribute to a clogged nozzle. Recognizing these underlying causes can aid in both diagnosis and prevention:
- Debris: Dust, filament shards, or impurities in the filament can accumulate inside the nozzle or hotend, impeding flow.
- Heat creep: When heat travels too far up the hotend, causing filament to soften prematurely in the cold end, it can create a plug that prevents further extrusion.
- Worn or damaged nozzle: Over time, abrasive filaments or general wear and tear can degrade the nozzle's internal geometry, leading to inconsistent flow or blockages.
- Incorrect print temperatures: Printing too cold can prevent filament from melting sufficiently, while printing too hot can cause it to carbonize or expand prematurely.
- Retraction settings: Excessive or incorrect retraction can pull molten filament into the cold zone, leading to a clog.
- Filament quality: Low-quality filament with inconsistent diameters or additives can be more prone to causing blockages.

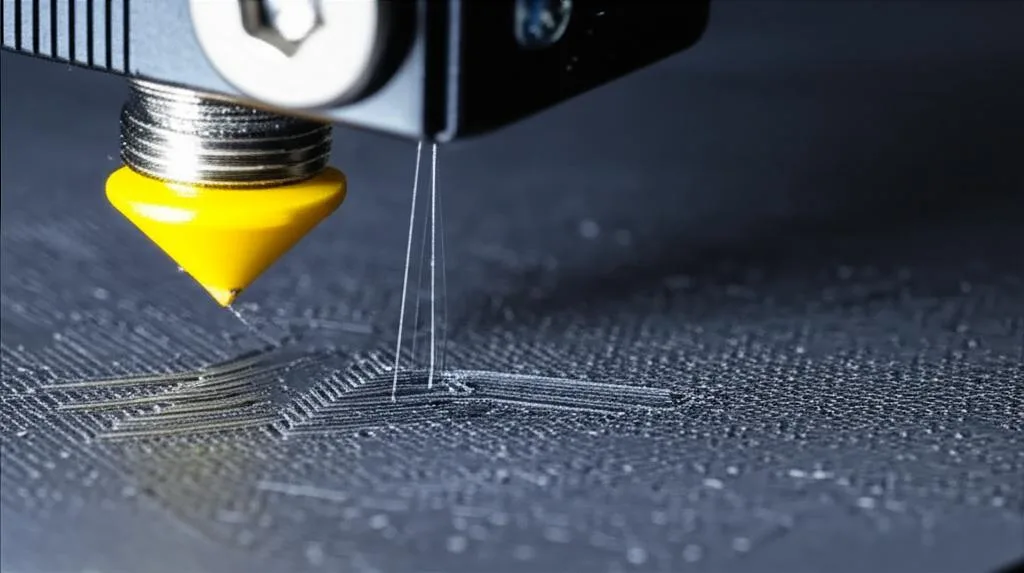

Identifying a partial clog: subtle signs of struggle
A partial clog is often the trickier of the two to diagnose because some filament still manages to extrude, albeit inconsistently. It's like trying to drink through a straw with a small obstruction – some liquid gets through, but not freely. Here are the common indicators of a partial clog:
- Inconsistent extrusion or under-extrusion: You'll notice lines that are thinner than expected, gaps in layers, or sections of the print where filament seems to disappear entirely. This is a hallmark symptom of a partial clog, as the restricted flow means less material is deposited than intended.
- Stringing and oozing: Paradoxically, a partial clog can sometimes lead to increased stringing. The inconsistent pressure within the nozzle can cause molten filament to seep out when it shouldn't, especially during travel moves.
- Poor layer adhesion: With insufficient material being laid down, new layers don't have enough plastic to bond properly with the previous ones, leading to weak parts that easily delaminate.
- Thin or brittle walls: Parts might feel flimsy or break easily due to the lack of solid infill and perimeter lines.
- Clicking or skipping extruder: The extruder motor struggles to push filament through the partially blocked nozzle. You might hear distinct clicking sounds as the motor skips steps, unable to apply enough force.
- Rough or inconsistent top surfaces: The top layers may appear uneven, with small gaps or areas of missing material, rather than a smooth, uniform finish.
The key takeaway for a partial clog is that some material is coming out, but not enough, and not consistently. It's a battle against restricted flow, often resulting in aesthetically flawed prints and compromised structural integrity.
Identifying a full clog: clear indications of a halt
A full clog is usually unmistakable. It means the filament's path is completely obstructed, and no material, or only trace amounts, can pass through the nozzle. This is the equivalent of a completely blocked straw – nothing gets through. Here are the definitive signs of a full clog:
- No filament extrusion whatsoever: This is the most obvious sign. Even if the extruder is turning, no filament emerges from the nozzle, or perhaps only a tiny, wispy strand appears briefly before stopping. Your printer will appear to be "air printing."
- Filament grinding: As the extruder motor attempts to force filament through a completely blocked nozzle, its gears will often strip or grind away at the filament, creating a flat spot. This reduces the grip on the filament, exacerbating the problem.
- Extruder motor skipping continuously: Unlike the intermittent clicking of a partial clog, a full clog often causes the extruder motor to skip repeatedly and aggressively, as it's met with complete resistance.
- Filament unable to be pushed manually: If you try to manually push filament through the hotend (after heating it to the appropriate temperature), you'll encounter significant resistance, indicating a complete blockage.
When a full clog strikes, your print essentially stops forming. The printer continues its motions, but no plastic is laid down, resulting in an empty print bed or a print that abruptly ceases to grow in height. This type of 3D printing extrusion issue demands immediate attention.

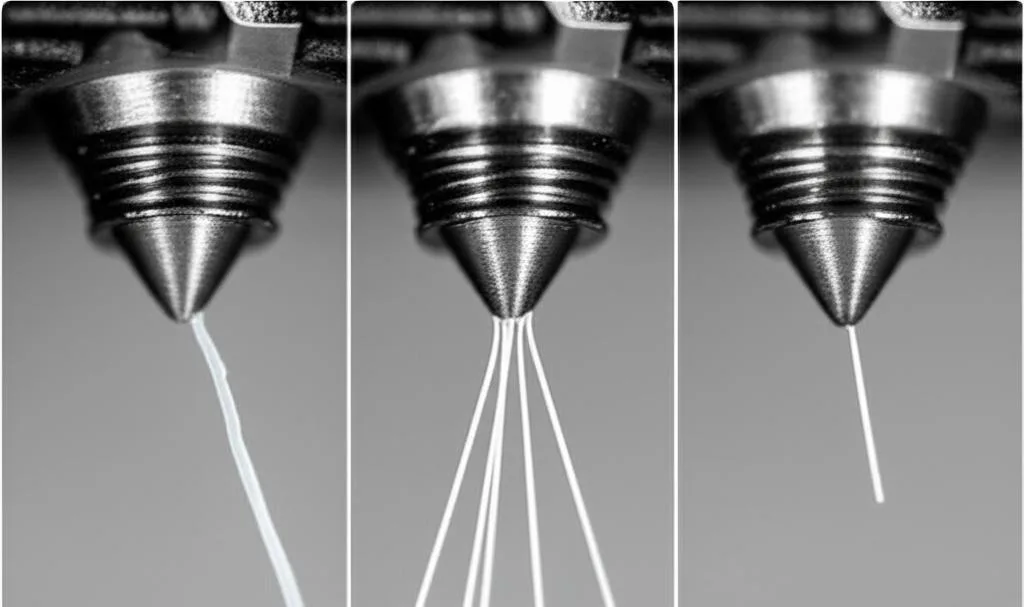

A visual diagnostic checklist
To help you diagnose print issues, consider this quick checklist during your next print:
- Observe the first layer: Are the lines continuous and consistent, or are there gaps, thin spots, or signs of under-extrusion? Inconsistent lines often point to a partial clog.
- Listen to your printer: Is the extruder motor making regular, smooth movements, or do you hear clicking or grinding sounds? Clicking suggests a partial clog; continuous skipping and grinding indicate a full clog.
- Watch the filament flow: Does a consistent, uniform strand of filament emerge from the nozzle during extrusion? Or is it sporadic, thin, or completely absent? Absence of flow is a clear sign of a full clog.
- Inspect the printed part: Check for common symptoms like poor layer adhesion, stringing, or brittle parts (partial clog) versus a complete lack of print material (full clog).
By systematically observing these elements, you can quickly narrow down the problem to either a partial or a full clogged nozzle, making the subsequent troubleshooting much more targeted.
Moving forward: brief considerations after identification
Accurately identifying whether you have a partial or a full clog is the crucial first step. While this guide focuses on diagnosis, knowing the type of blockage will directly inform your next actions. For instance, a partial clog might sometimes be cleared with a "cold pull" or by increasing the print temperature temporarily, whereas a full clog often necessitates a more thorough cleaning of the hotend, potentially involving disassembling the nozzle or even replacing it. Armed with a precise diagnosis, you are well-equipped to research and implement the most effective solution for your specific 3D printing extrusion problem, getting your printer back to optimal performance.
