A 3D printer nozzle is the tiny, yet crucial, component that dictates the quality of your prints. When it gets blocked, even partially, it can lead to a host of frustrating issues, turning what should be a smooth printing process into a headache. Identifying clogged nozzle signs early is key to preventing failed prints and maintaining your printer's health. Let's delve into the most common indicators that your nozzle might be experiencing an extrusion issue and explore effective nozzle cleaning troubleshooting methods.
Understanding the impact of a clogged nozzle
Explore the
Snapmaker U1
A nozzle clog, whether a complete blockage or a partial clog, disrupts the consistent flow of filament. This inconsistency can manifest in various ways, from minor cosmetic flaws to complete print failures. Recognizing these symptoms quickly can save you time, filament, and frustration.

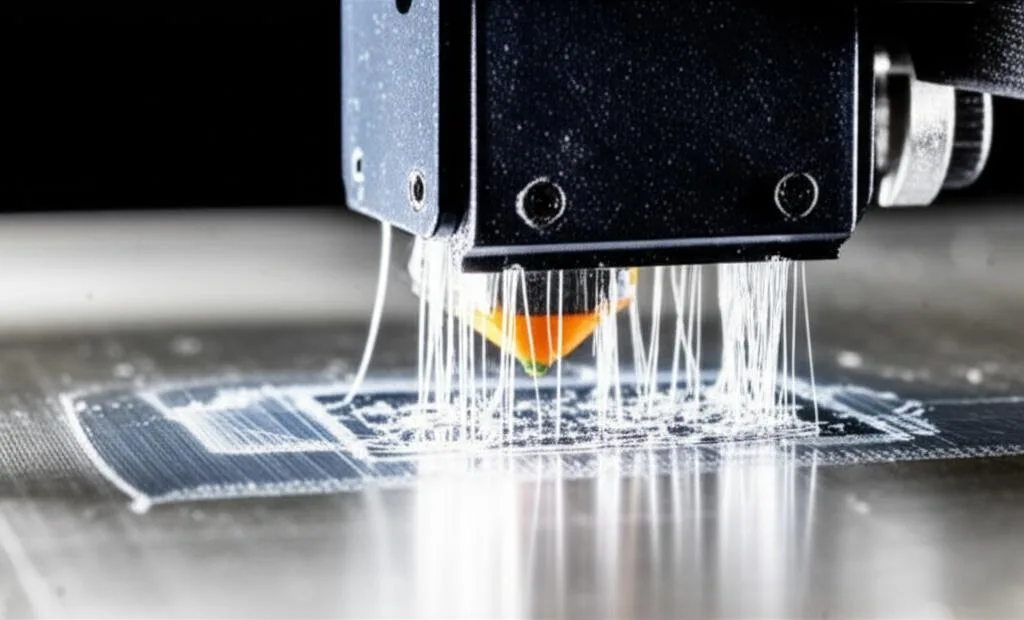

5 tell-tale signs of a clogged 3D printer nozzle
1. Under-extrusion or thin, missing layers
One of the most common and frustrating clogged nozzle signs is under-extrusion. This occurs when your printer isn't pushing out enough filament, leading to prints with visible gaps between layers, weak walls, or even completely missing sections. You might notice:
- Sparse or stringy prints: The infill looks airy, and outer walls appear thin or incomplete.
- Poor layer adhesion: Layers don't bond well, making the print brittle and easy to break apart.
- Gaps in top layers: The top surface of your print might have small holes or an unfinished appearance.
This is often indicative of a partial clog, where some filament can pass through, but not enough for a solid print.
2. No filament extruding at all
This is arguably the most obvious sign. If your printer goes through the motions but no filament comes out of the nozzle, you likely have a complete blockage. Before jumping to conclusions, double-check that your filament is loaded correctly and the extruder gear is engaging. However, if these are fine, a severe clog is the prime suspect for this extrusion issue.
3. Clicking or grinding noises from the extruder
When the extruder motor tries to push filament through a restricted nozzle, it meets resistance. If the pressure builds too high, the extruder gear can skip steps or grind against the filament, causing an audible clicking or grinding sound. This noise is a clear warning sign that the filament isn't moving freely, often due to a partial clog or full blockage.
4. Poor print quality: stringing, blobs, or zits
While stringing, blobs, and zits can be caused by various settings (like retraction or temperature), they can also be subtle clogged nozzle signs. An inconsistent flow due to a partial clog can lead to:
- Excessive stringing: Fine strands of plastic appearing between different parts of your print.
- Random blobs or zits: Small, unsightly bumps on the print surface, indicating irregular extrusion.
These issues suggest that filament is oozing or being pushed out erratically, rather than in a controlled, steady stream.
5. Filament curling upward instead of sticking to the print bed
When filament exits a healthy nozzle, it typically comes out in a straight, consistent line, allowing it to adhere properly to the print bed. If you notice the filament immediately curling back up towards the nozzle, or not laying down smoothly, it's a strong indicator of a partial clog. The obstruction inside the nozzle can cause the filament to exit at an angle or with uneven pressure, preventing proper adhesion and leading to print failures right from the first layer.
Instant fixes and nozzle cleaning troubleshooting
Once you've identified clogged nozzle signs, it's time for action. Here are some common nozzle cleaning troubleshooting methods:
1. The "cold pull" or "atomic pull"
This method is excellent for removing stubborn debris. Heat your nozzle to a temperature slightly below the filament's melting point (e.g., 90-100°C for PLA). Push some filament through, then allow it to cool to a specific temperature (e.g., 70-80°C for PLA). Once cooled, quickly pull the filament out. The cooled plastic should grab any debris inside the nozzle as it's extracted.
2. Using a nozzle cleaning needle or acupuncture needle
For minor clogs, a thin needle (0.2-0.4mm, depending on your nozzle size) can often dislodge the obstruction. While the nozzle is hot, gently push the needle up into the nozzle from below. Be careful not to damage the nozzle's interior.
3. Heat gun or blowtorch (with extreme caution)
For severe, persistent clogs that resist other methods, removing the nozzle and carefully heating it with a heat gun or small blowtorch can burn away trapped plastic. This should be a last resort and performed in a well-ventilated area, away from flammable materials, and with appropriate safety gear. Always allow the nozzle to cool completely before handling.
4. Nozzle replacement
Sometimes, a clog is simply too stubborn, or the nozzle itself might be damaged or worn. In such cases, replacing the nozzle is the most straightforward and often the best solution. Nozzles are consumables, and having spares on hand is a wise practice for any 3D printing enthusiast.

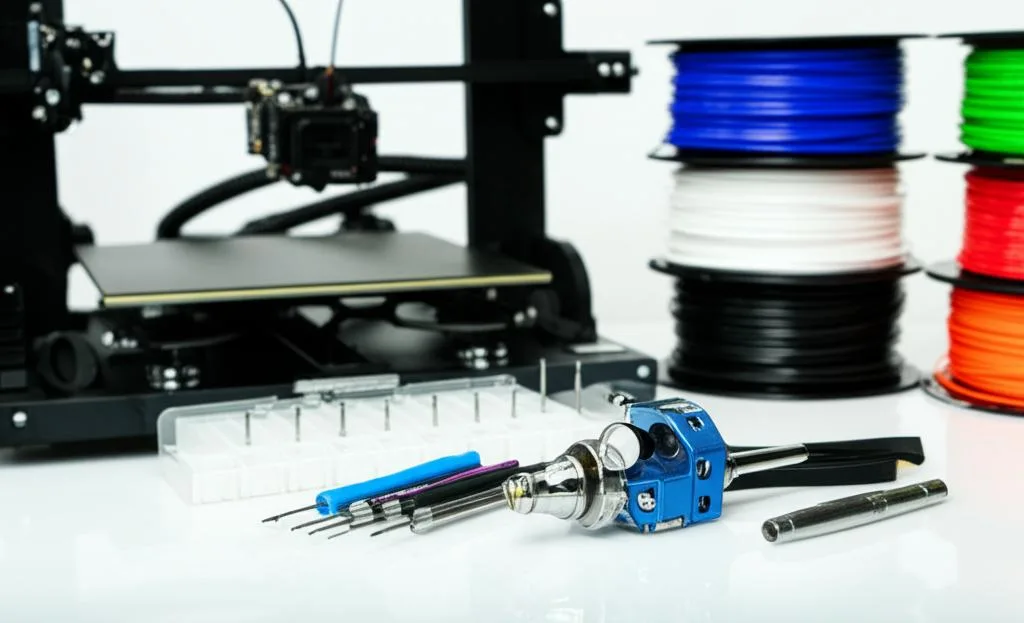

Preventing future clogs
Prevention is always better than cure. To minimize the chances of encountering clogged nozzle signs:
- Use quality filament: Cheaper filaments can contain impurities that lead to clogs.
- Store filament properly: Keep filament dry and away from dust.
- Use a filament filter: A simple sponge or cloth can wipe dust off the filament before it enters the extruder.
- Regular cold pulls: Perform a cold pull periodically as part of your routine maintenance.
- Maintain correct print temperatures: Printing too hot can degrade filament, while too cold can cause blockages.
By staying vigilant for these clogged nozzle signs and employing effective nozzle cleaning troubleshooting, you can keep your 3D printer running smoothly and ensure consistent, high-quality prints. Don't let a tiny blockage derail your creative projects!
