When diving into the world of additive manufacturing, one crucial aspect often overlooked by beginners but vital for print quality and performance is infill. Infill refers to the internal structure within your 3D print, influencing its strength, weight, material usage, and print time. Understanding how to choose the right infill pattern and 3D printing fill density is key to optimizing your prints for various applications.
Understanding Infill: More Than Just Filling Space
Infill is not merely about making your print solid. It's a complex interplay of patterns and density that determines the structural integrity of your part. A print with 0% infill would be hollow, light, and fragile, while 100% infill would be solid, heavy, and extremely strong, but also very material-intensive and time-consuming to print.

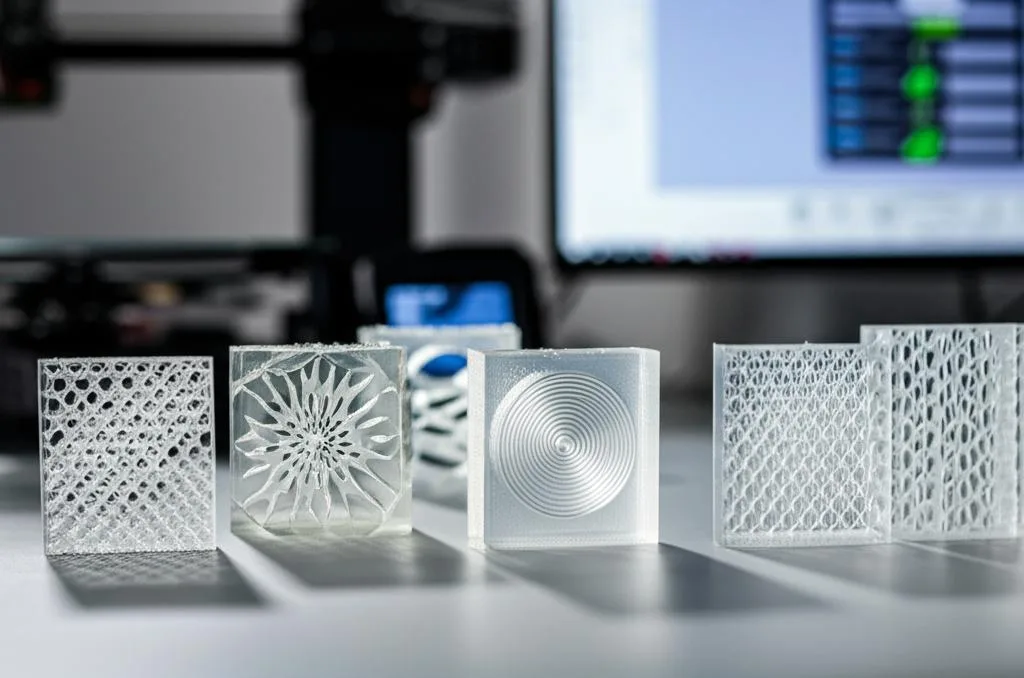

Common Infill Patterns and Their Uses
- Grid/Rectilinear: Simple, fast to print, and offers good strength in all directions. A common choice for general-purpose prints.
- Lines: Prints faster than Grid but provides strength primarily in two dimensions. Good for parts that don't need isotropic strength.
- Honeycomb: Offers excellent strength-to-weight ratio and good impact resistance due to its hexagonal structure. Ideal for parts requiring high strength.
- Gyroid: A more complex, 3D non-planar pattern that provides excellent isotropic strength (uniform strength in all directions) and good support for top layers. It's great for parts under multi-directional stress.
- Cubic/Cubic Subdivision: Creates a lattice of cubes, offering very high strength and rigidity. Excellent for structural components.
- Lightning: A new, experimental pattern that only creates infill where it's needed to support the top layers. It's incredibly material-efficient and fast, but not for strength-critical parts.
Choosing the Right 3D Printing Fill Density
The infill density, typically expressed as a percentage, dictates how much material is used within the object. This is where Kalibracja i Ustawienia (Calibration and Settings) become critical.
- 0-10% Density: Suitable for purely aesthetic prints, prototypes, or models where strength is not an issue. Think figurines or display pieces. This saves significant material and time.
- 15-30% Density: A good balance for most functional parts that need moderate strength without excessive weight or material consumption. Common for enclosures, simple tools, or non-load-bearing components.
- 30-60% Density: Recommended for parts requiring good structural integrity, such as brackets, gears, or components that will experience some stress. Honeycomb or Gyroid patterns at this density are very effective.
- 60-100% Density: Reserved for parts needing maximum strength and durability, or for components that will be machined post-print. This uses a lot of material and print time, so it's only chosen when absolutely necessary.
Optimizing Your Settings for Strength and Speed
Beyond patterns and density, consider factors like wall thickness (perimeters) and top/bottom layers. Increasing these can significantly add strength without needing extremely high infill densities. For example, a part with 3-4 perimeters and 20% infill might be stronger and faster to print than a part with 2 perimeters and 50% infill.
Experimentation is key. Start with a moderate density like 20% and a versatile pattern like Grid or Gyroid. Then, adjust based on the specific requirements of your print. Regular calibration of your printer ensures that your chosen infill settings are accurately translated into the physical print.
