The foundation of a successful 3D print often lies beneath it: the build plate. As the crucial interface between your printer and the object being created, its characteristics directly influence print adhesion, removal, and overall print quality. The choice of a 3D printer build surface is a pivotal decision for hobbyists and professionals alike, impacting everything from print success rates to post-processing time. Among the myriad options available, two popular contenders consistently emerge in discussions: the flexible PEI build plate and the venerable glass bed. Each offers a distinct set of advantages and challenges, catering to different printing styles, materials, and user preferences. Understanding the nuances of these two prominent choices is essential for optimizing your 3D printing workflow and achieving consistent, high-quality results.
Understanding flexible PEI build plates
Polyetherimide (PEI) build plates have gained significant traction in the 3D printing community, primarily due to their exceptional adhesion properties and ease of use. A flexible PEI build plate typically consists of a spring steel sheet coated with PEI, often on both sides. This combination capitalizes on the material's inherent properties while adding the convenience of print removal through flexing. The PEI surface itself is renowned for providing a consistent, reliable adhesion layer for a wide range of filaments, from common PLA and PETG to more demanding materials like ABS and ASA.
Key characteristics and features of flexible PEI
- Excellent Adhesion: PEI offers a naturally strong bond with many thermoplastic filaments when heated, often eliminating the need for additional adhesives. This intrinsic adhesion minimizes warping and ensures the first layer sticks firmly to the build surface.
- Easy Print Removal: The flexibility of the underlying spring steel sheet is a game-changer. Once the print bed cools, the finished object can often be removed by simply flexing the plate, causing the print to pop off with minimal effort. This significantly reduces the risk of damaging prints or the build surface during removal.
- Durability and Longevity: While not indestructible, a PEI build plate is generally robust. The PEI coating is resistant to many chemicals used in 3D printing and can withstand repeated heating and cooling cycles. With proper care, a single sheet can last for hundreds of prints.
- Temperature Resistance: PEI can operate effectively at the higher temperatures required for materials like ABS, maintaining its adhesive properties without degradation.
- Surface Finish: Prints adhering to a smooth PEI surface will typically exhibit a smooth, slightly matte finish on their bottom layer. Textured PEI sheets, also popular, impart a distinct, often attractive, textured finish to the base of the print.
Considerations for flexible PEI
- Initial Cost: Flexible PEI systems, particularly those with magnetic bases, can have a higher upfront cost compared to a basic glass bed. However, this initial investment is often weighed against the long-term benefits of ease of use and reduced print failures.
- Surface Damage: While durable, PEI surfaces can be scratched or gouged by sharp tools, miscalibrated nozzles, or aggressive print removal techniques. Deep scratches can impair adhesion in affected areas.
- Specific Material Adhesion: While excellent for most filaments, some exotic materials might still benefit from or require specific adhesion aids on PEI, or may adhere too strongly, potentially damaging the surface upon removal if not handled carefully.
- Maintenance: Regular cleaning with isopropyl alcohol (IPA) is usually sufficient to maintain adhesion. However, oils from fingerprints or residues from certain filaments can reduce effectiveness over time, sometimes requiring more thorough cleaning or light sanding (with fine-grit sandpaper) to refresh the surface.

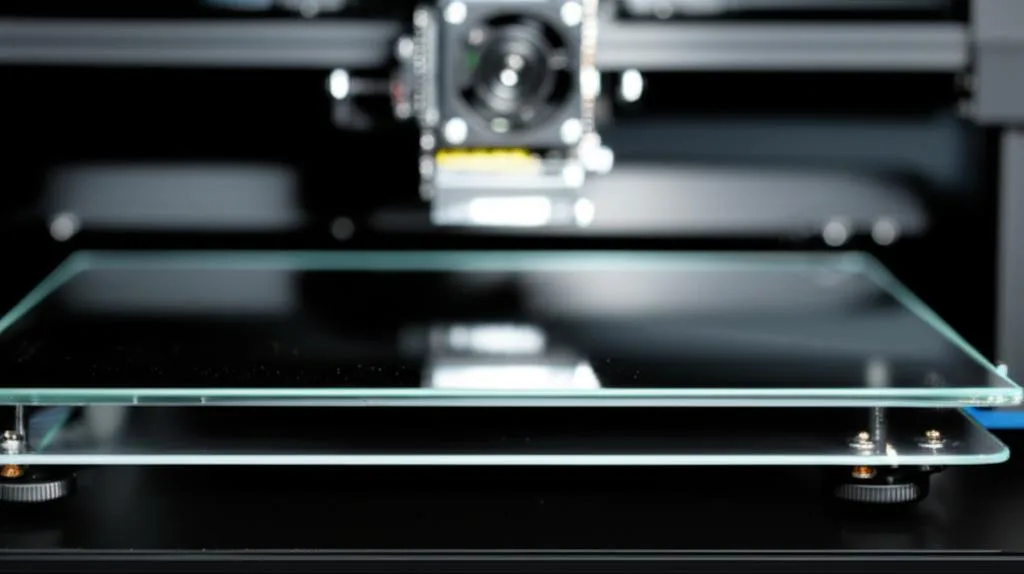

Exploring the glass bed
Glass has long been a staple as a 3D printer build surface, prized for its inherent flatness and ability to produce exceptionally smooth bottom layers. A glass bed typically refers to a sheet of borosilicate or tempered glass, often clipped directly onto the heated print bed. Its popularity stems from its simplicity, widespread availability, and the pristine finish it can impart to prints. Unlike PEI, glass itself doesn't inherently offer strong adhesion for most filaments; instead, it relies on various adhesion aids to create the necessary bond.
Key characteristics and features of glass beds
- Exceptional Flatness: Glass is inherently very flat, providing an incredibly level surface that is crucial for consistent first layer adhesion across the entire print area. This minimizes issues related to bed leveling and uneven print bases.
- Smooth Bottom Layer: Prints adhering to a clean glass surface, especially with a thin layer of adhesive, will exhibit a perfectly smooth, often glossy, finish on their bottom layer. This aesthetic quality is highly desirable for many applications.
- Excellent Heat Distribution: Glass is an effective conductor and distributor of heat, ensuring a uniform temperature across the entire build surface when heated. This consistency is vital for preventing warping, especially with larger prints.
- Wide Material Compatibility (with aids): With the right adhesion aids (e.g., glue stick, hairspray, painter's tape, specialized coatings), a glass bed can accommodate virtually any filament type, offering versatility for users experimenting with different materials.
- Durability and Chemical Resistance: Glass is highly resistant to most chemicals encountered in 3D printing and is very hard, making it difficult to scratch through normal printing operations (though impacts can cause breakage).
Considerations for glass beds
- Print Removal Difficulty: Without the flexibility of PEI, print removal from a glass bed can be challenging. Objects often require cooling completely and then careful prying with a scraper, which carries a risk of damaging the print or the bed if not done properly. Prints that adhere too strongly can be particularly problematic.
- Reliance on Adhesion Aids: For most filaments, a glass bed requires the application of an adhesive (e.g., glue stick, hairspray, or specialty sprays) to ensure proper adhesion. This adds an extra step to the printing process and can introduce mess or residue.
- Thermal Expansion: While borosilicate glass is designed to minimize thermal expansion, all glass expands and contracts with temperature changes. This can sometimes lead to prints detaching or, in rare cases, stress on the glass itself.
- Weight: Glass beds are generally heavier than flexible PEI sheets, which can sometimes impact the acceleration and deceleration performance of the print bed on certain printer kinematics, though this is often negligible for most desktop printers.
- Risk of Breakage: Glass, by its nature, is brittle and susceptible to cracking or breaking if dropped, impacted, or subjected to uneven forces during print removal.
- Maintenance: Regular cleaning is crucial, often involving washing with soap and water or cleaning with IPA to remove adhesive residues and oils, which can be more involved than PEI maintenance.
Comparative analysis: Flexible PEI versus glass
Explore the
Snapmaker U1
Choosing between a flexible PEI build plate and a glass bed involves weighing their respective strengths and weaknesses against your specific printing habits and requirements. Here's a direct comparison of key factors:
Adhesion and print removal
A significant divergence between these two surfaces lies in how they handle adhesion and print release. Flexible PEI offers a 'set it and forget it' approach for many common filaments, providing strong adhesion when hot and an almost magical release when cool, facilitated by its flexibility. This often translates to fewer failed prints due to detachment and quicker, safer print removal. Conversely, a glass bed typically requires an adhesion aid to achieve a reliable bond. While these aids are effective, they add a preparation step and can sometimes lead to prints adhering so strongly that removal becomes difficult, potentially requiring significant force or even placing the bed in a freezer to encourage release. The lack of flexibility in glass means prying is the primary method, increasing the risk of damaging the print or the bed.
Durability and maintenance
Both surfaces are durable in their own right but require different care. A PEI build plate is resilient against thermal cycling and chemical exposure but is susceptible to scratches from sharp tools or a miscalibrated nozzle. Maintaining its adhesive properties usually involves cleaning with isopropyl alcohol, and occasionally a light scuffing with fine sandpaper to refresh the surface. Glass, being harder, is less prone to scratching from tools (though a nozzle crash can still leave a mark or chip). However, it is brittle and can break if mishandled or subjected to sudden impacts. Cleaning a glass bed often involves washing with soap and water to remove adhesive residues, which can be more time-consuming than simply wiping down a PEI surface.
Surface finish
The aesthetic outcome of the print's bottom layer is a key differentiator. A smooth PEI surface will typically yield a matte or slightly satin finish, which is often desirable for a professional look. Textured PEI, a popular variant, provides a distinct, often appealing, patterned finish. A clean glass bed, especially when used with a thin layer of liquid adhesive or no adhesive for certain materials like PETG (with caution), will produce an exceptionally smooth, almost mirror-like finish. This highly reflective surface is prized for parts where bottom layer aesthetics are critical.
Cost implications
The cost structure for each option varies. An initial investment in a flexible PEI system, particularly one that includes a magnetic base, can be higher than purchasing a basic sheet of borosilicate glass. However, the PEI system might offer long-term savings by reducing the need for consumables like glue sticks or hairspray, and potentially by reducing print failures due to poor adhesion or difficult removal. Glass beds are generally more affordable upfront, but the ongoing cost of adhesion aids and the potential for breakage and replacement should be considered. The value proposition often comes down to the balance between initial outlay and the convenience, reliability, and reduced operational costs offered by each.
Material compatibility
Both build surfaces offer broad material compatibility, though they achieve it differently. PEI provides excellent direct adhesion for a vast array of common filaments, including PLA, PETG, ABS, ASA, and TPU, often without any additional aids. This makes it a highly convenient option for multi-material printing. Glass, while not inherently adhesive, becomes incredibly versatile with the use of various adhesion promoters. With the right glue stick, hairspray, or specialty coating, a glass bed can reliably print almost any filament, from standard plastics to advanced composites, allowing for extensive material experimentation.
Ease of use and workflow
The day-to-day user experience differs significantly. Flexible PEI generally streamlines the printing workflow. Its self-releasing property (when cool) means prints often pop off with a simple flex, reducing post-processing time and effort. This 'set-and-forget' nature for adhesion is a major convenience. Glass beds, on the other hand, require a more hands-on approach. Applying adhesion aids, waiting for the bed to cool completely, and then carefully prying off prints can add steps and time to each print cycle. For users prioritizing speed and minimal intervention in their workflow, flexible PEI often presents a more appealing option.
Thermal performance
Both surfaces perform well under heat, but with slight differences. Glass excels at even heat distribution across its entire surface, which is crucial for preventing warping in larger prints. Borosilicate glass, in particular, has a low coefficient of thermal expansion, making it stable across a wide temperature range. PEI, being a thin coating on spring steel, also heats up quickly and evenly. The key consideration here is not necessarily which heats better, but how each material reacts to temperature changes in terms of adhesion and print release. PEI's adhesion mechanism is highly temperature-dependent, bonding strongly when hot and releasing when cool. Glass relies more on the cooling process to allow the print to contract and potentially release, though mechanical force is often still needed.

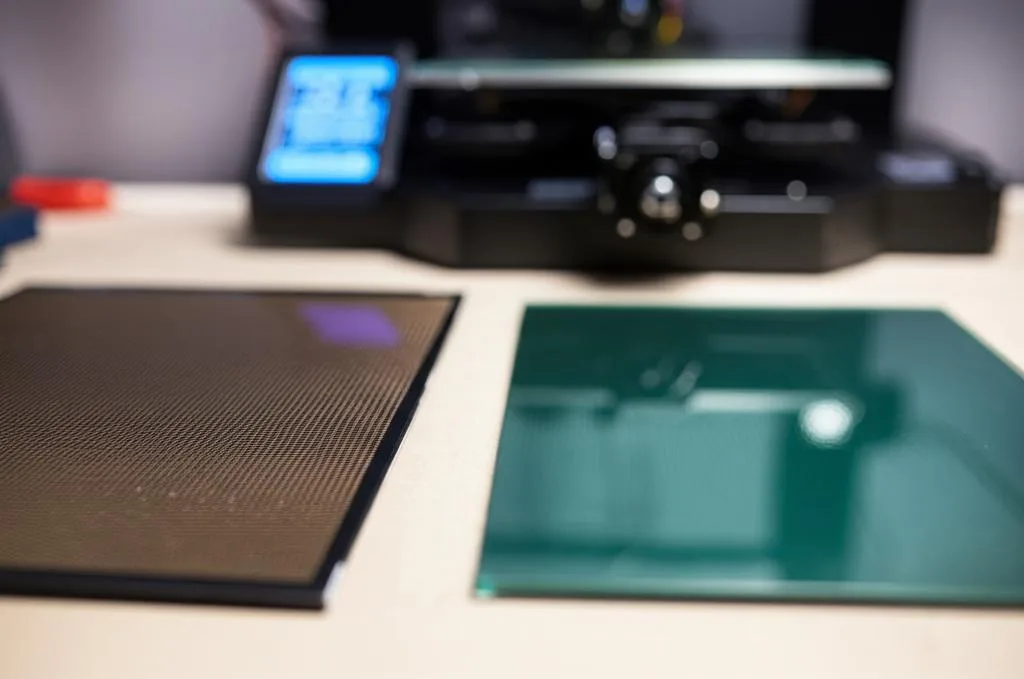

Making your decision
The choice between a flexible PEI build plate and a glass bed is not about identifying a universally "superior" option, but rather about aligning the characteristics of the build surface with your individual printing needs, budget, and preferences. Consider the following questions to guide your decision:
- What materials do you primarily print? If you mostly stick to PLA, PETG, ABS, or ASA and value direct adhesion, PEI might be highly convenient. If you frequently experiment with exotic or specialty filaments requiring specific adhesion strategies, a versatile glass bed with various aids could be more suitable.
- How important is ease of print removal? If you prioritize quick, effortless, and safe print removal, especially for delicate parts or high-volume printing, the flexibility of PEI is a significant advantage. If you don't mind the extra effort of prying and the use of tools, a glass bed is perfectly viable.
- What kind of bottom surface finish do you prefer? For a smooth, matte, or textured bottom layer, PEI offers various options. For a consistently glossy, mirror-like finish, a well-maintained glass bed is often the preferred choice.
- What is your budget and willingness for ongoing maintenance? While flexible PEI might have a higher initial cost, it can reduce the need for consumables. Glass beds are typically cheaper upfront but might incur ongoing costs for adhesion aids and require more involved cleaning routines.
- How critical is bed flatness for your prints? Both surfaces offer excellent flatness, but glass is inherently and consistently flat across its entire surface, which can be reassuring for very large prints where even the slightest deviation matters.
Ultimately, both flexible PEI build plates and glass beds are excellent choices for a 3D printer build surface, each bringing distinct advantages to the table. Your ideal choice will depend on a careful evaluation of your specific printing projects, the types of filaments you use, your desired workflow efficiency, and your budget considerations. By understanding the detailed characteristics and implications of each, you can make an informed decision that will enhance your 3D printing experience and contribute to consistently successful prints.
