Mechanical binding is a formidable foe for anyone striving for perfection in 3D printing. It's a common, yet often misunderstood, culprit behind a host of print quality issues, ranging from unsightly layer lines and inconsistent surfaces to outright print failures. At its core, mechanical binding refers to any resistance that impedes the smooth and free movement of your 3D printer's mechanical components. When your printer's axes — X, Y, or Z — encounter this friction, the result is a ripple effect of inaccuracies that can compromise the dimensional accuracy of your prints and leave you scratching your head. Understanding, identifying, and ultimately eliminating mechanical binding is paramount for achieving the pristine, precise 3D prints you envision.
Understanding the mechanics of binding in 3D printers
To effectively combat mechanical binding, it's crucial to grasp what it is and how it manifests. Imagine your printer's motion system as a finely tuned orchestra; every component must work in perfect harmony. When one part experiences undue resistance, the entire performance suffers. This resistance can occur in various forms and locations, but the outcome is always the same: a deviation from the intended path of the print head or build plate, leading to inaccuracies.
What exactly is mechanical binding?
Mechanical binding is essentially a 'stick-slip' phenomenon where moving parts momentarily seize or drag instead of gliding smoothly. This can be caused by excessive friction, misalignment, or physical obstructions. When an axis binds, the stepper motor might skip steps, or the entire frame might momentarily flex, resulting in a misplacement of material. This directly impacts dimensional accuracy, as layers won't be deposited precisely where they should be.
The impact on print quality and dimensional accuracy
The consequences of mechanical binding are far-reaching. You might observe:
- Layer shifting: Entire sections of your print are offset horizontally.
- Z-banding or Z-wobble: Inconsistent layer height or wavy patterns along the Z-axis, often due to issues with the lead screws or their mounts.
- Poor surface finish: Rough, uneven, or textured surfaces where they should be smooth.
- Inconsistent extrusion: The nozzle might slow down or speed up erratically when binding occurs, affecting material flow.
- Dimensional inaccuracy: Prints that are consistently too large, too small, or distorted in one or more dimensions, making parts unfit for their intended purpose.
- Audible noises: Squeaking, grinding, or clunking sounds during printer operation.

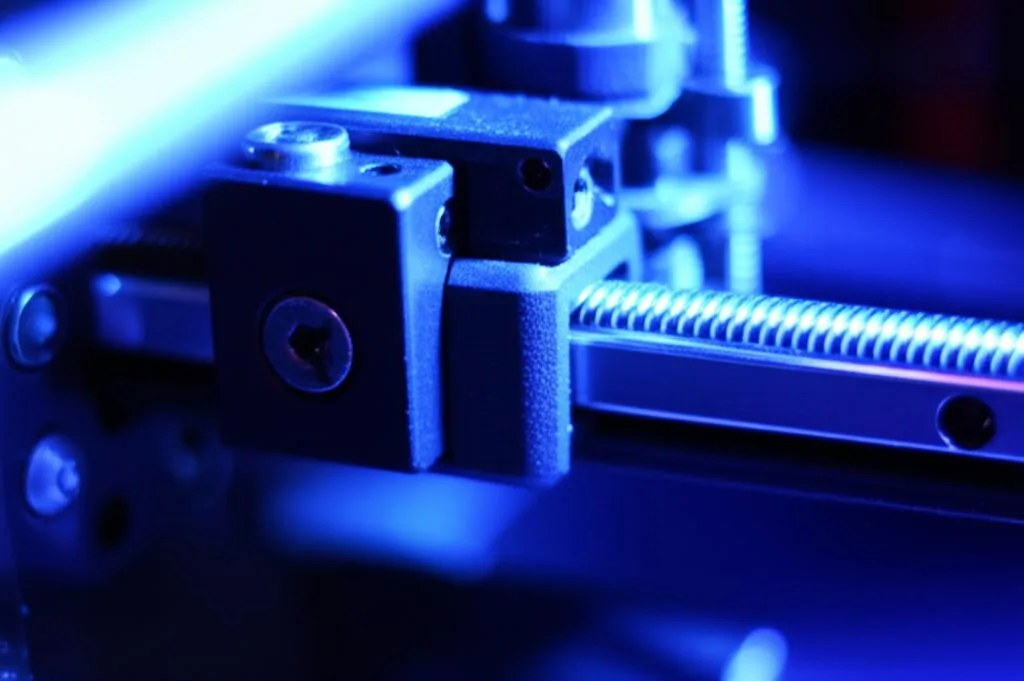

Common culprits behind mechanical binding
Pinpointing the exact cause of mechanical binding often requires a systematic approach, as several factors can contribute to this frustrating issue. Here are the most frequent offenders:
Misaligned components
- Gantry misalignment: If the X-axis gantry (the horizontal bar holding the print head) isn't perfectly parallel to the print bed, or if the uprights supporting it aren't square to the base, it can cause significant binding, especially on the Z-axis.
- Linear rods or rails: Bent, improperly installed, or misaligned linear rods or rails will create friction and resistance for the bearings or linear blocks moving along them.
- Lead screws: Bent lead screws, or lead screws that aren't perfectly aligned with their stepper motors and nuts, are a primary cause of Z-axis wobble and binding.
Worn or damaged parts
- Bearings: Worn out linear bearings (LM8UU, IGUS bushings, etc.) or V-slot roller wheels can introduce play and friction.
- Lead screw nuts: The brass or POM nuts that thread onto the lead screws can wear down, leading to backlash and binding.
- Bent components: Even a slight bend in a linear rod or lead screw can cause significant binding as the carriage attempts to move past the bend.
Lack of proper lubrication
Just like any mechanical system, 3D printer components require lubrication to operate smoothly. Dry linear rods, lead screws, or bearings will quickly develop friction, leading to binding and accelerated wear. Using the wrong type of lubricant can also be detrimental.
Over-tightened or under-tightened components
- Eccentric nuts: On V-slot systems, eccentric nuts adjust the tension of the roller wheels against the aluminum extrusion. Too tight, and they bind; too loose, and there's excessive play.
- Motor mounts: If stepper motors are mounted too rigidly or misaligned, they can put undue stress on lead screws or drive shafts.
- Couplings: The couplings connecting lead screws to stepper motors should allow for slight misalignment but not be overly restrictive or loose.
Debris and obstructions
Dust, filament scraps, cured resin, or even small foreign objects can accumulate on linear rods, lead screws, or within bearings, creating unexpected friction points.
Frame rigidity issues
A flimsy or poorly assembled printer frame can flex during movement, especially with rapid accelerations or heavy print heads. This flexing can momentarily misalign components, inducing binding.
Identifying mechanical binding: a troubleshooting guide
Explore the
Snapmaker U1
Effective printer troubleshooting begins with accurate diagnosis. Here’s how to systematically identify the presence and location of mechanical binding:
Manual movement tests
- Power off the printer: Always ensure the printer is off when manually moving components to prevent damage to stepper motors.
- Move each axis by hand: Gently push the print head (X and Y axes) and raise/lower the Z-axis gantry. Pay close attention to any areas where movement feels rough, jerky, or requires more force than usual.
- Isolate axes: If possible, disconnect a lead screw from its motor or unmount a stepper motor to test the mechanical movement of the gantry or build plate independently. This helps determine if the binding is in the mechanical path or related to the motor/driver.
Visual inspection
- Check for bent rods/screws: Roll linear rods and lead screws on a flat surface (like a glass bed) to check for straightness. Even a subtle bend can be problematic.
- Inspect bearings/wheels: Look for wear, dirt, or damage on linear bearings, V-slot wheels, or their respective tracks.
- Observe gantry movement: Watch the gantry as it moves up and down the Z-axis. Does it move smoothly, or does it seem to stick and then jump?
- Look for debris: Carefully inspect all moving parts for any foreign material.
Listen for unusual noises
While the printer is operating, listen for any squeaking, grinding, scraping, or clunking sounds that indicate friction or components colliding. These audible cues are often the first sign of trouble.
Analyze print artifacts
As mentioned earlier, specific print quality issues are strong indicators of mechanical binding. If you consistently see layer shifting, Z-banding, or poor dimensional accuracy, mechanical binding should be high on your list of suspects for printer troubleshooting.

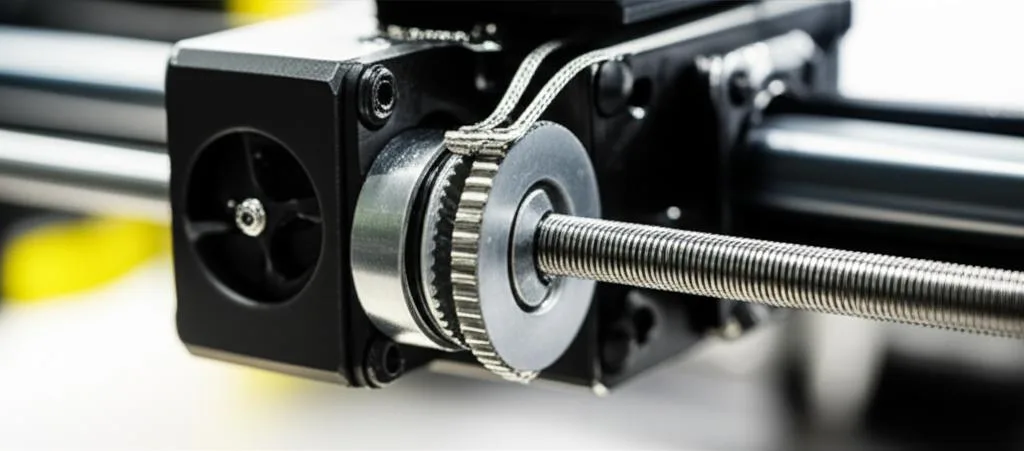

Strategies for eliminating mechanical binding
Once you've identified the source of the binding, it's time to implement solutions. Remember to approach this systematically, making one change at a time to accurately assess its impact.
1. Thorough cleaning and lubrication
- Clean all linear components: Use a lint-free cloth and isopropyl alcohol to thoroughly clean linear rods, rails, and lead screws. Remove any old grease, dirt, or filament residue.
- Apply appropriate lubricant: For linear rods and lead screws, a light machine oil (e.g., sewing machine oil), white lithium grease, or a dry PTFE lubricant is often suitable. For linear rails, specific rail grease is usually recommended. Avoid thick greases that can attract dust or become gummy. Lubricate bearings if accessible, but many sealed bearings are maintenance-free.
2. Precision alignment of components
- Square the frame: Use a carpenter's square to ensure your printer's frame is perfectly square and all uprights are perpendicular to the base. This is fundamental for preventing gantry friction.
- Align linear rods/rails: Ensure that parallel linear rods or rails are perfectly parallel to each other and perpendicular to the axis of movement. This might involve loosening mounting screws, adjusting, and re-tightening carefully.
- Lead screw alignment: This is critical for preventing Z-axis wobble.
- Check lead screw straightness: Replace bent lead screws.
- Coupling type: Ensure the coupling between the motor and lead screw allows for minor axial misalignment without transmitting motor wobble to the lead screw. Flexible couplings are often preferred over rigid ones.
- Lead screw nut attachment: The lead screw nut (e.g., brass nut) should be able to float slightly in its mount to accommodate minor misalignments. Avoid over-tightening the screws that hold the nut to the gantry, as this can force the lead screw into an unnatural angle.
- Top bearings: While some printers use top bearings for lead screws, they can sometimes introduce binding if not perfectly aligned. Experiment with removing them if you suspect they are causing issues.
- Re-seat bearings/wheels: Ensure all linear bearings are properly seated and that V-slot wheels have appropriate tension (adjusted with eccentric nuts) – not too tight, not too loose.
3. Inspect and replace worn or damaged parts
If cleaning and alignment don't resolve the issue, consider replacing components:
- Linear bearings/wheels: If they feel rough or have excessive play, replace them.
- Lead screws: If bent or heavily worn, replacement is necessary.
- Lead screw nuts: Worn nuts can introduce backlash and friction; replace them, possibly with anti-backlash nuts for improved performance.
- Upgrade considerations: For persistent issues or to significantly enhance dimensional accuracy, consider upgrading to higher-quality components, such as genuine linear rails instead of rods, or precision-ground lead screws.
4. Adjusting tension and tightness
- Belt tension: Ensure X and Y axis belts are tensioned correctly – tight enough to prevent skipping, but not so tight as to strain motors or bearings.
- Eccentric nuts: Fine-tune the eccentric nuts on V-slot roller wheels. The wheel should rotate freely but have no perceptible wobble.
- Motor mounts: Ensure stepper motor mounts are secure but not overly constrained, allowing for slight natural movement.
5. Enhancing frame rigidity
For printers with less rigid frames, consider:
- Tightening all frame bolts: Periodically check and tighten all bolts holding the frame together.
- Adding braces: Diagonal braces or additional extrusions can significantly improve frame rigidity and reduce gantry friction, especially on taller printers.
Preventative measures for lasting print quality
Prevention is always better than cure. Adopting a routine maintenance schedule can drastically reduce the likelihood of encountering mechanical binding:
- Regular cleaning: Keep your printer free of dust and filament debris, especially on moving parts.
- Scheduled lubrication: Re-lubricate linear rods and lead screws periodically, depending on printer usage.
- Routine inspections: Regularly check for signs of wear, misalignment, or loose components.
- Proper assembly: If assembling a new printer or performing major repairs, take your time to ensure all components are perfectly aligned and tightened to specifications.
- Invest in quality components: While not always an option, higher-quality linear motion components tend to be more durable and less prone to binding.
Conclusion
Mechanical binding is a pervasive issue in 3D printing that directly impacts print quality issues and dimensional accuracy. While it can be frustrating, understanding its causes and employing a systematic approach to printer troubleshooting can lead to significant improvements. By regularly inspecting, cleaning, lubricating, and aligning your printer's mechanical components, you can effectively eliminate gantry friction and Z-axis wobble, paving the way for consistently smooth, accurate, and high-quality 3D prints. Patience and methodical testing are your best allies in this endeavor, ensuring your printer performs at its peak potential.
