Achieving pristine surface quality on 3D prints is often a primary goal for enthusiasts and professionals alike. However, two common adversaries frequently stand in the way: 3D print ringing and ghosting. These defects, while sometimes subtle, can significantly detract from the visual appeal and perceived quality of a printed object. Understanding their root causes and the spectrum of solutions available, from basic mechanical checks to sophisticated advanced calibration techniques, is key to banishing them from your workshop.
Understanding 3D print ringing and ghosting
Explore the
Snapmaker U1
At first glance, 3D print ringing and ghosting might appear similar, but they manifest differently and point to specific underlying issues. Ringing, also known as 'vibration artifacts' or 'salmon skin,' typically appears as faint, repetitive ripples or waves on the printed surface, usually parallel to the direction of travel of the print head. These ripples are most noticeable near sharp corners or sudden changes in print direction.
Ghosting, on the other hand, is an 'echo' effect. It manifests as faint, repeated outlines or shadows of features (like text or holes) that appear slightly offset from their intended position, trailing behind the actual feature. Both phenomena are fundamentally caused by the printer's mechanical system vibrating or oscillating in response to rapid movements, particularly during acceleration and deceleration.
The primary culprit is inertia. When a print head, weighing a certain amount, changes direction rapidly, the momentum can cause the entire printer frame, or specific components like the print head assembly, to oscillate. These oscillations then translate into slight inaccuracies in the extrusion path, leaving tell-tale marks on the print's surface. Identifying whether you're dealing with ringing, ghosting, or both is the first step towards effective troubleshooting.

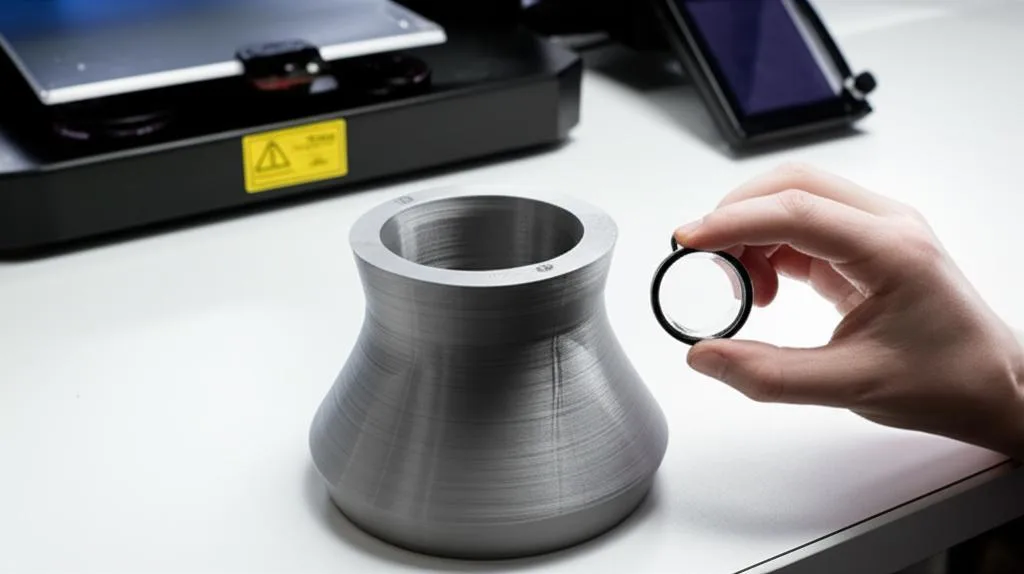

Initial steps for diagnosing and mitigating ringing
Before diving into advanced solutions, it's prudent to address the foundational aspects of your 3D printer. Often, seemingly complex problems have straightforward mechanical origins.
Mechanical inspection and tightening
A loose component or an unstable printer can amplify vibrations. A thorough mechanical inspection can often work wonders:
- Tighten belts: Loose or worn-out belts are a common cause of ringing. Ensure all belts (X, Y, and sometimes Z) are adequately tensioned, but not excessively so, as this can lead to motor strain or premature wear.
- Check frame rigidity: A wobbly printer frame is a recipe for disaster. Ensure all frame screws are tight and that the printer is resting on a stable, level surface. Adding rubber feet or anti-vibration pads can also help dampen vibrations.
- Inspect hotend and bed mounts: Loose hotend assemblies or print beds can introduce unwanted movement. Verify that all mounting screws are secure.
- Gantry and wheel play: If your printer uses V-slot wheels, check for excessive play. Adjust eccentric nuts to ensure smooth, firm movement without binding.
Slicer settings adjustments
Your slicer software offers several parameters that directly influence print head movement and, consequently, the likelihood of ringing and ghosting:
- Reduce acceleration: This is arguably the most impactful setting. Lowering the acceleration values for X and Y axes means the print head will speed up and slow down more gently, reducing the sudden forces that cause vibrations.
- Decrease jerk settings: Jerk defines the instantaneous change in velocity. A lower jerk setting means smoother, less abrupt changes in direction, which can mitigate the initial 'kick' that causes ringing.
- Lower print speed: While not ideal for production, reducing overall print speed, especially for outer perimeters, can give the printer more time to settle after movements, leading to cleaner surfaces. This is a trade-off between speed and quality.
Advanced calibration techniques for superior surface quality
When mechanical fixes and slicer adjustments fall short, or if you're chasing truly impeccable surface quality, advanced calibration techniques come into play. These methods actively counteract the printer's inherent vibrational tendencies.
The science behind resonance compensation and input shaping
The core issue with ringing and ghosting lies in the printer's natural resonant frequencies. Every mechanical system has specific frequencies at which it prefers to vibrate. When the print head's movements excite these frequencies, the printer 'rings' like a bell. Input shaping, often referred to as resonance compensation, is a sophisticated technique designed to mitigate these vibrations.
The principle involves pre-processing the motion commands sent to the motors. Instead of sending a single, sharp command to move, input shaping sends a series of precisely timed pulses. These pulses are engineered to cancel out the printer's natural oscillations, effectively dampening the vibrations before they can manifest on the print. It's akin to striking a bell and then immediately applying a counter-force to stop it from ringing.
Implementing input shaping and resonance compensation
To implement input shaping effectively, you typically need to identify the resonant frequencies of your specific printer. This usually involves an accelerometer, such as an ADXL345, mounted on the print head. The accelerometer measures the printer's vibrations during controlled test movements.
- Hardware setup: An accelerometer is connected to your printer's control board (or a separate microcontroller like a Raspberry Pi running Klipper). This hardware provides the necessary data for vibration analysis.
- Firmware support: Modern 3D printer firmwares like Klipper and Marlin 2.0+ (with specific configurations) offer robust support for input shaping. Klipper, in particular, is renowned for its ease of use and effectiveness in this area, allowing users to run calibration routines that automatically detect resonant frequencies.
- Calibration process: Once the accelerometer is set up, a calibration routine is run. The printer will perform a series of rapid movements, and the accelerometer will record the resulting vibrations. The firmware then analyzes this data to determine the optimal input shaping parameters (e.g., specific frequencies and damping coefficients) to apply.
- Applying compensation: These calculated parameters are then stored in the printer's configuration, and the firmware applies the input shaping algorithms in real-time to all subsequent print movements.
While the initial setup of an accelerometer and configuring advanced firmware might seem daunting to some, the investment in time and a relatively inexpensive sensor can yield dramatic improvements in surface quality, often allowing for higher print speeds without compromising finish.
Printer tuning and environmental factors
Even with advanced compensation, a well-tuned printer forms the bedrock of quality. Regular maintenance and attention to detail remain crucial:
- Extrusion calibration: Ensure your extruder is pushing out the correct amount of filament. Over-extrusion can exacerbate surface defects.
- Temperature and cooling: Optimal print temperatures and adequate part cooling are essential for clean surfaces.
- Filament quality: Inconsistent filament diameter or poor-quality material can introduce subtle defects that are hard to distinguish from ringing.
- Stable environment: Ensure your printer is on a sturdy, vibration-dampening surface, away from external sources of vibration.

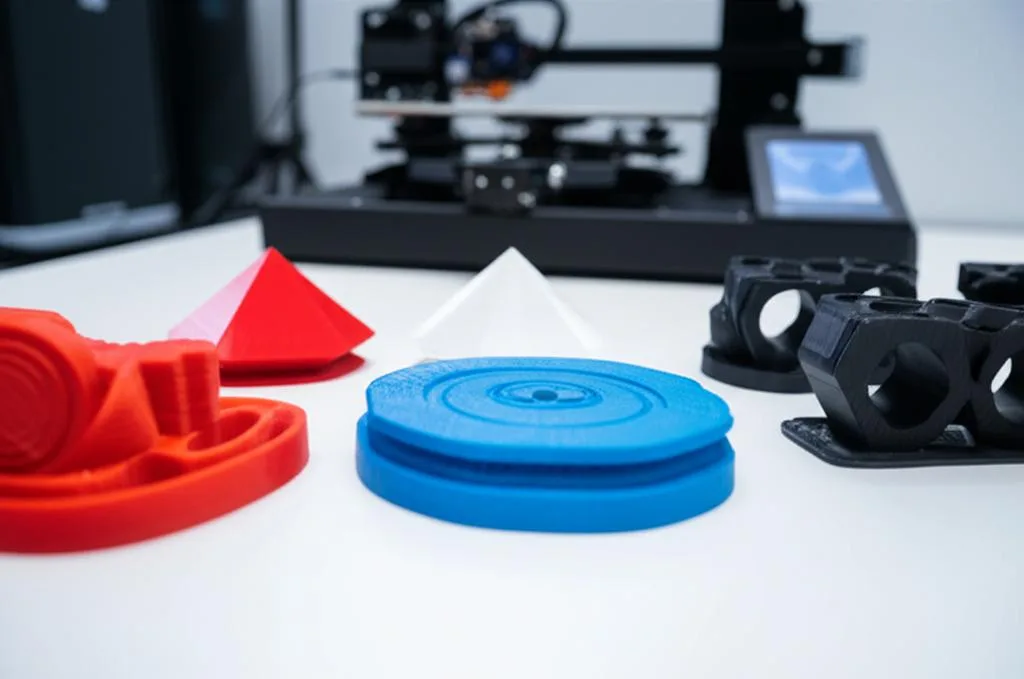

Making an informed decision for your printer
Eliminating 3D print ringing and ghosting is a journey that often involves a combination of techniques. The 'best' approach isn't a one-size-fits-all solution but rather a methodical process of diagnosis, adjustment, and calibration tailored to your specific printer and desired outcome. Simple mechanical checks and slicer adjustments are excellent starting points, offering significant improvements for minimal effort.
For those seeking to push the boundaries of surface quality and print at higher speeds without artifacts, advanced techniques like input shaping represent a powerful, albeit more involved, solution. It requires a deeper dive into firmware configuration and the use of specialized hardware, but the results can be truly transformative.
Ultimately, the decision rests on your comfort level with technical adjustments, your budget for potential hardware upgrades, and the level of surface perfection you aim to achieve. By systematically addressing each potential cause and experimenting with the various solutions, you can significantly enhance your 3D printing experience and consistently produce ghosting-free surfaces that speak volumes about your attention to detail.
