Few things are as disheartening in 3D printing as returning to a seemingly perfect print, only to find that at some point, one or more layers have visibly shifted, ruining hours of work. This common print failure, known as layer shifting or skipped layers, can transform a masterpiece into a modern art piece – albeit an unintentional one. It occurs when the print head or print bed fails to move to its intended position on one or both axes (X and Y) during a layer, causing subsequent layers to be misaligned. While frustrating, layer shifting is often a fixable issue, stemming from mechanical or electrical inconsistencies within your 3D printer. This comprehensive guide will walk you through the systematic diagnosis and resolution of layer shifting, focusing on two of its most prevalent culprits: improper belt tension and incorrect motor current settings.
Understanding layer shifting and its impact
Explore the
Snapmaker U1
Layer shifting manifests as a noticeable offset in a section of your print, where layers above a certain point are horizontally misaligned with those below. This can range from a subtle, barely perceptible jog to a dramatic, stair-step effect that renders the print unusable. The underlying cause is usually a momentary loss of position by one of the stepper motors responsible for moving the print head (X-axis, Y-axis) or the print bed (Y-axis, or Z-axis in some delta printers, though Z-axis shifts are less common for this specific issue). When a motor 'skips steps,' it fails to advance the print head or bed by the precise amount commanded by the printer's electronics, leading to the misalignment. Addressing this issue is crucial not only for print quality but also for the longevity and reliability of your printer components.

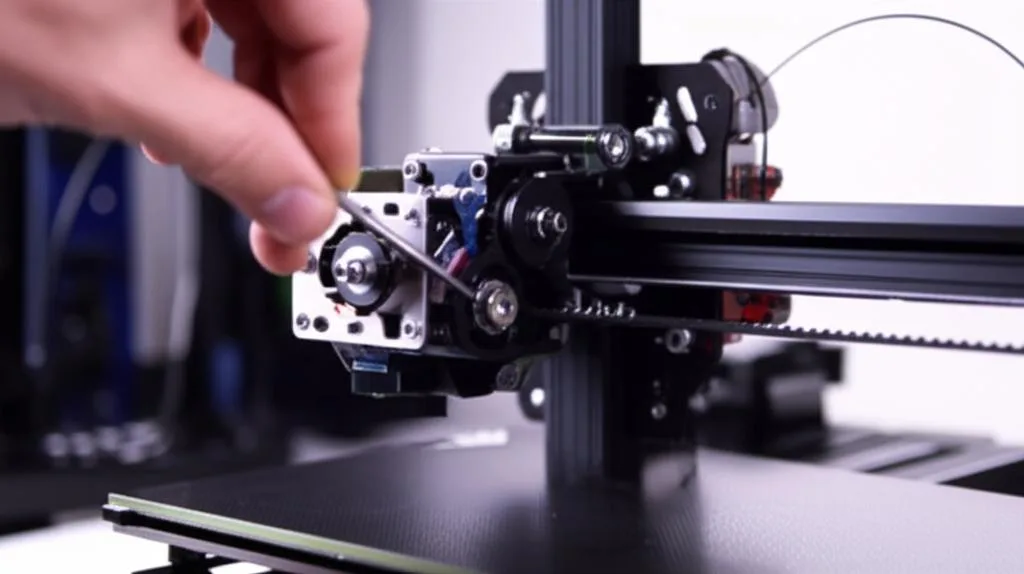

Step-by-step diagnosis and troubleshooting
Step 1: initial visual inspection and basic checks
Before diving into more complex adjustments, a thorough visual inspection can often reveal the low-hanging fruit of layer shifting problems. This initial phase is about identifying obvious mechanical obstructions or loose components that might be impeding smooth motion.
Check for obstructions and binding
- Cable snagging: Observe your printer during operation, paying close attention to the print head and bed movements. Are any cables (hotend wires, bed heater wires, sensor wires) catching on the frame, bed, or other components? Even a slight snag can momentarily impede movement, causing a motor to skip steps. Reroute or secure cables with zip ties or cable chains if necessary.
- Debris on rails or rods: Dust, filament scraps, or other foreign objects on your linear rails, smooth rods, or lead screws can create friction and resistance. Power off your printer and manually move the print head and bed along their full range of motion. Feel for any rough spots, grinding, or excessive resistance. Clean rods and rails thoroughly with a lint-free cloth and apply appropriate lubricant if recommended by your printer manufacturer.
- Print colliding with itself: If a print has warped or curled upwards, the nozzle can collide with the raised part, causing the print head to momentarily stall or skip steps. Ensure proper bed adhesion and consider using a brim or raft for parts prone to warping.
Inspect for loose components
- Wobbly print bed or hotend: Gently try to wiggle the print bed and the hotend assembly. Any significant play or looseness can lead to inconsistent positioning. Check and tighten all screws, eccentric nuts (on V-slot wheels), and mounting hardware related to these components.
- Loose pulleys: The pulleys attached to your stepper motor shafts and idlers are critical for transmitting motion to the belts. Ensure they are securely fastened. Most pulleys have small grub screws that tighten against the motor shaft. These can loosen over time. Use an appropriate hex key to ensure they are snug.
- Loose stepper motors: Verify that the stepper motors themselves are firmly mounted to the printer frame. Vibrations can cause mounting screws to loosen.
Step 2: optimizing belt tension
Belts are the workhorses of your printer's motion system, translating rotational motor movement into linear travel. Incorrect belt tension is a prime suspect for layer shifting, affecting both precision and the ability of motors to overcome resistance.
The Goldilocks zone of belt tension
Getting belt tension just right is crucial. Both excessively loose and overly tight belts can cause problems, though with different symptoms and implications for your printer's longevity.
- Too loose belts: This is a very common cause of layer shifting. A loose belt can slip on the motor pulley or idler, leading to lost steps and imprecise movement. It can also cause "ghosting" or "ringing" artifacts on your prints, where vibrations are visible as faint echoes of sharp corners. The cost of addressing loose belts is primarily your time and attention; it rarely requires replacement parts unless the belt itself is stretched or damaged. The "feature" of correctly tensioned belts is precise, repeatable motion and reduced print artifacts.
- Too tight belts: While less common as a direct cause of layer shifting than loose belts, overly tight belts introduce excessive friction and stress on your stepper motors, motor bearings, and linear motion components (rods, rails, bearings). This increased resistance forces the motors to work harder, potentially leading to overheating, premature wear, and in some cases, skipped steps if the motor can't overcome the resistance. The long-term cost here could be accelerated wear on components. The "feature" of avoiding overly tight belts is extending the lifespan of your printer's mechanical and electrical components, alongside maintaining smooth operation.
How to check and adjust belt tension
- Power off the printer: Always ensure the printer is off before making mechanical adjustments.
- Manual movement test: Manually move the print head and bed across their full range of motion. They should move smoothly without excessive resistance or play.
- The 'pluck' test: A common method is to gently pluck the longest section of the belt, much like a guitar string. A properly tensioned belt should produce a low-pitched, subtle twang. If it feels slack or makes a dull thud, it's likely too loose. If it feels extremely taut and produces a high-pitched, sharp sound, it might be too tight. This is somewhat subjective, so consistency across axes is key.
- Visual inspection for slack: Look for any visible slack or sagging in the belt, especially when the print head or bed is in the middle of its travel.
- Adjusting tension: Most 3D printers have belt tensioners, either integrated into the frame or as separate adjustable components. These typically involve a screw mechanism that allows you to pull the idler pulley further away from the motor, increasing tension. Loosen the mounting screws of the idler or motor slightly, adjust the tensioner, and then re-tighten. Make small adjustments and re-test.
After adjusting, always re-check the smooth movement of the axes and ensure no new binding has been introduced.
Step 3: examining motor current and stepper drivers
If your belts are perfectly tensioned and there are no mechanical obstructions, the problem might lie in the electrical domain, specifically with your stepper motors and their drivers. Stepper motors require a precise amount of current to generate the necessary torque to move the printer's components accurately. If the current is too low, the motor won't have enough power and will skip steps under load. If it's too high, the motor and its driver can overheat, leading to thermal shutdown and skipped steps.
Understanding stepper motor current
The current supplied to your stepper motors dictates their torque. More current generally means more torque, but also more heat. Stepper drivers (small circuit boards that control the motors) regulate this current. Modern drivers often have advanced features like microstepping and stealthChop, but their core function is current control.
Symptoms of incorrect motor current
- Low current (undercurrent): Motors may lack sufficient torque, especially during rapid movements or when encountering minor resistance. This often results in audible "clunks" or "grinding" sounds as the motor skips steps. The motors might feel cool to the touch.
- High current (overcurrent): Motors and/or stepper drivers become excessively hot to the touch. This heat can cause the driver to enter thermal shutdown, temporarily cutting power to the motor and leading to skipped steps. Overheating can also shorten the lifespan of motors and drivers.
Adjusting motor current (Vref)
For many printers, especially those with removable stepper drivers (like A4988, DRV8825, TMC2100, TMC2208, TMC2130), the motor current is set by adjusting a small potentiometer (trimmer) on the driver board. This adjustment sets the Vref (reference voltage), which the driver uses to determine the motor current.
Safety warning: This procedure involves working with live electronics. Exercise extreme caution. If you are uncomfortable, seek professional assistance or consult your printer's documentation. Always use a ceramic or plastic screwdriver for Vref adjustment to avoid short-circuiting components.
- Identify your stepper drivers: Locate the stepper drivers on your printer's mainboard. Note their type (e.g., A4988, TMC2208) as different drivers have different Vref calculation formulas and maximum current ratings.
- Find recommended current/Vref: Consult your printer's manufacturer documentation or the datasheet for your specific stepper motor and driver. This will provide a recommended current setting (often in Amps) per motor.
- Calculate target Vref: Each driver type has a formula to convert desired motor current (I_max) to Vref. For example:
- A4988: Vref = I_max * 8 * R_sense (where R_sense is the sense resistor value, usually 0.1 Ohm for many boards)
- DRV8825: Vref = I_max * 2 * R_sense
- TMC2208: Vref = (I_RMS * 2.5) / 1.77 (assuming a sense resistor of 0.11 Ohm, consult datasheet for specifics)
It's crucial to use the correct formula and R_sense value for your specific driver and board. If in doubt, err on the side of slightly lower current initially.
- Prepare for measurement: Power on the printer (but do not start a print). Set your multimeter to DC voltage measurement. Place the negative probe on a known ground point on the mainboard (e.g., a screw hole, the negative terminal of a power input, or the negative pin of a stepper motor connector). Place the positive probe on the metal screw of the potentiometer on the stepper driver.
- Adjust Vref: Carefully turn the potentiometer with a ceramic or plastic screwdriver. Turn clockwise to increase current, counter-clockwise to decrease. Make small adjustments (e.g., 0.05V at a time) and re-check the voltage. Aim for the calculated target Vref.
- Test and monitor: After adjustment, run a test print. Monitor the temperature of your motors and drivers. They should be warm to the touch, but not so hot that you cannot comfortably hold your finger on them for several seconds. If they are very hot, reduce the Vref slightly. If you still experience skipped steps, you may need to increase it slightly, but always prioritize avoiding overheating.
Firmware-controlled current (TMC drivers)
Some advanced stepper drivers (e.g., TMC2130, TMC2209, TMC5160) can be controlled via firmware (SPI or UART mode). In these setups, the motor current is set directly in the printer's firmware (e.g., Marlin), eliminating the need for Vref adjustment via potentiometer. This approach offers enhanced control and often quieter operation, but requires familiarity with firmware compilation. The cost structure here involves time and technical expertise for firmware modification, with no direct material cost unless a mainboard upgrade is required to support such drivers.
Step 4: other potential causes and advanced troubleshooting
If belt tension and motor current adjustments haven't resolved the layer shifting, it's time to delve into other less common but equally impactful causes.
Mechanical integrity checks
- Eccentric nuts: Many printers use V-slot wheels with eccentric nuts to adjust the tension of the wheels against the aluminum extrusions. If these are too loose, the gantry or bed can wobble; if too tight, they can cause excessive friction. Adjust them so the wheels have minimal play but still roll smoothly without binding. This is a zero-cost fix, requiring only a wrench.
- Bent rods or lead screws: Inspect your smooth rods and lead screws for any signs of bending or damage. Even a slight bend can cause inconsistent movement and binding. Replacing bent components is often the only solution here, incurring a material cost that varies depending on the part.
- Worn bearings: Linear bearings (LM8UU, Igus, etc.) can wear out over time, introducing play or increasing friction. Listen for unusual noises and feel for rough spots during manual movement. Replacing worn bearings will incur a material cost.
- Misaligned frame: A severely out-of-square printer frame can cause binding and uneven motion. While difficult to fix without significant disassembly, it's worth considering if all other checks fail. The cost here is substantial time and effort, potentially specialized tools.
Firmware and slicer settings
- Acceleration and jerk settings: High acceleration and jerk values in your firmware or slicer can demand more from your stepper motors than they can reliably deliver, especially at higher print speeds. Experiment with reducing these values (e.g., start with 500 mm/s² for acceleration and 5-10 mm/s for jerk) to see if it alleviates the shifting. This is a zero-cost adjustment, requiring only changes in software. The "feature" of optimized settings is smoother motion and reduced stress on mechanical components.
- Print speed: Printing too fast for your printer's mechanical capabilities or motor torque can lead to skipped steps. Try reducing your overall print speed by 10-20% as a test. This is also a zero-cost adjustment, though it increases print time.
Stepper motor health
In rare cases, a stepper motor itself might be faulty. Symptoms include erratic movement, excessive heat (even with correct current), or a complete lack of movement. Swapping motors between axes (e.g., X and E) can help diagnose if the motor is the culprit, or if the issue lies with the driver or cabling. Replacing a faulty stepper motor will incur a material cost, which can vary significantly depending on the motor type.
Conclusion
Layer shifting is a frustrating but usually solvable problem in 3D printing. By systematically working through the diagnostic steps outlined in this guide, you can pinpoint and rectify the root cause. Remember to start with the simplest and most common culprits – mechanical obstructions and incorrect belt tension – before moving on to electrical adjustments like motor current. Each adjustment, whether it's tightening a belt or fine-tuning Vref, represents a 'solution' with its own cost structure, primarily time and careful attention, with potential material costs if components need replacement. By understanding the interplay between your printer's mechanical and electrical systems, you'll be well-equipped to achieve consistent, high-quality prints and bring your 3D models to life without the unwelcome surprise of a shifted layer.
