In the rapidly evolving landscape of additive manufacturing, the ability to combine different materials within a single print has emerged as a game-changer. Moving beyond single-material constraints, multi-material 3D printing, particularly the integration of rigid and flexible filaments, unlocks a new realm of design possibilities. This advanced approach allows engineers, designers, and hobbyists to create functional parts with tailored mechanical properties, opening doors to innovative solutions across various industries.
The synergy of rigid and flexible 3D print materials
Explore the
Snapmaker U1
Traditional 3D printing often involves selecting a single filament that best approximates the desired properties of the final part. However, real-world applications frequently demand a combination of characteristics – for instance, a part requiring a stiff structural core for support and a soft, grippy exterior for ergonomics or shock absorption. This is where the concept of a rigid flexible 3D print truly shines.
By judiciously combining materials like a rigid PLA or PETG with a flexible TPU, designers can imbue their creations with advanced material properties previously unattainable in a single print. This multi-material design approach is not merely about aesthetics; it's fundamentally about enhancing functionality and performance. From creating living hinges that require both durability and flexibility to producing components with integrated seals or vibration dampeners, the possibilities are vast.
Why combine rigid and flexible filaments?
- Enhanced Functionality: Parts can perform multiple roles, such as providing structural integrity while also offering ergonomic comfort or impact resistance.
- Improved Durability: Flexible sections can absorb shocks, protecting rigid components from damage.
- Customized Tactile Properties: Create soft-touch surfaces, non-slip grips, or comfortable interfaces.
- Integrated Features: Design parts with built-in gaskets, seals, or flexible conduits, reducing assembly steps.
- Prototyping Real-World Products: Develop functional prototypes that more accurately mimic the properties of injection-molded multi-material products.

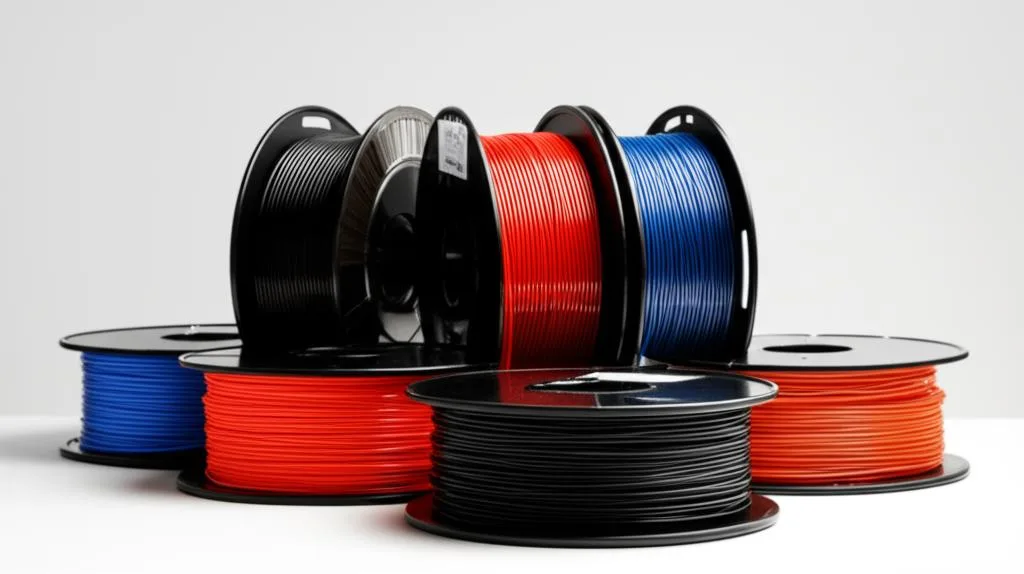

Understanding the core materials for multi-material design
To embark on a successful rigid flexible 3D print journey, a foundational understanding of the common filament types is essential. Each material brings its own set of characteristics, and their compatibility and interaction are critical to the success of a multi-material design.
Rigid filaments: The backbone
These materials typically provide the structural integrity and load-bearing capabilities of a multi-material part.
- PLA (Polylactic Acid): One of the most common and user-friendly filaments. It's biodegradable, easy to print, and offers good stiffness. While not as durable as some other rigid plastics, its ease of use makes it an excellent candidate for pairing with flexible materials, especially for a TPU PLA combination.
- PETG (Polyethylene Terephthalate Glycol): Offers a good balance of strength, durability, and ease of printing. It's more flexible and impact-resistant than PLA, making it a robust choice for functional prototypes. Its adhesion properties can be advantageous when bonding with certain flexible materials.
- ABS (Acrylonitrile Butadiene Styrene): Known for its strength, toughness, and temperature resistance. It's more challenging to print due to warping, but its mechanical properties make it suitable for high-stress applications where a strong rigid component is needed.
Flexible filaments: The adaptable elements
These materials provide elasticity, shock absorption, and often a softer tactile feel.
- TPU (Thermoplastic Polyurethane): The most popular choice for flexible 3D printing. TPU offers excellent elasticity, abrasion resistance, and good chemical resistance. It comes in various shore hardnesses, allowing for a range of flexibility. Its relatively good adhesion to rigid materials like PLA and PETG makes it a prime candidate for multi-material projects.
- TPE (Thermoplastic Elastomer): A broader category that includes TPU. TPEs are known for their rubber-like elasticity and flexibility. While some TPEs can be more challenging to print than TPU due to their softer nature and tendency to stretch, they offer a wide spectrum of flexibility options.
Methods for achieving rigid flexible 3D prints
Explore the
Snapmaker U1
The technical approach to combining materials is as diverse as the materials themselves. Each method presents its own set of features, complexities, and associated cost structures.
1. Dual extrusion printers
Dual extrusion printers feature two independent or shared print heads, each capable of extruding a different filament simultaneously or in sequence. This is often considered the most straightforward path to multi-material printing for dedicated setups.
- Features: Allows for seamless transitions between materials within a single layer, enabling complex geometries and integrated features. Can also be used for soluble support materials, which greatly simplifies post-processing for intricate designs.
- Cost Structure: The initial investment for a dual-extruder printer is typically higher than for a single-extruder model. Maintenance and calibration can also be more involved, potentially leading to increased time costs. Filament waste from purge towers (necessary to prevent material mixing) can add to material costs, especially for longer prints or when using expensive filaments.
- Complexity: Requires careful calibration of both extruders, including Z-offset, temperature, and retraction settings. Material compatibility and adhesion are critical, as different materials may require different printing temperatures and cooling, which can be a balancing act.
2. Manual filament swapping
This method involves pausing a print at specific layers and manually changing the filament. It's a low-tech approach suitable for simpler designs or for users with single-extruder printers.
- Features: Accessible to virtually any FDM printer. Allows for multi-material prints without significant hardware investment.
- Cost Structure: The lowest entry cost, as it utilizes existing single-extruder hardware. Material costs are primarily limited to the filaments used, with minimal waste if executed carefully. However, the significant time investment for manual intervention can be a hidden cost for production or large projects.
- Complexity: Relatively low in terms of printer modification, but high in terms of user attention and time. Requires precise timing for pauses and careful handling during filament changes to avoid print failures or layer shifts. Not suitable for intricate, multi-material designs within a single layer.
3. Multi-material add-on systems (e.g., Mosaic Palette, Prusa MMU)
These systems integrate with existing single-extruder printers, allowing them to print with multiple colors or materials by splicing different filament segments together before they enter the hotend.
- Features: Offers advanced multi-material capabilities without needing a dedicated dual-extruder printer. Can print with 2, 4, or even more materials/colors. Often provides sophisticated software for material blending and management.
- Cost Structure: Represents an additional investment on top of the existing printer cost. The systems themselves can be moderately expensive. Filament waste from purge blocks (similar to dual extrusion, but often more complex due to splicing) can be substantial, impacting material costs. The learning curve for setup and optimization can incur significant time costs initially.
- Complexity: High initial setup and calibration complexity. Requires careful tuning of parameters like splice calibration, transition lengths, and printer profiles. Once configured, operation can be relatively automated, but troubleshooting can be intricate.

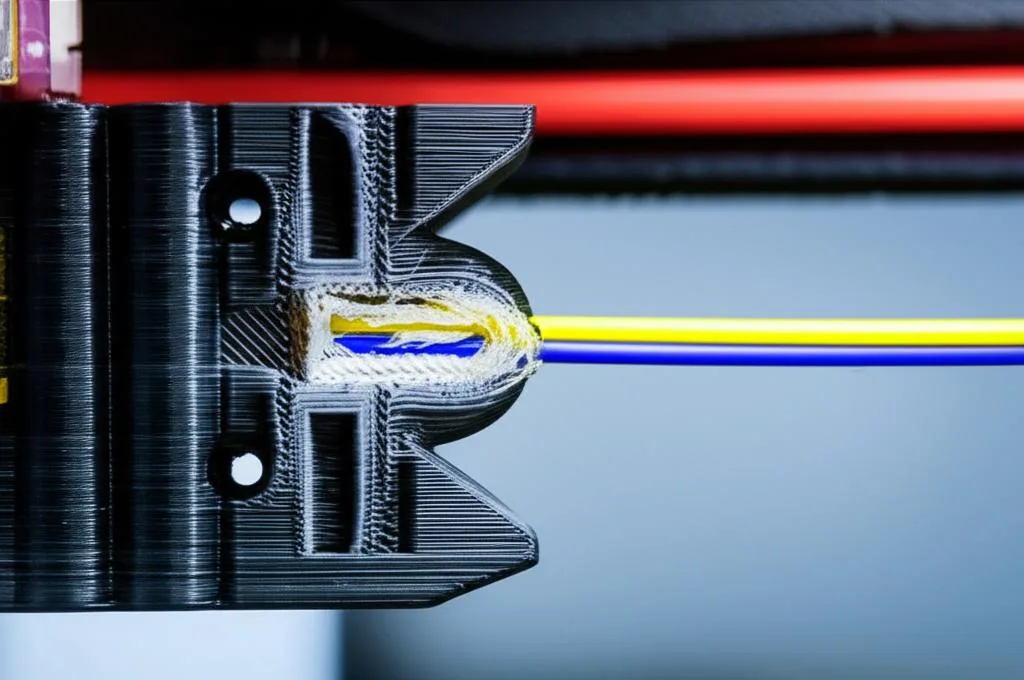

Critical design considerations for robust multi-material prints
Beyond the printing method, thoughtful design is paramount for successful rigid flexible 3D prints. The interaction between materials, geometry, and slicer settings must be carefully orchestrated.
Adhesion between materials
One of the biggest challenges is ensuring good adhesion where the rigid and flexible materials meet. Poor adhesion can lead to delamination and part failure.
- Material Compatibility: Some material pairs bond better than others. For example, a TPU PLA combination often adheres well, as do PETG and TPU. ABS can be more challenging due to its higher printing temperatures and tendency to warp.
- Interlocking Geometries: Design mechanical interlocks (e.g., dovetails, serrations, keyways) where the materials meet. This creates a physical bond that supplements chemical adhesion.
- Interface Layer Settings: Experiment with increased extrusion temperature for the flexible material where it meets the rigid one, or slightly over-extrude the flexible material to encourage better melting and bonding.
Transition zones and geometry
How materials transition from one to another significantly impacts part performance.
- Gradual vs. Abrupt: For stress distribution, a gradual transition or a larger surface area contact between materials can be beneficial. Abrupt transitions might be necessary for specific functional requirements but can be points of weakness.
- Material Placement: Consider where flexibility is needed versus rigidity. For example, a rigid core with a flexible overmold provides structural integrity with a soft exterior.
- Wall Thickness: Ensure sufficient wall thickness for both materials, especially the flexible one, to prevent tearing or flimsy sections.
Slicer settings and software
The slicer software is your command center for multi-material printing.
- Material Profiles: Create distinct profiles for each filament, accounting for differences in temperature, retraction, flow rate, and cooling.
- Purge Settings: Optimize purge volumes and speeds to prevent material mixing, especially with dual extrusion or add-on systems. Excessive purging wastes material, insufficient purging leads to color/material contamination.
- Support Structures: If using soluble supports, ensure the support material is compatible with both primary materials. For non-soluble supports, consider how they interact with both rigid and flexible sections during removal.
- CAD Software: Design your multi-material part as separate bodies in your CAD software, assigning each body to a specific material. This simplifies the slicing process.
Real-world applications of rigid flexible 3D prints
The ability to create parts with advanced material properties has profound implications across numerous sectors, pushing the boundaries of what's possible with a functional prototype.
- Ergonomic Tools and Grips: Imagine a screwdriver handle with a rigid core for torque transmission and a soft, grippy TPU outer layer for comfort and control.
- Robotics and Automation: Flexible grippers for delicate objects, integrated seals for pneumatic systems, or compliant joints that allow for controlled movement.
- Wearable Technology: Custom-fit watch straps with rigid housings for electronics, or flexible components for smart clothing that conform to the body.
- Medical Devices: Prosthetics with rigid structural elements and flexible interfaces, or custom orthotics designed for both support and comfort.
- Automotive Industry: Custom gaskets, vibration dampeners, or interior components with soft-touch surfaces.
- Consumer Products: Phone cases with rigid protection and flexible buttons, or shoe soles with varying densities for comfort and support.

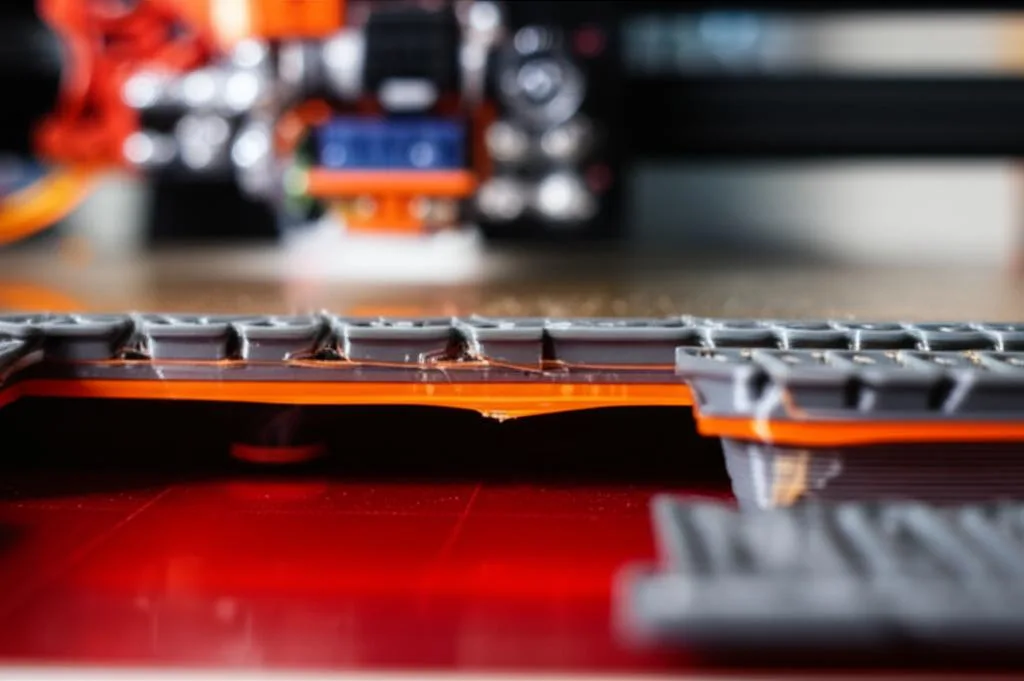

Challenges and troubleshooting in multi-material printing
While the benefits are clear, multi-material printing, especially with a rigid flexible 3D print, comes with its own set of hurdles.
- Stringing and Oozing: Different materials have different melt viscosities. Managing retraction settings for two materials simultaneously can be tricky, leading to stringing (thin threads of plastic) or oozing (unwanted material drips) between features.
- Material Compatibility and Adhesion: As discussed, not all materials bond well. Extensive testing with specific filament brands and types is often required to find optimal pairings.
- Calibration Headaches: Dual-extruder printers require precise alignment of both nozzles in X, Y, and Z axes. Misalignment can lead to poor layer adhesion, surface imperfections, or even print failures.
- Print Speed vs. Quality: Printing with multiple materials, particularly with purge towers, can significantly increase print times. Balancing speed with the need for high-quality material transitions is a constant challenge.
- Warping and Shrinkage: Different materials cool and shrink at different rates. This can induce internal stresses, leading to warping or delamination, especially in larger prints.

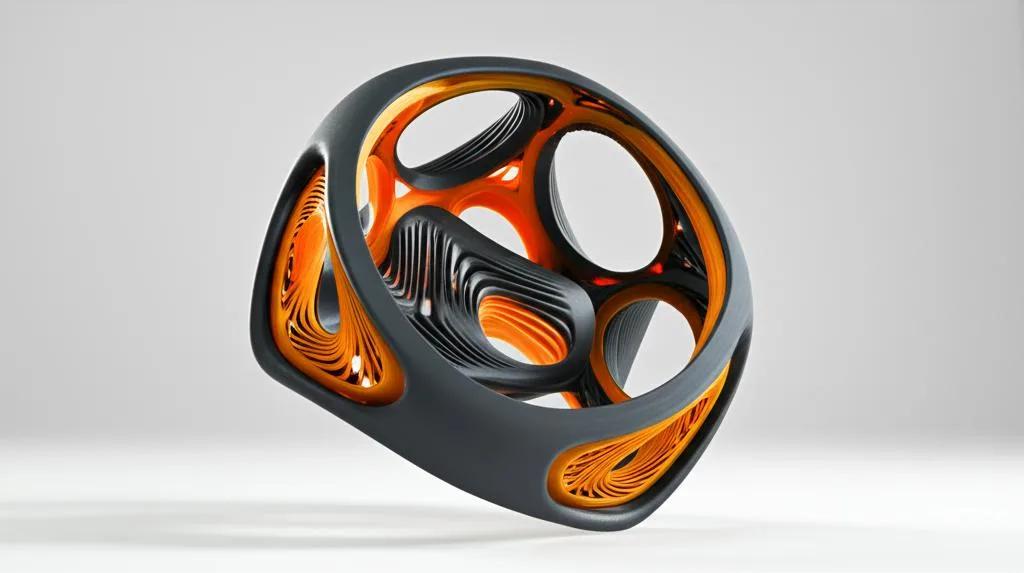

The future of rigid flexible 3D print and multi-material innovation
The landscape of multi-material 3D printing is continuously evolving. Advances in material science are leading to new filament combinations with improved compatibility and performance. Printer manufacturers are developing more sophisticated and user-friendly multi-material systems, making this advanced technique more accessible.
Ultimately, the decision to pursue a rigid flexible 3D print strategy hinges on the specific needs of your project, your budget, and your willingness to navigate the associated complexities. While the initial investment in hardware or the time spent on calibration and design optimization can be significant, the ability to create truly functional prototypes and end-use parts with custom-engineered properties often outweighs these considerations. By understanding the features and cost structures of different approaches, designers and engineers can make informed choices, pushing the boundaries of what's achievable with additive manufacturing and bringing increasingly innovative products to life.
