Few things are as frustrating in 3D printing as watching a meticulously designed model begin to curl up at the edges, detaching itself from the print bed. This phenomenon, known as print warping, is a common headache for beginners and seasoned enthusiasts alike. It can ruin prints, waste filament, and leave you scratching your head. Fortunately, understanding the root causes and implementing effective strategies can significantly reduce or even eliminate warping, paving the way for consistent, high-quality results.
This guide delves deep into the mechanisms behind print warping and provides a structured approach to combating it. We'll explore critical factors such as bed adhesion, precise temperature control, and the strategic use of brim and raft settings, equipping you with the knowledge to conquer this pervasive printing challenge.
Understanding the physics of print warping
Explore the
Snapmaker U1
At its core, print warping is a battle against thermal dynamics. Most 3D printing filaments, such as PLA, ABS, and PETG, are thermoplastics. This means they expand when heated and contract when cooled. During the printing process, molten plastic is extruded onto a print bed, where it begins to cool and solidify. The problem arises when different parts of the print cool at different rates, leading to uneven contraction.
The most susceptible area is the first layer, which is deposited hot onto a cooler surface. As this layer cools, it tries to shrink. If the adhesion to the print bed isn't strong enough to counteract this shrinkage, the corners or edges of the print will lift upwards, detaching from the bed. This initial lift then propagates through subsequent layers, creating a visibly warped base and potentially compromising the structural integrity of the entire print.
Several factors exacerbate this effect:
- Material properties: Some filaments, like ABS, have a higher coefficient of thermal expansion and contraction, making them more prone to warping than others, like PLA.
- Large flat surfaces: Prints with extensive flat bases offer a larger surface area for differential cooling and shrinkage to act upon, increasing the likelihood of warping.
- Temperature differentials: Significant differences between the nozzle temperature, bed temperature, and ambient air temperature amplify the internal stresses within the cooling plastic.

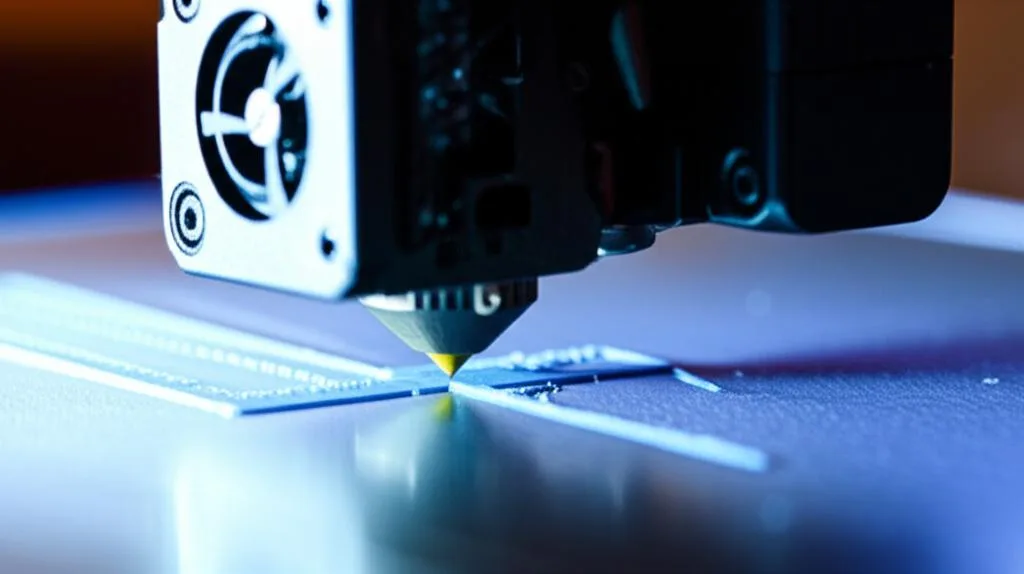

Mastering bed adhesion for warp-free prints
Strong bed adhesion is your first and most crucial line of defense against print warping. If your first layer sticks firmly to the print surface, it has a much better chance of resisting the internal stresses caused by cooling plastic. Achieving optimal adhesion involves a multi-faceted approach.
The importance of a clean print surface
It might sound obvious, but a pristine print surface is paramount. Fingerprints, dust, oil, or residual adhesive can all create microscopic barriers that prevent the molten plastic from bonding effectively. Even a seemingly clean bed can harbor contaminants that compromise adhesion.
- Routine cleaning: After every few prints, or whenever you notice adhesion issues, thoroughly clean your print bed. For glass or PEI surfaces, isopropyl alcohol (IPA) is generally effective. For textured or specialized surfaces, consult your printer manufacturer's recommendations.
- Avoid touching: Once cleaned, try to avoid touching the print surface with bare hands. The oils from your skin can quickly re-contaminate it.
Choosing the right build surface
The material of your print bed plays a significant role in adhesion. Different surfaces offer varying levels of grip for different filaments.
- Glass: Common and provides a very smooth bottom finish. Often requires an adhesive aid.
- PEI (Polyetherimide): A popular choice, especially for heated beds. PEI sheets, whether smooth or textured, offer excellent adhesion for a wide range of filaments without needing additional adhesives for many materials. They are durable and relatively easy to maintain.
- BuildTak/Magnetic flexible plates: These surfaces offer good adhesion and the convenience of easily removing prints by flexing the plate. They are often material-specific, so ensure compatibility with your chosen filament.
- Specialized coatings: Some printers come with proprietary coated glass or flexible plates designed for specific filaments.
Leveraging adhesive aids
For many surfaces and filaments, especially those prone to warping like ABS, an adhesive aid can be a game-changer. These create a temporary, stronger bond between the first layer and the print bed.
- Glue stick: A common and inexpensive solution. A thin, even layer of washable PVA glue stick (e.g., Elmer's Purple) provides excellent adhesion for PLA, PETG, and even some ABS. It's water-soluble, making cleanup easy.
- Hairspray: Unscented hairspray with strong hold (e.g., Aqua Net) can work wonders, especially for ABS and PETG on glass beds. Apply a thin, even mist to a cool bed. Be careful not to spray directly into your printer's moving parts.
- PVA glue/ABS slurry: For advanced users, a diluted PVA glue solution or an ABS 'juice' (ABS dissolved in acetone) can provide extremely strong bonds for specific materials. These are generally messier and require more careful application and cleanup.
Perfecting bed leveling and Z-offset
Even with the best surface and adhesives, poor bed leveling or an incorrect Z-offset will lead to adhesion failures. The distance between your nozzle and the print bed for the first layer is critical.
- Bed leveling: Ensure your print bed is perfectly level, or at least consistently flat relative to your nozzle's travel path. Manual leveling involves adjusting screws at each corner until a piece of paper can slide with slight resistance between the nozzle and the bed. Automatic bed leveling (ABL) systems can compensate for minor inconsistencies but still benefit from a reasonably level physical bed.
- Z-offset calibration: This setting dictates the exact height of the nozzle above the print surface for the first layer. If the nozzle is too high, the filament won't be pressed firmly enough into the bed, resulting in poor adhesion and stringy lines. If it's too low, the nozzle will scrape the bed, potentially damaging it and preventing proper extrusion. Aim for a 'squished' first layer – the extruded line should be wider than the nozzle diameter, with no gaps between lines, but not so squished that it causes ripples or clogs.
The power of temperature control
Temperature is a double-edged sword in 3D printing. While necessary for melting the filament, it's also the primary driver of warping. Precise control over various temperatures can significantly mitigate warping.
Optimizing bed temperature
A heated bed is one of the most effective tools against warping. It keeps the base of the print warm, reducing the temperature differential between the first layer and subsequent layers, thus minimizing contraction stress.
- Filament-specific temperatures: Each filament has an optimal bed temperature range. Consult your filament manufacturer's recommendations as a starting point.
- PLA: Typically 50-65°C. Too high can soften the bottom layers excessively.
- PETG: Often 70-85°C. Good adhesion usually requires a hotter bed than PLA.
- ABS: Highly prone to warping, requires a much hotter bed, often 90-110°C, to maintain adhesion.
- Nylon: Can require very high bed temperatures, sometimes up to 100-120°C.
- Consistency is key: Ensure your heated bed maintains a consistent temperature across its entire surface. Uneven heating can still lead to localized warping.
Nozzle temperature considerations
While the nozzle temperature primarily affects filament flow and layer adhesion, it indirectly impacts warping. Printing too cold can lead to poor layer bonding and increased internal stresses, while printing too hot can cause excessive oozing and stringing.
- Manufacturer recommendations: Always start with the filament manufacturer's suggested nozzle temperature.
- Temperature towers: Print temperature towers to find the optimal temperature for your specific filament and printer combination, balancing strength, surface finish, and adhesion.
Controlling ambient temperature with an enclosure
One of the most effective strategies for materials like ABS, Nylon, and PC, which are highly susceptible to warping, is to control the ambient temperature around the print. An enclosure helps create a stable, warm environment, significantly reducing drafts and rapid cooling.
- How enclosures work: An enclosure traps the heat radiating from the heated bed and nozzle, raising the air temperature around the print. This minimizes the temperature gradient between the print and its surroundings, allowing the plastic to cool more slowly and uniformly.
- Types of enclosures:
- DIY enclosures: Simple solutions can range from cardboard boxes to IKEA Lack table enclosures.
- Pre-built enclosures: Many printer manufacturers offer dedicated enclosures, or you can purchase generic ones.
- Printer-specific designs: Some printers come with built-in enclosures.
- Draft prevention: Even without a full enclosure, ensure your printer is not in a drafty area. A simple cardboard box or even moving the printer away from open windows can make a difference.
- Cooling fan settings: For the first layer, it's almost universally recommended to turn off the part cooling fan. This allows the plastic to remain molten for longer, improving adhesion to the bed and subsequent layers. For later layers, fan speed can be adjusted based on the filament and desired surface finish, but for warp-prone materials, lower fan speeds are often preferred throughout the print.
Strategic use of brim and raft settings
When bed adhesion and temperature control aren't quite enough, or for prints with particularly small contact areas, modifying your print settings to include a brim or a raft can provide the extra grip needed.
Brim: extending the print's footprint
A brim is essentially a single-layer skirt of plastic that is printed directly around the base of your model, attached to it. It acts like an extended foot, increasing the surface area of the first layer that adheres to the print bed.
- How it helps: By increasing the contact area, the brim distributes the upward warping forces over a larger region, making it harder for the print to lift off the bed. It also provides a buffer against drafts, protecting the immediate edges of your print.
- When to use it: Brim is excellent for prints with small footprints, sharp corners, or long, thin features that are prone to lifting. It's a less material-intensive and easier-to-remove alternative to a raft.
- Settings to consider:
- Brim width/lines: Typically measured in millimeters or the number of lines. A wider brim (e.g., 5-10mm or 10-20 lines) provides more adhesion.
- Brim separation (if applicable): Some slicers allow a small gap between the brim and the print. For warping, you want it directly attached (0mm separation).
- Removal: Brims are generally easy to remove with a hobby knife or flush cutters. Carefully trim it away from the print's base after cooling.
Raft: a disposable foundation
A raft is a disposable horizontal lattice of filament that is printed on the build plate, and then your actual model is printed on top of this raft. It creates a stable, flat base for your print, completely isolating it from potential bed adhesion issues.
- How it helps: The raft itself takes the brunt of any warping forces, as it has a much larger surface area than the print's base. It provides a perfectly flat, well-adhered surface for your model to be built upon, even if your actual print bed isn't perfectly level or has adhesion issues.
- When to use it: Rafts are particularly useful for extremely warp-prone materials, prints with very intricate or small first layers, or when you have significant bed adhesion problems that other methods can't fully resolve. They can also help with printers that have inconsistent bed leveling.
- Settings to consider:
- Raft layers: Typically 2-4 layers. More layers create a stronger, more stable foundation.
- Raft air gap: This is crucial. It defines the distance between the top of the raft and the bottom of your print. A larger air gap makes the raft easier to remove but can reduce the quality of the print's bottom surface. A smaller air gap improves bottom surface quality but makes removal harder. Experiment to find the sweet spot.
- Raft expansion: How much larger the raft is than your print's footprint. A larger expansion provides more adhesion.
- Downsides:
- Material waste: Rafts consume a significant amount of filament.
- Print time: They add extra printing time.
- Bottom surface finish: The bottom surface of your print might not be as smooth or aesthetically pleasing as when printed directly on the bed, depending on the raft's top layer settings and air gap.
- Removal: Removing rafts can sometimes be challenging and may leave marks on the print.
Other considerations for preventing warping
Beyond the core strategies, a few other factors can contribute to or alleviate print warping.
Filament quality and storage
Damp or poor-quality filament can exacerbate warping. Moisture absorbed by hygroscopic filaments (like Nylon, PETG, and even PLA to some extent) can lead to inconsistent extrusion, poor layer adhesion, and increased internal stresses during cooling. Ensure your filament is stored in a dry environment, and consider drying it if you suspect moisture issues.
Print speed for the first layer
Printing the first layer slowly allows the plastic more time to bond with the print bed and cool more gradually. A slower speed (e.g., 15-25 mm/s) can significantly improve adhesion and reduce the likelihood of warping, even if subsequent layers are printed faster.
Model design considerations
Sometimes, the design of the model itself can contribute to warping. Prints with large, thin, flat sections or sharp corners are inherently more prone to lifting. If you are designing the part, consider adding chamfers or fillets to sharp corners that contact the build plate, which can help distribute stress. Additionally, adding small "mouse ears" (tiny, circular brims) to critical corners in your CAD software can provide localized adhesion points.
A systematic approach to troubleshooting
When faced with warping, it's easy to get overwhelmed. Adopt a systematic troubleshooting approach:
- Start with the basics: Ensure your bed is impeccably clean and perfectly leveled. Verify your Z-offset.
- Optimize temperatures: Adjust your bed temperature according to the filament. Ensure your nozzle temperature is within the recommended range. Disable the cooling fan for the first few layers.
- Address ambient conditions: Mitigate drafts. If using warp-prone materials, consider an enclosure.
- Implement print settings: If issues persist, add a brim. For extreme cases or problematic models, consider a raft.
- Check filament: Ensure your filament is dry and of good quality.
Remember to change only one variable at a time when troubleshooting. This allows you to isolate the cause of the problem and understand the impact of each adjustment.
Conclusion
Print warping is a formidable foe, but it is far from unconquerable. By understanding the underlying physics of thermal expansion and contraction, and by systematically addressing factors like bed adhesion, temperature control, and strategic print settings like brim and raft, you can significantly improve your print success rate. It's an iterative process of experimentation and fine-tuning, but with patience and the insights provided in this guide, you'll be well on your way to achieving consistently warp-free, high-quality 3D prints.
