Achieving truly pristine 3D prints often feels like chasing a phantom. While basic retraction settings are a good starting point, they rarely provide the ultimate solution for common print quality woes like stringing, oozing, and visible seams. For those seeking to elevate their print quality from good to exceptional, delving into advanced retraction strategies is not just beneficial, it's essential. This guide will take you beyond the fundamental retraction distance and speed, exploring sophisticated settings such as wipe, coasting, and Z-hop, and demonstrating how to wield them for unparalleled results.
Understanding the core of retraction in 3D printing
Explore the
Snapmaker U1
At its heart, retraction is a simple concept: when the print head needs to travel across open space without extruding, the filament is briefly pulled back into the nozzle. This action relieves pressure in the melt zone, preventing molten plastic from oozing out during travel moves. Without adequate retraction, you'd be left with unsightly wisps of plastic connecting different parts of your print, a phenomenon known as stringing or oozing.
The foundational elements: Retraction distance and speed
Most beginners start by tuning two primary settings:
- Retraction Distance: How far the filament is pulled back. Too little, and you get stringing; too much, and you risk heat creep, grinding the filament, or creating gaps in your print after retraction.
- Retraction Speed: How quickly the filament is pulled back. A speed too low can still lead to oozing, while a speed too high can cause the filament to snap, strip, or deform, leading to under-extrusion.
These settings are crucial but often insufficient on their own. They provide the backbone, but the real finesse comes from combining them with more advanced techniques.

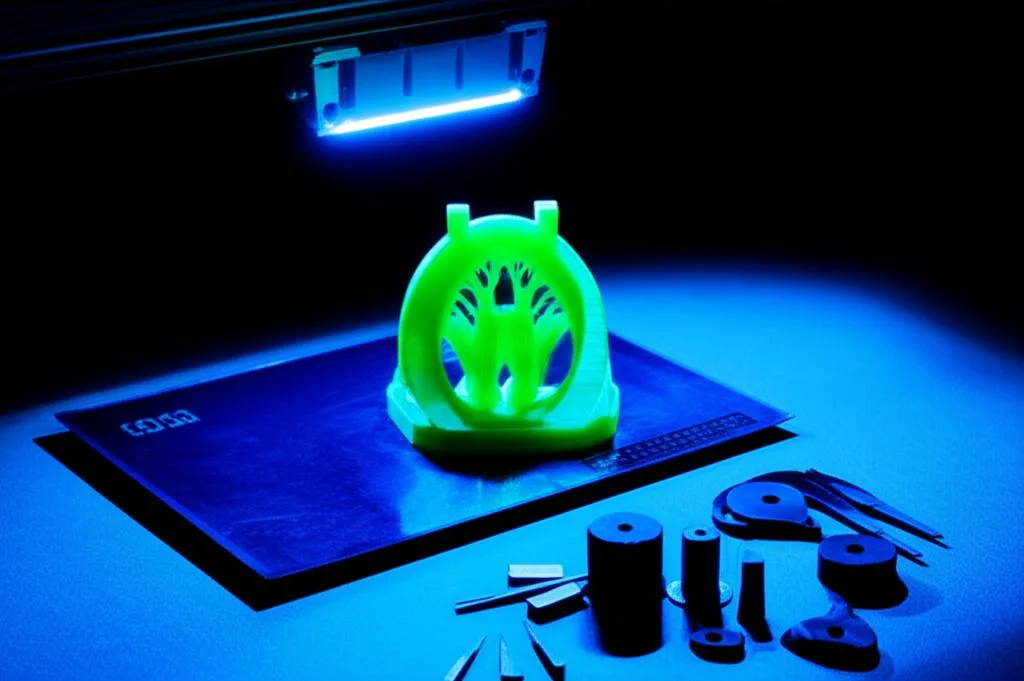

The advanced retraction arsenal: Beyond basic tuning
While a well-tuned retraction distance and speed are non-negotiable, a suite of complementary settings can push your 3D print quality to new heights. These tools work in concert to address specific issues, providing a holistic approach to stringing prevention and perfect print seams.
Retraction minimum travel: Preventing excessive retractions
Imagine your printer constantly retracting and unretracting the filament for every tiny travel move. This can lead to unnecessary wear on your extruder, potential filament grinding, and even slower print times. The retraction minimum travel setting dictates the shortest distance the print head must travel before a retraction is initiated.
- How it works: If a travel move is shorter than this specified distance, the printer will skip the retraction.
- Benefits: Reduces wear and tear, prevents over-retraction issues, and can marginally speed up prints.
- Considerations: Setting this value too high might reintroduce minor stringing on very small, close-together features. It's a balance between efficiency and absolute stringing prevention. A typical starting point might be 1-2mm.
Retraction extra prime amount: Compensating for material loss
When filament is retracted, a tiny amount of molten plastic can get pulled up into the nozzle, or residual pressure in the nozzle can cause a slight void. This can lead to a small void or under-extrusion at the start of the next extrusion, resulting in tiny gaps or weak spots in your print. The retraction extra prime amount setting addresses this.
- How it works: After a retraction and before the next extrusion begins, the printer will push out a small, additional amount of filament to compensate for any lost material or pressure drop.
- Benefits: Eliminates small gaps or 'divots' at the start of new print lines, improving layer adhesion and surface finish, particularly on outer walls.
- Considerations: Too much extra prime can cause blobs or zits at the start of new lines. This setting is often measured in cubic millimeters (mm³) of filament volume, typically a very small value like 0.05-0.1 mm³.
Wipe settings: Cleaning up your act before travel
Even with perfect retraction, a tiny bit of molten plastic might linger at the nozzle tip, ready to ooze. Wipe settings provide an ingenious solution by using the print itself to clean the nozzle before a travel move.
- How it works: Instead of retracting and lifting immediately, the nozzle moves a small distance *while still extruding* over the previously printed perimeter or infill before retracting and lifting. This "wipes" any residual plastic off the nozzle tip.
- Benefits: Significantly reduces stringing, helps eliminate blobs and zits, and can improve the quality of print seams by ensuring a clean start to new lines. It's particularly effective for materials prone to oozing, like PETG.
- Key Parameters:
- Wipe Distance: The length of the path the nozzle travels while wiping. A common range is 0.2-0.6mm.
- Wipe Speed: How fast the wipe move occurs. Often linked to print speed but can be adjusted independently.
- Wipe outer walls: An important option that, when enabled, applies the wipe to the outermost perimeter, directly impacting seam quality.
- Interaction: Wipe works best in conjunction with retraction. It's the final polish after the filament has been pulled back.
Coasting: The art of pressure release for cleaner prints
Coasting is another powerful tool in the arsenal against stringing and blobs, especially effective at the end of an extrusion path. Instead of abruptly stopping extrusion, coasting allows the extruder to temporarily stop feeding filament a short distance before the end of a line. The remaining pressure in the nozzle then pushes out the last bit of plastic.
- How it works: The printer stops extruding filament a predetermined distance or volume before the end of an extrusion path. The material already in the nozzle, under pressure, continues to extrude for that short duration, effectively "coasting" to the end.
- Benefits: Reduces stringing by ensuring less residual pressure at the end of an extrusion path, prevents blobs and over-extrusion at the end of perimeters (especially critical for good print seams), and can improve surface finish.
- Key Parameters:
- Coasting Volume: The amount of filament (in mm³) that should be allowed to coast. A common starting point is 0.064 mm³, but this needs careful tuning.
- Coasting Minimum Volume Before Coasting: Prevents coasting on very short lines, where it might lead to under-extrusion.
- Coasting Speed: The speed at which the nozzle moves during the coasting phase.
- Considerations: Too much coasting can lead to under-extrusion at the end of lines, creating small gaps or weak points. It requires careful calibration, often in conjunction with retraction and wipe settings.
Z-hop (Lift Z): Elevating print quality and preventing collisions
While not directly a retraction setting, Z-hop (also known as "Lift Z") is almost always used in conjunction with retraction, particularly when dealing with intricate prints or to prevent nozzle drag. It involves lifting the print head slightly in the Z-axis during travel moves.
- How it works: When the print head needs to travel, it retracts the filament and then lifts itself by a small, specified amount in the Z-axis before moving to the next point. Once it reaches the destination, it lowers back down to the print layer and resumes extrusion.
- Benefits:
- Prevents Nozzle Drag: Eliminates the nozzle scraping against previously printed layers, which can cause surface blemishes, layer shifts, or even knock prints off the bed.
- Reduces Stringing (indirectly): By ensuring the nozzle clears the print, it gives any lingering ooze less chance to attach to the print. However, it can sometimes *increase* stringing if retraction isn't perfectly tuned, as the longer travel time in the air allows more time for oozing.
- Improved Surface Finish: Prevents 'scarring' or 'pitting' on top surfaces.
- Key Parameters:
- Z-hop Height: The distance the nozzle lifts. Typically 0.2-0.5mm, enough to clear the printed layer.
- Z-hop Speed: How fast the Z-axis moves up and down.
- Z-hop Only Over Printed Parts: An option to only engage Z-hop when traveling over existing parts of the model, saving time when traveling over empty space.
- Considerations: Z-hop adds vertical movement to every travel, increasing print time. If not calibrated correctly, the rapid up-and-down motion can sometimes introduce Z-banding or minor ringing, especially on printers with less rigid Z-axes.
Mastering print seams: Strategies for invisibility
Print seams are the unavoidable lines where new print perimeters begin and end on each layer. While they cannot be entirely eliminated, they can be strategically placed and refined to be almost invisible, significantly boosting overall 3D print quality.
The anatomy of a seam: Why they occur
Every layer in an FDM print is a continuous path. When the nozzle completes a perimeter, it must stop, retract, travel, and then restart extrusion for the next perimeter or layer. This start/stop point is where the seam forms. Imperfections like slight over-extrusion at the start or under-extrusion at the end can make these seams prominent.
Strategic seam placement: Hiding the evidence
Your slicer offers various options for where to place these seams:
- Random: Distributes seams randomly across the print. This avoids a single prominent line but can result in many small, visible blemishes scattered over the surface. Often not ideal for aesthetic parts.
- Sharpest Corner: Places seams at the sharpest concave or convex corner of the model. This is often the most effective strategy for geometric parts, as the seam can blend into the natural edge of the print.
- User-Defined (Specific Point/Location): Allows you to manually specify a coordinate or an area where seams should be placed. Ideal for models where you want to hide the seam on a specific, less visible side.
- Aligned (Rear/Front/Left/Right): Stacks all seams in a single vertical line, typically on a designated side of the print. This creates one noticeable seam but keeps the rest of the surface clean. Useful if one side of the print will always be out of sight.
Integrating settings for seamless results
Achieving truly perfect seams is not just about placement; it's about combining advanced retraction settings:
- Wipe Settings: Enabling "Wipe outer walls" and tuning wipe distance is crucial. The wipe action ensures that any excess plastic at the end of a perimeter is scraped off onto the existing wall, preventing a blob from forming at the seam's start point.
- Coasting: Properly tuned coasting ensures that pressure is relieved at the end of a perimeter, preventing over-extrusion and blobs that would otherwise make the seam bulge. This creates a cleaner, smoother transition.
- Retract Before Outer Wall: Many slicers offer an option to retract the filament specifically before printing the outer perimeter. This helps prevent blobs and stringing on the most visible part of your print.
- Extra Prime Amount: While coasting and wipe handle the end of the line, extra prime addresses the start. A small, carefully tuned extra prime can ensure the new perimeter starts cleanly without any under-extrusion, which would otherwise create a noticeable gap or divot at the seam.
- Outer Wall Inset: Some slicers allow a very slight "inset" for the outer wall start point, effectively tucking the seam slightly inward to make it less visible.

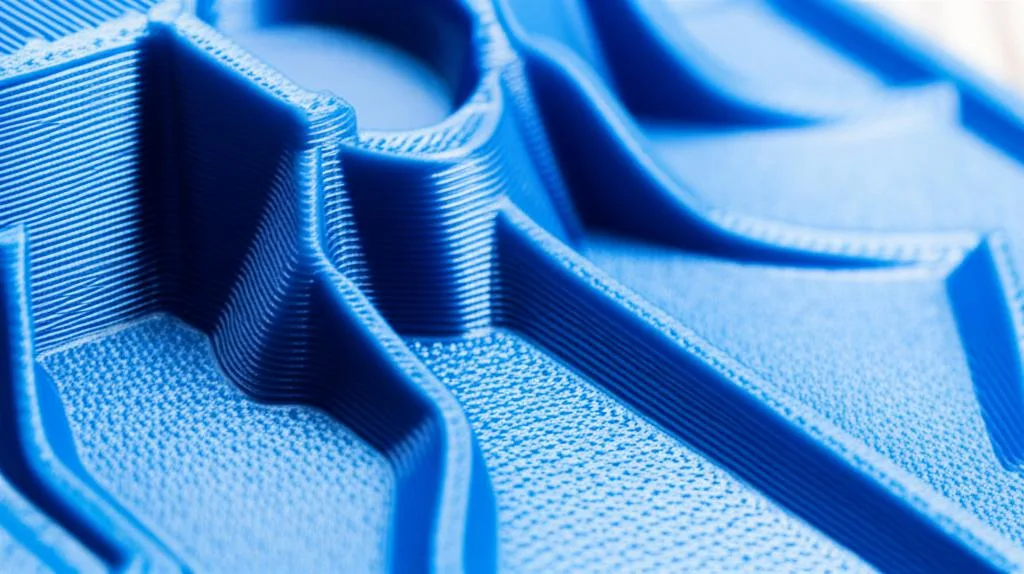

Filament-specific nuances for advanced retraction
The ideal advanced retraction settings are not universal. Different filament types behave distinctly due to their material properties, requiring tailored approaches.
- PLA (Polylactic Acid): Generally the easiest to work with. Requires moderate retraction distances and speeds. It's less prone to stringing than other materials, but wipe and coasting can still improve seam quality and eliminate minor wisps. Z-hop is often optional but can prevent nozzle drag on detailed prints.
- PETG (Polyethylene Terephthalate Glycol): Notorious for stringing and oozing due to its higher melt viscosity and stickiness. PETG benefits immensely from aggressive wipe settings (longer wipe distance), slightly higher retraction distances, and carefully tuned coasting. Z-hop is often recommended to prevent the nozzle from dragging through sticky, semi-molten PETG, which can cause severe surface defects. However, too much Z-hop with insufficient retraction can worsen stringing due to increased travel time.
- ABS (Acrylonitrile Butadiene Styrene): Prone to warping and fumes, but generally less stringy than PETG. Moderate retraction settings are usually sufficient. Wipe and coasting can still aid in seam quality. Z-hop can be beneficial but might not be as critical as for PETG, provided basic retraction is well-tuned.
- TPU (Thermoplastic Polyurethane) / Flexible Filaments: These are the most challenging for retraction due to their elasticity. High retraction distances are usually detrimental as the filament stretches and compresses, leading to inconsistent extrusion. Often, very low retraction distances (0.5-2mm for Bowden, 0-0.5mm for direct drive) and slower retraction speeds are preferred. For direct drive extruders, sometimes even disabling retraction entirely and relying heavily on wipe and coasting is the best approach for stringing prevention. Z-hop is often avoided or kept to a minimum to prevent filament jams or deformation within the extruder.
A systematic approach to calibration
Tuning these advanced settings isn't a one-and-done task; it's an iterative process that demands patience and methodical testing. Here's a recommended workflow:
The iterative testing process
- Baseline Retraction: Start by tuning your basic retraction distance and speed using a dedicated retraction tower test. Aim for minimal stringing without causing under-extrusion.
- Introduce Wipe: Once basic retraction is solid, enable wipe settings. Print small, detailed models or stringing tests. Adjust wipe distance to see its impact on stringing and blobs.
- Calibrate Coasting: Next, introduce coasting. Use models with many stops and starts (like cubes with holes) to observe its effect on seams and blobs. Start with a small coasting volume and increase incrementally.
- Evaluate Z-Hop: If you experience nozzle drag or surface blemishes, enable Z-hop. Start with a low height (e.g., 0.2mm) and test. Monitor for increased stringing or print time.
- Refine Seam Placement: Experiment with different seam placement strategies (sharpest corner, aligned) on aesthetic parts. Observe how they interact with your wipe and coasting settings.
- Filament-Specific Adjustments: Repeat the process for each new filament type, as settings will vary significantly.
- Document Everything: Keep a log of your settings and the results. This will save you immense time in the future.
Calibration tools and tests
To effectively calibrate, you'll need specific test prints:
- Retraction Towers: These prints have multiple small towers that force many retractions and travel moves, making stringing highly visible.
- Stringing Test Models: Designs with thin, widely spaced pillars are excellent for evaluating stringing and the effectiveness of wipe and coasting.
- Calibration Cubes: Simple cubes with sharp corners are great for observing print seams and the effects of seam placement and wipe settings.
- Overhang/Bridging Tests: While not directly for retraction, these can help reveal underlying extrusion issues that might be exacerbated by incorrect retraction.

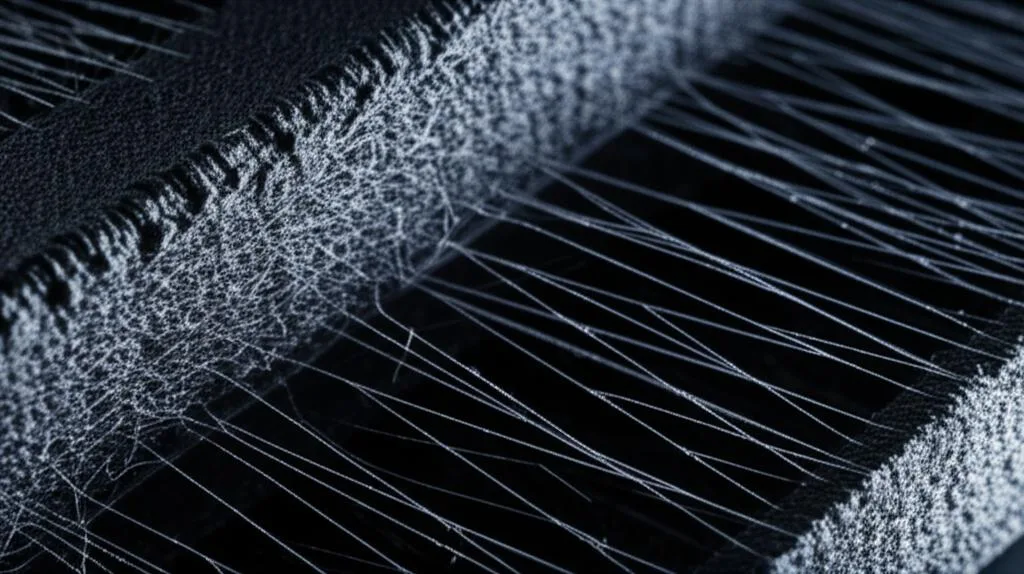

Troubleshooting common advanced retraction issues
Even with advanced settings, you might encounter stubborn issues. Here’s how to approach common problems:
Persistent stringing
- Increase Retraction Distance/Speed: Your basic settings might still be insufficient.
- Tune Wipe Settings: Increase wipe distance or ensure 'Wipe outer walls' is enabled.
- Calibrate Coasting: Increase coasting volume slightly to reduce pressure.
- Lower Print Temperature: Higher temperatures make plastic more fluid and prone to oozing. Try reducing print temperature in 5°C increments.
- Check Filament Humidity: Moist filament can cause bubbling and increased stringing. Dry your filament in a dehydrator or oven.
- Inspect Nozzle: A worn or dirty nozzle can contribute to oozing. Consider replacing it.
Blobs and zits at start/end of lines
- Reduce Retraction Extra Prime Amount: If blobs appear at the start of lines, you might be over-priming.
- Increase Coasting Volume: If blobs appear at the end of lines, increase coasting to relieve more pressure.
- Increase Wipe Distance: A longer wipe can help clean the nozzle tip more effectively.
- Ensure 'Retract Before Outer Wall' is On: This helps clean the nozzle before printing visible perimeters.
- Check Flow Rate: Overall over-extrusion can exacerbate blobs. Calibrate your E-steps and flow rate.
Prominent or inconsistent print seams
- Optimize Seam Placement: Experiment with 'Sharpest Corner' or 'Aligned' to hide or consolidate seams.
- Refine Wipe and Coasting: These are critical for clean seam transitions. Ensure wipe is applied to outer walls.
- Adjust Extra Prime: Too little extra prime can leave gaps at the seam start; too much causes blobs.
- Ensure Consistent Extrusion: Underlying extrusion inconsistencies will always show up at seams. Calibrate E-steps and ensure your extruder is not slipping.
- Check Cooling: Inadequate cooling can sometimes affect how the plastic settles at the start/end of lines, impacting seam quality.
Nozzle dragging or surface scars
- Enable/Increase Z-hop Height: This is the primary solution for nozzle drag.
- Check Bed Leveling: An unlevel bed can cause the nozzle to scrape, especially on the higher spots.
- Verify First Layer Height: If your first layer is too squished, subsequent layers might also be too close to the nozzle.

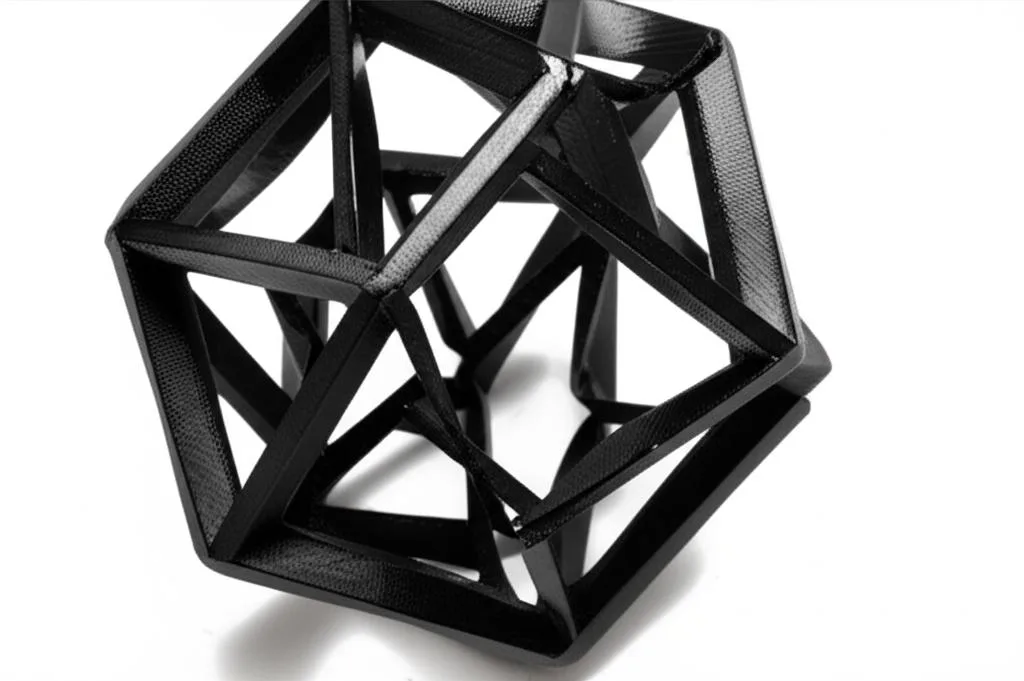

Conclusion
Moving beyond basic retraction settings is a pivotal step for anyone serious about achieving exceptional 3D print quality. By systematically understanding and tuning advanced retraction parameters like wipe settings, coasting, and Z-hop, you gain granular control over the extrusion process. This mastery not only leads to complete stringing prevention but also allows for the creation of virtually invisible print seams, transforming your prints from good to truly outstanding. Remember that each printer, filament, and model combination is unique, so consistent experimentation and meticulous documentation are your best allies on this journey to perfect prints.
