Visible layer lines are a perennial bugbear for many 3D printing enthusiasts and professionals. While 3D printing technology has advanced by leaps and bounds, the quest for perfectly smooth surfaces, free from the tell-tale ridges of deposited material, remains a significant challenge. Often, the first instinct is to reduce the layer height, assuming a finer resolution will magically erase these imperfections. While layer height undeniably plays a role, it is merely one piece of a much larger, intricate puzzle. Achieving truly smooth 3D prints demands a holistic approach, delving into a myriad of factors from slicer settings to mechanical printer stability and even filament quality.
Understanding the root causes of visible layer lines
Explore the
Snapmaker U1
To effectively combat visible layer lines, it's crucial to understand their origins. These lines are essentially the boundaries between each successive layer of filament deposited by the printer's nozzle. Their visibility can be exacerbated by inconsistencies in material extrusion, thermal management issues, mechanical inaccuracies, or a combination thereof. Diagnosing the specific cause often requires a systematic approach, as multiple factors can contribute to the same visual defect. It's rarely a single silver bullet, but rather a series of fine-tuned adjustments that collectively lead to the desired smooth finish.
Optimizing slicer settings for improved surface quality
The slicer software acts as the brain of your 3D printer, translating a digital model into a series of instructions for the hardware. Therefore, it's a primary battleground for tackling visible layer lines. Adjusting these settings typically involves no direct financial cost but demands careful calibration and testing time.
Layer height and print resolution: A foundational perspective
- Impact of layer height: Smaller layer heights (e.g., 0.1mm vs. 0.2mm) mean more layers per print, and thus, theoretically, less noticeable steps between them. This improves the perceived print resolution. However, it also significantly increases print time and can sometimes reveal other underlying issues more clearly.
- Relationship with nozzle diameter: The ideal layer height is often a fraction of your nozzle diameter (e.g., 25-75% of nozzle diameter). Printing too thin relative to the nozzle can lead to poor layer adhesion, while printing too thick can result in rougher surfaces and potential extrusion issues.
- Considerations: While reducing layer height is a common first step, it's important to recognize that it won't resolve issues stemming from inconsistent extrusion or mechanical wobbles. It's a foundational setting, not a universal fix.
Extrusion multiplier (flow rate): The key to consistent material deposition
The extrusion multiplier, sometimes referred to as flow rate, dictates how much plastic is extruded relative to what the slicer calculates. It's a critical setting for achieving smooth 3D prints.
- What it is and why it matters: An accurately calibrated extrusion multiplier ensures that the correct amount of material is deposited for each line.
- Calibration process: A common method involves printing a single-wall cube (e.g., 20x20x20mm with 0% infill and 0 top/bottom layers) and measuring the actual wall thickness. Adjust the extrusion multiplier until the wall thickness matches your line width setting (e.g., 0.4mm for a 0.4mm nozzle).
- Impact of over-extrusion vs. under-extrusion:
- Over-extrusion: Too much plastic is deposited, leading to bulging layers, blobs, and an overall rough, inconsistent surface. This is a major contributor to prominent visible layer lines.
- Under-extrusion: Not enough plastic is deposited, resulting in gaps between layers, poor adhesion, and a 'stringy' or weak print. While less likely to create prominent lines, it can still affect surface quality.
Temperature tuning: Balancing flow and solidification
Temperature settings significantly influence filament viscosity, layer adhesion, and cooling, all of which impact surface finish.
- Nozzle temperature:
- Too high: Filament becomes too fluid, potentially leading to oozing, stringing, and 'elephant's foot' on the first layer. It can also cause plastic to sag before solidifying, resulting in uneven layers.
- Too low: Filament is too viscous, leading to under-extrusion, poor layer adhesion, and potential nozzle clogging.
- Calibration: Printing a temperature tower is highly recommended to find the optimal nozzle temperature for your specific filament. This involves printing a single model with sections at different temperatures.
- Bed temperature: Ensures proper first-layer adhesion and helps prevent warping. While less directly linked to visible layer lines on upper layers, a poorly adhered or warped base can affect the entire print's stability and overall quality.
Print speed: Finding the sweet spot
Print speed affects how quickly plastic is extruded and how much time it has to cool and solidify.
- Too fast: Can lead to inconsistent extrusion due to the hotend struggling to melt filament quickly enough. It can also introduce vibrations and ringing (ghosting) artifacts, making layer lines more apparent.
- Too slow: May cause heat creep, leading to clogs. For some materials, too much heat exposure can result in excessive stringing or blobs as the plastic sits molten for too long.
- Perimeter speed vs. infill speed: Often, reducing the speed for outer perimeters significantly improves surface quality without drastically increasing overall print time.
Retraction settings: Mitigating blemishes
Retraction settings control how the filament is pulled back into the nozzle when the print head moves to a new location without extruding. Properly tuned retractions prevent oozing and stringing, which can otherwise manifest as unsightly blemishes on your print's surface, making existing layer lines more prominent.
- Distance and speed: These parameters need to be carefully calibrated for each filament type and hotend. Too little retraction causes stringing; too much can lead to clogs or grinding of the filament.
- Impact: By minimizing unwanted material deposits, retraction tuning contributes to cleaner, smoother surfaces where layer lines are less accentuated by additional imperfections.
Cooling settings: Managing thermal contraction
Proper part cooling is essential for solidifying layers quickly and consistently, especially for materials like PLA.
- Part cooling fan speed: For PLA, higher fan speeds are generally beneficial for sharp details and reducing layer lines. However, for materials like ABS or ASA, excessive cooling can lead to warping and poor layer adhesion.
- Layer time: Slicers often have a minimum layer time setting. If a layer prints too quickly, the plastic may not have enough time to cool before the next layer is deposited, leading to deformation and poor definition.
- Considerations: Balancing cooling with layer adhesion is key. Too much cooling can cause delamination, while too little can result in 'melty' looking layers and reduced print resolution.
Addressing mechanical factors for a stable printing environment
Explore the
Snapmaker U1
Even with perfectly calibrated slicer settings, mechanical issues with your 3D printer can introduce inconsistencies that make layer lines highly visible. Addressing these often involves a modest financial outlay for parts or tools, alongside the time investment for maintenance and adjustments.
Vibration dampening: Stabilizing your printer
Vibrations are a major culprit behind inconsistent layer lines and ghosting (also known as ringing).
- Sources of vibration: Stepper motors, rapid movements of the print head, and the printer's interaction with its surface can all induce vibrations.
- Solutions:
- Anti-vibration feet: Rubber or silicone feet can absorb vibrations before they transfer to the printing surface.
- Isolation platforms: Placing your printer on a heavy, stable surface (e.g., concrete paver) with foam or rubber underneath can significantly reduce transmitted vibrations.
- Sturdy enclosures: A rigid enclosure can help contain vibrations and provide a more stable environment.
- Stepper motor dampeners: These inexpensive accessories can be installed between stepper motors and the printer frame to reduce motor-induced vibrations.
- Impact: Effective vibration dampening leads to cleaner, more consistent layers and a noticeable reduction in artifacts like ghosting, contributing directly to smoother 3D prints.
Z-axis stability: Eliminating wobble and binding
The Z-axis is responsible for precise vertical movement, and any inconsistencies here will directly manifest as visible layer lines.
- Inspecting lead screws and linear rails: Ensure lead screws are straight, clean, and properly lubricated. Check linear rails for smooth movement and ensure they are securely mounted.
- Lubrication and alignment: Regular lubrication of lead screws and linear guides is crucial. Ensure lead screws are properly aligned with their motors and nuts to prevent binding.
- Anti-backlash nuts: These can help compensate for minor imperfections in lead screws, reducing vertical play.
- Impact: A stable and smooth-moving Z-axis is fundamental for consistent layer stacking, directly preventing uneven layer heights and prominent lines.
Belt tension and pulley integrity: Precision in motion
The X and Y axis belts and pulleys are responsible for the precise movement of the print head. Any slack or wear can lead to inaccuracies.
- Checking X and Y axis belt tension: Belts should be taut but not overly tight. Loose belts can cause backlash and inaccurate positioning, resulting in distorted layers. Overly tight belts can strain motors and bearings.
- Ensuring pulleys are secure and free from wear: Check that all pulleys are securely fastened to their stepper motor shafts and that the belts are properly seated. Worn or damaged pulleys can lead to skipped steps or inconsistent movement.
- Impact: Correct belt tension and healthy pulleys ensure accurate and repeatable print head movements, which is vital for precise layer registration and minimizing visible layer lines.
Nozzle and hotend health: The path to smooth extrusion
The condition of your nozzle and hotend directly impacts the quality and consistency of filament extrusion.
- Nozzle wear: Over time, nozzles (especially brass ones) wear down, increasing the orifice diameter and making it irregular. This leads to inconsistent extrusion and wider, less defined lines. Regularly inspect and replace worn nozzles. Hardened steel or ruby nozzles offer greater longevity but come at a higher initial cost.
- Heat creep and clogs: Inconsistent heating or partial clogs within the hotend can disrupt filament flow, leading to under-extrusion and patchy layers. Regular maintenance, including cold pulls and ensuring proper hotend cooling, can prevent these issues.
- Ensuring proper hotend assembly: A poorly assembled hotend, with gaps between the nozzle and heat break, can cause filament leaks and inconsistent melting, directly impacting print quality.
Material considerations and filament quality

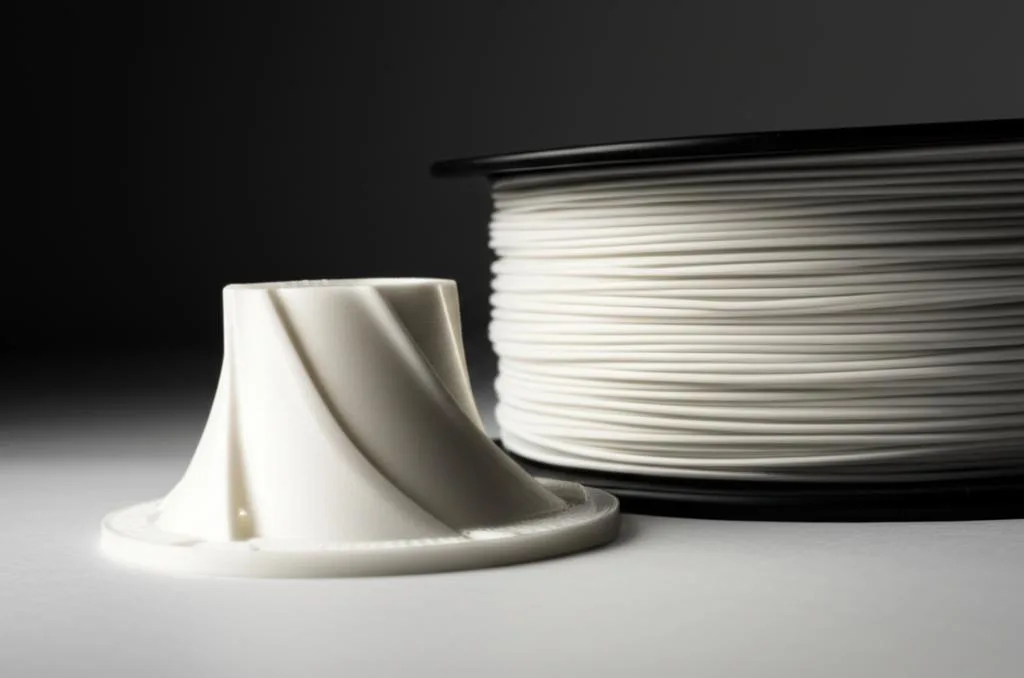

The filament itself plays a significant role in the final surface finish. While often overlooked, investing in quality filament and proper storage can yield substantial improvements.
- Consistency of filament diameter: Cheap or low-quality filament often has inconsistent diameters along its length. This leads to fluctuating extrusion rates, resulting in uneven layers and more visible lines. Opting for reputable brands known for tight manufacturing tolerances can mitigate this.
- Moisture absorption: Many filaments, particularly PETG, Nylon, and ABS, are hygroscopic, meaning they absorb moisture from the air. Wet filament can cause bubbling, popping, and steam during extrusion, leading to voids, stringing, and a generally rough, inconsistent surface finish. Drying your filament in a dedicated dryer or oven before printing is a crucial step for achieving smooth 3D prints.
- Filament additives: Some filaments contain additives (e.g., glitter, carbon fiber, wood particles) that can affect flow characteristics and surface texture. While these can offer unique aesthetics, they might inherently make achieving a perfectly smooth finish more challenging.
Advanced techniques and considerations
For those seeking to push the boundaries of surface quality, advanced firmware features and slicer capabilities offer further avenues for refinement.
Input shaper and pressure advance (Klipper firmware)
These are advanced features, often found in custom firmwares like Klipper, designed to counteract mechanical imperfections and improve extrusion consistency.
- Input shaper: Addresses ringing and ghosting artifacts by compensating for printer vibrations. It involves calibrating the printer's resonant frequencies and applying filters to motor commands. This can dramatically improve the smoothness of vertical walls.
- Pressure advance: Anticipates pressure buildup in the hotend and adjusts extrusion accordingly, ensuring consistent line widths, especially at corners and during changes in print speed. This results in sharper corners and more uniform extrusion, reducing the appearance of layer lines.
- Considerations: Implementing these features requires a deeper understanding of firmware configuration and often additional hardware (e.g., an accelerometer for input shaper calibration), representing a higher investment in time and technical knowledge.
Adaptive layer height
Some advanced slicers offer adaptive layer height functionality, which allows the software to vary the layer height across different sections of a print. This can be particularly useful for models with complex curves and intricate details.
- How it works: The slicer automatically uses finer layer heights for sloped or curved surfaces (where layer lines would be most visible) and thicker layers for vertical or less critical sections (to save print time).
- Benefits: This approach optimizes both print quality and efficiency, achieving smoother transitions on visible surfaces without unnecessarily prolonging the entire print.
Post-processing: A complementary approach
While the goal is to minimize visible layer lines directly from the printer, post-processing techniques remain a viable and often necessary step for achieving truly showroom-quality finishes.
- Sanding: Starting with coarse sandpaper and progressively moving to finer grits can effectively smooth out layer lines. This is a labor-intensive process but highly effective.
- Priming and painting: Applying automotive filler primer and sanding it smooth before painting can completely hide layer lines and provide a flawless surface.
- Chemical smoothing: For certain plastics (e.g., ABS with acetone vapor, PVB with isopropyl alcohol), chemical smoothing can dissolve the outer layer, creating a uniform, glossy finish. This method requires caution and proper ventilation.
- Considerations: Post-processing adds significant time and often material costs (sandpaper, paints, chemicals) to the overall production, but it offers unparalleled control over the final aesthetic.
Conclusion
Eliminating visible layer lines for truly smooth 3D prints is a nuanced journey that extends far beyond simply adjusting layer height. It demands a comprehensive understanding of your printer's mechanics, meticulous calibration of slicer settings, careful selection of filament, and, for the most discerning results, a willingness to explore advanced techniques or even post-processing. Each of the factors discussed—from extrusion multiplier and temperature tuning to vibration dampening and Z-axis stability—plays a critical role. A systematic approach to troubleshooting, combined with patience and a commitment to testing, will ultimately pave the way to consistently achieving those coveted, flawlessly smooth surfaces. By addressing these elements holistically, you empower yourself to unlock the full potential of your 3D printer and elevate the quality of your creations.
